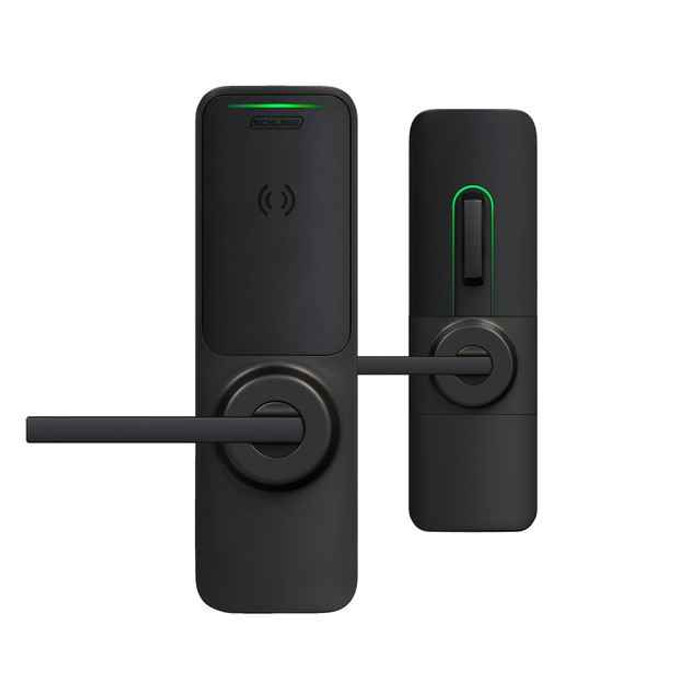

Name: Schlage XE360M Grade 1 Wireless Cylindrical Lock, Bluetooth and NFC Mobile Credential, Privacy/Apartment Function
Brand: Schlage Electronics
SKU: XE360M OFDSM LAT 626
Price: 843.47 USD
Availability: InStock

Product Overview
FAQs

Schlage XE360M Wireless Cylindrical Lock: Grade 1 Multifamily Access Control

The Schlage XE360™ Series is a wireless lock engineered for multifamily properties. Built on a heavy-duty Grade 1 mortise chassis in a cylindrical form factor, the XE360M delivers Bluetooth® Low Energy and NFC mobile credential support, open-architecture software integration, and a field-upgradeable FleX Module™ in a design that suites with other Schlage families across nearly any opening.

Key Features and Benefits

Grade 1 mortise chassis in cylindrical (bored) form factor for high-traffic multifamily applications
Multi-technology reader: supports Schlage MIFARE® smart (13.56 MHz), Bluetooth® LE (2.4 GHz), and NFC mobile credentials
Advanced Encryption Standard (AES) 128- and 256-bit; Bluetooth mobile credential uses AES 256-bit CBC & ECDSA 256
Wireless configuration via connected smartphone or tablet, no laptop or special hardware required
No-Tour and offline access control system compatible
FleX Module™ allows future upgrades to communication type, memory, and encryption without replacing the lock
Open architecture integrates with Allegion software and popular PACS/Proptech platforms via the PACS Alliance program
Compatible with Schlage Control™ and other Schlage wireless locks
Concealed key override standard on all units
Field-reversible handing
Privacy/Apartment function

Chassis Options

Mortise with interior LED indicator (I)
Mortise with interior push button and LED indicator (B)
Mortise deadbolt with interior thumbturn and LED indicator (D)

Credential Technology Support

Smart (13.56 MHz): Schlage MIFARE Classic, MIFARE DESFire EV1, EV2, EV3
Bluetooth® mobile (LE, 2.4 GHz)
NFC mobile

Connectivity and Status Signals

Mobile (Bluetooth® at the lock)
No-Tour via smart or mobile credentials
Status signals: battery level, door position, lock/unlock, request-to-exit

Hardware Specifications

Door thickness: 1-3/4"
Backset: 2-3/4"
Latchbolt: 3/4"
Deadbolt throw: 1"
Armored front: 1-1/4" x 8" x 7/32"
Strike: Standard 1-3/16" curved lip; ANSI strike with 1-1/8" lip
Minimum stile width: 4-1/2"
Materials: All-metal chassis and escutcheon; exterior polycarbonate elements; zinc levers

Cylinder and Keys

Standard: Schlage Classic C Keyway, conventional 6-pin cylinder with two keys
Optional: Schlage S123 Everest 29 S Keyway, conventional 5-pin cylinder with two keys

Electrical and Environmental

Power: 4 AA batteries; up to 2-year battery life (based on default settings, 40 actuations/day)
User capacity: Up to 2,000 (varies by access control software)
Audit capacity: Up to 2,000 (varies by access control software)
Operating temperature, Exterior: -31°F to 151°F (-35°C to 66°C)
Operating temperature, Interior: 32°F to 120°F (0°C to 49°C)
Operating humidity: 0-100% non-condensing
Bluetooth Low Energy version 5

¹ Use of mobile credential is dependent on availability of compatible mobile credential. ² No-Tour applications utilizing Schlage MIFARE smart credentials require a minimum of 1K byte memory. ³ Consult your access control software provider for specific scope of support. ⁴ Maximum storage capacity of lock; can vary by access control software. ⁵ Assuming default settings, 40 actuations per day.

Manufacturer Resources

Product Specs

Series:: XE360 Series
Grade:: Grade 1
Reader Technology:: 2.4 GHz Bluetooth Low Energy, NFC
Product Group:: Mechanical Locks
Product Subgroup:: Bored Locksets
Product Type:: Cylindrical Locks
Commercial/Residential:: Commercial
Electronic:: Yes
Lock Type:: Cylindrical
Power:: 4 AA Batteries
Lock Function:: Privacy/Apartment
Connection Type:: Wireless
Product Attribute:: Electronic Locks
Product Function:: Privacy/Apartment
Door Hand Direction:: Field Reversible
Door Thickness Range:: 1-3/4"
Cylinder Classification:: Conventional Cylinder
Strike Classification:: ANSI Strike, 1-1/8" Lip
Product Category:: Electronic Locks
Department:: Door Hardware
Collection:: XE360_Series

Schlage Electronics XE360M OFDSM LAT 626 – Frequently Asked Questions

1) Will the Schlage XE360M fit my apartment doors, and what door thickness does it need?

The XE360M is built for 1-3/4 inch doors only, with a 2-3/4 inch backset and a 4-1/2 inch minimum stile width. It is not a range-adjustable lock, so a 1-3/8 inch older interior door or a narrow stile aluminum door is out. If your multifamily unit doors are standard 1-3/4 inch wood or hollow metal with a 2-3/4 inch backset prep, it drops in. Handing is field reversible, so you order one lock for both left and right hand openings.

2) Will the XE360M latch into the strike already in my frame?

Two strikes are covered: a standard 1-3/16 inch curved lip strike and an ANSI strike with a 1-1/8 inch lip. The latchbolt throws 3/4 inch and the deadbolt throws a full 1 inch, so the frame needs a deadbolt pocket deep enough for that 1 inch bolt. A frame prepped only for a cylindrical latch with no deadbolt strike hole will need to be drilled or a new ANSI strike installed.

3) What does Privacy/Apartment function mean on a Schlage XE360M, and is it right for unit entry doors?

Privacy/Apartment is the multifamily unit door function: the resident secures the door from inside, and access from the corridor side is by credential or the concealed key override. It is what you put on the apartment door itself, not on a bed/bath door and not on a classroom or storeroom opening. If you need a keypad classroom or intruder function instead, the TownSteel XCE-9000 Series is a Grade 1 classroom intruder cylindrical lockset for 1-3/4 to 2 inch doors.

4) How do residents get in without a fob, and what credentials does the XE360M read?

The reader is multi-technology: Schlage MIFARE smart cards at 13.56 MHz (Classic, DESFire EV1, EV2 and EV3), Bluetooth LE mobile at 2.4 GHz, and NFC mobile. So a resident can use their phone, a card, or nothing but the concealed key override if the batteries are dead. Bluetooth is version 5, and mobile credentials run AES 256-bit CBC with ECDSA 256.

5) What do I have to specify when ordering a Schlage XE360M?

Four decisions. Chassis: interior LED indicator (I), interior push button with LED (B), or mortise deadbolt with interior thumbturn and LED (D). Lever style: Broadway, Latitude, Longitude-Extended, or Neptune (Sparta). Finish: 619 satin nickel, 622 matte black, or 626 satin chrome, and all three are available on every one of the four lever styles. Cylinder: standard is Schlage Classic C keyway, conventional 6-pin with two keys; optional is Everest 29 S123 S keyway, conventional 5-pin with two keys. Handing you do not specify, it reverses in the field.

6) Can I key the XE360M into the master key system already running in my building?

Yes, on Schlage keyways. The concealed key override takes a conventional 6-pin cylinder in Schlage Classic C as standard, or a conventional 5-pin in Everest 29 S123 S keyway as an option, both supplied with two keys. Conventional cylinder, not interchangeable core, so if your building is standardized on SFIC this lock is not a match for that system. Every unit ships with the key override, so a locksmith always has mechanical access to the apartment.

7) The doors are 2 inches thick. What Grade 1 electronic cylindrical lock works if the Schlage XE360M does not?

The XE360M is built for a 1-3/4 inch door. Where the leaf runs thicker, the TownSteel XCE-2000 is a Grade 1 heavy duty electronic cylindrical lockset with keypad rated 1-3/4 to 2 inch, and the TownSteel XCE-9000 is a Grade 1 heavy duty electronic classroom intruder cylindrical lockset with keypad over the same 1-3/4 to 2 inch range. The SDC E75 battery-powered electronic cylindrical lockset with keypad access control covers 1-3/4 to 2-1/8 inch. All three are keypad locks rather than card and mobile credential readers, so the credential plan changes with the door.

8) What is the closest Grade 1 electronic cylindrical lock to the Schlage XE360M if the apartment doors need a keypad instead of a phone credential?

The XE360M is a Grade 1 cylindrical lock that reads Schlage MIFARE smart cards, Bluetooth LE and NFC mobile credentials, with no keypad on the exterior. For a keypad-entry opening, the Alarm Lock Trilogy 4100 is a Grade 1 electronic cylindrical lock with a digital keypad and a Privacy/Bed/Bath function, and the Alarm Lock Trilogy T2 DL2700 is a Grade 1 standalone electronic cylindrical lock with 100 user codes and IC/SFIC compatibility. The two Alarm Lock units fit doors 1-5/8 to 1-7/8 inch thick, while the XE360M is built for a 1-3/4 inch door. The trade is credential type: the XE360M carries up to 2,000 users and audits through access control software, the DL2700 carries 100 user codes at the door.

9) Is there a Bluetooth smart lock other than the Schlage XE360M for apartment unit doors?

The CENTRIOS CEB100 is a Grade 1 smart Bluetooth cylindrical lock with a Privacy function, which is the same broad application as the XE360M Privacy/Apartment function on a Grade 1 cylindrical chassis. The XE360M adds NFC mobile and Schlage MIFARE smart card credentials alongside Bluetooth LE, a concealed key override on every unit in Schlage Classic C or Everest 29 S keyway, and a FleX Module that lets communication type, memory and encryption be upgraded later without pulling the lock off the door. Specify the CEB100 where Bluetooth alone covers the credential plan; specify the XE360M where cards and phones both have to work at the same door.

10) We need RFID card access on classroom doors, not apartment doors. What replaces the Schlage XE360M there?

The XE360M is a Privacy/Apartment function lock, which is the wrong function for a classroom opening. The TownSteel FCE-2000 is a Grade 1 standalone motorized cylindrical lockset with RFID technology in a Classroom function, and the TownSteel FCE-4000 is a Grade 1 RFID electronic classroom cylindrical lockset with an intruder function for lockdown from inside the room. Both are heavy duty and set for a 1-3/4 inch door, the same door thickness the XE360M is built for, so the door prep assumption carries over.

11) What do I use instead of the Schlage XE360M if the lock has to be released from an access control panel with 12/24VDC?

The XE360M is a battery-powered wireless lock running on 4 AA batteries, with credentials read at the door rather than a wired release from a panel. For a hardwired opening, the SDC Electra 7200 Series is a solenoid controlled cylindrical lock with dual voltage 12/24VDC, fitting doors 1-3/4 to 2 inch thick. The 7200 needs power run to the door and a transfer hinge or power loop; the XE360M needs neither, which is the usual reason it is chosen for retrofit on existing unit doors.

12) We standardize on small format interchangeable core. Does the Schlage XE360M work, or is there another electronic cylindrical lock?

The XE360M uses a conventional cylinder: Schlage Classic C keyway with a conventional 6-pin cylinder and two keys as standard, or Schlage S123 Everest 29 S keyway with a conventional 5-pin cylinder as an option, in a concealed key override. For a facility keyed on SFIC, the Alarm Lock Trilogy T2 DL2700 is a Grade 1 standalone electronic cylindrical lock that is IC/SFIC compatible, and the BEST 9KZ EZ Series is an electronic keypad cylindrical lock with a key override function. Both are keypad locks; the XE360M reads cards and mobile credentials.

13) Is a Grade 1 cylindrical electronic lock durable enough for apartment turnover traffic?

The XE360M is Grade 1 and uses a heavy-duty mortise chassis inside a cylindrical (bored) form factor, which is heavier than a typical bored lock body. The chassis and escutcheon are all metal, levers are zinc, and only the exterior reader elements are polycarbonate. The armored front measures 1-1/4 x 8 x 7/32 inches. It is a commercial lock, not a residential one.

14) What powers the XE360M and how often will my maintenance team be changing batteries?

Four AA batteries, with up to two years of life based on default settings and 40 actuations per day. The lock reports battery level as a status signal back to your access control software along with door position, lock/unlock state, and request-to-exit, so you replace on a warning instead of on a schedule. No wiring to the door, no power transfer hinge, no door loop.

15) Can I mount the XE360M on an exterior corridor or breezeway door?

The exterior side is rated from -31F to 151F (-35C to 66C) and the interior side from 32F to 120F (0C to 49C), with 0 to 100 percent non-condensing humidity. So an open breezeway or exterior corridor entry works, provided the inside face stays above freezing. An unconditioned space where the interior trim drops below 32F is outside what the lock is rated for.

16) Will the XE360M work with the access control or property management software we already use?

It runs open architecture: Allegion software plus PACS and proptech platforms through the PACS Alliance program, and it works with offline and No-Tour access control systems. No-Tour means credential changes are carried to the lock by the resident's smart or mobile credential rather than by a tech walking every door. Capacity is up to 2,000 users and up to 2,000 audit records, though your software vendor sets the practical ceiling. Configuration is done from a phone or tablet, no laptop required.

17) Can I add the XE360M to a property that already runs Schlage Control locks?

Yes. The XE360 Series works alongside Schlage Control and other Schlage wireless locks, and the trim suites with other Schlage families, so a partial retrofit does not leave the building with mismatched hardware on adjacent openings. The FleX Module can be swapped in the field to change communication type, memory, or encryption later, which means a lock installed today does not have to come off the door when the credential platform moves on.

18) Should I use a mobile credential lock like the XE360M or a keypad lock for apartment doors?

Choose by how you issue and revoke access. The XE360M reads phone and card credentials and reports audits back to software, so a turnover is a revoked credential rather than a re-key or a code change on every door. A standalone keypad lock is simpler and needs no software: the Alarm Lock Trilogy 4100 is a Grade 1 keypad cylindrical lock with a privacy function for 1-5/8 to 1-7/8 inch doors, and the BEST 9KZ EZ Series keypad lock includes key override. Those suit a small portfolio with no access control platform. For hundreds of units and remote issuance, the credential lock is the one that scales.

19) What is a Bluetooth alternative to the Schlage XE360M for a cylindrical opening?

The CENTRIOS CEB100 Series is a Grade 1 smart Bluetooth cylindrical lock with a privacy function, which puts it in the same class of opening and function. The difference to weigh is credential breadth and platform: the XE360M also reads MIFARE smart cards at 13.56 MHz and NFC mobile, and integrates through Allegion software and the PACS Alliance program, so it fits a property already standardized on a Schlage or PACS platform.

20) Which XE360M chassis option do I order if residents need to lock the door from inside without a credential?

That is the B chassis, mortise with an interior push button and LED indicator, or the D chassis, mortise deadbolt with an interior thumbturn and LED. The D gives the resident a 1 inch deadbolt throw they set by hand. The I chassis is mortise with an interior LED indicator only, no interior locking control, so pick that one only where securing from inside is not part of the function.

21) What is a mechanical alternative to the Schlage XE360M for apartment unit doors that do not need access control?

For a unit door with no credential management, the Cal-Royal CAL20 is a Grade 1 extra heavy duty privacy lock in the Calypso Series with a Privacy/Bed/Bath function, fitting doors 1-3/8 to 2 inch thick. It matches the XE360M on Grade 1 durability and on the privacy application, and drops the electronics entirely: no batteries, no software, no audit trail. The XE360M runs on 4 AA batteries with wireless configuration from a phone or tablet and stores up to 2,000 users and 2,000 audit events. Choose the CAL20 for openings a mechanical privacy set closes out, and the XE360M where the unit has to be rekeyed remotely between tenants.

22) Is the Kwikset SmartCode 912TNL a substitute for the Schlage XE360M on a multifamily unit door?

They are not equivalents. The Kwikset 912TNL ZW500 SmartCode electronic Tustin lever uses Z-Wave technology in a Keyed One Side function for doors 1-3/8 to 2 inch thick. The XE360M is a Grade 1 Commercial lock with Bluetooth LE and NFC mobile plus MIFARE smart card credentials read at the lock, a concealed key override on every unit, and open architecture integration with Allegion software and PACS platforms through the PACS Alliance program. A Z-Wave lock reports to a hub; the XE360M is specified where the property runs a commercial access control or proptech platform across the doors.

23) Which lock covers the corridor and common doors if the Schlage XE360M goes on the unit doors?

The XE360M is a Privacy/Apartment function lock for the unit door. Common and office doors take a different function: the Dorma C853 is a Grade 1 entry keyed single cylinder lever lockset in an Entrance function for doors 1-3/8 to 2-1/4 inch, the Dorma C150 is a Grade 1 heavy duty cylindrical lock in an Entrance/Office function over the same 1-3/8 to 2-1/4 inch range, and the Marks USA 195N is a Grade 1 Survivor Series passage lever, ADA compliant, for a door that latches without locking. All three are Grade 1 like the XE360M, so a property can hold one durability standard across the building while the function changes by opening.

24) Is the Orca OCL240 privacy lockset the same thing as the Schlage XE360M in privacy function?

The function label matches but the locks do not. The Orca OCL240 is a Grade 2 medium duty privacy cylindrical lockset in a Privacy/Bed/Bath function, mechanical and non-keyed. The XE360M is a Grade 1 lock on a mortise chassis in cylindrical form with an all-metal chassis and escutcheon, zinc levers, Bluetooth LE and NFC mobile plus MIFARE smart credentials, and a concealed key override. For a high-traffic multifamily corridor door where the specification calls Grade 1 and the property manages tenant turnover through software, the OCL240 does not meet the same requirement.

25) Do any of the electronic cylindrical locks comparable to the Schlage XE360M offer a double-sided reader for a door controlled from both faces?

The Alarm Lock DL5200 is a double-sided electronic cylindrical lock with 100 user capacity and battery operation, fitting doors 1-5/8 to 1-7/8 inch thick, for an opening that has to be credentialed from both faces. The XE360M reads at the exterior and offers three interior chassis options instead: mortise with interior LED indicator, mortise with interior push button and LED indicator, and mortise deadbolt with interior thumbturn and LED indicator. On an apartment unit door the interior thumbturn or push button is what the resident uses; the DL5200 answers a different opening, where both sides are controlled.

26) If audit trail is the reason for going electronic, how does the Schlage XE360M compare with the Alarm Lock T3?

The Alarm Lock T3 DL3075 is a Grade 1 electronic cylindrical lock with audit trail and keypad access, holding its records at the lock and read out by the keypad workflow. The XE360M stores up to 2,000 audit events and up to 2,000 users, with capacity varying by access control software, and moves data by No-Tour through smart or mobile credentials or over Bluetooth at the lock from a phone or tablet. It also reports status signals for battery level, door position, lock/unlock and request-to-exit. Both are Grade 1; the difference is whether the audit is pulled at the door by keypad or carried by credential into the access control platform.

27) Can a Lockey keypad lever lock stand in for the Schlage XE360M on unit doors?

The Lockey E985 and E995 are electronic keypad lever locks with remote control and key override, both fitting doors 1-3/8 to 1-3/4 inch thick, and the Lockey 1600 is a heavy duty mechanical keyless knob lock with adjustable backset for 1-1/8 to 2 inch doors. These are code-entry and mechanical-code locks sized to a range of doors. The XE360M is a Grade 1 Commercial lock on a 1-3/4 inch door with a 2-3/4 inch backset, a 3/4 inch latchbolt, a 1 inch deadbolt throw and a 4-1/2 inch minimum stile width, and it reads cards and mobile credentials rather than codes. For a property running credentials through access control software, the Lockey units do not replace it.

28) Does the Stanley QCL200 use the same ANSI strike prep as the Schlage XE360M?

The Stanley Security QCL200 cylindrical lock is furnished keyed different in the SC keyway with a 118F ANSI 1-1/8 inch x 2-3/4 inch strike. The XE360M takes an ANSI strike with a 1-1/8 inch lip, or a standard 1-3/16 inch curved lip strike, on a 2-3/4 inch backset. The lip dimension is common, so an existing ANSI strike prep is generally the starting point for either. The XE360M differs in being a wireless Grade 1 lock with a mortise chassis, mortise deadbolt options and a 1 inch deadbolt throw, which changes the door prep beyond the strike.

29) For a storeroom or maintenance door in a property using the Schlage XE360M on units, what lock matches?

A storeroom opening needs a keyed storeroom function rather than the Privacy/Apartment function the XE360M carries. The Marks USA 175RF SFIC is a Grade 2 storeroom clutched lever lockset supplied less core for small format interchangeable core, with a 2-3/4 inch backset and ANSI strike. That backset and strike type line up with the XE360M, which uses a 2-3/4 inch backset and an ANSI strike with a 1-1/8 inch lip, so the door prep is familiar across the two.

30) Do the XE360M levers match the finishes on my existing Schlage doors?

Three finishes are offered, 619 satin nickel, 622 matte black, and 626 satin chrome, across four lever styles: Broadway, Latitude, Longitude-Extended, and Neptune (Sparta). 626 satin chrome is the common commercial standard, so it is usually the match for existing Grade 1 openings, and the trim suites with other Schlage families for buildings mixing electronic and mechanical hardware on the same corridor.

31) What is the difference between the Schlage XE360M and a dummy or passage trim for the closet and stair doors in the same building?

Those openings do not need a credentialed lock. The Dorma C501 is a Grade 2 single dummy trim keyless lever lockset for 1-3/8 to 1-3/4 inch doors, the Dorma CL701 is a Grade 2 single dummy non-keyed cylinder lever lockset in a Passage/Hall/Closet function, and the Cal-Royal CAL30 is a Grade 1 extra heavy duty passage lock in a Passage/Hall/Closet function for 1-3/8 to 2 inch doors. The XE360M is a Grade 1 Privacy/Apartment electronic lock on a 1-3/4 inch door and is specified where the opening is credentialed, not where it simply latches or pulls.
