Schlage Electronic XE360M - Gr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,101.00
$807.96

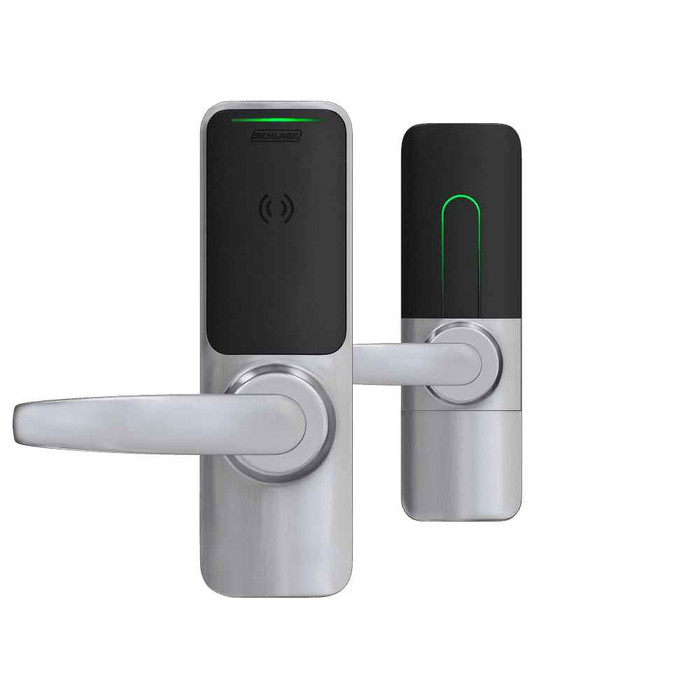

Copy of Schlage Electronic XE360M - Grade 1 Wireless Tubular Lock, Smart Bluetooth and NFC Mobile Reader, LED Indicator

Schlage Electronic XE360M - Grade 1 Wireless Mortise Lock, Smart Bluetooth and NFC Mobile Reader, LED Indicator

(No reviews yet) Write a Review

Model: XE360M OFISM NEP 626
From the XE360_Series Collection
Selected Finish is
Selected Lever Style is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,101.00
$807.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Overview:

Building upon the innovation and reliability of Schlage electronic locks, the XE360 Series is the next generation of wireless locks from this trusted brand. The sleek design offers customers a solution that looks as good as it performs – at an affordable price point. XE360 currently works within No-Tour or offline access control systems. Credential support includes smart, Bluetooth and NFC mobile1.
The open architecture design of the XE360 allows it to be managed by Allegion software or be integrated into popular physical access control and Proptech systems through our PACS Alliance program. This enables customers to choose what best fits their requirements now and transition to another solution at any time.
The XE360 Series is also available as mortise, mortise deadbolt or exit trim and suites with other Schlage families to provide a wide selection of attractive options to meet the requirements of nearly any opening



Features:

Next level design inside and out
• Credential support includes Schlage MIFARE®, Bluetooth® and NFC mobile1
• Available with LED indicator or interior push button LED with indicator
• Advanced encryption keeps data and communications safe
• Wireless configuration using connected smartphones or tablets
• No-Tour or offline system capability
• Ready for the future with the innovative FleX ModuleTM that allows for communication type, memory and encryption upgrades
• Exceeds Grade 2 testing for exceptional quality and reliability
• Open architecture – interoperable and simple for software alliances to integrate
• Works seamlessly with other Schlage wireless locks, including Schlage Control2
• Uniquely concealed key override standard on all locks

Manufacturer Resources

Product Specs

Series:
XE360 Series
Grade:
Grade 1
Reader Technology:
2.4 GHz Bluetooth Low Energy
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Cylindrical Locks
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Cylindrical
Power:
4 AA Batteries
Lock Function:
Classroom/Storeroom
Connection Type:
2.4 GHz Bluetooth Low Energy
Product Attribute:
Electronic Locks
Product Function:
Classroom/Storeroom
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Cylinder Classification:
Conventional Cylinder
Strike Classification:
ANSI Strike, 1-1/8" Lip
Product Category:
Electronic Locks
Department:
Door Hardware
Collection:
XE360_Series

Schlage Electronics XE360M OFISM NEP 626 – Frequently Asked Questions

1) Do I have to order the XE360M handed, or can it be reversed in the field?
Field reversible, so one lock covers both hands. You don't specify handing on the order, and a property manager stocking spares only needs one part number across left and right hand openings.
2) What does the Classroom/Storeroom function on the Schlage XE360 do at the door?
Classroom/Storeroom means the outside lever stays locked and a valid credential or the key retracts the latch; the inside lever always gives free egress. It's the function you want on a storeroom, an IT closet, or a classroom door that should never be left unsecured by someone walking through it. If you need a privacy function for a restroom or a bed/bath opening instead, the Alarm Lock Trilogy 4100 and the Cal-Royal CAL20 are privacy locks, and the Cal-Royal CAL30 is a passage set with no locking at all.
3) What credentials does the Schlage XE360 read, and do I need a card for every user?
The reader takes Schlage MIFARE smart credentials plus Bluetooth and NFC mobile, so a resident or staff member can carry a card, a fob, or their phone. Communication runs on 2.4 GHz Bluetooth Low Energy, which is also how you configure the lock from a phone or tablet rather than at a keypad. If your site standardizes on PIN entry instead of credentials, keypad locks are a different animal: the Alarm Lock Trilogy DL2700, the TownSteel XCE-2000, and the SDC E75 are keypad-based cylindrical locks.
4) Does the XE360 need to be wired, or does it run on batteries?
Four AA batteries, no wiring to the door. That's the whole point of the platform: it runs No-Tour or offline access control, so there's no hardwired panel run, no power transfer hinge, and no door loop to pull. If you do have power at the opening and want a wired, panel-controlled lock, the SDC Electra 7200 is a solenoid controlled cylindrical lock on 12/24VDC.
5) Will the XE360 drop into my existing strike, or do I have to reprep the frame?
The lock uses an ANSI strike with a 1-1/8 inch lip. If the frame is already prepped for an ANSI strike, which is what most commercial hollow metal frames carry, the strike lands in the existing cutout. On a frame prepped for a smaller residential strike you're looking at frame work regardless of which commercial lock you buy.
6) What is the closest Grade 1 electronic classroom lockset to the Schlage XE360M for a 1-3/4 inch door?
The TownSteel FCE-2000 is the nearest peer in duty and opening: it is a Grade 1 standalone motorized cylindrical lockset with a Classroom function and a 1-3/4 inch door thickness, matching the XE360M's Grade 1 rating, Classroom/Storeroom function and 1-3/4 inch door thickness. The credential path differs - the XE360M reads Schlage smart, Bluetooth and NFC mobile credentials over 2.4 GHz Bluetooth Low Energy, while the FCE-2000 is an RFID lockset. Choose on which credential your access control program already issues.
7) If I do not want mobile credentials, what keypad lock covers the same classroom opening?
The TownSteel XCE-2000 is a Grade 1 electronic cylindrical lockset with a keypad, Classroom function and a 1-3/4 inch to 2 inch door thickness range, so it covers the same 1-3/4 inch classroom door the Schlage XE360M does while entry is by code at the door rather than by the smart, Bluetooth or NFC mobile credential the XE360M reads. The Alarm Lock Trilogy T2 DL2700 is another keypad option, Grade 1 with 100 user codes and IC/SFIC compatibility, though its door thickness range is 1-5/8 inch to 1-7/8 inch.
8) For a classroom that needs lockdown from inside the room, what should I use instead of the XE360M?
The Schlage XE360M is a Classroom/Storeroom function lock, which is secured from the outside. For an intruder-function opening where staff lock down from within the classroom, the TownSteel FCE-4000 is an RFID electronic intruder classroom cylindrical lockset, Grade 1, on a 1-3/4 inch door, and the TownSteel XCE-9000 is the keypad equivalent, Grade 1 electronic classroom intruder, 1-3/4 inch to 2 inch door thickness. Both carry the same Grade 1 rating as the XE360M.
9) Can I run an XE360M on a hardwired access control door with a card reader and power supply?
The XE360M is battery powered on 4 AA batteries and communicates over 2.4 GHz Bluetooth Low Energy, so it is a wireless opening rather than a wired one. For a door already fed by a panel and power supply, the SDC Electra 7200 is a solenoid controlled cylindrical lock running on dual voltage 12/24VDC with a 1-3/4 inch to 2 inch door thickness range, which covers the same 1-3/4 inch door. The SDC E75 is the battery-powered keypad lockset in that same family, with a 1-3/4 inch to 2-1/8 inch door thickness range.
10) Is the CENTRIOS CEB100 Bluetooth lock a substitute for the Schlage XE360M?
They are not interchangeable by function. Both are Grade 1 Bluetooth cylindrical locks, but the CENTRIOS CEB100 is a Privacy function lock, meant for a door secured from the inside, while the XE360M is Classroom/Storeroom and is controlled from the outside as an access-controlled opening. On a classroom, storeroom or any door on an access control program, the Privacy function will not do the job. The Kwikset 912TNL SmartCode with Z-Wave is likewise a different animal: it is a Keyed One Side function on a 1-3/8 inch to 2 inch door and runs Z-Wave rather than the 2.4 GHz Bluetooth Low Energy the XE360M uses.
11) Will an XE360M work on a 1-3/8 inch door?
The Schlage XE360M is built for a 1-3/4 inch door thickness. On a thinner leaf, the Cal-Royal CAL20 privacy and CAL30 passage locks are Grade 1 and cover 1-3/8 inch to 2 inch, and the Dorma C150 Grade 1 entry/office cylindrical lock covers 1-3/8 inch to 2-1/4 inch. Among the electronic options, the Lockey E985 and E995 keypad lever locks cover 1 3/8 inch to 1 3/4 inch. Confirm the leaf thickness before you order rather than after.
12) What finish and lever style choices do I have to specify when ordering the Schlage XE360?
Two decisions on the order form. Finish comes in 619 Satin Nickel, 622 Matte Black, or 626 Satin Chrome. Lever style comes in BRW Broadway, LAT Latitude, LONE Longitude-Extended, or NEP Neptune (Sparta). Every lever is offered in all three finishes, so you can match an existing lever profile across a building without giving up the finish. The XE360 also suites with other Schlage families, which is how you get matching trim on the openings that don't need an electronic lock.
13) Can I add the XE360 to a building that already has Schlage wireless locks?
Yes. Schlage states the XE360 works with its other wireless locks, including Schlage Control, so you can extend an existing deployment rather than start a second system. The FleX Module is the other half of that: it lets you upgrade communication type, memory, and encryption later, so a lock installed today on an offline setup can move when the software behind it does.
14) Should I use the XE360 cylindrical lock or the mortise version?
The XE360 is offered as a cylindrical lock, and the series is also built as mortise, mortise deadbolt, and exit trim. Go cylindrical when the door is already bored for a standard cylindrical lockset, which covers most existing commercial openings and is the faster retrofit. Go mortise when the door carries a mortise pocket already, or the spec calls for a mortise body. Exit trim is the answer when the door has an exit device on it and you're only replacing the outside trim, not the lock.
15) What is a comparable electronic classroom lock to the Schlage XE360 if I need something other than a Bluetooth credential reader?
For a card-based alternative, the TownSteel FCE-2000 is a Grade 1 standalone motorized cylindrical lockset with RFID, classroom function, rated for 1-3/4 inch doors, the same thickness as the XE360. The FCE-4000 is the RFID intruder classroom version. If you want PIN entry, the TownSteel XCE-9000 is a keypad classroom intruder lock covering 1-3/4 to 2 inch doors, and the Alarm Lock T3 DL3075 adds an audit trail on a keypad. The Accentra nexTouch NTB613 is a Grade 1 cylindrical keypad lock with pushbutton entry.
16) My existing hardware is keyed on small format interchangeable cores. Which electronic locks work with that?
The XE360M uses a conventional cylinder and carries a concealed key override standard on every lock. If the facility is standardized on interchangeable cores, the Alarm Lock Trilogy T2 DL2700 is a Grade 1 standalone electronic cylindrical lock that is IC/SFIC compatible, and the BEST 9KZ EZ Series is an electronic keypad cylindrical lock with a key override function. Note the DL2700's door thickness range is 1-5/8 inch to 1-7/8 inch against the XE360M's 1-3/4 inch.
17) I need audit trail on the door. What are my options against the XE360M?
The Alarm Lock T3 DL3075 is a Grade 1 electronic cylindrical lock with audit trail and keypad access, so the record lives in the lock and is pulled at the door. The Schlage XE360M takes a different route: it works within No-Tour or offline access control systems and is configured wirelessly from a connected smartphone or tablet over 2.4 GHz Bluetooth Low Energy, with open architecture that lets it be managed by Allegion software or integrated into a third-party access control platform. Pick by whether you want the door managed from software or handled lock by lock.
18) What is the mechanical equivalent if the opening does not need electronics at all?
For a keyed storeroom or entrance door where no credential management is wanted, the Marks USA 195RAB is a Grade 1 Survivor Series entry clutched lever lockset with an Entrance/Office function and less core, and the Dorma C853 is a Grade 1 entry keyed single cylinder lever lockset with a 1-3/8 inch to 2-1/4 inch door thickness range that spans the XE360M's 1-3/4 inch door. Both give the Grade 1 duty the XE360M carries with a key at the door instead of a Bluetooth or NFC mobile credential.
19) Is there a keyless option that does not need batteries or wiring?
Yes, though it is a different class of hardware. The Lockey 1600 is a heavy duty mechanical keyless knob lock with an adjustable backset and a 1-1/8 inch to 2 inch door thickness range, and the Lockey 2830 is a mechanical pushbutton keyless knob lock with an auto-locking passage function over the same 1-1/8 inch to 2 inch range. Neither carries a credential or an electronic audit path - the Schlage XE360M runs on 4 AA batteries and reads Schlage smart, Bluetooth and NFC mobile credentials, so if the door is on an access control program the mechanical pushbutton locks do not replace it.
20) Is the Accentra nexTouch NTB613 the same kind of lock as the Schlage XE360M?
Both are Grade 1 cylindrical electronic locks, but they get a user through the door differently. The Accentra nexTouch NTB613 is a keypad lock with pushbutton entry, so credentials are codes punched at the door. The Schlage XE360M reads Schlage smart, Bluetooth and NFC mobile credentials over 2.4 GHz Bluetooth Low Energy and is configured wirelessly from a phone or tablet. If a facility is issuing mobile credentials or phone-based access, the keypad lock will not accept them; if you are handing out codes to a small group, it will.
21) Which electronic lock should I use on a restroom or dorm room where the occupant secures the door from inside?
Not the Schlage XE360M - it is a Classroom/Storeroom function lock. For a privacy opening the Alarm Lock Trilogy 4100 is a Grade 1 electronic cylindrical lock with a Privacy/Bed/Bath function and a keypad, on a 1-5/8 inch to 1-7/8 inch door, and the CENTRIOS CEB100 is a Grade 1 smart Bluetooth cylindrical lock with a Privacy function if you want the Bluetooth credential path on that door.
22) Does the Marks USA 175RF storeroom lever match the XE360M's function for a storeroom door?
It matches on function but not on duty or credential. The Marks USA 175RF SFIC is a storeroom clutched lever lockset with a 2-3/4 inch backset and an ANSI strike, rated Grade 2. The Schlage XE360M is Grade 1 with a Classroom/Storeroom function and an ANSI strike with a 1-1/8 inch lip. On a high-traffic storeroom specified Grade 1, the 175RF will not meet that line on the drawing; on a lower-traffic door where a keyed storeroom lever is all that is wanted, it will.
23) Does the Schlage XE360 come with an indicator so staff can see whether the door is locked?
An LED indicator is available, and there's also a version with an interior push button plus indicator LED. The push button matters on a classroom or an office where someone inside needs to secure the door from the inside without a key, and the indicator is what tells them it took.
24) I need a lock that manages users from both sides of the door. What covers that?
The Alarm Lock DL5200 is a double-sided electronic cylindrical lock with 100 user capacity and battery operation, on a 1-5/8 inch to 1-7/8 inch door thickness range - it controls both faces of the opening. The Schlage XE360M is a single-reader Classroom/Storeroom lock on a 1-3/4 inch door, credentialed on the outside with a concealed key override standard on every lock. Confirm the door thickness against the DL5200 range before ordering.
25) What do I put on the inactive leaf or a pull-only door in the same lever family run?
A dummy or passage trim, not a credentialed lock. The Dorma C501 is a Grade 2 single dummy keyless lever lockset for 1-3/8 inch to 1-3/4 inch doors, the Dorma CL701 is a Grade 2 single dummy non-keyed lever, and the Orca OCL2170 is a Grade 2 half dummy lever. For a latching but non-locking door, the Marks USA 195N is a Grade 1 Survivor Series passage lever that is ADA compliant. The Schlage XE360M is a Classroom/Storeroom lock and is not the right part for a door that never needs to secure.
How fast can I get the Schlage Electronics XE360M OFISM NEP 626 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Schlage Electronics XE360M OFISM NEP 626 come with a warranty?
Absolutely. The Schlage Electronics XE360M OFISM NEP 626 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Schlage Electronics XE360M OFISM NEP 626?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Schlage Electronics XE360M OFISM NEP 626 from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
