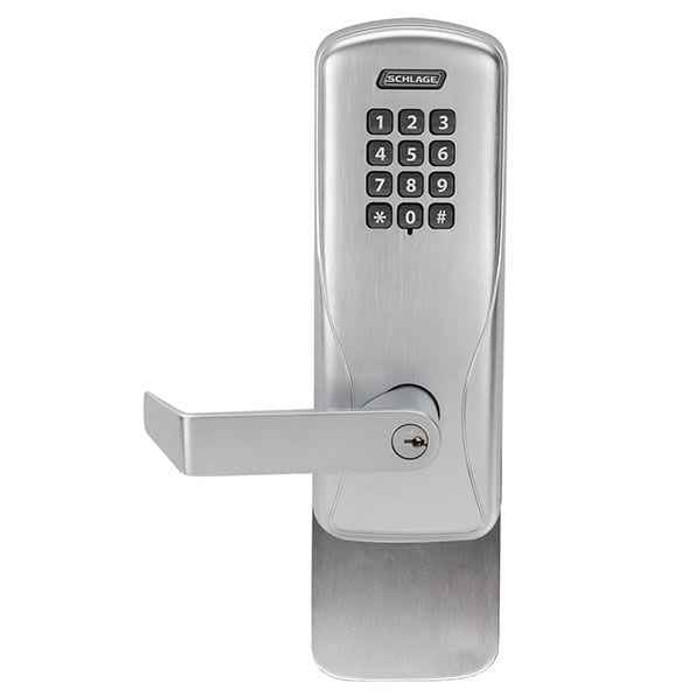

Schlage Electronics CO-200 Standalone Electronic Surface Vertical Rod Exit Device Trim, Classroom/Storeroom Function, Keypad Reader

No cylinder ships with the CO-200 electronic exit trim. You order the cylinder prep you need: B for less cylinder taking Schlage, Falcon or competitive OEM 7-pin SFIC, J for Schlage 6-pin FSIC, L for Schlage or Falcon 6-pin KIL, or P for a Schlage standard conventional cylinder. Only the P option is a cylinder; the other three are preps you fill from your own keying system.

It is built for 1-3/4 inch doors, the standard commercial thickness. The trim is field reversible, so one part number covers either hand without a returns headache on a mixed building.

Classroom/storeroom means the outside lever stays locked and a valid credential at the keypad retracts the latch for entry. Egress from the inside is always free through the exit device push bar. That is the function schools and stock rooms specify so a door is never left unsecured by someone walking away from it.

The standard latch is a 1-1/8 by 2-1/4 inch square corner deadlatch, and the supplied strike is an ANSI 1-1/4 by 4-7/8 inch with a 1-3/16 inch lip, no box. If your frame already carries an ANSI 4-7/8 inch strike prep, you are dropping into the same cutout.

No. It is a standalone battery lock running on four AA cells, so there is no wiring, no power transfer hinge and no panel. Program it manually at the lock or with PC-based Schlage Express software, pushing downloads through the Schlage Utility Software mobile app on a compatible Android device with the SUS-A cable.

The CO Series carries ANSI/BHMA Grade 1, UL 10C, UL 294, UL Canada, FCC Part 15 and ADA. The 70 function is listed to ANSI/BHMA A156.25 full outdoor. As exit trim it meets ANSI/BHMA A156.3.

Use a dummy lever exit trim such as the Stanley Security QET120, a Grade 1 heavy-duty exit trim with a dummy lever in ANSI function 02. The Schlage CO-200 surface vertical rod exit device trim is a battery-operated electronic trim with a keypad reader, classroom/storeroom function, that controls whether the outside lever retracts the latch. The QET120 dummy lever does not retract anything - the door is exited from the push side only. Choose the CO-200 trim when credentialed re-entry is required, and the QET120 when the outside needs a fixed lever with no operation.

The Schlage CO-200 993S is trim only, built to mount on a surface vertical rod exit device. If you are specifying the device, the Stanley Security QED111EDX is a Grade 1 heavy-duty rim exit device with hex dogging, electric dogging and request-to-exit (RX) signalling. Note the QED111EDX is a rim device, so it pairs with rim trim rather than the surface vertical rod configuration the CO-200 993S is built for. Confirm the device type on the opening before ordering the trim.

Up to 2,000 users with an audit trail of up to 2,000 events, so you can pull who opened the door and when. Credentials can be a 3 to 6 digit PIN, and the lock supports holidays and time zones for scheduled auto lock and unlock.

2-3/4 inch backset, which is the usual commercial backset for Grade 1 openings. It is a heavy duty commercial trim, not a residential lock.

Six lever styles: Athens, Latitude, Longitude, Rhodes, Sparta and Tubular. Seven finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 619 satin nickel, 625 bright chrome, 626 satin chrome and 643E aged bronze. Match the lever and finish already on your corridor doors and the opening reads as one set.

Yes. CO-200 runs in the same offline system as AD-200, CO-220 and CT5000, managed through Schlage Express software, and it works with the same credential used on the building perimeter. Select PACS alliance members also support the CO-200 with lock schedules and audits.

The CO-100 is keypad programmable only. The CO-200 adds computer programming, credential types beyond PIN (proximity and magnetic stripe cards), optional dual authentication card plus PIN, up to 2,000 users and a full audit trail. If you need to know who went through the door, you need the CO-200.

If there is no access control requirement, mechanical dummy exit trim is the simpler buy. The Stanley Security QET120 is a Grade 1 exit trim with a dummy lever, ANSI function 02, and the QRT320 is a Grade 1 round rose dummy lever exit trim. Neither reads credentials or audits; they just pull the door. Step up to the CO-200 keypad trim only when you need controlled entry from outside.

No. The Stanley Security QRT320 is a Grade 1 round rose exit trim with a dummy lever - it dresses the outside of the door without operating the latch. The Schlage CO-200 exit device trim is an electronic standalone trim with a keypad reader in classroom/storeroom function, powered by four AA batteries and supplied less cylinder in most configurations. Both carry Grade 1, so the rating matches; the operating behavior does not.

The CO-200 993S surface vertical rod trim is built in classroom/storeroom function, so the outside lever is locked or unlocked by credential. Stanley Security offers exit hardware listed in office/privacy/apartment function, including the QED111EDX rim exit device and the QET120 and QRT320 exit trims, all Grade 1. Decide by how the room is used: credentialed classroom/storeroom control with audit at the door, or mechanical office/privacy operation.

Up to two years of battery life from the four AA cells, with a status indicator at the lock so maintenance can spot a low pack before it strands anyone. For a property manager running a lot of openings, that indicator is what keeps battery swaps on a planned round instead of an emergency call.

Yes. Both Stanley Security trims are Grade 1 dummy lever exit trims in office/privacy/apartment function, but the QET120 is catalogued with ANSI function 02 and the QRT320 uses a round rose. The Schlage CO-200 993S differs from both in that it is an electronic keypad trim, field reversible for hand, offered in Athens, Latitude, Longitude, Rhodes, Sparta and Tubular lever styles and seven finishes from 605 Bright Brass to 643E Aged Bronze.
