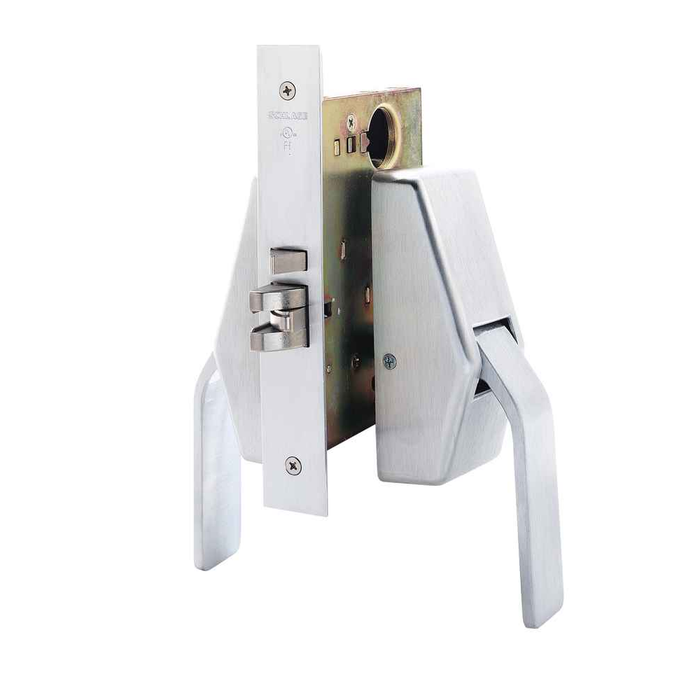

Schlage HL6-9082 Hospital Push/Pull Mortise Latch - Institution Lock Function

Schlage HL6-9082 Hospital Push/Pull Mortise Latch - Institution Lock Function

(No reviews yet) Write a Review

Model: SCH-HL6-9082-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,428.00
$932.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

HL6-9082 - INSTITUTION CLASSROOM LOCK

  • Latchbolt retracted by key from either side;
  • Paddle on both sides always inoperative;
  • Inside paddle always free for immediate egress.


Schlage HL6 SERIES OVERVIEW

Hospitals and other healthcare environments have special requirements for noise reduction to help patients heal faster and staff perform more accurately and efficiently.

There are many sources of noise, but choosing quiet door hardware can help reduce excess noise and create quieter environments. The newly redesigned HL Series quiet hospital push/pull hardware offers a proven 50% quieter paddle operation than our previous product, providing healthcare organizations a reliable solution for noise reduction initiatives.

The HL Series includes a full line of solutions that deliver both superior quality and exceptional performance:

HL6

A durable and versatile latching solution. The traditional design has a short throw angle, allowing the door to be opened with an easy push or pull action, even when hands are not free.

PL7/PL8 privacy function

This patented design is ideal for restrooms or patient bathrooms. The privacy function is actuated by a thumbturn and an opposite side release provides for access in case of emergency.

HL6 mortise lock option

Combines the features and convenience of the HL6 push/pull operation with the Schlage L Series heavy-duty mortise lock.

FEATURES & BENEFITS

The HL Series of quiet push/pull latches are non-handed and UL listed for all single labeled metal or wood doors, making them ideal for healthcare applications, restrooms, commercial and institutional doors, including single fire doors. The short throw angle allows door opening with an easy push or pull action.

Quiet functionality

  • Dampened paddle action – depression and snap back – reduces noise associated with lock operation
  • Proven 50% quieter paddle operation – both in the pull and push direction – than our previous solution
  • Comes standard on all HL Series hardware

Product features

  • Available in tubular, privacy and mortise
  • Classic design suites with existing solutions
  • Variety of vertical or horizontal mounting positions fits a wide range of applications
  • 16 mortise functions, including electrified
  • 10 finishes, including antimicrobial options
  • Optional engraving on handles

Options

  • B: Brass base material for US26 and US260 finishes
  • E: Engraved handles – “PUSH” and “PULL”
  • EN: Entrance only latch
  • EO: Exit only latch
  • L: Lead lined
  • SOC: Pin-in-socket security screws

Finishes

  • 605 (US3) Polished brass
  • 606 (US4) Satin brass
  • 612 (US10) Satin bronze
  • 613 (US10B) Oil-rubbed bronze
  • 625 (US26) Polished chrome
  • 626/626AM (US26D) Satin chrome
  • 629 (US32) Bright stainless steel
  • 630/630AM (US32D) Satin stainless steel


DOWNLOADS & RESOURCES

Product information


Installation instructions


Manufacturer Resources

Product Specs

Series:
HL6 Series
Duty Level:
Heavy Duty
Handle Type:
Lever
Keyed Function:
Single Cylinder
Warranty:
10 Year
Standard Strike:
ASA strike, ANSI 115.1 (1-1/4" x 4-7/8")
Keyed:
Yes
ANSI/BHMA:
F30
Subcategory:
Hospital Latches
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Hospital Latches
Electronic:
No
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Institution
Product Model:
HL6-9082
Product Function:
Institution
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Product Substrate:
Zinc and Steel
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage SCH-HL6-9082-626 – Frequently Asked Questions

1) How does the Schlage HL6-9082 institution function actually work on a patient or exam room door?
The HL6-9082 is a locked-down function. Both paddles stay inoperative at all times, and the latchbolt is retracted by key from either side. The inside paddle remains free for immediate egress, so staff and occupants can always get out without a key. That combination is what makes it an institution (institution classroom) function rather than a passage or entrance latch.
2) Will the Schlage HL6-9082 hospital latch fit my existing mortise prep and ASA strike?
It's a mortise lock with a 2-3/4 inch backset and it uses a standard ASA strike to ANSI 115.1, 1-1/4 by 4-7/8 inches. If your frame already has an ANSI 115.1 ASA strike cutout and the door is prepped for a standard mortise case at 2-3/4 backset, the HL6-9082 drops into it. The paddle mounting on the door face is a separate prep from a lever trim, so plan on new face boring even where the mortise pocket carries over.
3) Does the Schlage HL6-9082 come with a cylinder?
The HL6-9082 is a single cylinder keyed function, meaning key control from either side operates the one cylinder. Order the cylinder and keying to match the rest of your facility separately, since the key retracts the latchbolt and that is the only way the door opens from either paddle side.
4) What ANSI grade or function code does this Schlage hospital latch carry?
ANSI/BHMA function F30, which is the institution/classroom mortise function. It is built as heavy duty commercial hardware in zinc and steel. For a hospital or school spec sheet calling out F30 on a push/pull opening, the HL6-9082 is the matching part.
5) What is the closest cross-brand equivalent to the Schlage HL6-9082 hospital push/pull mortise latch?
The ABH 6600 Series is the nearest peer: it is a mortise lock hospital push/pull latch with a 2-3/4 inch backset, matching the 2-3/4 inch backset of the HL6-9082. Both are mortise-body push/pull hospital latches rather than tubular units, so they address the same opening. Confirm the function you need before swapping, since the HL6-9082 is specifically the Institution function - latchbolt retracted by key from either side, both paddles always inoperative, with the inside paddle free for immediate egress.
6) If the door does not need a keyed hospital latch, what is a simpler alternative to the HL6-9082?
For a non-keyed opening, the Trimco 1562A Hospital Series push/pull latch is a tubular, passage-function, levers-down unit rated heavy duty. It is a passage device, so there is no cylinder and no locking - the paddles always retract the latch. The HL6-9082 is keyed with a single cylinder in the Institution function, so choose it only when the opening requires key control from both sides. Note the Trimco is tubular while the HL6-9082 is mortise, so the door prep is different.
7) Do I have to specify handing when I order the HL6-9082?
No. The HL6-9082 is non-handed, so one part covers left and right hand openings. That matters for a facility standardizing across a floor of patient rooms, since you stock one item number instead of two. The paddles mount in vertical or horizontal positions to suit the application.
8) What finishes can I get the Schlage HL6-9082 hospital latch in, and can I match existing doors?
Eight finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 625 bright chrome, 626 satin chrome, 629 bright stainless and 630 satin stainless. 626 and 630 are the usual healthcare choices and Schlage lists antimicrobial 626AM and 630AM variants of those two. Engraved PUSH and PULL handles are an option code (E) if you want the direction marked.
9) Should I use the HL6 mortise version or the tubular HL6 push/pull latch?
Take the mortise HL6-9082 when you need a keyed security function and heavy duty performance, since it combines the push/pull paddle operation with the Schlage L Series heavy duty mortise lock and offers 16 mortise functions including electrified. The tubular HL6 is the simpler latching option where no key control is needed. For restrooms and patient bathrooms, neither one is right; the PL7/PL8 privacy latch with thumbturn and emergency outside release is the function for that.
10) What else could I use instead of the Schlage HL6-9082 hospital push/pull latch?
For a mortise hospital latch from another brand, the ABH 6600 Series is the closest match and is also listed at a 2-3/4 inch backset. If you only need a tubular passage push/pull rather than a keyed mortise function, the Trimco 1562A Hospital Series is a heavy duty tubular passage latch with levers down. Where the door face profile is tight, ABH makes the 6800 and the quiet 6800Q low profile hospital latches. None of those carry the keyed institution function the HL6-9082 provides, so if key control from both sides is the requirement, stay with the Schlage.
11) Can I get the Schlage HL6-9082 with security screws or lead lining for an imaging suite?
Both are option codes on HL6 ordering. Specify SOC for pin-in-socket security screws, common on behavioral health and secure institutional openings, and L for a lead lined latch where the door serves an X-ray or imaging room. Other codes are B for brass base material on US26 and US260 finishes, EN for entrance only and EO for exit only.
12) We need a low profile hospital latch - does the HL6-9082 work or is there a better option?
The HL6-9082 is a full mortise push/pull latch with a traditional paddle profile and a 2-3/4 inch backset. Where projection into the corridor is the constraint, the ABH 6800 Series is a low profile hospital push/pull latch with ADA compliance, and the ABH 6800Q is the quiet low profile version with a round cover. Those are the ones to look at when clearance drives the decision rather than mortise lock function.
13) What hospital latch should I specify if ADA compliance is called out on the drawing?
The ABH 6000 Series and the ABH 6800 Series are both hospital push/pull latches listed with ADA compliance, and the 6800 is the low profile of the two. The Schlage HL6-9082 is a heavy duty commercial mortise unit carrying an ANSI/BHMA F30 function designation with a short throw angle that lets the door open with a push or pull when hands are not free. Match the device to the compliance language actually written into your spec.
14) Noise is the main driver on our patient room doors - how do the quiet hospital latch options compare?
The Schlage HL6 Series uses a dampened paddle action on depression and snap back for a proven 50 percent quieter paddle operation than the previous Schlage solution, and that comes standard across the series including the HL6-9082 mortise unit. On the ABH side, the 6800Q is the quiet low profile hospital push/pull latch with a round cover. The HL6-9082 is the one that pairs quiet operation with a keyed mortise Institution function; the 6800Q is a low profile latch.
15) Why choose a push/pull hospital latch over a standard lever on a healthcare door?
The paddle has a short throw angle, so the door opens with a push or pull even when hands are full, which is why these go on patient room and exam doors. The redesigned HL Series adds a dampened paddle action on depression and snap back, a 50 percent quieter operation than the previous Schlage design, standard on all HL Series hardware. That is the reason facilities running noise reduction programs spec these instead of a conventional lever lock.
