Schlage L460T Grade 1 Entrance...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$636.60
$421.33

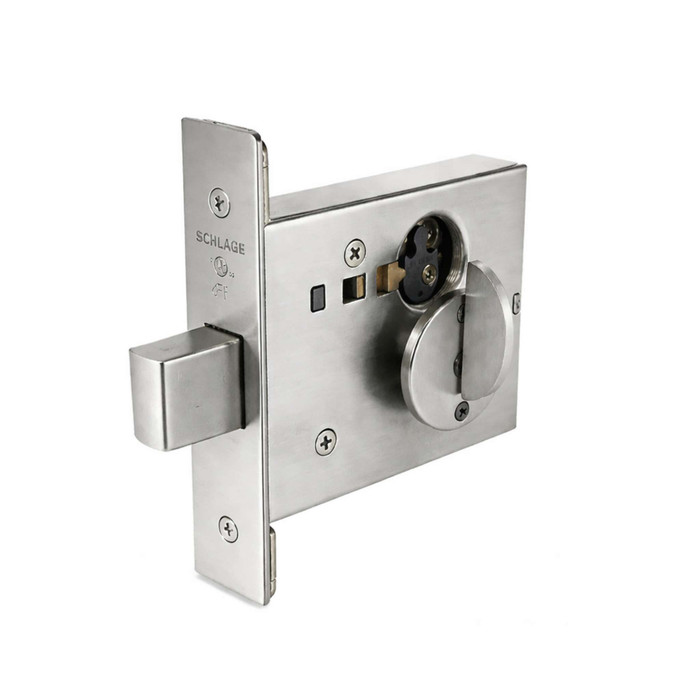

Schlage L460T Grade 1 Entrance/Office Small Case Mortise Deadbolt, Cylinder x Thumbturn, 6-Pin FSIC With Construction Core, 5-9/16" x 1-1/4" Face Size

Schlage L460T Grade 1 Entrance/Office Small Case Mortise Deadbolt, Cylinder x Thumbturn, 6-Pin FSIC With Construction Core, 5-9/16" x 1-1/4" Face Size

(No reviews yet) Write a Review

Model: L460T 630
From the L9000 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$636.60
$421.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage L460T Grade 1 Entrance/Office Small Case Mortise Deadbolt, Cylinder x Thumbturn, 6-Pin FSIC With Construction Core, 5-9/16" x 1-1/4" Face Size

L460 - CYLINDER x THUMBTURN SMALL CASE MORTISE LOCK

  • Deadbolt actuated by key or thumbturn.



Schlage L400 SERIES OVERVIEW

L400 Series locks are designed for use as primary locks where no latching is required, such as restrooms and small doors to utility spaces.

It also offers optimum security when used as an auxiliary lock in other applications.



FEATURES & BENEFITS

Security

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock picking by removing levers



Function availability and compatibility

  • 55+ standard functions (custom functions are also available)
  • Universal lock case allows 10 functions to be created from a single lock body
  • Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency



Aesthetics

  • 14 finishes
  • 33 lever, two knob, five rose and three escutcheon designs
  • Locking lever bushing eliminates exposed screws on inside levers
  • All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT



Options

  • Exclusive 180° visibility indicator
  • Vandlgard® free-wheeling outside trim option is available on most functions, including electrified
  • Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
  • New Gold Standard ligature resistant trim for behavioral health applications



AVAILABLE L SERIES FUNCTIONS

View the Schlage L Series catalog for descriptions of all available functions.



CERTIFICATIONS & TESTING

View the Schlage L Series catalog to see all specifications and certifications.

Certifications

  • Meets BAA (Buy American Act)
  • L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
  • UL listed for 3-hour fire door (except L9076 and L9077)
  • With interchangeable core cylinders: Grade 2 security
  • With concealed shell cylinder: A156.13 Grade 1 operational and security
  • ANSI/ASTM F476-76 Grade 40, UL listed
  • L400: tested and certified under ANSI/BHMA A156.36 Grade 1
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
  • UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
  • Electrified functions are UL19X listed for single-point locking applications
  • UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
  • Miami-Dade NOA's and Florida Building Commission Listings
  • Meet ADA requirements



DOWNLOADS & RESOURCES



Technical resources



Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
T Series
Function Description:
Deadbolt actuated by key or thumbturn
Grade:
Grade 1
Duty Level:
Heavy Duty
Keyed Function:
Single Cylinder
Standard Cylinder:
Conventional 6-pin Cylinder, S123 Keyway
Standard Strike:
10-079 1-1/8" x 3-1/2" square corner strike + box, ANSI 115.5 prep
Mortise Case Size:
4-7/16" x 3-5/8" x 1"
Warranty:
3 Year Limited
Keyed:
Yes
Product Type:
Indicator Lock
ANSI/BHMA:
E06071
Product Subgroup:
Mortise Locks and Trim
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Deadbolt
Product Attribute:
Indicator Locks
IMAP Policy:
Yes
Electronic:
No
Product Model:
L460
Collection:
L9000 Series
Product Function:
Deadbolt
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Substrate:
CRS with Zinc Dichromate Plating
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage L460T 630 – Frequently Asked Questions

1) Does the L460T deadbolt have to be ordered handed?
No. The L460T is non-handed, so one part number covers left and right hand openings and you don't have to know the swing before you order.
2) How does the Schlage L460T lock and unlock, and is it keyed both sides?
Single cylinder. The deadbolt is thrown and retracted by key from the outside or by thumbturn on the inside, so there's no key required to exit. That makes it a workable auxiliary bolt on an office or utility door where you want positive locking but free egress from the inside.
3) What do the indicator options on the L460T actually say, and can I get it without an indicator?
Nine configurations, all in 630 satin stainless. You can take it plain with no indicator, or with an indicator window reading DO NOT DISTURB, UNLOCKED/LOCKED, VACANT/OCCUPIED, or symbols only. Each of those four legends is offered as an interior-side indicator (IS) or an exterior-side indicator (OS), so decide which side of the door the staff or public needs to read the status from before you order.
4) What strike comes with the Schlage L460T and what frame prep does it need?
It ships with the 10-079 strike, a 1-1/8 by 3-1/2 inch square corner strike with box, prepped to ANSI 115.5. If your frame is already cut to standard ANSI 115.5 mortise strike prep, the strike drops in; a radius corner frame will need a different strike lip.
5) What cylinder and keyway does the L460T come with, and can it go on an existing master key system?
Standard build is a conventional 6-pin cylinder in the S123 keyway. If your building is keyed in S123 it can be pinned into the existing system; if you run a different keyway or an interchangeable core program, plan on specifying the cylinder to match rather than using the standard one. Note that with interchangeable core cylinders the L Series is rated Grade 2 security, while the concealed shell cylinder holds A156.13 Grade 1 operational and security.
6) Is this Schlage indicator deadbolt Grade 1, and what standard is it certified to?
Grade 1, heavy duty, tested and certified under ANSI/BHMA A156.36 Grade 1 for the L400 Series. The ANSI/BHMA function designation carried on it is E06071. That puts it above the common Grade 2 indicator deadbolts for institutional traffic.
7) Is a Grade 1 mortise indicator deadbolt overkill for a restroom, or is there a cheaper cylindrical option?
It depends on whether the door is already mortise prepped. The L460T needs a mortise pocket and delivers Grade 1 heavy duty performance. If you're working a bored door or a lighter traffic restroom, the Hager 3216 is a Grade 2 thumbturn by occupancy indicator deadbolt with a 1 inch throw for 1-3/4 inch doors and is fire rated, and the Accentra D292 is a Grade 2 cylindrical deadbolt with thumbturn and indicator that covers 1-3/8 to 1-3/4 inch doors. Neither is a mortise lock, so they will not drop into an L Series pocket.
8) I need an indicator on a privacy restroom door, not a keyed deadbolt. What should I look at instead?
The L460T is a keyed single cylinder deadbolt, so it's the wrong function if you want a pure privacy lock. For a privacy lever with visual status, the Corbin Russwin CLX3320 NVSL is a Grade 1 extra heavy duty privacy lever with indicator for 1-3/4 to 2 inch doors and is fire rated, and the Accentra AUYPL02 YPL Series is a Grade 1 privacy cylindrical lock with visual status indicator. For a non-keyed exit deadlock with a vacant/occupied indicator outside, the Arrow E50 is Grade 2 for 1-3/8 to 1-3/4 inch doors.
9) What is a bored-in alternative to the Schlage L460T indicator deadbolt when the door has no mortise pocket?
The Schlage L460T is a mortise deadbolt with a 4-7/16" x 3-5/8" x 1" case, so it needs a mortise pocket in the door edge. Where the door is only prepped for a cylindrical bore, the Accentra D292 is a Grade 2 cylindrical deadbolt with thumbturn and indicator function that fits doors 1-3/8" to 1-3/4" thick. The Hager 3216 is another Grade 2 thumbturn x occupancy indicator deadbolt, with a 1" throw and a 1-3/4" door thickness, and it carries a fire rating.
10) Is the L400 mortise deadbolt meant to be the only lock on the door, or an add-on bolt?
Both, depending on the opening. Schlage builds the L400 Series as a primary lock where no latching is needed, which is why it shows up on restrooms and small utility doors, and as an auxiliary bolt above a lockset on other openings. Since it has no latchbolt, a door that needs to stay closed against a stop or hold on its own needs a latching lockset instead.
11) What is the L460T deadbolt made of, and will it hold up in a high traffic corridor?
The lock case is cold rolled steel with zinc dichromate plating, rated heavy duty and Grade 1. Schlage also builds an anti-saw pin into the deadbolt to resist cut-through and a security blocking hub that prevents picking the lock by pulling the levers off. That combination is what puts it in schools, healthcare and government work rather than light commercial.
12) Is the Schlage L460T Buy American compliant for a government job?
Yes, the L Series meets the Buy American Act. It's also covered by Miami-Dade NOAs and Florida Building Commission listings, which matters if you're specifying into a Florida HVHZ project.
13) Which indicator deadbolt is the closest match to the Schlage L460T if I need a different grade level?
The Schlage L460T is a Grade 1 mortise deadbolt with a 2-3/4" backset and cylinder x thumbturn operation. Among indicator deadbolts of the same thumbturn x indicator function, the Cal-Royal IND90-G2 is also rated Grade 1 and adds an ADA thumbturn, the Hager 3216 is Grade 2 with a 1" throw, and the Cal-Royal IND84 is Grade 3. The Cal-Royal and Hager units are bolt-only like the L460T but are not mortise cases.
14) Can an Emtek thumbturn privacy bolt replace the Schlage L460T on a commercial restroom?
They solve different problems. The Emtek 8383 Wilshire, 8483 Watford, 8583 Square and 8683 Disk thumbturn privacy bolts are indicator bolts on double rosettes intended to be used with a brass passage set, and their function is privacy/bed/bath. The Schlage L460T is a commercial Grade 1 keyed mortise deadbolt with a single-cylinder key function, so it gives staff key override from the outside that a privacy thumbturn bolt does not.
15) What is an alternative if I want one lock that handles both the latch and the occupancy indicator on a public restroom?
The Schlage L460T is a deadbolt-only mortise lock, so it is paired with separate door pull or push-pull trim on a restroom. The Falcon H2171 is a public restroom interconnected lock with an occupancy indicator and a single cylinder deadbolt, Grade 2, in a storeroom/public restroom function, which combines the latching trim and the indicating deadbolt in one assembly.
16) For a thick door over 1-3/4 inches, which indicator lock covers that range?
The Schlage L460T is specified for a 1-3/4" door. The Corbin Russwin CLX3320 NVSL Grade 1 visual status lever lock covers 1-3/4" to 2" thick doors and is fire rated, which makes it the option to look at when the leaf is heavier than standard.
17) Is the L460T an electrified or access control lock?
No, the L460T is purely mechanical, key and thumbturn operated. Schlage does offer electrified L Series locks that auto detect 12V/24V DC with selectable EL/EU and options like RX, DPS, latchbolt monitor and deadbolt monitor, but that is a different function within the family and not this deadbolt.
