Schlage PM056 Grade 1 Entrance/Office with Automatic Unlocking Mortise Lock, Standard Cylinder - Athens Lever

Schlage PM056 Grade 1 Entrance/Office with Automatic Unlocking Mortise Lock, Standard Cylinder - Athens Lever

(No reviews yet) Write a Review

Model: PM056P ATHA 626
$977.00
$610.39
Selected Finish is
Selected Lever Style is
Selected Cylinder is
Selected Rose/Escutcheon Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$977.00
$610.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

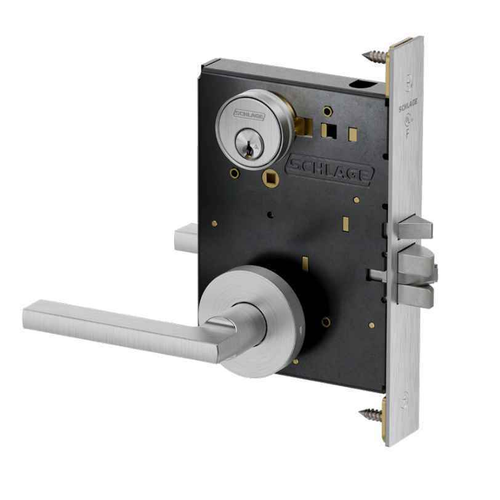

Schlage PM056 Grade 1 Entrance/Office with Automatic Unlocking Mortise Lock, Standard Cylinder - Athens Lever

Overview

Grade 1, Mortise Locks Purpose-built to serve the commercial real estate, retail, multifamily and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point. The PM Series offers 26 functions, including three electrified, and four mortise deadbolt functions, all made to meet Schlage’s rigorous quality standards. With popular levers and finish options, Schlage's full key system security line up, and its durable design, you can meet needs for both security and style. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or complex. Better yet, you can suite the PM Series mortise locks with the PT Series tubular locks, as they share lever and rose styles.

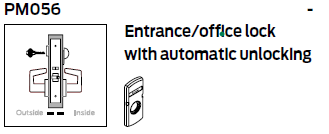

PM056 - Entrance/Office Lock with Automatic Unlocking

  • Key cylinder outside; thumbturn inside; latchbolt and deadlocking auxiliary latch
  • Latchbolt retracted by lever from either side
  • Outside lever is made inoperative by key outside or by turning inside thumbturn
  • Key outside unlocks outside lever and retracts latchbolt
  • Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks preventing lock-out
  • Inside lever always free for immediate egress

Chassis

  • Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
  • Case size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm) Note: PM and L Series case and cover holes differ.
  • Spacing: lever to cylinder 3-7/8" (98 mm);  lever to thumbturn hub 2-11/16" (68 mm)
  • Door thickness: 1-3/4" (44 mm) standard; 1-3/8" (35 mm) minimum; fits doors up to 2-1/2" thick - specify door thickness if  over 1-3/4" and position in door (Available EE only)
  • Field reversible handing



Trim Options

  • 10 lever designs made of zinc
  • N escutcheons: 7-7⁄8” x 2-1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); wrought brass
  • Roses: A 2-1/8" (54 mm), B 2-9/16" (65 mm), C 2-5/8" (67 mm) - brass
  • Thumbturn style is ADA qualified



Latches, Armors, Strikes

  • Backset: 2-3/4" (70 mm) only
  • Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32"  (27 mm x 203 mm x 6 mm)
  • Deadbolt: 1" (25 mm) throw stainless steel
  • Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
  • Strike lip length: 1-3⁄16" (30 mm); optional strike lip lengths - 7⁄8", 1", 1-1⁄2", 1-3⁄4", and 2"



DOWNLOADS & RESOURCES

Product Information



Related Product Information



Technical Resources



Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
PM Series
Function Description:
Levers only-both sides; latchbolt only; Latchbolt retracted by lever from either side at all times
Grade:
Grade 1
Keyed Function:
Non-Keyed
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Warranty:
3 Year Limited
Keyed:
No
ANSI/BHMA:
F01
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Passage
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
PM056
Product Function:
Passage/Hall/Closet
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage PM056P ATHA 626 – Frequently Asked Questions

1) How does the Schlage PM056 entrance/office function actually work day to day?
The PM056 is an entrance/office lock with automatic unlocking. Outside lever is locked either by the key outside or by rotating the inside thumbturn. A key outside unlocks the outside lever and retracts the latchbolt. Inside, rotating the thumbturn unlocks the outside lever, and turning the inside lever both retracts the latch and unlocks the outside lever. Closing the door also unlocks it, which is what prevents a lock-out when someone steps into the hall. The inside lever is always free for immediate egress.
2) Will the Schlage PM056 mortise lock fit a 1-3/8 inch door, or doors thicker than 1-3/4?
Standard is 1-3/4 inch (44 mm), with 1-3/8 inch (35 mm) the minimum it will work on. The lock body will go into doors up to 2-1/2 inches thick, but over 1-3/4 inches you have to specify the door thickness and the position of the lock in the door, and that is an EE option only.
3) What backset and mortise pocket does the PM056 need, and will it drop into an existing Schlage L Series prep?
Backset is 2-3/4 inches (70 mm) only, and the case measures 4-7/16 x 6-1/16 x 1 inch (113 x 154 x 25 mm). Note that PM Series and L Series case and cover holes differ, so an existing L Series pocket is not a straight swap without checking the through-bolt and cover hole locations. Spacing is 3-7/8 inches (98 mm) lever to cylinder and 2-11/16 inches (68 mm) lever to thumbturn hub.
4) What cylinder options do I pick when ordering the Schlage PM056, and can I get it less cylinder for my own cores?
Five choices: B less SFIC, J less FSIC, L less conventional 6-pin cylinder, P conventional 6-pin cylinder keyed 5, or T FSIC construction core. If you key your own building, B, J or L ships prepped without the cylinder so you drop in your core. T gives you a construction core to cover the job until permanent cores go in.
5) What is the closest cross-brand equivalent to the Schlage PM056 entrance/office mortise lock?
The Cal-Royal NM8050 is the nearest match from another manufacturer: it is a heavy duty Grade 1 mortise lockset with an entrance/office function and an auxiliary deadlatch, rated for a 1-3/4 inch door. The PM056 is also Grade 1 and is built for a 1-3/4 inch door with a 2-3/4 inch backset. Hager's 3850E is another office-function Grade 1 mortise lock on a 2-3/4 inch backset, supplied non-keyed with lever and escutcheon trim, so it covers the office opening without a key cylinder.
6) If the opening does not need a key at all, what mortise lock should I use instead of the PM056?
For a corridor, hall or closet door that only needs the latch operated from both sides, the Falcon MA101 is a Grade 1 heavy duty mortise passage lock with field reversible operation and a fire rating. Hager offers the 3810S passage mortise lock with rose trim and the 3810E with escutcheon trim, both Grade 1 on a 2-3/4 inch backset, matching the PM056 backset. The PM056 itself is field reversible as well, so handing is not the deciding factor between them.
7) I need the outside lever to stay locked at all times instead of unlocking automatically. What mortise lock does that?
That is a storeroom function rather than entrance/office. The Accentra 8805FL is a Grade 1 storeroom mortise lock from the 8800 Series with an Arcadia lever, and the Cal-Royal NM8080 is a Grade 1 heavy duty storeroom mortise lockset for a 1-3/4 inch door with an interchangeable core option. Both keep the outside lever fixed and key-operated, where the PM056 unlocks the outside lever when the door closes to prevent lock-out.
8) Can I use a Baldwin 6301 or 6310 mortise lock body in place of the Schlage PM056?
They are not a drop-in swap. The Baldwin 6301 entry/apartment and 6310 entry/storeroom mortise lock bodies both use a 2-1/2 inch backset, while the PM056 is 2-3/4 inch backset only, so the latch face and cross-bore locations in the door differ. The 6301 is offered in knob by knob and lever by lever versions and the 6310 in knob by knob plus a right hand reverse lever version, where the PM056 is lever trim with field reversible handing.
9) Do I have to order the Schlage PM056 handed?
No. Handing is field reversible on the PM056, so one lock covers left and right hand openings and you can set it on site.
10) Can I match the PM056 mortise locks to the tubular locks on the rest of my building?
Yes. PM Series mortise locks share lever and rose styles with the Schlage PT Series tubular locks, so an Athens lever on a mortise corridor door matches an Athens lever on a PT tubular office door. The series is also made to suite with other Allegion products, which matters if you are standardizing a whole property.
11) Is the Schlage PM056 heavy enough for a high-traffic commercial opening?
It is a Grade 1 commercial mortise lock. The case is cold rolled steel with corrosion resistant zinc dichromate plating, and latch and deadbolt are stainless steel. That is the level specified for apartment corridors, retail and hospitality back-of-house rather than residential duty.
12) Is the PM056 thumbturn ADA qualified?
Yes, the thumbturn style used on the PM056 is ADA qualified, and the lock uses a lever rather than a knob, which is the operable-hardware type accessibility work generally calls for.
13) My doors are thicker than 1-3/4 inches. Is there a mortise lock that covers that range without a special order?
The PM056 needs the EE option and a stated door thickness above 1-3/4 inches. If you would rather not special-order, the Hager 3800 Series covers 1-3/4 to 2-1/2 inches as standard: the 3810E passage with escutcheon, 3810S passage with rose, and 3850E office, all on a 2-3/4 inch backset.
14) For a classroom door, is the PM056 the right function or should I pick something else?
Use a classroom function instead. The Cal-Royal NM8070 is a Grade 1 heavy duty classroom mortise lockset with an auxiliary deadlatch for a 1-3/4 inch door, and the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset in the ML2000 Series, also for a 1-3/4 inch door. The PM056 is an entrance/office function where the inside thumbturn and closing the door control the outside lever, which is not how a classroom opening is meant to be managed.
15) What is the electronic alternative if I want credentials instead of a key on this opening?
The PM056 is a mechanical lock, not electronic. For keypad or credential control on a mortise prep, the Schlage Electronics CO-100 is a Grade 1 heavy duty standalone electronic mortise lock with a keypad reader for a 1-3/4 inch door, and the BEST 45HZ EZ Series is an electronic keypad mortise lock with key override. The Schlage ENGAGE LEMD-GRW is a Grade 1 wireless mortise lock with a 125kHz proximity reader and a 3 hour fire rating, and the Dormakaba Saffire LX-I-M002 is an RFID mortise lockset with BLE mobile access at BHMA Grade 2.
16) Are the Emtek 3019 or 3102 mortise entrance locksets a substitute for the PM056?
No. The Emtek 3019 Brisbane, 3102 Memphis, 3104 Hamilton and 3106 Manhattan mortise entrance locksets are dummy function, meaning the trim is fixed and there is no working latch or key control. The PM056 is a Grade 1 commercial entrance/office lock with a key cylinder outside, inside thumbturn, and a latchbolt retracted by the lever from either side.
17) For a restroom or bedroom door, what should I order instead of the PM056?
Pick a privacy function. The Cal-Royal NM8440 is a Grade 1 heavy duty privacy mortise lockset with a deadbolt for a 1-3/4 inch door, and the Hager 3840S is a Grade 1 privacy mortise lock on a 2-3/4 inch backset for doors 1-3/4 to 2 inches thick, which matches the PM056 backset. The PM056 uses a key cylinder outside and is intended for entrance and office openings rather than bath privacy.
18) What mortise lock should I specify for a behavioral health or ligature-resistant opening instead of the PM056?
TownSteel's MRX line is built for that. The MRX-L-01 is a Grade 1 heavy duty stainless steel anti-ligature lever mortise lockset in passage function for a 1-3/4 inch door, and the MRX-A-01 is the same passage function with satin stainless ligature-resistant arch trim. Marks USA offers the 5PDN, a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant in satin stainless steel. The PM056 uses conventional zinc levers with rose or escutcheon trim.
19) Does the PM056 work on a 1-5/8 inch door, or do I need a different lock?
The PM056 is specified for a 1-3/4 inch door. If the leaf is thinner, the Alarm Lock Trilogy mortise locks cover a 1-5/8 to 1-7/8 inch range: the DL2700CR and DL3500CR are Grade 1 electronic mortise locks in classroom function and the DL4500 is a Grade 1 electronic mortise deadbolt with a privacy keypad. Those are electronic rather than mechanical, so the credential method changes along with the thickness range.
20) I need a deadbolt only on this opening, not a latch and lever. What takes the place of the PM056?
A dedicated mortise deadbolt. The Sargent 4874 from the 4870 Series is a double cylinder mortise deadbolt on a 2-3/4 inch backset, the same backset the PM056 uses, and the Kaba Ilco 185 Series is a no-handing mortise deadbolt sold in a single pack. Neither carries lever trim, where the PM056 pairs a latchbolt and deadlocking auxiliary latch with levers on both sides.
21) For a dormitory or corridor door where the inside needs to lock the outside by key, what compares to the PM056?
The Sargent 7925 is a Grade 1 heavy duty mortise lock in corridor/dormitory exit function with rose trim and a single cylinder deadbolt from the 7900 Series. It differs from the PM056 in that the PM056 has no deadbolt in its entrance/office arrangement and instead relies on the key or inside thumbturn to make the outside lever inoperative, with the outside lever unlocking again when the door closes.
22) Can I hardwire the PM056 for access control, or do I need a different lock body?
You need a different body. The PM056 is mechanical. The BEST 45HW Series is a wired electromechanical mortise lock with 12V/24V operation, and the Command Access ML190 is a heavy-duty motorized mortise lock with field selectable fail safe or fail secure operation on 24VDC in storeroom function. Both are intended to be tied into an access control system, where the PM056 is operated by key and thumbturn only.
23) Is the Schlage PM056 an electronic or access control lock?
No, the PM056 is a purely mechanical mortise lock with a key cylinder outside and a thumbturn inside. If you need credentials or audit trail on the same door prep, the Schlage Electronics LEMD-GRW is a Grade 1 ENGAGE wireless mortise lock with a 125kHz proximity reader, and the Schlage CO-100-MS is a Grade 1 standalone keypad mortise lock for 1-3/4 inch doors.
24) I only need the lock body, not the trim. Is there an alternative to ordering a complete PM056?
Yes, several manufacturers sell the mortise case on its own. The BEST 45H Series is a heavy duty mortise lock body in public entrance function with field reversible operation, and the 45HCA Series lock body is offered in intruder function. Baldwin's 6301 and 6310 are also supplied as mortise lock bodies on a 2-1/2 inch backset. The PM056 is supplied as a complete lockset with the Athens lever and a choice of A, C, D rose or N escutcheon.
25) Is a Sargent 130KB thumbturn a replacement for the PM056 inside thumbturn?
No. The Sargent 130KB is a standard mortise thumbturn for the 8200 Series and the 130W is a mortise thumbturn with a round backplate for the 7800 Series, so both are trim pieces for Sargent lock bodies. The PM056 is a complete mortise lockset whose inside thumbturn is part of the lock and is ADA qualified, with lever to thumbturn hub spacing of 2-11/16 inches specific to the PM case.
