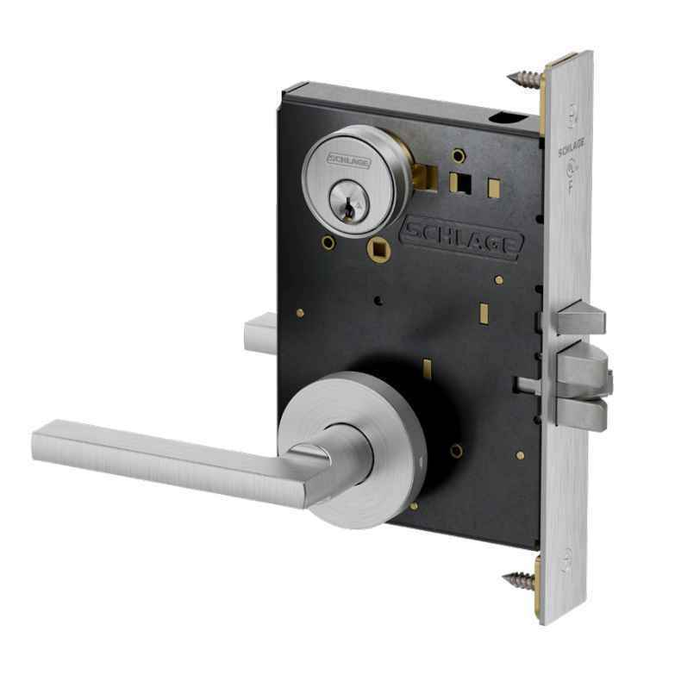

Schlage PM056 Grade 1 Entrance/Office with Automatic Unlocking Mortise Lock, Standard Cylinder - Neptune Lever

Schlage PM056 Grade 1 Entrance/Office with Automatic Unlocking Mortise Lock, Standard Cylinder - Neptune Lever

(No reviews yet) Write a Review

Model: PM056P NEPA 626
$977.00
$611.31
Selected Finish is
Selected Lever Style is
Selected Cylinder is
Selected Rose/Escutcheon Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$977.00
$611.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage PM056 Grade 1 Entrance/Office with Automatic Unlocking Mortise Lock, Standard Cylinder - Neptune Lever

Overview

Grade 1, Mortise Locks Purpose-built to serve the commercial real estate, retail, multifamily and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point. The PM Series offers 26 functions, including three electrified, and four mortise deadbolt functions, all made to meet Schlage’s rigorous quality standards. With popular levers and finish options, Schlage's full key system security line up, and its durable design, you can meet needs for both security and style. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or complex. Better yet, you can suite the PM Series mortise locks with the PT Series tubular locks, as they share lever and rose styles.



PM056 - Entrance/Office Lock with Automatic Unlocking

  • Key cylinder outside; thumbturn inside; latchbolt and deadlocking auxiliary latch
  • Latchbolt retracted by lever from either side
  • Outside lever is made inoperative by key outside or by turning inside thumbturn
  • Key outside unlocks outside lever and retracts latchbolt
  • Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks preventing lock-out
  • Inside lever always free for immediate egress

Chassis

  • Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
  • Case size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm) Note: PM and L Series case and cover holes differ.
  • Spacing: lever to cylinder 3-7/8" (98 mm);  lever to thumbturn hub 2-11/16" (68 mm)
  • Door thickness: 1-3/4" (44 mm) standard; 1-3/8" (35 mm) minimum; fits doors up to 2-1/2" thick - specify door thickness if  over 1-3/4" and position in door (Available EE only)
  • Field reversible handing



Trim Options

  • 10 lever designs made of zinc
  • N escutcheons: 7-7⁄8” x 2-1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); wrought brass
  • Roses: A 2-1/8" (54 mm), B 2-9/16" (65 mm), C 2-5/8" (67 mm) - brass
  • Thumbturn style is ADA qualified



Latches, Armors, Strikes

  • Backset: 2-3/4" (70 mm) only
  • Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32"  (27 mm x 203 mm x 6 mm)
  • Deadbolt: 1" (25 mm) throw stainless steel
  • Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
  • Strike lip length: 1-3⁄16" (30 mm); optional strike lip lengths - 7⁄8", 1", 1-1⁄2", 1-3⁄4", and 2"



DOWNLOADS & RESOURCES

Product Information



Related Product Information



Technical Resources



Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
PM Series
Function Description:
Levers only-both sides; latchbolt only; Latchbolt retracted by lever from either side at all times
Grade:
Grade 1
Keyed Function:
Non-Keyed
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Warranty:
3 Year Limited
Keyed:
No
ANSI/BHMA:
F01
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Passage
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
PM056
Product Function:
Passage/Hall/Closet
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage PM056P NEPA 626 – Frequently Asked Questions

1) Will the Schlage PM056 mortise lock fit a 1-3/8 inch door, or a thick 2-1/4 inch door?
Standard door thickness for the PM056 is 1-3/4 inches, with 1-3/8 inches the minimum, and the case will go into doors up to 2-1/2 inches thick. Above 1-3/4 inches you have to specify the actual door thickness and the position of the lock in the door when ordering, and that thick-door option comes in the EE configuration only.
2) What backset does the Schlage PM056 need, and can I use it on a door prepped for 2-3/8 inch?
2-3/4 inches only. The PM056 mortise case is not offered in a 2-3/8 inch backset, so a door with a 2-3/8 inch bored prep will not work without re-prepping for a mortise pocket. If your existing openings are on a 2-1/2 inch mortise backset, that is a different platform (Baldwin's 6301 and 6310 mortise bodies, for example, are 2-1/2 inch backset).
3) Do I have to order the Schlage PM056 left hand or right hand?
No handing to specify. The PM056 is field reversible, so one lock covers both hands and you can flip it on site. That is useful for a property manager keeping a small number of spares for a building with doors swinging both ways.
4) Does the mortise pocket cut for a Schlage L Series lock take a PM Series lock?
Not directly. Schlage states that PM and L Series case and cover holes differ, so an L Series pocket is not a straight swap for a PM case. The PM056 case measures 4-7/16 x 6-1/16 x 1 inch (113 x 154 x 25 mm), and you should work from the PM Series template rather than assuming the older prep lines up.
5) What cylinder options do I pick from when ordering the Schlage PM056, and can I get it less cylinder for my own keying?
Five cylinder choices: B less SFIC, J less FSIC, L less conventional 6-pin cylinder, P conventional 6-pin cylinder keyed 5, and T FSIC construction core. If you are a locksmith or integrator keying into an existing system, take one of the less-cylinder options (B, J or L) and fit your own core. The T construction core is the one to order for a jobsite that needs temporary keying before turnover.
6) What is the closest cross-brand equivalent to the Schlage PM056 entrance/office mortise lock?
The Cal-Royal NM8050 is a heavy duty Grade 1 mortise lockset with entrance/office function and an auxiliary deadlatch, built for 1-3/4 inch doors. That matches the Schlage PM056 on grade, mortise lock type, entrance/office function, and 1-3/4 inch door thickness. Hager also builds the 3850E, a Grade 1 office-function mortise lock with lever and escutcheon trim on a 2-3/4 inch backset, which is the same backset the PM056 uses.
7) I need a mortise lock for a corridor door that should never lock. What should I use instead of the PM056?
For an opening that stays free at all times, use a true passage mortise lock rather than the keyed entrance/office PM056. The Falcon MA101 is a Grade 1 heavy-duty mortise passage lock with field reversible operation and a fire rating. Hager's 3810S and 3810E are Grade 1 passage mortise locks on a 2-3/4 inch backset, the 3810S with rose trim and the 3810E with escutcheon, both covering 1-3/4 inch to 2-1/2 inch doors.
8) For a classroom door instead of an office door, what mortise lock replaces the PM056?
Classroom function is a different lock, not a trim change. Cal-Royal's NM8070 is a heavy duty Grade 1 classroom mortise lockset with auxiliary deadlatch for 1-3/4 inch doors, and Corbin Russwin's ML2003 is a Grade 1 mortise classroom lockset in the ML2000 Series, also 1-3/4 inch. Marks USA LA318GJ adds a classroom security indicator with an ANSI strike and a steel escutcheon measuring 8-1/2 inches by 2-3/4 inches by 7/16 inch.
9) If the door needs to stay locked from outside at all times with key access only, what mortise lock should I order rather than the PM056?
That is storeroom function. The Accentra 8805FL is a Grade 1 storeroom mortise lock in the 8800 Series with an Arcadia lever, and the Cal-Royal NM8080 is a heavy duty Grade 1 storeroom mortise lockset for 1-3/4 inch doors with an interchangeable core option. The PM056 differs in that its outside lever can be left unlocked by key or by the inside thumbturn, and closing the door unlocks it again.
10) What is the difference between the Schlage PM056 and a Baldwin 6301 or 6310 mortise lock body?
Backset is the deciding difference. The PM056 is built on a 2-3/4 inch backset only, while the Baldwin 6301 entry/apartment and 6310 entry/storeroom mortise lock bodies use a 2-1/2 inch backset. Baldwin offers each in knob-by-knob and lever-by-lever versions, the 6301LS and 6310190RRLS being the lever forms, with the 6301 rated for 1-3/4 inch and over doors and the 6310 for 1-3/8 inch and over. A 2-1/2 inch backset lock will not drop into a pocket prepped for the PM056.
11) What looks like a substitute for the PM056 but will not work on my opening?
Several mortise products in the same family are not drop-in alternatives. The Sargent 130KB and 130W are mortise thumbturns only, not lock bodies. The Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset and has no lever operation. Emtek's 3019 Brisbane, 3102 Memphis, 3104 Hamilton and 3106 Manhattan mortise entrance locksets are dummy function, with no latch at all. The BEST 45HCAC is a lock body alone in public entrance function. The PM056 ships as a complete lever lockset with an ANSI curved lip strike and dust box.
12) For a behavioral health or ligature-resistant opening, what mortise lockset should I specify instead of the PM056 with a Neptune lever?
Use a purpose-built anti-ligature set. TownSteel's MRX-L-01 is a Grade 1 heavy duty stainless steel anti-ligature lever mortise lockset in passage function for 1-3/4 inch doors, and the MRX-A-01 is the same passage function with satin stainless ligature-resistant arch trim. Marks USA's 5PDN is a Grade 1 hospital passage mortise push/pull paddleset, ligature resistant and ADA compliant in satin stainless steel. The PM056 uses a conventional zinc lever on rose or escutcheon trim.
13) Can I standardize a whole building on Schlage PM Series mortise locks and still use tubular locks on interior doors?
Yes. The PM Series suites with the PT Series tubular locks because they share lever and rose styles, so a mortise lock on a corridor door and a tubular lock on a closet door read the same to the user. The PM Series is built for commercial real estate, retail, multifamily and hospitality, and is made to suite with other Allegion products across a complex.
14) Is the Schlage PM056 Grade 1, and how does it compare to other Grade 1 mortise locks if I need a different function on the same door line?
Grade 1, ANSI/BHMA function F01. If a different function is needed on adjacent openings, comparable Grade 1 mortise locks include the Corbin Russwin ML2003 classroom lockset (1-3/4 inch door), the Cal-Royal NM8080 storeroom and NM8440 privacy locksets (both 1-3/4 inch door), and the Accentra 8805FL storeroom lock. Falcon's MA101 is a Grade 1 heavy duty mortise passage lock, also field reversible.
15) Is there a keypad or credential version of a mortise lock I can standardize with alongside the PM056?
The PM056 is a mechanical, non-electronic mortise lock. For electronic openings in the same building, Schlage Electronics offers the CO-100 standalone mortise lock with a keypad reader, Grade 1 heavy duty, privacy function, for 1-3/4 inch doors, and the LEMD-GRW Grade 1 ENGAGE wireless mortise lock with a 125kHz proximity reader and 3 hour fire rating. Accentra's NTM623-NR nexTouch Generation 3 mortise lock uses a capacitive touchscreen keypad with cylinder override and no deadbolt.
16) Will a Sargent 7900 Series mortise lock substitute for the Schlage PM056 on an apartment corridor door?
They are not the same function. The Sargent 7925 is a Grade 1 heavy duty corridor/dormitory exit function mortise lock with rose trim and a single cylinder deadbolt. The PM056 is entrance/office function with a latchbolt and deadlocking auxiliary latch, keyed cylinder outside and thumbturn inside, and the outside lever unlocks again when the door closes. If the spec calls for a deadbolt at that opening, the 7925 carries one and the PM056 does not.
17) Can I use a PM056 on a narrow stile aluminum or glass door?
The PM056 is built on a 2-3/4 inch backset and a 4-7/16 inch by 6-1/16 inch by 1 inch case for doors 1-3/8 inch to 2-1/2 inch thick, which suits standard hollow metal and wood openings. For aluminum and glass entrances, different products apply: the Alarm Lock DL1300NW is an electronic mortise lock with keypad made for Adams Rite deadlatches, the Kaba Ilco BR Series is a glass door bottom rail lock, and Dormakaba's E-Plex 2066 is catalogued for wide stile applications.
18) I need an access-controlled version of the same opening that can be released from a card reader. What mortise lock covers that?
For electrified operation, the Command Access ML190 is a heavy-duty motorized mortise lock in storeroom function with field selectable fail-safe and fail-secure operation on 24VDC, and the BEST 45HW is a wired electromechanical mortise lock running 12V or 24V. Dormakaba's E-Plex E5086 is a Grade 1 entry/egress pushbutton and card mortise lock in a back-to-back arrangement. The PM056 itself is mechanical with a keyed cylinder outside and thumbturn inside.
19) Is a Grade 2 electronic mortise lock an acceptable swap for the PM056 in a multifamily corridor?
It changes the grade. The PM056 is ANSI/BHMA Grade 1 with an F01 function designation. The Schlage Electronics LEBMB-ADD mobile-enabled mortise lock is Grade 2, with a 3 hour fire rating, for 1-3/4 inch doors, covering privacy, office and apartment functions, and the Dormakaba Saffire LX-I-M002 RFID mortise lockset with BLE mobile access is BHMA Grade 2. If the door schedule calls for Grade 1, stay with a Grade 1 mortise set.
20) What mortise lock should I use for a classroom that needs lockdown from inside the room?
Intruder function handles that. The BEST 45HCAINL is a heavy duty mortise lockbody with intruder function, and TownSteel's FME-4000 is a Grade 1 heavy duty electronic intruder classroom mortise lockset with RFID technology for 1-3/4 inch doors. TownSteel's FME-2000 is the Grade 1 classroom RFID version without the intruder feature. The PM056 is entrance/office function and is not a lockdown lock.
21) Is the Schlage PM056 an electronic or access-control lock?
No, it is a mechanical mortise lock with a lever, no electronics. If you need credential or keypad access in the same mortise prep, the Schlage CO-100 standalone electronic mortise lock with keypad reader is Grade 1 for 1-3/4 inch doors, and the ENGAGE Series LEMD wireless mortise lock is a Grade 1 proximity-reader option.
22) Is the inside thumbturn on the Schlage PM Series ADA qualified?
Yes, the thumbturn style used on the PM Series is ADA qualified, and the trim is a lever rather than a knob, which is what accessibility requirements call for on commercial openings.
