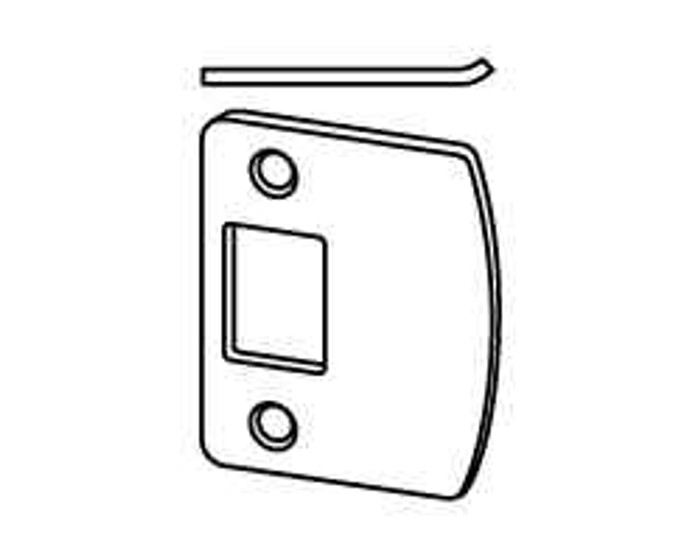

Schlage Residential 10-092 B Series Round Corner Full Lip Strike Plate 1-5/8" x 2-1/4"
Professional Strike Plate for B-Series Deadbolts
The Schlage Residential 10-092 B Series Round Corner Full Lip Strike Plate is specifically engineered for use with all functions of Schlage B-Series Deadbolts. This precision-manufactured strike plate features 1/4 radius corners and measures 1-5/8" L x 2-1/4" W for optimal door frame integration. Complete with mounting screws for straightforward installation, this strike plate ensures proper deadbolt alignment and secure locking performance.
Professional Features & Benefits
- Precise Dimensions: 1-5/8" L x 2-1/4" W sizing provides optimal fit for standard door frame preparations.
- Round Corner Design: 1/4 radius corners reduce stress concentration points and provide clean, professional appearance.
- Full Lip Construction: Extended lip design ensures complete bolt engagement and enhanced security performance.
- B-Series Compatibility: Engineered specifically for all functions of Schlage B-Series Deadbolts for guaranteed fit and operation.
- Complete Hardware Package: Includes mounting screws for immediate installation without additional hardware purchases.
- Professional Installation: Designed for easy mounting with standard tools and techniques.
Standard Features
Schlage B-Series 10-092 609 B-Series Strike
The Schlage 1/4 Radius Corner Full Lip Strike is designed to be used on all functions of Schlage B-Series Deadbolts. Comes with mounting screws for easy installation.
Dimensions: 1-5/8 L x 2-1/4 W. Mounting Hardware: Strike screws included for mounting.
Installation & Operation
This strike plate component is designed for use with compatible Schlage B-Series Deadbolts. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.
Professional Applications
- Residential Entry Door Systems
- Multi-Family Housing Units
- Apartment and Condominium Properties
- Single-Family Home Security
- Residential Renovation Projects
- Property Management Maintenance
- Locksmith Service Applications
Why Choose Schlage Residential Quality?
Schlage Residential strike plates deliver reliable performance with precision-engineered dimensions and durable construction designed for residential security applications. The 10-092 model ensures proper deadbolt engagement with its full lip design and 1/4 radius corners for long-lasting operation. Engineered specifically for B-Series compatibility, this strike plate provides the exact fit and function required for optimal lock performance.
Backed by Schlage's Lifetime Limited Mechanical and Finish Warranty.Manufacturer Resources
Product Specs
- Product Group:
- Parts and Accessories
- Product Subgroup:
- Lock Parts and Accessories
- Product Type:
- Strike Plates
- Commercial/Residential:
- Residential
- Subcategory:
- Lock Parts and Accessories
- Product Model:
- 10-092
- Product Category:
- Parts and Accessories
- Department:
- Door Hardware
Schlage Residential 10-092-622 – Frequently Asked Questions
1) What size mortise does the Schlage 10-092 strike plate need in the door jamb?
The plate measures 1-5/8 x 2-1/4 inches, so the jamb needs a flat mortise of that footprint plus a bolt pocket behind it. Corners are cut on a 1/4 inch radius, which matches what a router bit leaves in a factory-prepped frame. If your existing jamb was prepped square (chiseled corners), the round corner plate will drop in with a small gap at each corner, or you can square the mortise for a tight fit.
2) My deadbolt is hard to throw and the bolt is rubbing the strike. Will a new strike plate fix it or do I need an adjustable one?
A fresh 10-092 fixes wear and a chewed-up plate, but it is a fixed opening, so it will not move the bolt hole to chase a door that has settled. When the alignment is off rather than the plate worn, an adjustable strike is the fix: Kwikset's 80318 full round adjustable strike lets you shift the engagement point without recutting the jamb.
3) The deadbolt does not line up with the strike hole. Is the Schlage 10-092 the fix?
No. The 10-092 is a fixed-position full lip strike sized 1-5/8 by 2-1/4 inches; it locates the bolt hole where the plate lands, so a misaligned bolt stays misaligned. For an opening where the bolt is off from the jamb prep, the Kwikset 80318 is a full round adjustable strike, and the Kwikset 81825 is a 6 way adjustable deadlatch. Those let the strike opening shift to meet the bolt instead of requiring the jamb be re-mortised.
4) Do I need to buy screws separately for the Schlage 10-092 strike plate?
Strike screws come in the box. Nothing else is required to mount the plate itself. Note that these are the standard strike screws, not long security screws that reach the wall stud behind the jamb, so if you want the deeper anchoring, source longer screws on top of what ships.
5) What finishes does the Schlage 10-092 deadbolt strike come in so I can match my existing hardware?
Six finishes: 605 bright brass, 609 antique brass, 613 oil-rubbed bronze, 619 satin nickel, 622 matte black, and 626 satin chrome. Those are the standard Schlage finish codes, so order the strike in the same code as the B-Series deadbolt already on the door and it will match across an apartment building or a run of units.
6) Is the Schlage 10-092 strike plate right for a commercial opening or apartment corridor door?
It is a residential-line part, matched to Schlage B-Series deadbolts on entry doors, apartments, condos, and single-family homes. For a commercial hollow metal frame you are usually looking at an ASA (T-strike) shape rather than this small plate, and a fire-rated opening should not have its listed strike swapped for a residential one.
7) I need a deadbolt strike plate but my hardware is not Schlage. What else fits?
The 10-092 is cut for the Schlage B-Series bolt pattern, so match the brand where you can. Deltana's SP2753 steel deadbolt strike runs 2-3/4 x 1-1/4 inches, a taller and narrower footprint than the 1-5/8 x 2-1/4 Schlage plate, so it takes a different jamb mortise. Emtek's 83223 is the square corner option. Measure the plate you are pulling off before ordering a replacement in a different brand.
8) Does the Schlage 10-092 include a strike box for the bolt to enter?
The 10-092 is the face plate with mounting screws included; it presents the lip and the bolt opening at the jamb face. A strike box is a separate part that lines the cavity behind the plate. The Kwikset 81640 is a strike box and the Kwikset 81231-001 is a metal strike dust box, both of which serve that behind-the-jamb role. If a job calls for a lined cavity as well as a finished face, those are ordered alongside a face plate rather than in place of one.
9) Can I use a Codelocks ASA strike plate in place of the Schlage 10-092?
They are not interchangeable. The Codelocks ASA strike plate is an ASA-format strike in a stainless steel finish, which is the tall commercial strike profile. The Schlage 10-092 is a residential round corner full lip strike measuring 1-5/8 by 2-1/4 inches for Schlage B-Series deadbolts. The jamb preps are different sizes, so swapping one for the other means recutting the frame.
10) For a multi-family property standardizing on Schlage B-Series deadbolts, which strike plate keeps the doors consistent?
The Schlage 10-092 is built for all functions of Schlage B-Series deadbolts and comes in 605 bright brass, 609 antique brass, 613 oil-rubbed bronze, 619 satin nickel, 622 matte black, and 626 satin chrome, so one part number covers a building whose doors run different finishes. Deltana SP2753 and Emtek 83223 are also deadbolt strike plates, but they carry their own dimensions and corner shapes, so mixing them into a B-Series fleet means the jamb preps stop matching door to door.
11) What is a full lip strike and does the lip matter on a deadbolt?
The lip is the extended tongue that wraps out of the mortise onto the face of the jamb. On the 10-092 it is a full lip, which covers the edge of the jamb where the bolt sweeps past and takes the wear instead of the wood. On a deadbolt it matters less than on a spring latch (the bolt does not ride across it every time the door closes), but it protects the jamb edge and cleans up the reveal on a rehang.
12) Should I add a strike box behind the Schlage 10-092 strike plate?
The 10-092 is the face plate; it does not include a box or dust cup for the bolt pocket. On a new jamb prep, or where the bolt hole is ragged, a metal dust box keeps debris out of the pocket and gives the bolt a clean landing. Kwikset's 81231-001 metal strike dust box and 81640 strike box both do that job behind a deadbolt strike.
