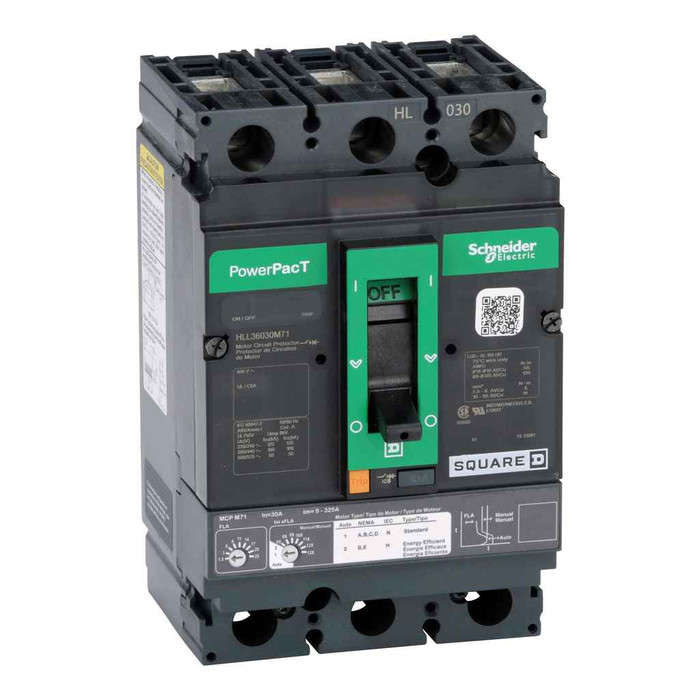

Schneider 3-Pole Molded Case Circuit Breaker M71 Series – 30A to 150A

Schneider Electric 3-Pole Motor Circuit Protector PowerPact M71 Series 30A-150A Thermal-Magnetic

(No reviews yet) Write a Review

Model: HJL36030M71

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,382.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric 3-Pole Motor Circuit Protector PowerPact M71 Series 30A-150A Thermal-Magnetic

Professional motor protection with thermal-magnetic trip technology

The Schneider Electric 3-Pole Motor Circuit Protector from the PowerPact M71 Series delivers reliable motor protection with thermal-magnetic trip technology. This distribution-rated circuit breaker features 3-pole configuration with toggle control, designed for 50/60 Hz network frequency operation and lug mounting support. Built with professional-grade construction in black finish, this motor circuit protector provides dependable performance for electrical distribution applications.

Professional Features & Benefits

  • 30A-150A Current Range: Versatile amperage rating accommodates various motor protection requirements with precise current control.
  • Thermal-Magnetic Trip Technology: Advanced protection combines thermal and magnetic elements for comprehensive overcurrent and short-circuit protection.
  • 3-Pole Configuration: Complete three-phase motor protection with coordinated tripping across all protected poles.
  • PowerPact M71 Series: Professional-grade construction ensures reliable performance in demanding distribution applications.
  • Toggle Control Operation: Simple, reliable manual control for easy operation and maintenance access.
  • 50/60 Hz Network Compatibility: Universal frequency rating supports standard electrical systems worldwide.
  • CE Quality Certification: Meets European conformity standards for professional electrical equipment applications.

Technical Specifications

  • Ambient Air Temperature For Operation: -25-70 °C
  • Ambient Air Temperature For Storage: -50-85 °C
  • Average Life Duration: 15 year(s)
  • Carbon Footprint: 191.9269732
  • Carbon Footprint Kg Co2 Eq Total Life Cycle: 191.9269732
  • China Rohs In Scope: Yes
  • China Rohs Label: 7
  • Circularity Profile: ENVEOLI2206027_V2
  • Continuous Current Rating: 80%
  • Control Type: toggle
  • Country Of Origin: Mexico
  • Device Application: distribution
  • Device Type: LV equipment - Low voltage circuit breaker
  • Distribution Carbon Footprint: 0.41723477
  • End Of Life Carbon Footprint: 3.711720131
  • End Of Life Doc Ref: ENVEOLI2206027_V2
  • Environmental Disclosure: ENVPEP2206027_V2
  • Eoli Availability Display: Yes
  • Eu Rohs Directive: Compliant with Exemptions
  • Field Service Division: PPIBS
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Green Premium Status For Reporting: Green Premium product
  • Html Descr: MOTOR CIRCUIT PROTECTOR 600V 30A
  • Installation Carbon Footprint: 2.00E-02
  • Ith Conventional Free Air Thermal Current: 1.5-25 A
  • Legacy Weee Scope: In
  • Line Rated Current: 30-30 A
  • Magnetic Tripping Current: 9-325 A
  • Manufacturer: Schneider Electric
  • Manufacturing Carbon Footprint: 10.10144113
  • Mercury Free: Yes
  • Mounting Support: lug
  • Network Frequency: 50/60 Hz
  • Package Weight Lbs: 1.950 kg
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Poles Description: 3P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Color: Black
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 3.39 in
  • Product Height: 6.42 in
  • Product Or Component Type: Motor Circuit Protector
  • Product Width: 4.09 in
  • Protected Poles Description: 3t
  • Quality Labels: CE
  • Quantity Per Set: 1
  • Range: PowerPact
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2539
  • Rohs Eur Full Compliance Status: Compliant with Exemptions
  • Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Scope Perimeter: At least in Europe
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Terminal Identifier: AL150HD
  • Tier: 1
  • Tier Id: 1
  • Total Lifecycle Carbon Footprint: 192 kg CO2 eq.
  • Traceability: Yes
  • Trip Unit Technology: thermal-magnetic
  • Use Carbon Footprint: 177.6765843
  • Utilisation Category: category A
  • Wd Status: 1 - GSC certified
  • Wire Stripping Length: 16 mm
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Motor Control Centers
  • Industrial Manufacturing Facilities
  • Commercial HVAC Systems
  • Process Equipment Protection
  • Distribution Panel Applications
  • Electrical Maintenance Operations

Why Choose Schneider Electric Quality?

Schneider Electric PowerPact M71 Series motor circuit protectors deliver professional-grade reliability with 15-year average life duration and CE certification. The thermal-magnetic trip technology and mercury-free construction ensure dependable motor protection performance in demanding electrical distribution environments.

Manufacturer Resources

Product Specs

Ambient Air Temperature For Operation:
-25-70 °C
Ambient Air Temperature For Storage:
-50-85 °C
Average Life Duration:
15 year(s)
Carbon Footprint:
191.9269732
Carbon Footprint Kg Co2 Eq Total Life Cycle:
191.9269732
China Rohs In Scope:
Yes
China Rohs Label:
7
Circularity Profile:
ENVEOLI2206027_V2
Continuous Current Rating:
80%
Control Type:
toggle
Country Of Origin:
Mexico
Device Application:
distribution
Device Type:
LV equipment - Low voltage circuit breaker
Distribution Carbon Footprint:
0.41723477
End Of Life Carbon Footprint:
3.711720131
End Of Life Doc Ref:
ENVEOLI2206027_V2
Environmental Disclosure:
ENVPEP2206027_V2
Eoli Availability Display:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Field Service Division:
PPIBS
Function Option:
Standard
Green Premium Status For Reporting:
Green Premium product
Html Descr:
MOTOR CIRCUIT PROTECTOR 600V 30A
Installation Carbon Footprint:
2.00E-02
Ith Conventional Free Air Thermal Current:
1.5-25 A
Legacy Weee Scope:
In
Line Rated Current:
30-30 A
Magnetic Tripping Current:
9-325 A
Manufacturing Carbon Footprint:
10.10144113
Mercury Free:
Yes
Mounting Support:
lug
Network Frequency:
50/60 Hz
Package Weight Lbs:
1.950 kg
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Poles Description:
3P
Product Availability:
Stock - Normally stocked in distribution facility
Product Color:
Black
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
3.39 in
Product Height:
6.42 in
Product Or Component Type:
Motor Circuit Protector
Product Width:
4.09 in
Protected Poles Description:
3t
Quality Labels:
CE
Quantity Per Set:
1
Range:
PowerPact
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
2539
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Terminal Identifier:
AL150HD
Tier:
1
Total Lifecycle Carbon Footprint:
192 kg CO2 eq.
Traceability:
Yes
Trip Unit Technology:
thermal-magnetic
Use Carbon Footprint:
177.6765843
Utilisation Category:
category A
Wd Status:
1 - GSC certified
Wire Stripping Length:
16 mm
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Motor Circuit Protector
Product Group:
Circuit Breakers

Schneider HJL36030M71 – Frequently Asked Questions

1) Can a PowerPact M71 motor circuit protector be used as a regular branch circuit breaker for lighting or receptacles?
No. The PowerPact M71 is a motor circuit protector with a thermal-magnetic trip unit, built to protect a motor branch circuit as part of a motor starter combination. It is not a substitute for a standard molded case breaker feeding general loads. If you need general branch or feeder protection, specify a standard thermal-magnetic molded case breaker instead.
2) What is the exact part number and amp rating of the Schneider M71 motor circuit protector?
The orderable part is HJL36030M71: a 3-pole, 30 A motor circuit protector in the PowerPact M71 family with a J interrupting rating. The data plate reads 600V, 30A. The M71 family spans 30 A to 150 A, so if your starter needs a higher frame amp you would be ordering a different catalog number in the same family.
3) Will a 30 A M71 motor circuit protector fit in my panel? What are the dimensions?
The M71 body measures 6.42 in height, 4.09 in width and 3.39 in depth, and it ships at 1.950 kg. Three-pole, black molded case. Check those three numbers against the pocket in your motor control center bucket or enclosure before committing.
4) How does the M71 mount and terminate? Does it take lugs or plug in?
It is a lug-mount device, so conductors land directly on the terminals rather than plugging onto a bus stab. The terminal reference is AL150HD, and the wire strip length is 16 mm. Plan for field wiring at both line and load on all three poles.
5) Can I load a 30 A PowerPact M71 to a full 30 amps continuously?
No. It carries an 80 percent continuous current rating, so a 30 A device is good for 24 A of continuous load. Size the device against your motor full load amps with that 80 percent figure in hand, not against the nameplate amp number alone.
6) Does the M71 protect all three phases on a three-phase motor?
Yes. The device is 3-pole with all three poles protected, so an overcurrent on any phase trips the whole device and opens all three. That is what you want feeding a three-phase motor, where single-phasing is the failure that cooks windings. Operation is by toggle handle.
7) Can I install a Schneider M71 motor circuit protector in an unconditioned mechanical room or outdoor enclosure?
Operating range is -25 to 70 degrees C, with storage down to -50 and up to 85 degrees C. That covers most unheated plant rooms, rooftop equipment enclosures and cold-climate pump houses. Above 70 C ambient, look at a different solution or cool the enclosure.
8) Is the M71 field serviceable or is it a replace-only device?
Replace-only. Schneider lists the M71 as not serviceable, with a 15 year average life duration. Treat it as a sealed molded case unit: if it fails or is damaged, you swap the whole device rather than rebuilding the trip unit. Worth knowing when you are stocking spares for a plant.
9) Do I need REACH or RoHS documentation for the Schneider M71 on a government or institutional project?
Schneider flags the M71 as containing Substances of Very High Concern above the REACH threshold, and it is EU RoHS compliant with exemptions. It is mercury free and carries Green Premium status, with environmental disclosure ENVPEP2206027_V2 and end-of-life profile ENVEOLI2206027_V2 if your submittal package needs the reference numbers.
10) Does the M71 work on 60 Hz North American power?
Yes. The M71 is rated 50/60 Hz, so it runs on standard 60 Hz North American systems and 50 Hz systems alike. It is built in Mexico and carries a CE quality label.
11) How many M71 motor circuit protectors come in a box?
One. Quantity per set is 1, so each order line is a single 3-pole device. Order one per motor branch circuit.
12) Does a sustainability reporting team need a carbon figure for the PowerPact M71?
Total life cycle carbon footprint is 192 kg CO2 eq per device. The bulk of that is the use phase at roughly 177.7 kg, with manufacturing at about 10.1 kg, end of life 3.7 kg and distribution 0.4 kg. Packaging uses recycled cardboard, though it is not single-use-plastic free.
