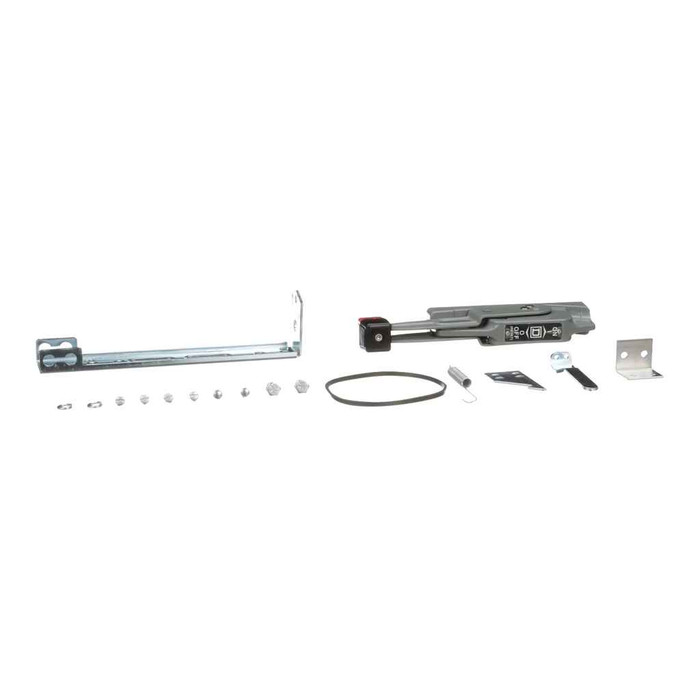

Schneider Electric 9422A Flange Handle Operating Mechanism Kit for 30-200A Disconnect Switches

Schneider Electric 9422A Flange Handle Operating Mechanism Kit for 30-200A Disconnect Switches

Professional Operating Mechanism for Reliable Disconnect Switch Control

The Schneider Electric 9422A Flange Handle Operating Mechanism Kit provides professional-grade control for disconnect switches rated 30-200A. This standard function handle mechanism features variable depth operator specificity and 6-inch product length, ensuring reliable operation and compatibility with Schneider Electric disconnect switch systems. Manufactured in Mexico with RoHS compliance and mercury-free construction for safe, environmentally responsible performance.

Professional Features & Benefits

• 30-200A Compatibility: Designed specifically for disconnect switches in the 30-200 ampere range, ensuring proper fit and reliable operation across a wide range of applications.
• Variable Depth Operator: Accommodates different installation requirements with adjustable depth specifications for versatile mounting configurations.
• 6-Inch Product Length: Compact design provides adequate leverage while maintaining space efficiency in electrical enclosures and panels.
• Standard Function Operation: Reliable handle mechanism delivers consistent switching performance with proven Schneider Electric engineering.
• RoHS Compliant Construction: Mercury-free and compliant with environmental regulations, ensuring safe installation and operation.
• Professional Grade Quality: Manufactured to Schneider Electric standards with proper certifications for commercial and industrial applications.

Technical Specifications

• China Rohs Label: 1
• Country Of Origin: Mexico
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Html Descr: OPERATING MECHANISM HANDLE NEMA
• Legacy Weee Scope: In
• Manufacturer: Schneider Electric
• Mercury Free: Yes
• Package Weight Lbs: 1.247 kg
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Destination: disconnect switches (30...200 A)
• Product Length: 6 in
• Product Or Component Type: Handle Mechanism
• Range Of Product: 9422A
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: At least in Europe
• Serviceability: No
• Specificity Of Operator: variable depth
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Toxic Heavy Metal Free: Yes
• Traceability: No
• Wd Status: 1 - GSC certified
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Disconnect Switch Control
• Commercial Electrical Panel Operations
• Manufacturing Facility Power Management
• Electrical Distribution Systems
• Motor Control Centers
• Power Distribution Equipment
• Maintenance and Service Applications

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability with RoHS compliant construction and mercury-free materials. This handle mechanism kit meets stringent environmental standards while providing the durability and performance expected from professional-grade electrical components. GSC certified quality ensures consistent operation in demanding applications.
