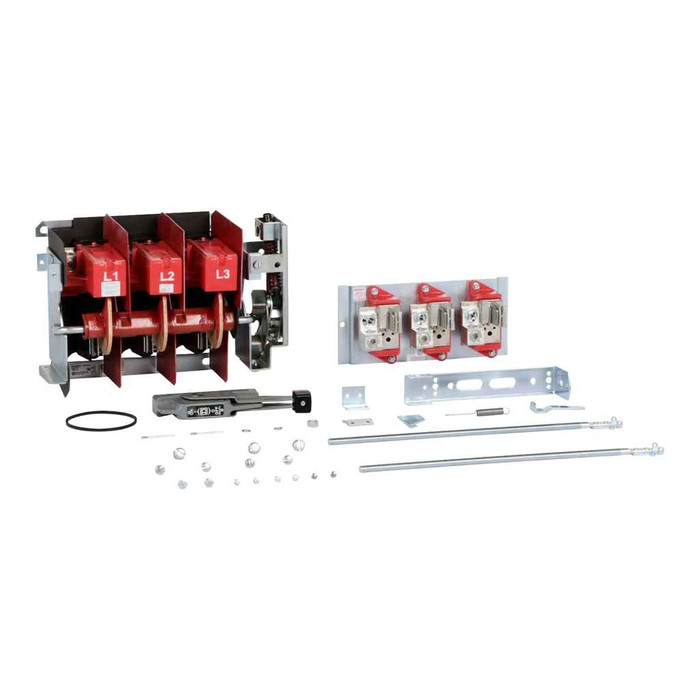

Schneider Operating Mechanism, Flange Mounted, Variable Depth, 200A, 600V, Fuseholder

Schneider Electric 9422T Fusible Disconnect Switch Operating Mechanism - 200A, 600V, Flange Mounted Variable Depth

(No reviews yet) Write a Review

Model: 9422ATF12

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,694.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric 9422T Fusible Disconnect Switch Operating Mechanism

Professional Flange Mounted Variable Depth Design for Reliable Power Distribution

The Schneider Electric 9422T fusible disconnect switch operating mechanism delivers professional-grade power distribution control with 200A line rated current capacity at 600V. This flange mounted, variable depth design provides versatile installation options for demanding electrical applications requiring reliable disconnect switching and fuse protection.

Professional Features & Benefits

  • 200A Line Rated Current: Handles substantial electrical loads for commercial and industrial power distribution systems
  • 600V Operating Voltage: Suitable for medium voltage applications requiring robust disconnect switching capability
  • Flange Mounted Design: Provides secure mounting and professional installation flexibility
  • Variable Depth Configuration: Accommodates diverse panel and enclosure requirements for optimal space utilization
  • Fusible Disconnect Switch Type: Combines disconnect switching with integrated fuse protection for comprehensive circuit protection
  • 9422T Product Range: Part of proven Schneider Electric disconnect switch family with established reliability
  • RoHS Compliant: Meets environmental compliance standards for professional electrical installations

Technical Specifications

  • China Rohs In Scope: No
  • China Rohs Label: 1
  • Country Of Origin: Mexico
  • Device Type: LV equipment - LV fuse - switch
  • Disconnector Device Type: fusible disconnect switch
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Legacy Weee Scope: In
  • Line Rated Current: 200 A
  • Mercury Free: Yes
  • Package Weight Lbs: 12.868 kg
  • Packaging Made With Recycled Cardboard: No
  • Packaging Without Single Use Plastic: No
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Or Component Type: Disconnect Switch
  • Range Of Product: 9422T
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Spare part relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2541
  • Rohs Eur Full Compliance Status: Compliant
  • Rohs Eur Full Compliance Status Id: COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant
  • Rohs Exemption Information: Yes
  • Scope Perimeter: At least in Europe
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Tier: 1
  • Tier Id: 1
  • Toxic Heavy Metal Free: Yes
  • Traceability: No
  • Wd Status: A - SELECTED - PCE ONLY (Migration)
  • With Recycled Cardboard: No
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Commercial Building Power Distribution
  • Industrial Facility Electrical Systems
  • Manufacturing Plant Disconnect Switching
  • Institutional Electrical Infrastructure
  • Multi-Tenant Commercial Properties
  • Professional Service Buildings
  • Light Industrial Operations

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability in electrical distribution equipment with RoHS compliant construction and mercury-free design. The 9422T product range represents established engineering excellence for professional disconnect switching applications requiring dependable performance and environmental compliance.

Manufacturer Resources

Product Specs

China Rohs In Scope:
No
China Rohs Label:
1
Country Of Origin:
Mexico
Device Type:
LV equipment - LV fuse - switch
Disconnector Device Type:
fusible disconnect switch
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant
Function Option:
Standard
Legacy Weee Scope:
In
Line Rated Current:
200 A
Mercury Free:
Yes
Package Weight Lbs:
12.868 kg
Packaging Made With Recycled Cardboard:
No
Packaging Without Single Use Plastic:
No
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Or Component Type:
Disconnect Switch
Range Of Product:
9422T
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Spare part relationship
Rohs Eur Conformity Date:
2541
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Tier:
1
Toxic Heavy Metal Free:
Yes
Traceability:
No
Wd Status:
A - SELECTED - PCE ONLY (Migration)
With Recycled Cardboard:
No
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Disconnect Switch
Product Group:
Safety Switches & Disconnects

Schneider 9422ATF12 – Frequently Asked Questions

1) Is the Schneider 9422ATF12 a complete disconnect switch or just the operating mechanism?
The 9422ATF12 is an operating mechanism for a fusible disconnect switch, part of Schneider Electric's 9422T range. It is catalogued as a spare part, so it is intended to work with an existing disconnect switch assembly rather than function as a standalone switch. Plan on the switch body, fuses and enclosure being separate.
2) What current and voltage is the Schneider 9422ATF12 rated for?
Line rated current is 200 A, and the mechanism is applied on 600V fusible disconnect switch assemblies. If your feeder switch is rated above 200 A, this is not the right mechanism.
3) What does flange mounted variable depth mean for mounting this Schneider operating mechanism?
Flange mounted means the operating handle mounts through the enclosure flange so the switch can be operated with the door closed. Variable depth means the shaft length is adjustable, so the same mechanism suits different enclosure depths instead of forcing you to match a fixed dimension.
4) Does the Schneider 9422ATF12 meet RoHS and mercury-free requirements for a spec job?
It is EU RoHS compliant, mercury free, and free of toxic heavy metals. That covers the usual environmental line items on institutional and government submittals. Country of origin is Mexico, which is the other question that comes up on those packages.
5) Is the 9422ATF12 a standard handle mechanism or a special function version?
It is the Standard function option in the 9422T line, with a fuseholder arrangement as shown in the product image. If your application calls for a defeater, interlock variant or other special function, that is a different 9422T catalog number.
6) Where does a 200A fusible disconnect mechanism like this get used?
Typical placements are commercial building distribution, industrial and manufacturing plant disconnect switching, institutional infrastructure, and multi-tenant commercial property gear. It is low voltage equipment (fuse/switch class), not medium voltage switchgear.
7) What is the shipping weight on the Schneider 9422T operating mechanism?
Packaged weight is 12.868 kg, which is a one-person carry but heavy enough that you want it staged at the panel rather than hauled up a ladder.
