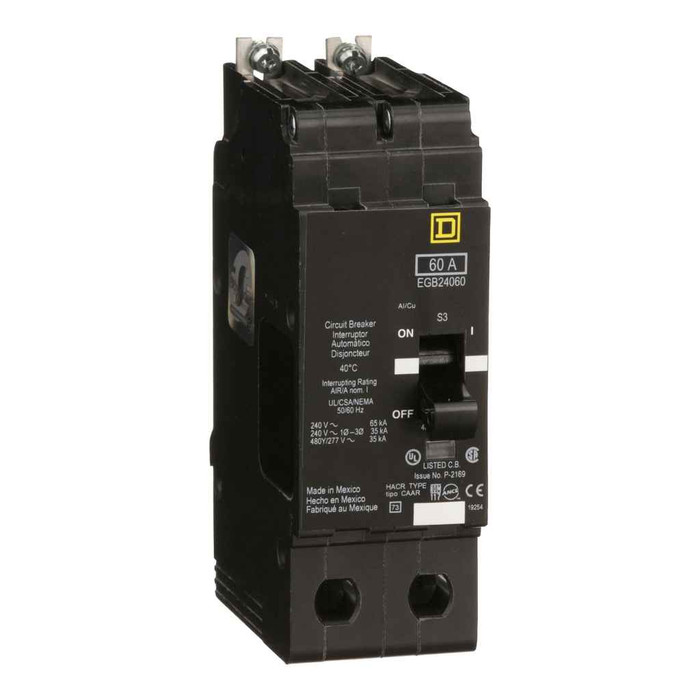

Schneider EGB Series Thermal-Magnetic Circuit Breakers — 1-, 2- & 3-Pole, 15–100A, 480Y/277V A

Schneider Electric EGB Series Thermal-Magnetic Circuit Breakers 1-3 Pole 15-100A 480Y/277V HACR Rated

(No reviews yet) Write a Review

Model: EGB24020

In Stock (leaves warehouse same day if ordered before 3pm ET)

$985.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric EGB Series Thermal-Magnetic Circuit Breakers

Professional HACR-Rated Protection for Commercial Applications

The Schneider Electric EGB Series delivers reliable thermal-magnetic circuit protection for commercial installations with 1-, 2-, and 3-pole configurations supporting 15-100A ratings at 480Y/277V. These HACR-rated miniature circuit breakers feature E-Frame construction with bolt-on mounting and trip indicator for professional electrical distribution systems.

Professional Features & Benefits

  • HACR Rating: Specifically designed for heating, air conditioning, and refrigeration applications ensuring reliable motor load protection.
  • Thermal-Magnetic Technology: Provides precise overcurrent protection with both thermal and magnetic trip mechanisms for comprehensive circuit safety.
  • 480Y/277V Rating: Supports commercial voltage systems with reliable performance in demanding electrical environments.
  • E-Frame Construction: Robust frame design delivers durability and consistent performance in commercial installations.
  • Trip Indicator: Visual indication of breaker status enhances troubleshooting and maintenance efficiency.
  • cULus Certification: Meets rigorous safety standards for professional electrical installations and code compliance.
  • 15-Year Average Life Duration: Long service life reduces maintenance costs and ensures reliable long-term protection.

Technical Specifications

  • Ambient Air Temperature For Operation: 40 °C
  • Average Life Duration: 15 year(s)
  • China Rohs In Scope: No
  • Circuit Breaker Application: HACR rated
  • Circularity Profile: ENVEOLI2212008
  • Compliance: TAA
  • Country Of Origin: Mexico
  • Device Short Name: EGB
  • Device Type: LV equipment - Low voltage circuit breaker
  • End Of Life Doc Ref: ENVEOLI2212008
  • Energy Efficiency Optimized: FALSE
  • Environmental Disclosure: ENVPEP2212008
  • Eoli Availability Display: Yes
  • Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Field Service Division: PPIBS
  • Function Option: Standard
  • Function Option Id: STANDARD
  • H And D Domain: Safety
  • H And D Enrichment Assignment: no
  • H And D Enrichment Class 3: Circuit Breakers
  • H And D Enrichment Function: MCB
  • H And D Subrange: COM
  • Legacy Weee Scope: Out
  • Local Signalling: trip indicator
  • Market Segmentation: Commercial
  • Market Segmentation Id: COMMERCIAL
  • Mercury Free: Yes
  • Module Type: E-Frame
  • Mounting Mode: bolt-on
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: Yes
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Certifications: cULus
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 4.05 in
  • Product Height: 5.66 in
  • Product Or Component Type: miniature circuit-breaker
  • Range Of Product: 125 A Frame EDB-EGB-EJB
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2534
  • Rohs Eur Full Compliance Status: Pro-active compliance (Product out of EU RoHS legal scope)
  • Rohs Eur Full Compliance Status Id: PRO_ACTIVE_COMPLIANCE
  • Rohs Eur In Scope: No
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Serviceability: No
  • Sustainable Packaging: Yes
  • Take Back: No
  • Traceability: Yes
  • Trip Unit Technology: thermal-magnetic
  • Use Carbon Footprint: 50.548
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: Yes
  • Department: Electrical

Professional Applications

  • Commercial HVAC Systems
  • Industrial Motor Control Centers
  • Refrigeration Equipment Protection
  • Commercial Building Distribution
  • Manufacturing Facilities
  • Retail and Office Buildings
  • Healthcare and Educational Facilities

Why Choose Schneider Electric Quality?

Schneider Electric EGB Series circuit breakers deliver proven reliability with 15-year average life duration and cULus certification. The mercury-free design and sustainable packaging reflect environmental responsibility while maintaining the robust E-Frame construction and thermal-magnetic protection technology trusted by electrical professionals worldwide.

Manufacturer Resources

Product Specs

Ambient Air Temperature For Operation:
40 °C
Average Life Duration:
15 year(s)
China Rohs In Scope:
No
Circuit Breaker Application:
HACR rated
Circularity Profile:
ENVEOLI2212008
Compliance:
TAA
Country Of Origin:
Mexico
Device Short Name:
EGB
Device Type:
LV equipment - Low voltage circuit breaker
End Of Life Doc Ref:
ENVEOLI2212008
Energy Efficiency Optimized:
FALSE
Environmental Disclosure:
ENVPEP2212008
Eoli Availability Display:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Field Service Division:
PPIBS
Function Option:
Standard
H And D Domain:
Safety
H And D Enrichment Assignment:
no
H And D Enrichment Class 3:
Circuit Breakers
H And D Enrichment Function:
MCB
Legacy Weee Scope:
Out
Local Signalling:
trip indicator
Market Segmentation:
Commercial
Mercury Free:
Yes
Module Type:
E-Frame
Mounting Mode:
bolt-on
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
Yes
Product Availability:
Stock - Normally stocked in distribution facility
Product Certifications:
cULus
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
4.05 in
Product Height:
5.66 in
Product Or Component Type:
miniature circuit-breaker
Range Of Product:
125 A Frame EDB-EGB-EJB
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
2534
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
Yes
Take Back:
No
Traceability:
Yes
Trip Unit Technology:
thermal-magnetic
Use Carbon Footprint:
50.548
With Recycled Cardboard:
Yes
Without Single Use Plastic:
Yes
Department:
Electrical
Product Type:
Miniature Circuit-Breaker
Product Group:
Circuit Breakers

Schneider EGB24020 – Frequently Asked Questions

1) Will a Schneider EGB breaker plug into my panel, or does it have to be bolted in?
The EGB is a bolt-on breaker, not a plug-in. It mounts to the panelboard's bolt-on mounting pads, so the interior has to be built for bolt-on E-Frame breakers. If your panel takes plug-in breakers, the EGB will not seat in it.
2) Can I use an EGB breaker on a 480Y/277V system?
Yes, within the pole configuration. The 2-pole and 3-pole EGB breakers are rated 480Y/277 Vac, so they work on a solidly grounded 480Y/277V wye system. The 1-pole versions are rated 277 Vac only, which is a single phase to neutral of that same wye system. These are not for 480V delta (corner or ungrounded) service.
3) Is the EGB breaker suitable for a rooftop HVAC unit or refrigeration compressor feed?
That is what it's built for. The EGB carries an HACR rating, meaning it is acceptable for heating, air conditioning and refrigeration equipment branch circuits where the nameplate calls for an HACR type breaker. Protection is thermal-magnetic, so the thermal element rides through motor inrush while the magnetic element handles short circuits.
4) Is the EGB interchangeable with EDB or EJB breakers?
All three sit in the same Schneider 125 A Frame family, EDB-EGB-EJB, and share the E-Frame bolt-on footprint. What separates them is the voltage and interrupting class, so an EGB is not a straight substitute for an EDB or EJB. Match the letter to what the panel schedule or the existing breaker specifies.
5) Is the Schneider EGB breaker UL listed, and does it meet Buy American / TAA requirements?
The EGB is cULus certified, covering both US and Canadian listing, and it is flagged TAA compliant for federal and institutional procurement. Country of origin is Mexico, which is a TAA designated country.
6) What amp ratings and pole counts does the Schneider EGB come in?
Ratings run 15, 20, 25, 30, 40, 50, 60, 70, 80, 90 and 100A, each available in 1-pole (277 Vac), 2-pole and 3-pole (480Y/277 Vac). Part numbers follow the pattern: EGB34050 is 3-pole 50A, EGB24020 is 2-pole 20A, EGB14030 is 1-pole 30A.
7) How much space does an EGB breaker need in the panel?
Schneider lists the EGB at 5.66 in high by 4.05 in deep. Check the 4.05 in depth against your enclosure's gutter and cover clearance before you commit, particularly on a shallow surface-mount can.
8) Will an EGB breaker hold its rating in a hot mechanical room or outdoor gear?
The published operating ambient is 40 C (104 F). Above that you are outside the stated rating and should expect derating, which matters for rooftop distribution gear and unconditioned penthouse rooms in summer.
9) Do I need a separate neutral for a 2-pole EGB on a 480Y/277V panel?
Not for the breaker itself. A 2-pole EGB at 480Y/277 Vac lands on two phases of the wye and protects a 480V two-wire load. You only run a neutral if the load needs 277V line-to-neutral, in which case a 1-pole 277 Vac EGB is the right device for each of those circuits.
10) Can I tell from the front of the breaker whether it tripped or someone switched it off?
Yes. The EGB has a trip indicator, so the handle position tells a maintenance tech whether the device tripped on fault or was simply turned off. That saves guesswork when you are chasing a nuisance trip on an HVAC circuit.
11) If an EGB breaker fails, can it be repaired or does it get replaced?
Replace it. Schneider lists the EGB as non-serviceable, so there are no field-replaceable trip units or internal parts. For a facility standardizing a spares kit, stock whole breakers in the amp ratings your panel schedules use.
12) Does the EGB breaker contain any REACH substances I have to declare?
Yes. Schneider reports the EGB as containing Substances of Very High Concern above the REACH threshold, and environmental documentation is published under ENVPEP2212008 with end-of-life reference ENVEOLI2212008. The unit is mercury free, and packaging is recycled cardboard with no single-use plastic.
