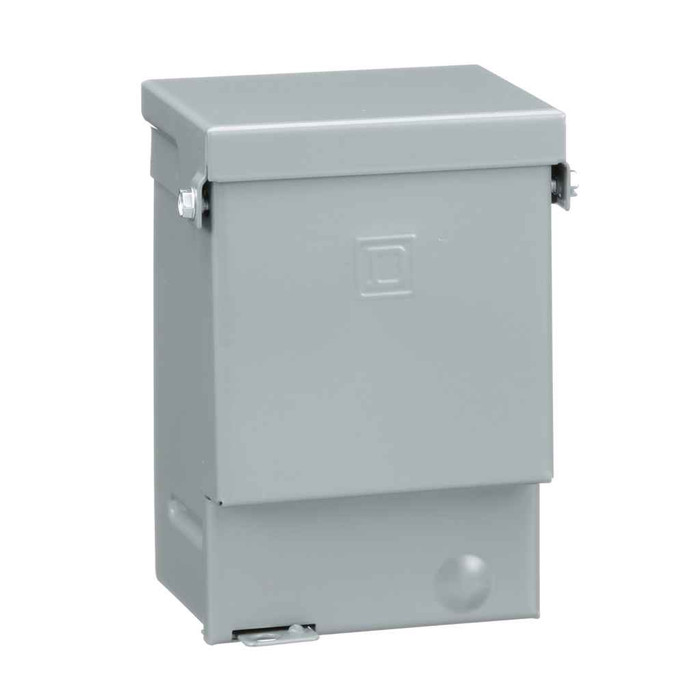

Schneider Electric QO Enclosed Molded Case Switch 60A 2-Pole 240VAC NEMA 3R Air Conditioning Disconnect

Schneider Electric QO Enclosed Molded Case Switch 60A 2-Pole 240VAC NEMA 3R Air Conditioning Disconnect

Professional Air Conditioning Disconnect Switch for Outdoor Applications

The Schneider Electric QO Enclosed Molded Case Switch delivers reliable 60A switching capacity for air conditioning applications with NEMA 3R outdoor enclosure protection. This 2-pole, 240VAC switch provides professional-grade disconnection for single-phase air conditioning systems with UL Listed safety certification and 22kA interrupting capacity for demanding residential and light commercial installations.

Professional Features & Benefits

• 60A Line Rated Current: Handles substantial air conditioning loads with reliable switching performance for residential and commercial HVAC systems.
• NEMA 3R Outdoor Enclosure: Weather-resistant protection allows safe installation in outdoor environments with protection from rain, sleet, and ice formation.
• 240VAC Single Phase Operation: Optimized for standard residential and light commercial air conditioning voltage requirements with reliable performance.
• 22kA Interrupting Capacity: Provides robust fault protection capability for demanding electrical environments and system safety.
• UL Listed Certification: Meets rigorous safety standards ensuring code compliance and professional installation confidence.
• QO Series Design: Part of Schneider Electric's proven QO product line known for reliability and consistent performance in residential applications.
• 15 Year Average Life Duration: Long service life reduces maintenance requirements and provides dependable long-term operation.

Technical Specifications

• Ambient Air Temperature For Operation: 40 °C
• Average Life Duration: 15 year(s)
• Carbon Footprint: 10.51239539
• Carbon Footprint Kg Co2 Eq Total Life Cycle: 10.51239539
• China Rohs In Scope: No
• China Rohs Label: 1
• Country Of Origin: Mexico
• Device Type: LV equipment - LV switch - disconnector
• Distribution Carbon Footprint: 0.460066607
• End Of Life Carbon Footprint: 0.142697705
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212003EN
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Circuit Breakers
• H And D Enrichment Class 4: MCCB
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: RESI
• Html Descr: MOLDED CASE SWITCH A/C DISC 240V 1PH 60A
• Installation Carbon Footprint: 0.001073903
• Legacy Weee Scope: In
• Line Rated Current: 60 A
• Manufacturer: Schneider Electric
• Manufacturing Carbon Footprint: 9.821216177
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Package Weight Lbs: 1.361 kg
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Phase: 1 phase
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL Listed
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 3.9 in
• Product Height: 6.5 in
• Product Width: 4.65 in
• Range Of Product: QO
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2531
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Total Lifecycle Carbon Footprint: 11 kg CO2 eq.
• Toxic Heavy Metal Free: Yes
• Traceability: No
• Type Of Installation: enclosed outdoor
• Use Carbon Footprint: 0.087341
• Wd Status: L - LOB initialized
• With Recycled Cardboard: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Air Conditioning Systems
• Light Commercial HVAC Equipment
• Outdoor Equipment Disconnects
• Service Panel Applications
• HVAC Maintenance Disconnection
• Electrical Code Compliance Installations

Why Choose Schneider Electric Quality?

Schneider Electric QO series products deliver proven reliability with UL Listed certification and 15-year average life duration. The NEMA 3R outdoor enclosure provides weather-resistant protection, while mercury-free and toxic heavy metal-free construction ensures environmental responsibility. Trust Schneider Electric's residential market expertise for dependable air conditioning disconnect solutions.
