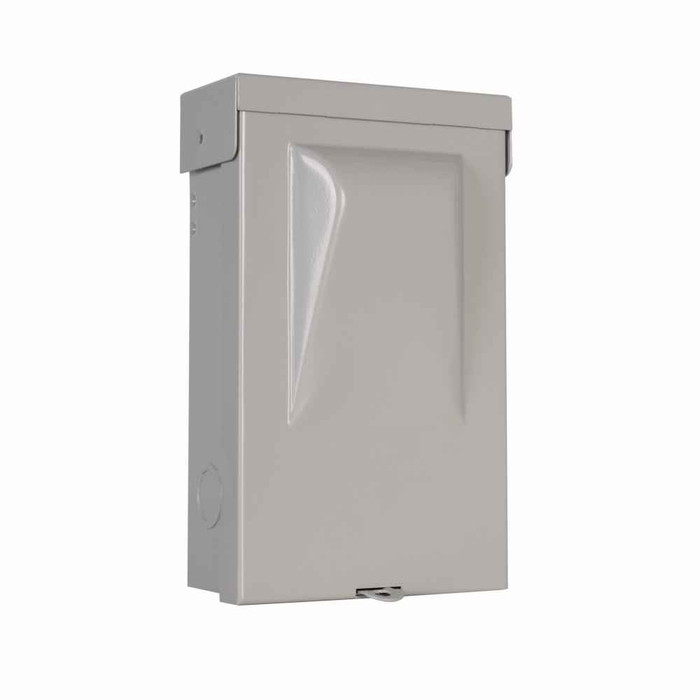

Eaton Air Conditioning Disconnect Non-Fused Pullout 60A 120/240V 10kAIC NEMA 3R

Eaton Air Conditioning Disconnect Non-Fused Pullout 60A 120/240V NEMA 3R

(No reviews yet) Write a Review

Model: DPU222R

In Stock (leaves warehouse same day if ordered before 3pm ET)

$37.37
$36.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Air Conditioning Disconnect Non-Fused Pullout 60A 120/240V NEMA 3R

Professional HVAC Disconnect Solution for Outdoor Applications

The Eaton Air Conditioning Disconnect provides reliable non-fused pullout switching for HVAC equipment up to 60A at 120/240V. Built with galvanized steel construction and NEMA 3R enclosure rating, this disconnect delivers dependable outdoor performance for residential and commercial air conditioning systems with 10 kAIC interrupt rating and CSA certification.

Professional Features & Benefits

  • 60A Rating: Handles substantial HVAC loads up to 10 hp at 240V for comprehensive air conditioning system protection
  • NEMA 3R Enclosure: Weather-resistant galvanized steel construction ensures reliable outdoor operation in rain and ice conditions
  • Non-Fused Pullout Design: Provides convenient disconnect functionality with easy pullout operation for maintenance and emergency shutoff
  • 10 kAIC Interrupt Rating: Delivers robust fault current protection for enhanced electrical safety and system reliability
  • 120/240V Compatibility: Supports standard residential and light commercial voltage requirements with flexible wire sizing options
  • CSA Certification: Meets rigorous safety standards ensuring code compliance and professional installation confidence
  • Compact Profile: 2" x 5.5" x 9" dimensions provide space-efficient installation in tight outdoor locations

Technical Specifications

  • Amperage Rating: 60A
  • Catalog Notes: For replacement pullout head, order part number 96-3258-4.
  • Certifications: CSA Certified
  • Enclosure: NEMA 3R
  • Enclosure Material: Galvanized steel
  • Horsepower: 10 hp at 240 V
  • Interrupt Rating: 10 kAIC
  • Product Color: ANSI 61 gray
  • Product Details: Non-fused pullout
  • Product Height: 2 in
  • Product Length Depth: 9 in
  • Product Weight: 3 lb
  • Product Width: 5.5 in
  • Voltage Rating: 120/240 V
  • Wire Size: #14-3 AWG Cu/Al

Professional Applications

  • Residential Air Conditioning Systems
  • Commercial HVAC Equipment
  • Rooftop Unit Disconnects
  • Heat Pump Installations
  • Multi-Unit Property HVAC
  • Light Industrial Cooling Systems
  • Emergency HVAC Shutoff Requirements

Why Choose Eaton Quality?

Eaton delivers proven reliability through galvanized steel construction, NEMA 3R weather protection, and CSA certification. The compact 3 lb design with pullout convenience ensures long-term performance in demanding outdoor HVAC applications while maintaining professional installation standards.

Manufacturer Resources

Product Specs

Amperage Rating:
60A
Catalog Notes:
For replacement pullout head, order part number 96-3258-4.
Certifications:
CSA Certified
Configuration:
NEMA 3R
Enclosure Material:
Galvanized steel
Horsepower:
10 hp at 240 V
Interrupt Rating:
10 kAIC
Product Color:
ANSI 61 Grey
Product Details:
Non-fused pullout
Product Height:
2 in
Product Length Depth:
9 in
Product Weight:
3 lb
Product Width:
5.5 in
Voltage Rating:
120/240 V
Wire Size:
#14-3 AWG Cu/Al
Department:
Electrical
Product Group:
Power Distribution
Product Type:
Disconnect Switch
Product Subgroup:
Safety Switches & Disconnects

Eaton DPU222R – Frequently Asked Questions

1) Will a 60A Eaton pullout disconnect handle my 3-ton condenser, or do I need a bigger switch?
The Eaton DPU222R is rated 60A at 120/240V, good for motor loads up to 10 hp at 240V. That covers essentially any residential split-system condenser and most light commercial units, since the sizing check is the max fuse or breaker figure on the unit's nameplate, not the tonnage. If that nameplate MOCP exceeds 60A, this pullout is undersized and you need a 100A class disconnect instead.
2) Can I mount an Eaton DPU222R AC disconnect outside on the wall next to the condenser?
Outdoors is exactly what it is built for. The enclosure is NEMA 3R galvanized steel in ANSI 61 gray, which is the rain and ice tight rating used for exterior wall mounting beside a condensing unit. Keep it within sight of the equipment and reachable, and it is fine in direct weather. It is not a washdown or dust tight enclosure, so a hosed-down or corrosive interior space needs a 4X rated switch.
3) Non-fused pullout vs a fused AC disconnect: which one do I need for a heat pump?
The DPU222R is a non-fused pullout, meaning it isolates only. Use it when the branch circuit is already protected by the breaker in the panel and the equipment nameplate calls for a maximum overcurrent device of the HACR breaker type. If the nameplate says maximum fuse size, or specifically requires fuses at the unit, you need a fused disconnect with the correct class fuses instead. Most modern residential heat pumps accept the non-fused version.
4) The pullout handle on my Eaton AC disconnect is cracked. Can I replace just the head?
The pullout head is a separate orderable part. For the DPU222R, the replacement head is part number 96-3258-4, so a broken or missing handle does not mean pulling the whole enclosure and re-landing conductors. Property managers with several of these on a site often keep one spare head on the shelf, since a missing pullout is the usual reason a condenser is found dead.
5) Can I use this 120/240V pullout on a 208V or 480V commercial rooftop unit?
No. The DPU222R is rated 120/240V only. It is fine on single phase 208V equipment where the nameplate lists 208/240V single phase, but a 480V or three phase rooftop unit needs a disconnect rated for that voltage and phase count. Putting a 240V rated pullout on a 480V circuit is a code violation and a failure risk.
6) What wire size can I land in the Eaton DPU222R disconnect?
Terminals take #14 through #3 AWG, and they are rated Cu/Al so aluminum conductors are acceptable. That range covers the #10 or #8 copper typical of a 30A to 50A condenser circuit and up to #3 for a full 60A aluminum feed. Anything larger than #3 will not land, and at that point the circuit is beyond the switch's 60A rating anyway.
7) Is 10 kAIC enough interrupt rating for an AC disconnect on a residential service?
10 kAIC is the short circuit rating on this Eaton pullout, and it is adequate for typical residential and light commercial services where the available fault current at the condenser is well under that figure. On a large commercial service, or a unit close to a big transformer, run the fault current calculation first: if available fault current at the disconnect exceeds 10 kA, this switch is not series rated for that location.
8) Is the Eaton DPU222R AC disconnect approved for use in Canada?
CSA Certified, so it is acceptable for installation under the Canadian Electrical Code as well as for US jobs where an inspector wants a recognized certification mark on the disconnecting means.
9) Does a pullout disconnect count as the service disconnect or a lockable means for HVAC servicing?
A pullout is a disconnecting means for the equipment, not a service disconnect. Physically removing the head opens both ungrounded conductors of the 120/240V circuit and the removed head can be pocketed by the tech, which is why they are standard on condensers. If your facility's lockout procedure requires a padlockable device rather than a removable head, specify a safety switch with a lockable handle instead of this non-fused pullout.
10) How much wall space does the Eaton DPU222R need in a tight side-yard installation?
The box measures 2 x 5.5 x 9 inches and weighs 3 lb, so it takes very little wall and mounts with light fasteners on siding, block, or a strut. Remember to leave clearance above the pullout head so the handle can be drawn straight out, plus the working space the code requires in front of the switch.
How fast can I get the Eaton DPU222R delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Eaton DPU222R come with a warranty?
Absolutely. The Eaton DPU222R is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Eaton DPU222R?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Eaton DPU222R from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
