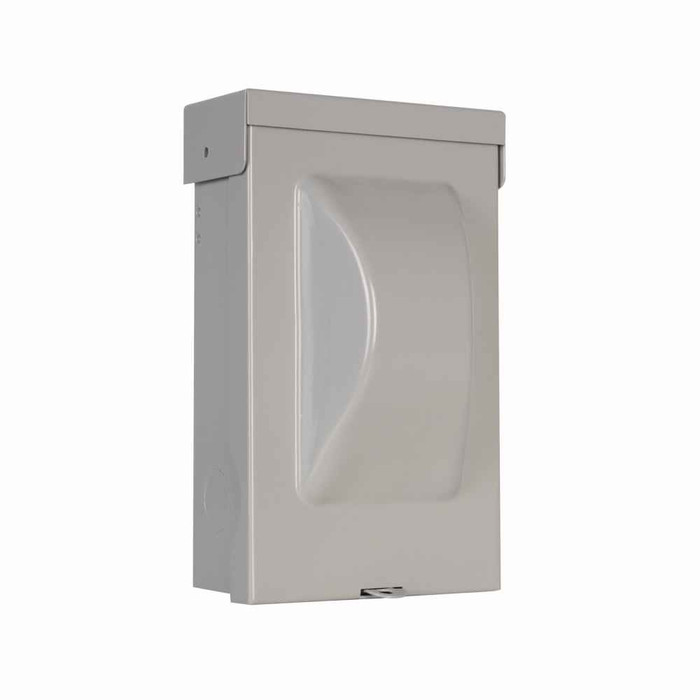

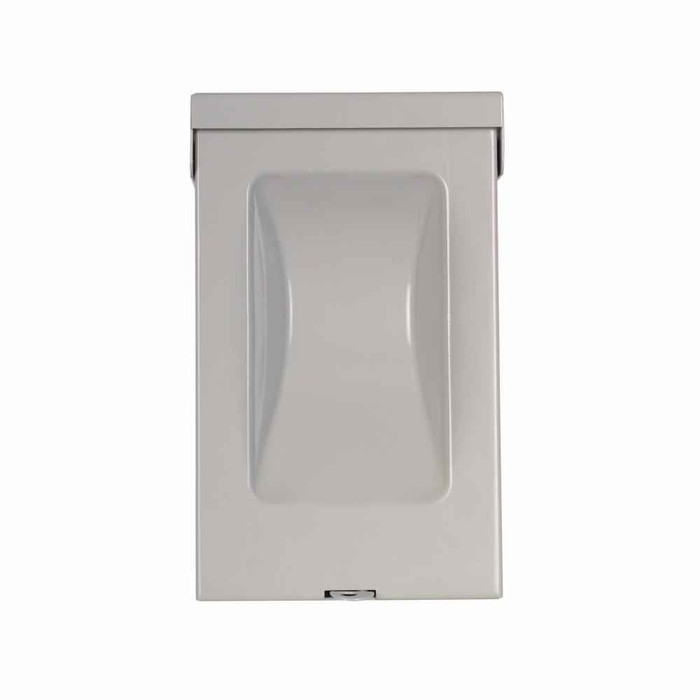

Eaton Air Conditioning Disconnect Molded Case Switch 60A 240V 10kAIC NEMA 3R

Eaton Air Conditioning Disconnect Switch 60A 240V NEMA 3R Molded Case

(No reviews yet) Write a Review

Model: DPB222R

In Stock (leaves warehouse same day if ordered before 3pm ET)

$58.36
$56.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Air Conditioning Disconnect Switch 60A 240V NEMA 3R Molded Case

Professional HVAC Disconnect Solution for Outdoor Applications

The Eaton Air Conditioning Disconnect Switch delivers reliable power control for HVAC systems with 60A capacity at 240V. This molded case switch features NEMA 3R weatherproof enclosure construction in galvanized steel, providing dependable outdoor protection for air conditioning equipment. UL Listed for professional installations with 10 kAIC interrupt rating and 10 hp motor compatibility at 240V.

Professional Features & Benefits

  • 60A Rating: Handles substantial HVAC loads with reliable switching capacity for commercial and residential air conditioning systems.
  • NEMA 3R Enclosure: Weatherproof galvanized steel construction protects against rain, sleet, and outdoor elements while maintaining accessibility.
  • 10 kAIC Interrupt Rating: Provides robust fault protection with professional-grade interrupting capacity for safe system operation.
  • 240V Compatibility: Optimized for standard HVAC voltage requirements with 10 hp motor handling capability.
  • UL Listed Certification: Meets rigorous safety standards for code compliance and professional installation confidence.
  • Compact Design: 8.6" x 5.3" x 3.74" dimensions and 3.11 lb weight enable flexible mounting in space-constrained locations.
  • #14-3 AWG Wire Range: Accommodates copper and aluminum conductors for versatile wiring compatibility.

Technical Specifications

  • Amperage Rating: 60A
  • Catalog Notes: For replacement molded case switch, order part number BR260NA.
  • Certifications: UL Listed
  • Enclosure: NEMA 3R
  • Enclosure Material: Galvanized steel
  • Horsepower: 10 hp at 240 V
  • Interrupt Rating: 10 kAIC
  • Product Color: ANSI 61 gray
  • Product Details: Air conditioning disconnect
  • Product Height: 8.6 in
  • Product Length Depth: 5.3 in
  • Product Weight: 3.11 lb
  • Product Width: 3.74 in
  • Voltage Rating: 240V
  • Wire Size: #14-3 AWG Cu/Al

Professional Applications

  • Residential Air Conditioning Systems
  • Commercial HVAC Equipment
  • Rooftop Unit Disconnects
  • Heat Pump Installations
  • Multi-Unit Properties
  • Light Commercial Buildings
  • Service and Maintenance Access Points

Why Choose Eaton Quality?

Eaton delivers proven reliability through UL Listed certification and robust galvanized steel NEMA 3R construction. The professional-grade 10 kAIC interrupt rating and weatherproof enclosure ensure long-term performance in demanding outdoor HVAC applications, backed by Eaton's commitment to electrical safety and durability.

Manufacturer Resources

Product Specs

Amperage Rating:
60A
Certifications:
UL Listed
Configuration:
NEMA 3R
Enclosure Material:
Galvanized steel
Horsepower:
10 hp at 240 V
Interrupt Rating:
10 kAIC
Product Color:
ANSI 61 Grey
Product Details:
Air conditioning disconnect
Product Height:
8.6 in
Product Length Depth:
5.3 in
Product Weight:
3.11 lb
Product Width:
3.74 in
Voltage Rating:
240V
Wire Size:
#14-3 AWG Cu/Al
Department:
Electrical
Product Group:
Power Distribution
Product Type:
Disconnect Switch
Product Subgroup:
Safety Switches & Disconnects
Product Length:
5.3 in

Eaton DPB222R – Frequently Asked Questions

1) Will a 60A Eaton DPB222R disconnect handle a 5 ton condenser on a 240V circuit?
The DPB222R is a 60A, 240V molded case disconnect rated 10 hp at 240 V, which covers essentially any residential or light commercial split system condenser. What decides it is the nameplate on the unit, not the tonnage: check the MCA and MOCP on the condenser data plate. If the MOCP is 60A or less, this switch is sized for it. Above 60A you need a larger disconnect.
2) Can the Eaton DPB222R air conditioning disconnect be mounted outdoors next to the condenser?
Yes. The enclosure is NEMA 3R in galvanized steel, which is the rating for outdoor rain and sleet exposure, and it is finished in ANSI 61 grey. That is exactly the mounting position code expects for an AC disconnect: on the exterior wall within sight of the outdoor unit.
3) Is the DPB222R a fused or non-fused disconnect?
It is a molded case switch, not a fusible pullout. There are no fuses to buy or stock with it, and no fuse clips inside. Overcurrent protection stays at the breaker in the panel, so size that breaker to the condenser's MOCP. The switch itself carries a 10 kAIC interrupt rating.
4) Is 10 kAIC enough interrupting rating for an AC disconnect?
For the vast majority of residential and light commercial services, yes. The DPB222R is rated 10 kAIC, which matches the standard rating on residential branch breakers. Where an engineer has done a short circuit study and the available fault current at the disconnect exceeds 10 kA, this switch is not the right device and you need a higher AIC unit.
5) What is the replacement switch part number for an Eaton DPB222R disconnect?
If the switch itself fails and the enclosure is sound, the replacement molded case switch is Eaton BR260NA. That lets you swap the guts without pulling the box off the wall or redoing the conduit.
6) Can I use an AC disconnect like the DPB222R on a heat pump or a rooftop unit, not just a straight cool condenser?
Yes. A 60A 240V non-fused disconnect serves any single phase 240V outdoor unit within its rating: heat pumps, rooftop package units, and mini split condensers all use the same service disconnect. The one thing to confirm is voltage. If the equipment is 208/240 three phase or 480V, this 240V switch is the wrong device.
7) Does a molded case AC disconnect switch make sense instead of a pullout disconnect?
A pullout is cheaper and has no moving mechanism, but service techs have to find and reinsert the block, and the pull can walk away. A molded case switch like the DPB222R has a real operating handle that stays with the box, so a tech can kill and restore power one handed, and the position is visible from the ground. Where a property manager is standardizing across many units and wants the same predictable shutoff at every pad, the switch version is the one to spec.
