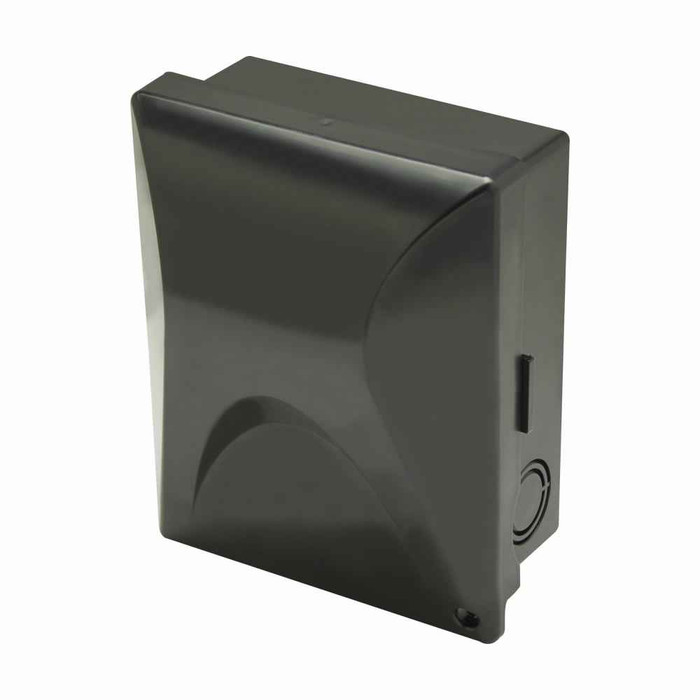

Eaton Air Conditioning Disconnect NON-Fusible Pullout Device

Eaton Air Conditioning Disconnect Non-Fusible Pullout Device 60A Outdoor Safety Switch

(No reviews yet) Write a Review

Model: ACD60R

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Air Conditioning Disconnect Non-Fusible Pullout Device 60A Outdoor Safety Switch

Professional HVAC Disconnect Solution for Safe Service & Maintenance

The Eaton Air Conditioning Disconnect Non-Fusible Pullout Device provides reliable electrical isolation for HVAC equipment service and maintenance. This professional-grade disconnect switch features a pullout design for safe operation and is engineered to meet demanding outdoor installation requirements. Built with Eaton’s proven reliability standards, this disconnect ensures safe electrical isolation when servicing air conditioning and heat pump systems.

Professional Features & Benefits

  • Non-Fusible Pullout Design: Provides clean electrical isolation without fuse replacement requirements, reducing maintenance costs and service complexity.
  • 60 Ampere Rating: Handles substantial HVAC loads including residential and light commercial air conditioning systems with reliable switching capacity.
  • Compact Dimensions: 6.4" x 5.2" x 3.3" profile allows installation in tight spaces while maintaining proper clearances for safe operation.
  • Lightweight Construction: At 0.745 lb, enables easy handling during installation while maintaining robust electrical performance.
  • HVAC-Specific Application: Purpose-built for air conditioning disconnect service with appropriate ratings and construction for outdoor environments.
  • Pullout Operation: Visible disconnect mechanism provides clear indication of switch position for enhanced safety during service work.

Technical Specifications

  • Product Height: 6.4 in
  • Product Length Depth: 3.3 in
  • Product Weight: .745 lb
  • Product Width: 5.2 in

Professional Applications

  • Residential Air Conditioning Systems
  • Heat Pump Installations
  • Light Commercial HVAC Equipment
  • Rooftop Unit Disconnects
  • Condenser Unit Service Switches
  • HVAC Maintenance Applications
  • Outdoor Equipment Isolation

Why Choose Eaton Quality?

Eaton delivers proven reliability in electrical disconnect solutions with robust construction and dependable performance. This air conditioning disconnect combines professional-grade materials with precision engineering to ensure safe, long-lasting operation in demanding HVAC service applications.

Manufacturer Resources

Product Specs

Product Height:
6.4 in
Product Length Depth:
3.3 in
Product Weight:
.745 lb
Product Width:
5.2 in
Department:
Electrical
Product Group:
Power Distribution
Product Type:
Disconnect Switch
Product Subgroup:
Safety Switches & Disconnects
Product Length:
3.3 in

Eaton ACD60R – Frequently Asked Questions

1) Do I need to buy fuses for the Eaton ACD60R air conditioning disconnect?
No fuses. The ACD60R is a non-fusible pullout, so the pullout block simply breaks the circuit when removed and there is nothing to replace when it is put back. Overcurrent protection has to come from upstream at the panel breaker. If your condenser nameplate calls for maximum fuse size rather than a maximum breaker, you want a fusible disconnect instead of this one.
2) Is a 60 amp disconnect big enough for a residential 3 or 4 ton condenser?
For most residential and light commercial air conditioning and heat pump units, yes. The Eaton ACD60R is rated 60 amperes, which covers the typical residential condenser and light commercial HVAC load. Size it against the minimum circuit ampacity and maximum overcurrent device on the unit nameplate, not the tonnage, and go up to a larger switch if the nameplate exceeds 60A.
3) Can this Eaton AC disconnect be mounted outdoors next to the condenser?
Outdoor service is what it is built for. The ACD60R is intended for outdoor installation alongside condensing units, heat pumps, and rooftop equipment, which is where a service disconnect has to live to be within sight of the equipment it feeds.
4) Pullout disconnect or a lever-operated safety switch for an HVAC condenser?
A pullout like the ACD60R gives a visible break: the block comes out in your hand, so a tech working on the unit can see the circuit is open and carry the block with them. It is the faster and more compact choice for a straightforward condenser shutoff. A lever-operated switch is what you want when the disconnect has to be padlocked in the open position for lockout/tagout, or when a fused switch is required by the equipment nameplate. Both do the same isolation job; the difference is how you prove it is open and whether it can be locked.
5) What is the Eaton part number for the 60 amp AC pullout disconnect?
Order it as Eaton ACD60R. That is the manufacturer part number for the 60A non-fusible air conditioning pullout, and it is the number to give a counter or match against a spec sheet.
