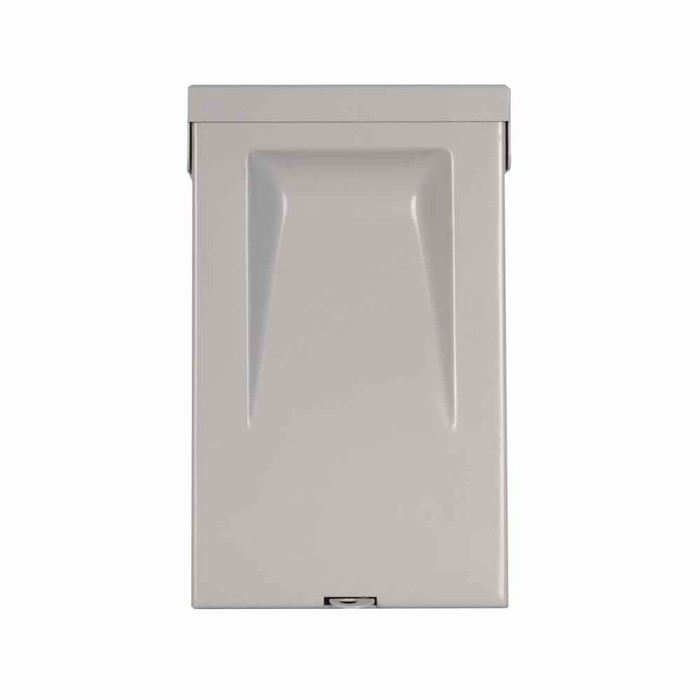

Eaton Air Conditioning Disconnect Non-Fused Pullout Non-Metallic/Polycarbonate Galvanized Steel (NEMA 3R)

Eaton Air Conditioning Disconnect Switch Non-Fused Pullout NEMA 3R Galvanized Steel 120/240V

(No reviews yet) Write a Review

Model: DPF221R

In Stock (leaves warehouse same day if ordered before 3pm ET)

$68.98
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Air Conditioning Disconnect Switch Non-Fused Pullout NEMA 3R Galvanized Steel 120/240V

Professional HVAC Disconnect Solution for Outdoor Applications

The Eaton Air Conditioning Disconnect Switch delivers reliable power control for HVAC systems with its non-fused pullout design and NEMA 3R galvanized steel enclosure. Rated for 120/240V operation with 10 kAIC interrupt rating, this disconnect switch provides professional-grade protection in a compact ANSI 61 gray finish suitable for outdoor installations.

Professional Features & Benefits

  • NEMA 3R Enclosure Rating: Provides weather-resistant protection against rain, sleet, and ice formation for reliable outdoor operation.
  • Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in harsh environmental conditions.
  • 10 kAIC Interrupt Rating: Ensures safe interruption of fault currents up to 10,000 amperes for enhanced system protection.
  • 120/240V Voltage Rating: Compatible with standard residential and light commercial HVAC system voltage requirements.
  • Non-Fused Pullout Design: Simplifies installation and maintenance with easy pullout operation for safe equipment servicing.
  • #14-3 AWG Wire Compatibility: Accommodates standard copper and aluminum conductors for flexible wiring applications.
  • Compact Dimensions: 8.7" x 5.4" x 3.15" footprint optimizes space utilization while maintaining full functionality.

Technical Specifications

  • Catalog Notes: For replacement pullout head, order part number 96-3258-4.
  • Enclosure: NEMA 3R
  • Enclosure Material: Galvanized steel
  • Interrupt Rating: 10 kAIC
  • Product Color: ANSI 61 gray
  • Product Details: Fused pullout
  • Product Height: 8.7 in
  • Product Length Depth: 5.4 in
  • Product Weight: 2.7 lb
  • Product Width: 3.15 in
  • Voltage Rating: 120/240 V
  • Wire Size: #14-3 AWG Cu/Al

Professional Applications

  • Residential Air Conditioning Systems
  • Commercial HVAC Equipment
  • Heat Pump Installations
  • Rooftop Unit Disconnects
  • Outdoor Condensing Units
  • Service and Maintenance Applications
  • Equipment Isolation Requirements

Why Choose Eaton Quality?

Eaton disconnect switches provide proven reliability with galvanized steel construction and NEMA 3R weather protection. The 10 kAIC interrupt rating and ANSI 61 gray finish ensure professional performance and appearance for demanding HVAC applications.

Manufacturer Resources

Product Specs

Catalog Notes:
For replacement pullout head, order part number 96-3258-4.
Configuration:
NEMA 3R
Enclosure Material:
Galvanized steel
Interrupt Rating:
10 kAIC
Product Color:
ANSI 61 Grey
Product Details:
Fused pullout
Product Height:
8.7 in
Product Length Depth:
5.4 in
Product Weight:
2.7 lb
Product Width:
3.15 in
Voltage Rating:
120/240 V
Product Size:
#14-3 AWG Cu/Al
Department:
Electrical
Product Group:
Disconnect Switches
Product Type:
Disconnect Switch

Eaton DPF221R – Frequently Asked Questions

1) Will an Eaton DPF221R or DPF222R AC disconnect work for my outdoor condensing unit?
Both Eaton DPF pullout disconnects are built for outdoor equipment: the enclosure is NEMA 3R galvanized steel, which is the rating for rain, sleet and ice exposure on an outdoor wall or condenser pad. Rated 120/240V, with a 10 kAIC interrupt rating. Pick DPF221R for a 30A unit and DPF222R for 60A, matching the amperage on the equipment nameplate.
2) Does the Eaton DPF AC disconnect take fuses, or is it non-fused?
The DPF pullout is a non-fused disconnect. It breaks the circuit for service isolation but provides no overcurrent protection of its own, so the branch circuit still needs its breaker or fuses upstream. If your condensing unit nameplate calls for maximum fuse size (HACR fuse protection at the disconnect), this is not the right pullout, you need a fused type.
3) What wire size will the Eaton DPF pullout disconnect accept, and can I land aluminum?
Lugs are rated #14-3 AWG, Cu/Al, so both copper and aluminum conductors land in it. That range covers typical 30A and 60A HVAC feeders. Anything larger than #3 AWG will not terminate, so size the conductors before you buy.
4) The pullout head on my Eaton AC disconnect is cracked. Can I just replace the head?
Yes. For a replacement pullout head on the Eaton DPF disconnect, order part number 96-3258-4 rather than replacing the whole enclosure.
5) Is a pullout disconnect enough to meet the service disconnect requirement at the outdoor unit, or do I need a switched one?
A pullout is a disconnecting means: pulling the head opens the circuit and the head can be taken away with the tech, which is how most residential and light commercial condensing units are served. Where the job spec calls for a lockable switched or fused disconnect at the unit, the DPF non-fused pullout is not the match. It is 120/240V rated, so it also is not the part for a 480V rooftop unit.
6) How much wall space do I need for an Eaton DPF disconnect next to the condenser?
The enclosure measures 8.7 x 5.4 x 3.15 inches and weighs 2.7 lb, so it mounts on a single stud bay or straight to a block wall without extra backing. The light weight makes it a one-hand mount while you land the conduit.
7) What is the difference between the Eaton DPF221R and DPF222R disconnects?
Amperage is the only choice on this pullout. DPF221R is the 30A version and DPF222R is the 60A. Everything else is common between them: NEMA 3R galvanized steel enclosure, ANSI 61 grey finish, 120/240V, 10 kAIC, #14-3 AWG Cu/Al lugs.
8) Can I standardize on one AC disconnect across a whole property with mixed 2-ton and 5-ton units?
Close to it. The Eaton DPF pullout comes in two amperages, 30A (DPF221R) and 60A (DPF222R), and the enclosure, finish, mounting and lug range are the same on both. Smaller residential condensers usually land on the 30A and larger or three-phase-free light commercial units on the 60A, so a fleet stocks two part numbers and one spare pullout head, 96-3258-4, that fits the family.
9) Will the Eaton DPF disconnect hold up on a coastal or rooftop install?
The enclosure is galvanized steel with a NEMA 3R rating and an ANSI 61 grey finish, which handles rain, sleet and ice on a rooftop or exterior wall. For heavy salt exposure a non-metallic enclosure is the usual call in the trade, since galvanized steel will still show corrosion at cut edges and fastener points over time.
