Schneider Electric Homeline Gr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$82.54
Schneider Load Center Accessory, Homeline, Spare Parts, Groundng Kit, 400A to 600A

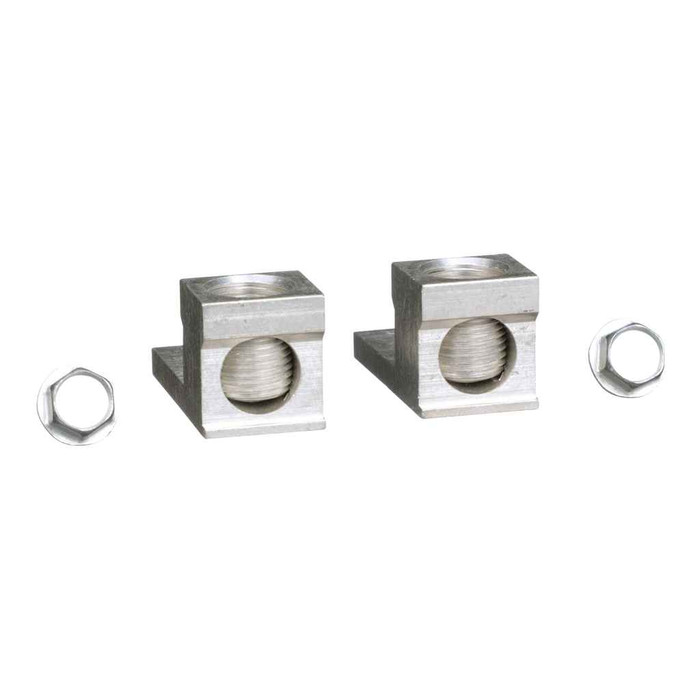

Schneider Electric Homeline Grounding Kit 400-600A Aluminum/Copper Lug Mount System

(No reviews yet) Write a Review

Model: PKOGTJ250

In Stock (leaves warehouse same day if ordered before 3pm ET)

$82.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric Homeline Grounding Kit 400-600A Aluminum/Copper Lug Mount System

Professional grounding solution for high-amperage electrical installations

The Schneider Electric Homeline Grounding Kit delivers reliable electrical grounding for 400-600A applications with aluminum/copper construction and lug mounting design. This professional-grade grounding kit provides secure electrical connections for PowerPact H-Frame systems, ensuring code compliance and electrical safety in demanding installations.

Professional Features & Benefits

  • 400-600A Current Rating: Handles high-amperage applications with reliable performance for demanding electrical systems
  • Aluminum/Copper Construction: Durable materials provide excellent conductivity and long-term corrosion resistance
  • Lug Mount Design: Secure mounting system ensures proper installation and reliable electrical connections
  • 300 kcmil Wire Capacity: Accommodates large conductors for high-current grounding applications
  • 2P or 3P Configuration: Flexible pole options support various electrical system configurations
  • Set of 2 Components: Complete kit includes necessary components for proper grounding installation
  • 9.6 N.m Torque Specification: Precise tightening requirements ensure optimal connection integrity

Technical Specifications

  • China Rohs In Scope: No
  • Country Of Origin: United States
  • Device Application: lug mounting
  • Eu Rohs Directive: Compliant with Exemptions
  • Field Service Division: PPIBS
  • Green Premium Status For Reporting: Green Premium product
  • Kcmil Size: 300 kcmil
  • Legacy Weee Scope: In
  • Line Rated Current: 400-600 A
  • Mercury Free: Yes
  • Mounting Mode: unit mount
  • Package Weight Lbs: 104.4 g
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Poles Description: 2P or 3P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Compatibility: PowerPact H-Frame
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Material: aluminium/copper
  • Product Or Component Type: grounding kit
  • Quantity Per Set: set of 2
  • Range Of Product: Homeline
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 1904
  • Rohs Eur Full Compliance Status: Compliant with Exemptions
  • Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Scope Perimeter: Outside of Europe
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Tightening Torque: 9.6-9.6 N.m
  • Traceability: No
  • Wd Status: L - LOB initialized
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Commercial Electrical Panels
  • Industrial Load Centers
  • High-Amperage Distribution Systems
  • PowerPact H-Frame Installations
  • Multi-Unit Residential Properties
  • Professional Office Buildings
  • Retail and Light Industrial Facilities

Why Choose Schneider Electric Quality?

Schneider Electric Homeline grounding kits deliver proven reliability with aluminum/copper construction and precise torque specifications. Green Premium product status and mercury-free design demonstrate environmental responsibility, while RoHS compliance ensures regulatory adherence for professional electrical installations.

Manufacturer Resources

Product Specs

China Rohs In Scope:
No
Country Of Origin:
United States
Device Application:
lug mounting
Eu Rohs Directive:
Compliant with Exemptions
Field Service Division:
PPIBS
Green Premium Status For Reporting:
Green Premium product
Kcmil Size:
300 kcmil
Legacy Weee Scope:
In
Line Rated Current:
400-600 A
Mercury Free:
Yes
Mounting Mode:
unit mount
Package Weight Lbs:
104.4 g
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Poles Description:
2P or 3P
Product Availability:
Stock - Normally stocked in distribution facility
Product Compatibility:
PowerPact H-Frame
Product Contributes To Saved And Avoided Emissions:
No
Product Material:
aluminium/copper
Product Or Component Type:
grounding kit
Quantity Per Set:
set of 2
Range Of Product:
Homeline
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Rohs Eur Conformity Date:
1904
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Tightening Torque:
9.6-9.6 N.m
Traceability:
No
Wd Status:
L - LOB initialized
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Grounding Kit
Product Group:
Electrical Mounting Hardware & Accessories

Schneider PKOGTJ250 – Frequently Asked Questions

1) Will the Schneider PKOGTJ250 grounding kit fit a PowerPact H-Frame breaker?
PowerPact H-Frame is the stated compatibility for the PKOGTJ250 grounding kit, and it is a unit-mount accessory, so it mounts directly on the breaker rather than on a separate rail or panel bracket. It covers 2-pole or 3-pole configurations in the 400 to 600 A line current range.
2) What size ground conductor does the PKOGTJ250 lug accept?
The lug is rated for 300 kcmil conductor. If your grounding electrode conductor or equipment ground is smaller, you can still land it in a 300 kcmil lug only with a correctly rated reducer or pin terminal; if it is larger than 300 kcmil, this kit is the wrong lug.
3) I have a Homeline load center that needs a ground bar, is this the right part?
Not necessarily. The PKOGTJ250 is a lug-mount grounding kit for 400 to 600 A PowerPact H-Frame breakers, not a general ground bar kit for branch circuits in a residential Homeline panel. If you are looking to land a dozen #14 to #6 branch grounds in a load center, you want a multi-hole ground bar kit instead, this one is a 300 kcmil lug set.
4) How many lugs come in the Schneider PKOGTJ250 kit?
It ships as a set of 2. For a 3-pole breaker needing separate ground provisions on more than two points, plan the quantity accordingly, the kit itself is two pieces.
5) Can I use the PKOGTJ250 with aluminum conductors as well as copper?
The lug body is aluminium/copper, which is the dual-rated construction used for landing either aluminum or copper conductors at the stated 300 kcmil size. Use the correct anti-oxidant compound on aluminum terminations per the installation instructions.
6) Does the PKOGTJ250 grounding kit meet RoHS for a spec submittal?
It is EU RoHS compliant with exemptions, and carries Green Premium product status and a mercury-free declaration. Note for procurement: the REACH status states the reference contains Substances of Very High Concern above the threshold, which some institutional purchasing rules require you to disclose.
7) Is the Schneider PKOGTJ250 a field-serviceable part or a replace-only item?
It is listed as non-serviceable, so it is treated as a replace-only accessory. If a lug is damaged or a landing is compromised, you swap the kit rather than rebuild it. Country of origin is the United States.
8) What is the exact part number to order this Schneider grounding kit by?
Order it as Schneider Electric PKOGTJ250. That is the manufacturer part number for the Homeline grounding kit covering 400 A to 600 A.
How fast can I get the Schneider PKOGTJ250 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Schneider PKOGTJ250 come with a warranty?
Absolutely. The Schneider PKOGTJ250 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Schneider PKOGTJ250?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
