Schneider Electric NEMA Size 3 Type S Combination Motor Starter with Fusible Disconnect - 3-Pole Non-Reversing

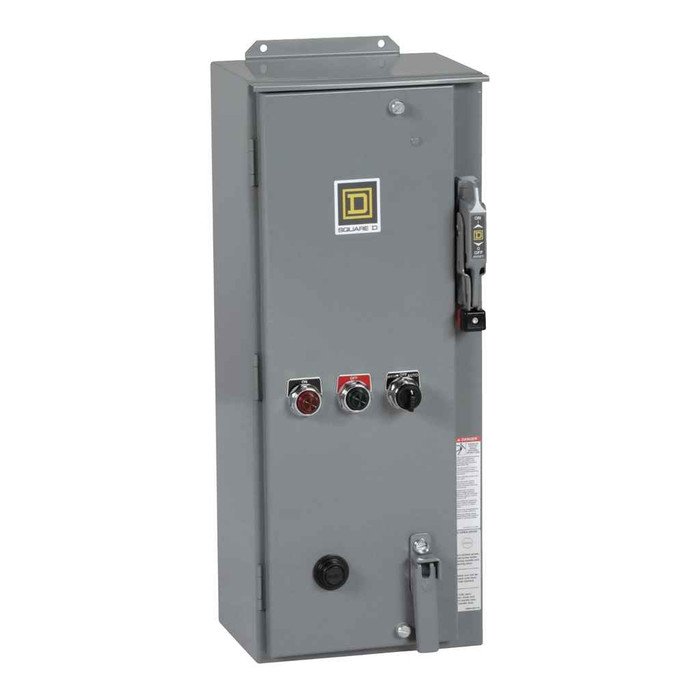

Schneider Electric NEMA Size 3 Type S Combination Motor Starter with Fusible Disconnect

Professional motor control and protection for industrial applications

The Schneider Electric NEMA Size 3 Type S Combination Motor Starter delivers reliable motor control with integrated fusible disconnect protection. This 3-pole non-reversing starter features separate control circuit design and standard function operation, providing professional-grade motor starting and protection capabilities for demanding industrial environments.

Professional Features & Benefits

• NEMA Size 3 Rating: Provides appropriate motor control capacity for medium-duty industrial applications requiring reliable starting performance.
• Type S Combination Design: Integrates motor starter and fusible disconnect in a single enclosure for space-efficient installation and simplified wiring.
• 3-Pole Configuration: Delivers complete three-phase motor control with balanced load distribution and proper phase protection.
• Non-Reversing Operation: Ensures safe, single-direction motor operation with reliable starting and stopping control.
• Separate Control Circuit: Provides isolated control wiring for enhanced safety and flexible control integration options.
• Standard Function Option: Offers proven motor starting functionality with reliable performance characteristics.
• Compact 3.25" Depth: Enables installation in space-constrained applications while maintaining full functionality.

Technical Specifications

• China Rohs In Scope: No
• Circularity Profile: ENVEOLI2507019EN
• Compliance: TAA
• Control Circuit: separate control circuit
• Country Of Origin: Mexico
• End Of Life Doc Ref: ENVEOLI2507019EN
• Environmental Disclosure: ENVPEP2507019EN
• Eoli Availability Display: Yes
• Eu Rohs Directive: Not compliant
• Function Option: Standard
• Function Option Id: STANDARD
• Legacy Weee Scope: In
• Manufacturer: Schneider Electric
• Motor Starter Type: non reversing
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: Yes
• Poles Description: 3P
• Product Contributes To Saved And Avoided Emissions: No
• Product Length: 3.25 in
• Product Or Component Type: Combination Starter
• Range Of Product: S
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Full Compliance Status: Not compliant
• Rohs Eur Full Compliance Status Id: NOT_COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Will not be Compliant
• Scope Perimeter: Outside of Europe
• Sustainable Packaging: Yes
• Take Back: No
• Tier: 1
• Tier Id: 1
• Wd Status: 1 - GSC certified
• With Recycled Cardboard: Yes
• Without Single Use Plastic: Yes
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Manufacturing Facilities
• Commercial HVAC Systems
• Water Treatment Plants
• Food Processing Equipment
• Material Handling Systems
• Pump and Compressor Control
• Conveyor System Operations

Why Choose Schneider Electric Quality?

Schneider Electric combination motor starters deliver proven reliability with TAA compliance and sustainable packaging practices. The Type S series provides professional-grade motor control solutions backed by comprehensive environmental documentation and returnable product design for responsible lifecycle management.
