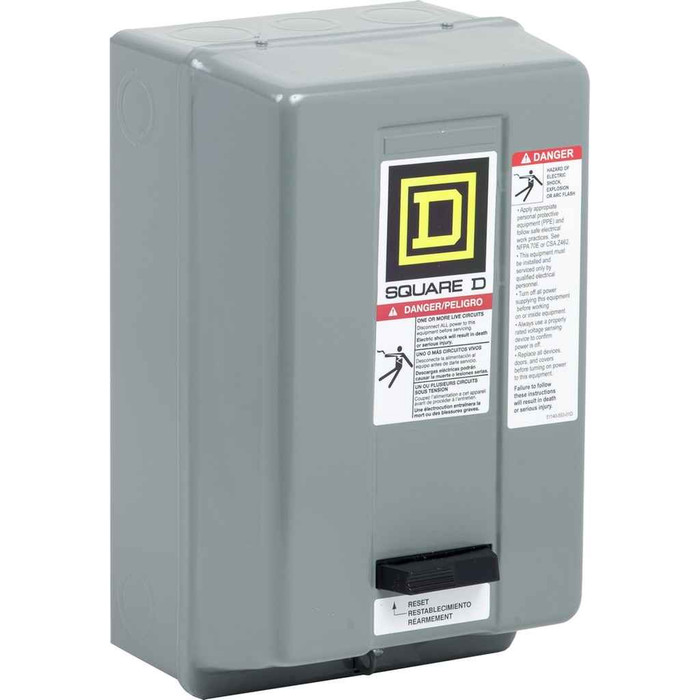

Schneider Type S NEMA Size 1 Magnetic Starter, 8536 Series

Schneider Electric Type S NEMA Size 0 3-Phase Non-Reversing Magnetic Motor Starter

(No reviews yet) Write a Review

Model: 8536SAG12V02S

In Stock (leaves warehouse same day if ordered before 3pm ET)

$615.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric Type S NEMA Size 0 3-Phase Non-Reversing Magnetic Motor Starter

Professional motor control for reliable industrial applications

The Schneider Electric Type S NEMA Size 0 magnetic motor starter delivers dependable 3-phase motor control with non-reversing operation and screw clamp terminal connections. This professional-grade motor starter features separate control circuit design and standard function options for versatile industrial motor control applications.

Professional Features & Benefits

  • NEMA Size 0 Rating: Provides appropriate motor control capacity for small to medium motor applications with reliable switching performance.
  • 3-Phase Operation: Delivers balanced power distribution for efficient motor operation and reduced electrical stress on motor windings.
  • Non-Reversing Design: Ensures safe, single-direction motor operation with simplified control circuit requirements for standard applications.
  • Screw Clamp Terminals: Provides secure electrical connections with easy installation and maintenance access for field wiring.
  • Separate Control Circuit: Allows flexible control voltage options and enhanced safety isolation between power and control circuits.
  • TAA Compliance: Meets Trade Agreements Act requirements for government and institutional procurement applications.

Technical Specifications

  • China Rohs In Scope: Yes
  • China Rohs Label: 7
  • Compliance: TAA
  • Control Circuit: separate control circuit
  • Control Type: no control units
  • Country Of Origin: Mexico
  • Electrical Connection: screw clamp terminals
  • Environmental Disclosure: ENVPEP2506062EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Not compliant
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Html Descr: Type S Full Voltage StarterNEMA Size: Size 00Degree of Protection: NEMA 1 General PurposeControl Ci
  • Legacy Weee Scope: In
  • Line Rated Current: 9:00 AM
  • Local Signalling: without pilot light
  • Manufacturer: Schneider Electric
  • Motor Starter Type: non reversing
  • Nema Size: 0
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: Yes
  • Phase: 3 phase
  • Poles Description: 3P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 5.55 in
  • Product Height: 10 in
  • Product Or Component Type: motor starter
  • Product Width: 5.98 in
  • Range Of Product: S
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Full Compliance Status: Not compliant
  • Rohs Eur Full Compliance Status Id: NOT_COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Will not be Compliant
  • Scope Perimeter: Outside of Europe
  • Sustainable Packaging: Yes
  • Take Back: No
  • Tier: 1
  • Tier Id: 1
  • Total Lifecycle Carbon Footprint: 119 kg CO2 eq.
  • Use Carbon Footprint: 85.99422016
  • Wd Status: 1 - GSC certified
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: Yes
  • Department: Electrical

Professional Applications

  • Industrial Motor Control Systems
  • Manufacturing Equipment
  • HVAC Motor Applications
  • Pump and Fan Control
  • Conveyor Systems
  • Process Equipment
  • Commercial Motor Control Panels

Why Choose Schneider Electric Quality?

Schneider Electric motor starters provide proven reliability with TAA compliance for government applications and sustainable packaging practices. The compact 5.98" x 5.55" x 10" design offers professional installation flexibility while maintaining robust performance standards for demanding industrial environments.

Manufacturer Resources

Product Specs

China Rohs In Scope:
Yes
China Rohs Label:
7
Compliance:
TAA
Control Circuit:
separate control circuit
Control Type:
no control units
Country Of Origin:
Mexico
Electrical Connection:
screw clamp terminals
Environmental Disclosure:
ENVPEP2506062EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Not compliant
Function Option:
Standard
Html Descr:
Type S Full Voltage StarterNEMA Size: Size 00Degree of Protection: NEMA 1 General PurposeControl Ci
Legacy Weee Scope:
In
Line Rated Current:
9:00 AM
Local Signalling:
without pilot light
Motor Starter Type:
non reversing
Nema Size:
0
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
Yes
Phase:
3 phase
Poles Description:
3P
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
5.55 in
Product Height:
10 in
Product Or Component Type:
motor starter
Product Width:
5.98 in
Range Of Product:
S
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Sustainable Packaging:
Yes
Take Back:
No
Tier:
1
Total Lifecycle Carbon Footprint:
119 kg CO2 eq.
Use Carbon Footprint:
85.99422016
Wd Status:
1 - GSC certified
With Recycled Cardboard:
Yes
Without Single Use Plastic:
Yes
Department:
Electrical
Product Type:
Motor Starter
Product Group:
Motor Starters & Contactors

Schneider 8536SAG12V02S – Frequently Asked Questions

1) What is the difference between the two Schneider 8536 Type S Size 0 starter versions, 8536SAG12V02S and 8536SAG12V02H30S?
The difference is the enclosure. Model 8536SAG12V02S comes in a NEMA 1 painted sheet steel enclosure for general purpose indoor mounting on a wall or column. Model 8536SAG12V02H30S is the open device, not rated for any enclosure, and is meant to be mounted inside a panel or control cabinet you already have. Electrically both are the same Type S non-reversing Size 0 three phase starter with screw clamp terminals.
2) Can this Schneider Type S starter reverse a three phase motor?
No. The Type S Size 0 starter is a non-reversing device with a single three pole contactor, so it drives the motor in one direction only. If you need forward and reverse on a conveyor, hoist or similar, you need a reversing starter with two mechanically interlocked contactors instead.
3) Does the Schneider 8536 Size 0 starter come with a start/stop pushbutton or a run light?
No. It ships with no control units and without a pilot light, so there is no start/stop button and no run indicator on the cover. You wire your own remote pushbutton station, selector switch, thermostat or PLC output into the separate control circuit. Budget for that device as a separate line on the order.
4) Is this Schneider motor starter TAA compliant for a federal or state agency purchase?
Yes. The Type S Size 0 starter carries TAA compliance, which is what most federal, state and institutional purchasing offices require on a GSA or government funded order. Country of origin is Mexico.
5) Is the NEMA 1 enclosure on this starter OK for a wet or washdown area?
No. NEMA 1 is a general purpose indoor rating, which means it keeps fingers and falling dirt out but offers no protection against water, washdown, dust or outdoor exposure. For a rooftop unit, a pump house, a car wash bay or any location that sees hose spray, specify a NEMA 3R or NEMA 4/4X enclosed starter instead. In a clean indoor electrical or mechanical room, NEMA 1 is the normal choice.
6) What does a separate control circuit mean on this motor starter, and does it change how I wire it?
Separate control circuit means the coil is fed from its own source rather than tapped off the motor power lines, so the control voltage is isolated from the three phase power side. Practically, you bring a dedicated control voltage feed to the coil terminals in addition to your line and load conductors. It lets you run low voltage pushbuttons or a building control signal to the starter and keeps the control wiring isolated from the power wiring.
7) How much wall space do I need for the enclosed Schneider Type S Size 0 starter?
Plan for roughly 5.98 inches wide by 5.55 inches deep by 10 inches high. The height is the number that catches people out in tight mechanical rooms, so check clearance above and below before you lay out the conduit runs. The open device version mounts inside your own panel and does not need this footprint on the wall.
8) Will this Size 0 starter work for a single phase motor?
No. This is a three phase, three pole device. For a single phase motor you need a starter configured for single phase with the appropriate overload arrangement. Using a three pole three phase starter on a single phase load leaves you with an unused pole and incorrect overload protection.
9) Does this Schneider starter meet EU RoHS for a project spec that calls for it?
No. The Type S Size 0 starter is in scope for EU RoHS but is listed as not compliant with the directive, so it will not satisfy a European RoHS requirement. It does carry an environmental product declaration under reference ENVPEP2506062EN, and it ships in recycled cardboard packaging with no single use plastic. Total lifecycle carbon footprint is published as 119 kg CO2 eq.
10) What size motor does a NEMA Size 0 starter handle, and how do I know if I need Size 1 instead?
NEMA sizing is set by the horsepower and voltage of the motor, and Size 0 is the step below Size 1 in that series. Match the starter size to the motor nameplate horsepower at your supply voltage, not to the breaker. If your motor lands above the Size 0 horsepower limit for its voltage, move up to a Size 1 Type S starter rather than pushing this one. Size 0 is the common pick for small pumps, fans and HVAC unit motors.
11) Does this Schneider starter accept solid or stranded field wiring, and what termination style is it?
Terminations are screw clamp type, so you land conductors directly under a clamping screw with no lugs or crimps to buy. That makes for quick field wiring and easy retorque at maintenance intervals. An electrician should still verify conductor size against the motor full load amps before pulling wire.
