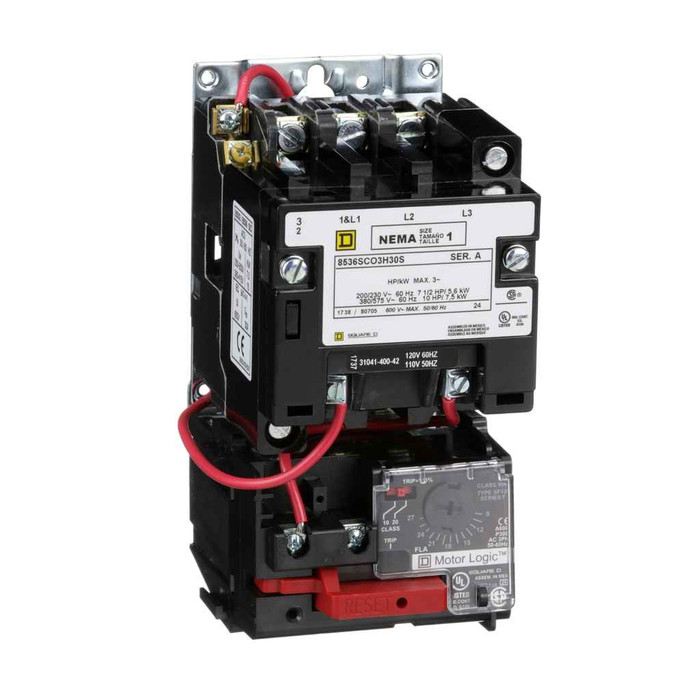

Schneider NEMA Motor Starter, Type S, Nonreversing, Size 1, 27A, 10HP at 460VAC, 5kA SCCR, 3 Phase, 3 Pole

Schneider Electric NEMA Motor Starter Type S Nonreversing Size 1 27A 10HP 460VAC 3 Phase

(No reviews yet) Write a Review

Model: 8536SCO3V02S

In Stock (leaves warehouse same day if ordered before 3pm ET)

$760.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric NEMA Motor Starter Type S Nonreversing Size 1 27A 10HP 460VAC 3 Phase

Professional motor control for reliable industrial applications

The Schneider Electric NEMA Motor Starter delivers dependable motor control with Size 1 configuration rated for 27A line current and 10HP at 460VAC. This 3-phase, 3-pole nonreversing motor starter features Type S design with screw clamp terminals for secure electrical connections and open device construction for accessible maintenance.

Professional Features & Benefits

  • 27A Line Current Rating: Handles substantial motor loads with reliable current capacity for demanding industrial applications.
  • 10HP at 460VAC Power Rating: Supports high-performance motors with precise voltage specifications for consistent operation.
  • NEMA Size 1 Configuration: Standard industrial sizing ensures compatibility with existing motor control systems and enclosures.
  • 3-Phase, 3-Pole Design: Provides balanced power distribution and complete motor circuit control for three-phase motor applications.
  • Screw Clamp Terminals: Secure electrical connections reduce maintenance requirements and ensure long-term reliability.
  • Type S Full Voltage Design: Direct motor starting capability eliminates need for additional starting equipment in suitable applications.
  • Open Device Construction: Accessible design facilitates inspection, maintenance, and troubleshooting procedures.

Technical Specifications

  • Carbon Footprint: 181.5023522
  • Carbon Footprint Kg Co2 Eq Total Life Cycle: 181.5023522
  • China Rohs In Scope: Yes
  • China Rohs Label: 7
  • Compliance: TAA
  • Control Circuit: separate control circuit
  • Control Type: no control units
  • Country Of Origin: Mexico
  • Distribution Carbon Footprint: 1.513418036
  • Electrical Connection: screw clamp terminals
  • End Of Life Carbon Footprint: 3.154472604
  • Environmental Disclosure: ENVPEP2506062EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Not compliant
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Html Descr: Type S Full Voltage StarterNEMA Size: Size 1Degree of Protection: Open DeviceControl Circuit Voltag
  • Installation Carbon Footprint: 0.197021276
  • Legacy Weee Scope: In
  • Line Rated Current: 27 A
  • Local Signalling: without pilot light
  • Manufacturer: Schneider Electric
  • Manufacturing Carbon Footprint: 13.01106159
  • Motor Starter Type: non reversing
  • Nema Degree Of Protection: not rated (open device)
  • Nema Size: 1
  • Packaging Made With Recycled Cardboard: Yes
  • Phase: 3 phase
  • Poles Description: 3P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 4.21 in
  • Product Height: 6.77 in
  • Product Or Component Type: motor starter
  • Product Width: 3.5 in
  • Range Of Product: S
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Full Compliance Status: Not compliant
  • Rohs Eur Full Compliance Status Id: NOT_COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Will not be Compliant
  • Take Back: No
  • Tier: 1
  • Tier Id: 1
  • Total Lifecycle Carbon Footprint: 182 kg CO2 eq.
  • Use Carbon Footprint: 163.6263787
  • Wd Status: 1 - GSC certified
  • With Recycled Cardboard: Yes
  • Department: Electrical

Professional Applications

  • Industrial Manufacturing Facilities
  • Commercial HVAC Systems
  • Processing Equipment Control
  • Pump and Compressor Applications
  • Conveyor System Control
  • Machine Tool Operations
  • Material Handling Equipment

Why Choose Schneider Electric Quality?

Schneider Electric motor starters deliver proven reliability with TAA compliance and professional-grade construction. The compact 6.77" x 3.5" x 4.21" dimensions and open device design provide accessible installation and maintenance while maintaining industrial performance standards for demanding motor control applications.

Manufacturer Resources

Product Specs

Carbon Footprint:
181.5023522
Carbon Footprint Kg Co2 Eq Total Life Cycle:
181.5023522
China Rohs In Scope:
Yes
China Rohs Label:
7
Compliance:
TAA
Control Circuit:
separate control circuit
Control Type:
no control units
Country Of Origin:
Mexico
Distribution Carbon Footprint:
1.513418036
Electrical Connection:
screw clamp terminals
End Of Life Carbon Footprint:
3.154472604
Environmental Disclosure:
ENVPEP2506062EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Not compliant
Function Option:
Standard
Html Descr:
Type S Full Voltage StarterNEMA Size: Size 1Degree of Protection: Open DeviceControl Circuit Voltag
Installation Carbon Footprint:
0.197021276
Legacy Weee Scope:
In
Line Rated Current:
27 A
Local Signalling:
without pilot light
Manufacturing Carbon Footprint:
13.01106159
Motor Starter Type:
non reversing
Nema Degree Of Protection:
not rated (open device)
Nema Size:
1
Packaging Made With Recycled Cardboard:
Yes
Phase:
3 phase
Poles Description:
3P
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
4.21 in
Product Height:
6.77 in
Product Or Component Type:
motor starter
Product Width:
3.5 in
Range Of Product:
S
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Take Back:
No
Tier:
1
Total Lifecycle Carbon Footprint:
182 kg CO2 eq.
Use Carbon Footprint:
163.6263787
Wd Status:
1 - GSC certified
With Recycled Cardboard:
Yes
Department:
Electrical
Product Type:
Motor Starter
Product Group:
Motor Starters & Contactors

Schneider 8536SCO3V02S – Frequently Asked Questions

1) Will a Schneider Type S Size 1 starter run a 10HP 460V three phase motor?
Yes. The Schneider Type S Size 1 nonreversing starter is rated 10HP at 460VAC on three phase power, with a 27A line current rating and a 3-pole contactor. Size 1 is the standard NEMA frame for that horsepower band, so it drops into existing Size 1 motor control layouts.
2) Does this Schneider motor starter come in an enclosure or do I need to mount it in one?
It ships as an open device, NEMA degree of protection not rated. There is no enclosure, so it has to go inside a panel or cabinet you provide with the right NEMA rating for the environment. Plan on 6.77 x 3.5 x 4.21 inches of panel space for the unit itself.
3) What is the difference between the melting alloy and solid state Motor Logic overload options on this Size 1 starter?
Two overload builds are offered. Melting alloy (part 8536SCO3V02S) uses replaceable thermal heater elements sized to the motor full load amps, so you order heaters separately and swap them if the motor changes. The solid state Motor Logic class 10/20 version (part 8536SCO3V02H30S) uses an adjustable electronic overload with selectable trip class, no heaters to buy. Pick Motor Logic if you want field-adjustable trip settings or class 20 for high-inertia loads like conveyors and compressors.
4) Can this starter reverse a motor?
No. It is a nonreversing full voltage starter, single direction only. If the application needs forward and reverse, you need a reversing Size 1 starter with two mechanically interlocked contactors instead. This one will not do it, and you should not attempt to interlock a second contactor onto it in the field.
5) Does the Schneider Type S starter include a start/stop pushbutton or pilot light?
No. It comes with no control units and without a pilot light, so there are no integral pushbuttons, selector switches, or run indicators. Operators have to be ordered separately or mounted on the enclosure door. Budget for those when you price the job.
6) Is the control circuit on this Size 1 starter separate from the power circuit?
Yes, it is wired for a separate control circuit, meaning the coil is fed from an independent control source rather than tapped off the line side. That suits panels running a separate control transformer or a 120V control bus feeding several starters, and it is what you want when a PLC or remote station is driving the coil.
7) Is this Schneider starter TAA compliant for a government or federal project?
Yes, it carries TAA compliance, and the country of origin is Mexico, a TAA designated country. That makes it usable on federal, GSA schedule, and other public sector procurements that require Trade Agreements Act sourcing.
8) How much panel space do I need to mount a Size 1 Type S starter?
The unit measures 6.77 x 3.5 x 4.21 inches. Allow that footprint plus wire bending room and manufacturer spacing above and below, since it mounts open inside your panel rather than in its own housing.
9) What kind of terminals does this motor starter use for field wiring?
Screw clamp terminals on the line and load side. Conductors land directly under the clamp with no ring lugs or crimped ferrule terminals required, which speeds up panel wiring and makes retermination straightforward during service.
10) Is this Schneider motor starter RoHS compliant?
For the EU RoHS Directive it is listed as not compliant, so it should not be specified where EU RoHS conformity is a hard requirement. It is in scope for China RoHS with label class 7. If you need an environmental record for the submittal package, the disclosure reference is ENVPEP2506062EN.
11) Do you have carbon footprint data for this starter for our sustainability reporting?
Yes. Total lifecycle footprint is 182 kg CO2 eq, broken out as 13.01 kg manufacturing, 1.51 kg distribution, 0.20 kg installation, 163.63 kg in use, and 3.15 kg end of life. Packaging is recycled cardboard. The unit needs no specific recycling operations at end of life and there is no take-back program.
