Schneider Electric NEMA Size 2...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,733.79
$1,577.07

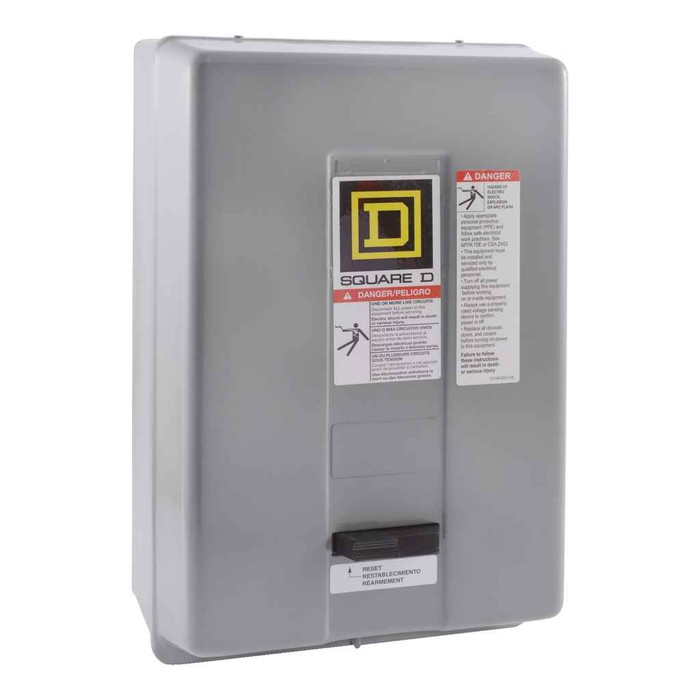

Schneider NEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 25HP at 460VAC, 5kA SCCR, 3 Phase, 3 Pole

Schneider Electric NEMA Size 2 Motor Starter 45A 25HP 460VAC 3-Phase Non-Reversing Type S

(No reviews yet) Write a Review

Model: 8536SDG1V02S

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,733.79
$1,577.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric NEMA Size 2 Motor Starter 45A 25HP 460VAC 3-Phase Non-Reversing Type S

Professional Motor Control for Industrial Applications

The Schneider Electric NEMA Size 2 Motor Starter delivers reliable 45A motor control for 25HP applications at 460VAC in 3-phase configurations. This non-reversing Type S motor starter features screw clamp terminals for secure electrical connections and separate control circuit design for enhanced operational flexibility. Built to professional standards with NEMA 1 general purpose protection, this motor starter provides dependable performance for industrial motor control applications.

Professional Features & Benefits

  • 45A Line Rated Current: Handles substantial motor loads up to 25HP at 460VAC for demanding industrial applications
  • NEMA Size 2 Configuration: Standard industrial sizing ensures compatibility with existing motor control systems and enclosures
  • 3-Phase 3-Pole Design: Optimized for three-phase motor applications with balanced load distribution and efficient operation
  • Screw Clamp Terminals: Secure electrical connections reduce maintenance requirements and ensure reliable long-term performance
  • Separate Control Circuit: Independent control wiring allows flexible integration with various control systems and automation equipment
  • Non-Reversing Type S: Simplified operation reduces complexity while providing reliable forward motor control functionality
  • TAA Compliance: Meets Trade Agreements Act requirements for government and institutional procurement applications

Technical Specifications

  • China Rohs In Scope: No
  • China Rohs Label: 1
  • Compliance: TAA
  • Control Circuit: separate control circuit
  • Control Type: no control units
  • Country Of Origin: Mexico
  • Electrical Connection: screw clamp terminals
  • Environmental Disclosure: ENVPEP2506062EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Html Descr: Type S Full Voltage StarterNEMA Size: Size 2Degree of Protection: NEMA 1 General PurposeControl Cir
  • Legacy Weee Scope: In
  • Line Rated Current: 45 A
  • Local Signalling: without pilot light
  • Manufacturer: Schneider Electric
  • Mercury Free: Yes
  • Motor Starter Type: non reversing
  • Nema Size: 2
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: Yes
  • Phase: 3 phase
  • Poles Description: 3P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 6.3 in
  • Product Height: 12.68 in
  • Product Or Component Type: motor starter
  • Product Width: 7.8 in
  • Range Of Product: S
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2541
  • Rohs Eur Full Compliance Status: Compliant
  • Rohs Eur Full Compliance Status Id: COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant
  • Rohs Exemption Information: Yes
  • Sustainable Packaging: Yes
  • Take Back: No
  • Tier: 1
  • Tier Id: 1
  • Toxic Heavy Metal Free: Yes
  • Use Carbon Footprint: 398.1404783
  • Wd Status: 1 - GSC certified
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: Yes
  • Department: Electrical

Professional Applications

  • Industrial Manufacturing Facilities
  • Commercial HVAC Systems
  • Water Treatment Plants
  • Food Processing Equipment
  • Material Handling Systems
  • Pump and Compressor Control
  • Conveyor System Operations

Why Choose Schneider Electric Quality?

Schneider Electric motor starters deliver proven reliability with TAA compliance for government applications and RoHS compliance for environmental responsibility. The mercury-free design and sustainable packaging reflect commitment to environmental stewardship, while the compact 7.8" x 6.3" x 12.68" dimensions and screw clamp terminals ensure straightforward installation and long-term dependability in demanding industrial environments.

Manufacturer Resources

Product Specs

China Rohs In Scope:
No
China Rohs Label:
1
Compliance:
TAA
Control Circuit:
separate control circuit
Control Type:
no control units
Electrical Connection:
screw clamp terminals
Environmental Disclosure:
ENVPEP2506062EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant
Function Option:
Standard
Html Descr:
Type S Full Voltage StarterNEMA Size: Size 2Degree of Protection: NEMA 1 General PurposeControl Cir
Legacy Weee Scope:
In
Line Rated Current:
45 A
Local Signalling:
without pilot light
Mercury Free:
Yes
Motor Starter Type:
non reversing
Nema Size:
2
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
Yes
Phase:
3 phase
Poles Description:
3P
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
6.3 in
Product Height:
12.68 in
Product Or Component Type:
motor starter
Product Width:
7.8 in
Range Of Product:
S
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
2541
Rohs Exemption Information:
Yes
Sustainable Packaging:
Yes
Take Back:
No
Tier:
1
Toxic Heavy Metal Free:
Yes
Use Carbon Footprint:
398.1404783
Wd Status:
1 - GSC certified
With Recycled Cardboard:
Yes
Without Single Use Plastic:
Yes
Department:
Electrical
Product Type:
Motor Starter
Product Group:
Motor Starters & Contactors

Schneider 8536SDG1V02S – Frequently Asked Questions

1) Will a Schneider Type S NEMA Size 2 starter run a 25 HP motor at 460V three phase?
Yes. The Type S full voltage starter in NEMA Size 2 is rated 45 A line current and 25 HP at 460 VAC, three phase, three pole. It is non-reversing, so it gives single-direction starting only. For jog/forward-reverse duty on a conveyor or hoist you need a reversing starter instead.
2) What is the difference between the melting alloy and solid state Motor Logic overload options on this Size 2 Type S starter?
Two overload choices are offered. Melting alloy (eutectic) thermal units, model 8536SDG1V02S, use replaceable heater elements sized to the motor full load amps, so you order the correct thermal units with it. Solid state Motor Logic class 10/20, model 8536SDG1V02H30S, is adjustable and lets you pick trip class 10 or 20 to suit a high-inertia load such as a pump or a long-accelerating fan. If you are standardizing a plant on adjustable overloads, take the Motor Logic version.
3) Does the Schneider 8536SDG1V02S starter come with a start/stop pushbutton or pilot light?
No. It ships without control units and without a pilot light, so the cover is blank. Start/stop stations, selector switches and run indicators have to be supplied separately or mounted remotely. Budget for that remote station when you price the job.
4) Will a NEMA 1 enclosure motor starter work outdoors or in a washdown area?
No. The degree of protection is NEMA 1 general purpose, which is indoor, dry-location duty only. It is fine in a clean plant room, electrical room, or mechanical mezzanine. For outdoor pump stations, wet process areas, food plant washdown, or water treatment headworks you need a NEMA 3R, 4 or 4X enclosed starter.
5) Is this Schneider motor starter TAA compliant for a federal or state project?
Yes, the Type S Size 2 starter is listed as TAA compliant, which is what federal, military and many state and municipal specs require. Country of origin is Mexico, a TAA designated country. It is also EU RoHS compliant and mercury free. Note that the REACH declaration states the reference contains Substances of Very High Concern above the threshold, which matters if your submittal package requires a REACH SVHC disclosure.
6) Is this a combination starter with a disconnect or breaker included?
No. It is a full voltage Type S starter, contactor plus overload, with no disconnecting means built in. Branch circuit protection and a disconnect have to be provided upstream, either a fused switch or a motor circuit protector in the panel. If you want the disconnect in the same box, order a combination starter instead.
7) Does this Size 2 Type S starter have a built-in control transformer?
It is built as a separate control circuit design, meaning the control voltage is fed independently of the power line rather than derived inside the unit. You bring your own control power, which suits integration with a PLC or an existing 120 V control bus. If you need the control voltage taken off the line through an onboard transformer, specify a starter with an integral control power transformer instead.
8) What are the dimensions of the Schneider NEMA Size 2 Type S enclosed starter for panel layout?
The unit measures 7.8 in wide, 6.3 in deep and 12.68 in high. Allow for conduit entry and wire bending space above and below when you lay out a wall or a control panel backplate.
9) Can I use this starter on a single phase motor or a 208V three phase system?
It is a three phase, three pole device, so it is not intended for single phase motor circuits. The stated horsepower rating is 25 HP at 460 VAC; NEMA size ratings drop at lower voltage, so a 208 or 240 V application will not carry the same horsepower on a Size 2 frame. Size the starter against the horsepower rating for your actual system voltage before committing.
10) What kind of terminals does this starter use, and do I need lugs or crimp terminals?
Power and control connections are screw clamp terminals, so stripped conductors clamp directly under the pressure plate. No separate compression lugs or crimp ring terminals are needed for standard copper building wire. Torque the terminals to the value on the unit's label at commissioning and re-check after the first heat cycle.
11) Does this Schneider starter meet sustainable procurement criteria for packaging and hazardous materials?
For a green procurement line item: the packaging is recycled cardboard with no single use plastic, the device is mercury free and free of toxic heavy metals, EU RoHS compliant with exemptions documented, and an environmental product declaration is published under reference ENVPEP2506062EN. Recycled metal content at the CR level is 0 percent, and the unit needs no specific recycling operations at end of life.
