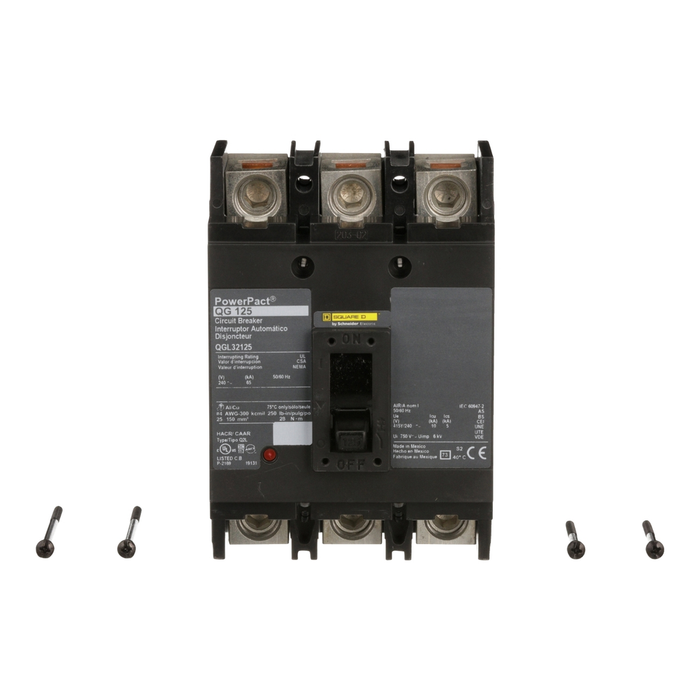

Schneider Electric PowerPact Q-Frame 3-Pole Molded Case Circuit Breaker 70-225A Thermal-Magnetic HACR Rated

Schneider Electric PowerPact Q-Frame 3-Pole Molded Case Circuit Breaker 70-225A Thermal-Magnetic HACR Rated

Professional Overcurrent Protection & Switching for AC Distribution Systems

The Schneider Electric PowerPact Q-Frame molded case circuit breaker delivers reliable 3-pole overcurrent protection and switching for AC distribution systems. This thermal-magnetic circuit breaker provides HACR rated performance with 70-225A capacity, featuring lug mounting support and operating handle control for professional electrical distribution applications.

Professional Features & Benefits

• 70-225A Current Rating: Provides robust overcurrent protection capacity for medium-load distribution circuits and equipment protection.
• 3-Pole Configuration: Delivers comprehensive protection across all three phases for balanced AC system applications.
• Thermal-Magnetic Trip Technology: Combines thermal overload and magnetic short-circuit protection for reliable fault detection and clearing.
• HACR Rated Design: Certified for heating, air conditioning, and refrigeration applications with enhanced performance standards.
• UL 489 Listed Certification: Meets rigorous safety and performance standards with CSA, ANCE, and IEC certifications for worldwide applications.
• PowerPact Q-Frame Platform: Part of proven Schneider Electric circuit breaker family with common accessories across the range.
• 18-Month Warranty: Backed by comprehensive warranty coverage ensuring long-term reliability and performance confidence.

Technical Specifications

• Ambient Air Temperature For Operation: 40-70 °C
• Average Life Duration: 15 year(s)
• B2b Bullet Point 1: Available in 2 or 3 pole design
• B2b Bullet Point 2: Overcurrent protection and switching on AC systems
• B2b Bullet Point 3: Common accessories across the range
• B2b Bullet Point 4: Confidence and power reliability
• B2b Bullet Point 5: UL 489 Listed, CSA, ANCE, IEC certified
• B2b Bullet Point 6: UL 489 Listed, CSA, ANCE, IEC certified for world wide applications
• China Rohs In Scope: No
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circuit Breaker Application: HACR rated
• Continuous Current Rating: 80%
• Control Type: operating handle
• Country Of Origin: Mexico
• Device Application: distribution
• Device Type: LV equipment - Low voltage circuit breaker
• Environmental Disclosure: ENVPEP2311048_V2
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant with Exemptions
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• Halogen Content Performance: Halogen free product
• Halogen Free Status: Halogen free product
• Halogene Performance: Halogen free product
• Legacy Weee Scope: In
• Local Data Status: Publishable
• Local Publishable Date: 9/17/25
• Magnetic Hold Current: 1200 A
• Magnetic Tripping Current: 2400-2400 A
• Mercury Free: Yes
• Mounting Support: lug
• Network Frequency: 50/60 Hz
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: No
• Poles Description: 3P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 3.93 in
• Product Height: 6.47 in
• Product Or Component Type: circuit breaker
• Product Width: 4.5 in
• Range: PowerPact
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 1909
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Serviceability: No
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Traceability: Yes
• Trip Unit Technology: thermal-magnetic
• Utilisation Category: category A
• Warranty Period: 18 months
• Weee Label: The product must be disposed on European Union markets following specific waste collection and neve
• Weee Product Category: 4
• Wire Stripping Length: 22 mm
• With Recycled Cardboard: Yes
• Without Single Use Plastic: No
