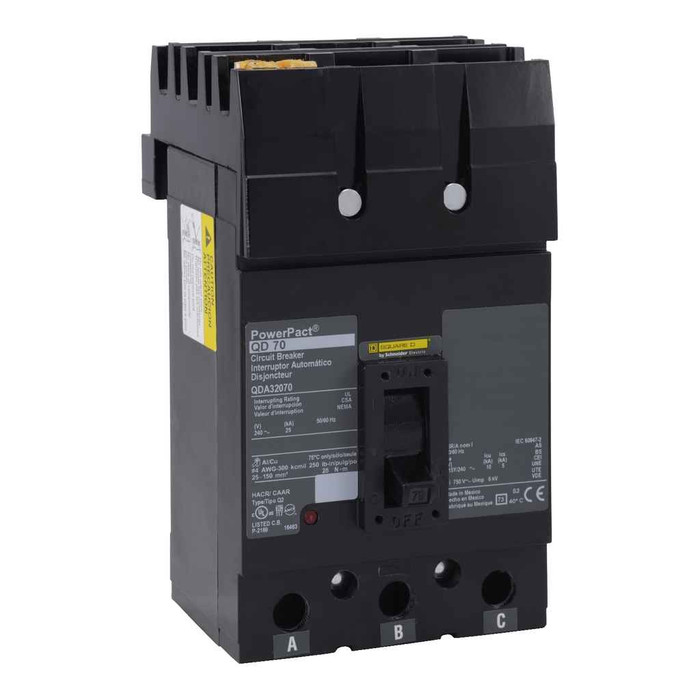

Schneider PowerPact Q 3-Pole Circuit Breaker 240VAC 25kA HACR Rated Thermal-Magnetic Protection

Schneider PowerPact Q 3-Pole Circuit Breaker 240VAC 25kA HACR Rated Thermal-Magnetic Protection

Professional thermal-magnetic protection for distribution applications

The Schneider PowerPact Q 3-pole circuit breaker delivers reliable electrical protection for distribution applications with 240VAC operation and 25kA interrupting capacity. This HACR rated unit features thermal-magnetic trip technology with operating handle control, designed for bracket mounting in commercial and industrial electrical systems. Built with halogen-free materials and 15-year average life duration for dependable long-term service.

Professional Features & Benefits

• 240VAC 25kA Rating: Provides robust interrupting capacity for demanding distribution applications with reliable fault protection.
• HACR Rated Design: Specifically certified for heating, air conditioning, and refrigeration equipment protection with enhanced coordination.
• Thermal-Magnetic Technology: Combines thermal overload and magnetic short-circuit protection for comprehensive electrical fault detection.
• 3-Pole Configuration: Delivers simultaneous protection across all three phases with ABC phase connection for balanced load management.
• Bracket Mounting System: Enables secure installation with proper clearance and accessibility for maintenance and operation.
• 15-Year Service Life: Engineered for extended operational reliability with minimal maintenance requirements in distribution environments.
• Halogen-Free Construction: Meets environmental standards with mercury-free, halogen-free materials for safer installation and operation.

Technical Specifications

• Ambient Air Temperature For Operation: 40-70 °C
• Average Life Duration: 15 year(s)
• China Rohs In Scope: No
• Circuit Breaker Application: HACR rated
• Continuous Current Rating: 80%
• Control Type: operating handle
• Country Of Origin: Mexico
• Device Application: distribution
• Device Type: LV equipment - Low voltage circuit breaker
• Environmental Disclosure: ENVPEP2311048_V2
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant with Exemptions
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• Halogen Content Performance: Halogen free product
• Halogen Free Status: Halogen free product
• Halogene Performance: Halogen free product
• Legacy Weee Scope: In
• Magnetic Hold Current: 1200 A
• Magnetic Tripping Current: 2400-2400 A
• Mercury Free: Yes
• Mounting Support: bracket
• Network Frequency: 50/60 Hz
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: No
• Phase Connection: ABC
• Poles Description: 3P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 3.93 in
• Product Height: 6.47 in
• Product Or Component Type: circuit breaker
• Product Width: 4.5 in
• Range: PowerPact
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 1909
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Traceability: Yes
• Trip Unit Technology: thermal-magnetic
• Utilisation Category: category A
• Wd Status: 1 - GSC certified
• Wire Stripping Length: 22 mm
• With Recycled Cardboard: Yes
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial HVAC System Protection
• Industrial Distribution Panels
• Refrigeration Equipment Protection
• Multi-Unit Residential Properties
• Professional Office Buildings
• Retail and Light Commercial Facilities
• Manufacturing and Processing Equipment

Why Choose Schneider Quality?

Schneider PowerPact Q circuit breakers deliver proven reliability with 15-year average life duration and halogen-free, mercury-free construction. RoHS compliant with environmental certifications and Green Premium product status, these units provide dependable protection backed by comprehensive technical specifications and wide temperature operation range from 40-70°C.
