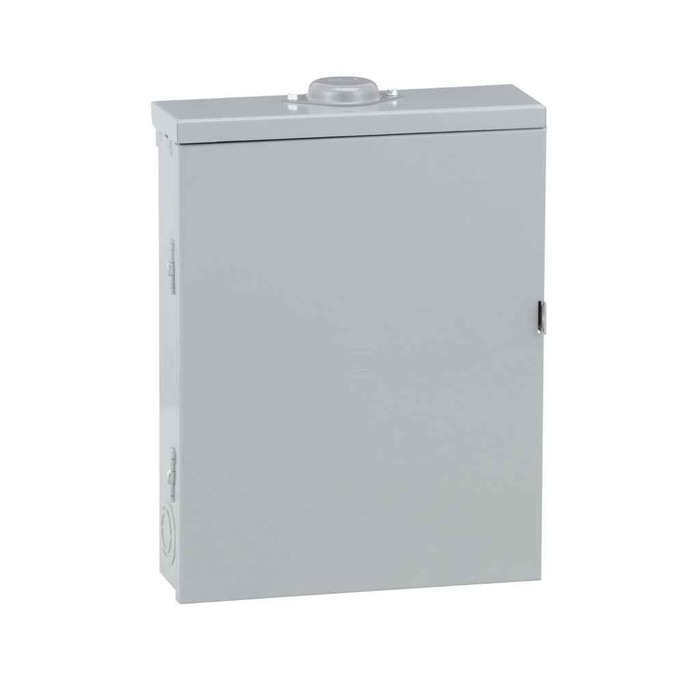

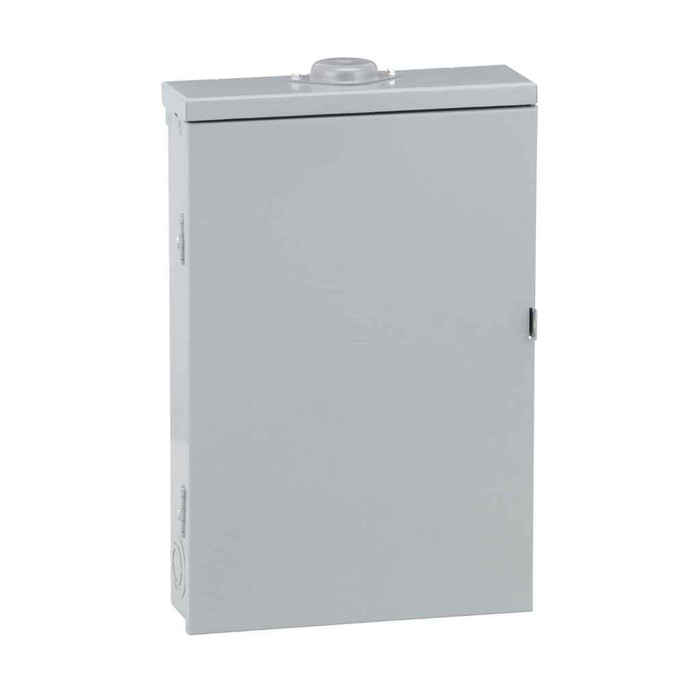

Schneider QO Series Load Centers — Outdoor/Indoor Main Breaker & Main Lug Panels (60A–225A)

Schneider Electric QO Series Load Center 65kA Short Circuit Rating with Main Lug Configuration

(No reviews yet) Write a Review

Model: QO312L125GRB

In Stock (leaves warehouse same day if ordered before 3pm ET)

$485.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric QO Series Load Center 65kA Short Circuit Rating with Main Lug Configuration

Professional electrical distribution for commercial and industrial applications

The Schneider Electric QO Series Load Center delivers reliable electrical distribution with a robust 65kA short circuit current rating and main lug configuration. Built with welded galvannealed steel enclosure construction and surface cover design, this UL Listed load center provides professional-grade performance for commercial market applications requiring dependable power distribution and circuit protection.

Professional Features & Benefits

  • 65kA Short Circuit Rating: Provides exceptional fault current protection capability for demanding commercial electrical systems and high-capacity installations.
  • Main Lug Configuration: Offers flexible connection options with lug-type electrical connections for versatile installation requirements and upstream protection coordination.
  • Welded Galvannealed Steel Enclosure: Delivers superior durability and corrosion resistance with robust construction designed for long-term reliability in various environments.
  • UL Listed Certification: Ensures compliance with rigorous safety standards and provides confidence in professional electrical installations and code requirements.
  • Surface Cover Design: Facilitates easy access for maintenance and circuit modifications while providing secure protection of electrical components.
  • Commercial Market Segmentation: Engineered specifically for commercial applications with appropriate ratings and features for professional electrical distribution systems.
  • QO Series Compatibility: Integrates seamlessly with the complete QO product range for consistent performance and standardized installation practices.

Technical Specifications

  • Base Plate: QON403L60N
  • China Rohs In Scope: No
  • China Rohs Label: 1
  • Cover Type: surface cover
  • Electrical Connection: lugs
  • Enclosure Material: welded galvannealed steel
  • Energy Efficiency Optimized: FALSE
  • Environmental Disclosure: ENVPEP2212003EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Green Premium Status For Reporting: Green Premium product
  • H And D Domain: Safety
  • H And D Enrichment Assignment: no
  • H And D Enrichment Class 3: Load centers (equipped)
  • H And D Enrichment Class 4: Three-phase main lugs only load center
  • H And D Enrichment Function: ENCLOSURES
  • H And D Subrange: COM
  • Legacy Weee Scope: In
  • Load Center Type: Fixed Mains (lugs)
  • Manufacturer: Schneider Electric
  • Market Segmentation: Commercial
  • Market Segmentation Id: COMMERCIAL
  • Mercury Free: Yes
  • Number Of Tandem Circuit Breakers: 0
  • Packaging Made With Recycled Cardboard: No
  • Packaging Without Single Use Plastic: No
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Certifications: UL Listed
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 4.13 in
  • Product Or Component Type: Load Center
  • Range Of Product: QO
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2531
  • Rohs Eur Full Compliance Status: Compliant
  • Rohs Eur Full Compliance Status Id: COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant
  • Rohs Exemption Information: Yes
  • Scope Perimeter: At least in Europe
  • Short Circuit Current: 65 kA
  • Sustainable Packaging: No
  • Take Back: No
  • Toxic Heavy Metal Free: Yes
  • Use Carbon Footprint: 0.087341
  • With Recycled Cardboard: No
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Commercial Buildings and Office Complexes
  • Retail and Shopping Centers
  • Light Industrial Facilities
  • Multi-Unit Residential Properties
  • Educational and Healthcare Facilities
  • Professional Service Buildings
  • Mixed-Use Developments

Why Choose Schneider Electric Quality?

Schneider Electric QO Series load centers provide proven reliability with UL Listed certification and robust welded galvannealed steel construction. The mercury-free design and RoHS compliance demonstrate commitment to environmental responsibility, while the Green Premium product status ensures sustainable electrical distribution solutions for professional applications.

Manufacturer Resources

Product Specs

Base Plate:
QON403L60N
China Rohs In Scope:
No
China Rohs Label:
1
Cover Type:
Surface Cover
Electrical Connection:
lugs
Enclosure Material:
welded galvannealed steel
Energy Efficiency Optimized:
FALSE
Environmental Disclosure:
ENVPEP2212003EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant
Function Option:
Standard
Green Premium Status For Reporting:
Green Premium product
H And D Domain:
Safety
H And D Enrichment Assignment:
no
H And D Enrichment Class 3:
Load centers (equipped)
H And D Enrichment Class 4:
Three-phase main lugs only load center
H And D Enrichment Function:
ENCLOSURES
Legacy Weee Scope:
In
Load Center Type:
Fixed Mains (lugs)
Market Segmentation:
Commercial
Mercury Free:
Yes
Number Of Tandem Circuit Breakers:
0
Packaging Made With Recycled Cardboard:
No
Packaging Without Single Use Plastic:
No
Product Availability:
Stock - Normally stocked in distribution facility
Product Certifications:
UL Listed
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
4.13 in
Product Or Component Type:
Load Center
Range Of Product:
QO
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
2531
Rohs Exemption Information:
Yes
Short Circuit Current:
65 kA
Sustainable Packaging:
No
Take Back:
No
Toxic Heavy Metal Free:
Yes
Use Carbon Footprint:
0.087341
With Recycled Cardboard:
No
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Load Center
Product Group:
Panelboards & Load Centers

Schneider QO312L125GRB – Frequently Asked Questions

1) Does the Schneider QO main lug load center come with a main breaker?
No. These QO panels are main lugs only, catalogued as Fixed Mains (lugs) with lug-type electrical connections. Incoming conductors land directly on the lugs, so overcurrent protection for the panel has to come from an upstream device (a main breaker or fused disconnect ahead of it). If you need the disconnect at the panel itself, order a main breaker QO load center instead.
2) Is this Schneider QO load center single phase or three phase?
Three phase. It's a three-phase main lugs only load center, so it's intended for 3-phase commercial distribution, not a residential single-phase service. Don't spec it for a 120/240V single-phase panel swap.
3) How many circuits do the Schneider QO GRB load centers hold, and what are the part numbers?
Four sizes, by 1-pole QO breaker spaces: 3 spaces (QO403L60NRB), 12 spaces (QO312L125GRB), 30 spaces (QO330L200GRB) and 42 spaces (QO342L225GRB). Tandem breakers are not counted in these panels, so the space count is the true circuit count.
4) What breakers fit a Schneider QO load center?
QO branch breakers. The panel is part of Schneider's QO range and the bus is built for QO plug-on breakers, so Homeline breakers will not seat in it. Since no tandem breakers are permitted, plan on one QO breaker per pole space.
5) Can I use tandem or twin breakers to add circuits in this QO panel?
No. The QO GRB load centers are rated for zero tandem circuit breakers, so every branch circuit needs its own full space. If you're close on space, size up: the 42-space QO342L225GRB is the largest of the group.
6) Is this QO load center suitable for outdoor or damp locations?
The enclosure is welded galvannealed steel with a surface cover, which gives corrosion resistance and a trim that mounts flush to the box face for easy access to the interior. Galvannealed steel is the standard construction for both indoor and outdoor-rated QO enclosures, so confirm the NEMA type on the specific catalog number matches the environment you're mounting in before you set it outside.
7) How deep is the Schneider QO load center enclosure for wall cavity planning?
Product depth is 4.13 inches. That clears a standard 2x4 stud wall with the box face set to finish, but check gutter space against your conductor sizes on the larger 200A and 225A versions.
8) What is the base plate part number for this QO load center?
The base plate reference is QON403L60N. Useful when you're pulling an interior or matching replacement components to an existing installed panel.
9) Do the Schneider QO load centers meet RoHS and environmental reporting requirements for a green building project?
They're EU RoHS compliant, mercury free, and toxic heavy metal free, and Schneider classes them as a Green Premium product with environmental profile document ENVPEP2212003EN for your submittal package. Note the REACH status: the reference contains Substances of Very High Concern above the threshold, which matters if your project requires a declaration. Recycled metal content at the CR level is 0%, and the packaging is not recycled cardboard and does contain single-use plastic.
