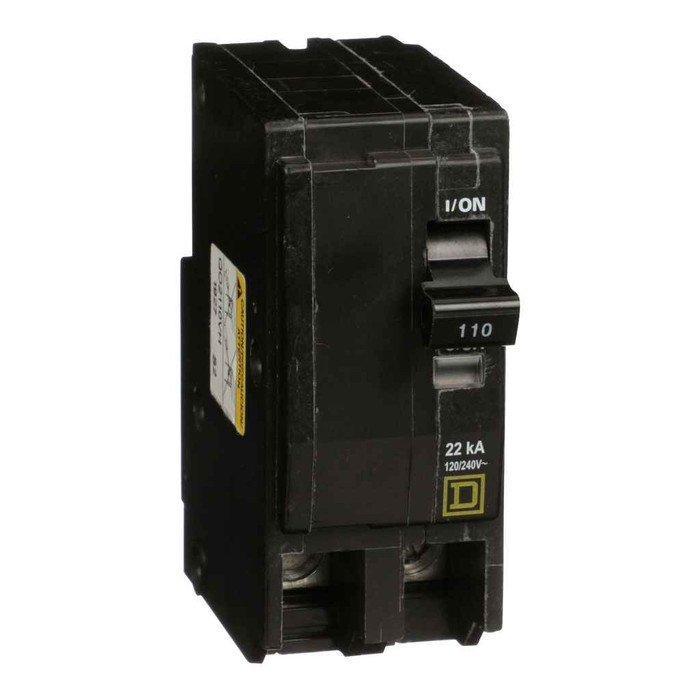

Schneider Electric QO-VH Series 2-Pole Miniature Circuit Breaker 10A-200A HACR Rated Plug-On Mount

Schneider Electric QO-VH Series 2-Pole Miniature Circuit Breaker 10A-200A HACR Rated Plug-On Mount

Professional Circuit Protection for Residential Applications

The Schneider Electric QO-VH Series 2-pole miniature circuit breaker delivers reliable electrical protection for residential installations. This HACR rated circuit breaker features plug-on mounting for easy installation and operates effectively in ambient temperatures up to 40°C. With a compact 1.5 in width and 2.91 in depth design requiring 2 spaces, this standard function circuit breaker provides dependable performance with a 15-year average life duration.

Professional Features & Benefits

• HACR Rating: Specifically designed for heating, air conditioning, and refrigeration applications, ensuring reliable protection for motor loads and HVAC systems.
• 2-Pole Configuration: Provides simultaneous protection for both conductors in 240V circuits, ideal for residential appliances and equipment requiring two-pole protection.
• Plug-On Mount Design: Enables quick and secure installation without additional hardware, reducing installation time and ensuring proper electrical connection.
• Compact Dimensions: 1.5 in width and 2.91 in depth design maximizes panel space utilization while requiring only 2 spaces for installation.
• 40°C Operating Temperature: Maintains reliable performance in elevated ambient temperatures commonly found in electrical panels and equipment rooms.
• 15-Year Life Duration: Engineered for long-term reliability with an average service life of 15 years, reducing maintenance and replacement costs.
• Halogen-Free Construction: Environmentally conscious design with halogen-free materials and mercury-free components for safer operation and disposal.

Technical Specifications

• Ambient Air Temperature For Operation: 40 °C
• Average Life Duration: 15 year(s)
• China Rohs In Scope: No
• China Rohs Label: 1
• Circuit Breaker Application: HACR rated
• Circuit Breaker Type: standard
• Country Of Origin: Mexico
• Device Type: LV equipment - Low voltage circuit breaker
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2111016
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Circuit Breakers
• H And D Enrichment Class 4: MCB UL 2P
• H And D Enrichment Function: MCB
• H And D Subrange: RESI
• Halogen Content Performance: Halogen free product
• Halogen Free Status: Halogen free product
• Halogene Performance: Halogen free product
• Legacy Weee Scope: In
• Manufacturer: Schneider Electric
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Mounting Mode: plug-in
• Number Of Spaces Required: 2
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: Yes
• Poles Description: 2P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 2.91 in
• Product Or Component Type: miniature circuit-breaker
• Product Width: 1.5 in
• Range Of Product: QO
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2534
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Total Lifecycle Carbon Footprint: 19 kg CO2 eq.
• Toxic Heavy Metal Free: Yes
• Traceability: No
• Use Carbon Footprint: 17.30424348
• With Recycled Cardboard: No
• Without Single Use Plastic: Yes
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Panels
• HVAC System Protection
• Appliance Circuit Protection
• Motor Load Applications
• Air Conditioning Units
• Heating Equipment
• Refrigeration Systems

Why Choose Schneider Electric Quality?

Schneider Electric QO-VH Series circuit breakers combine proven reliability with environmental responsibility. The 15-year average life duration and halogen-free, mercury-free construction demonstrate the commitment to both performance and sustainability. EU RoHS compliant and featuring Green Premium product status, these circuit breakers deliver dependable protection while meeting modern environmental standards.
