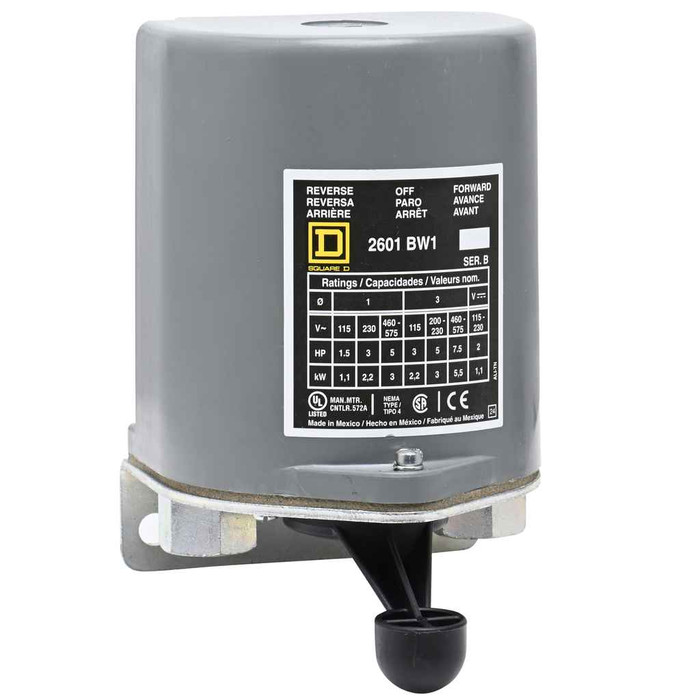

Schneider Switch, Reversing Drum, 5HP at 575VAC Single Phase, 7.5HP at 575VAC Polyphase, Handle Operated, NEMA 4 Enclosure

Schneider Electric Reversing Drum Switch 5HP Single Phase 7.5HP Polyphase 575VAC NEMA 4 Enclosure

(No reviews yet) Write a Review

Model: 2601BW1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,164.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric Reversing Drum Switch 5HP Single Phase 7.5HP Polyphase 575VAC NEMA 4 Enclosure

Professional Motor Control & Direction Switching Solution

The Schneider Electric Reversing Drum Switch delivers reliable motor control and direction switching for industrial applications. This handle-operated switch provides 5HP capacity at 575VAC single phase and 7.5HP at 575VAC polyphase operation, housed in a durable NEMA 4 enclosure for protection against water and dust. The 3-pole configuration with screw-clamp terminals ensures secure electrical connections for professional installations.

Professional Features & Benefits

  • Dual Power Ratings: 5HP at 575VAC single phase and 7.5HP at 575VAC polyphase provide versatile motor control options for various applications
  • NEMA 4 Enclosure: Weather-resistant protection against water spray and dust ensures reliable operation in demanding environments
  • Handle Operation: Manual control provides direct operator interface for immediate motor direction changes and control
  • 3-Pole Configuration: Complete three-phase switching capability for comprehensive motor control applications
  • Screw-Clamp Terminals: Secure electrical connections reduce maintenance requirements and ensure long-term reliability
  • Compact Design: 6.89" H x 5.50" D x 4.40" W dimensions allow installation in space-constrained applications

Technical Specifications

  • China Rohs In Scope: No
  • Country Of Origin: Mexico
  • Electrical Connection: screw-clamp terminals
  • Eu Rohs Directive: Not compliant
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Legacy Weee Scope: In
  • Nema Degree Of Protection: NEMA 4
  • Package Weight Lbs: 1.601 kg
  • Packaging Made With Recycled Cardboard: No
  • Packaging Without Single Use Plastic: No
  • Poles Description: 3P
  • Product Availability: Non-Stock - Not normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 5.50 in
  • Product Height: 6.89 in
  • Product Or Component Type: Reversing Drum Switch
  • Product Width: 4.40 in
  • Range Of Product: B
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Full Compliance Status: Not compliant
  • Rohs Eur Full Compliance Status Id: NOT_COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Will not be Compliant
  • Scope Perimeter: Outside of Europe
  • Sustainable Packaging: No
  • Take Back: No
  • Tier: 1
  • Tier Id: 1
  • Wd Status: 5 - INITIALIZED WITH DataSCAN OK (Migration)
  • With Recycled Cardboard: No
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Industrial Motor Control Systems
  • Manufacturing Equipment Direction Control
  • Conveyor System Reversing Applications
  • Pump and Fan Direction Control
  • Machine Tool Motor Control
  • Process Equipment Motor Management
  • Material Handling Systems

Why Choose Schneider Electric Quality?

Schneider Electric reversing drum switches provide dependable motor control solutions with NEMA 4 environmental protection and robust 3-pole switching capability. The screw-clamp terminal design and handle operation ensure reliable performance in demanding industrial applications where precise motor direction control is essential.
