Schneider Switch, Reversing Drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC Polyphase, Handle Operated

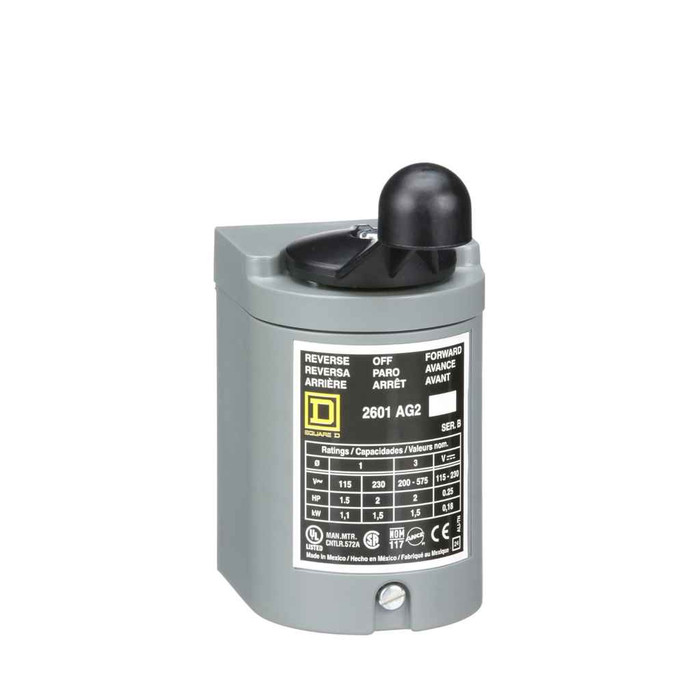

Schneider Electric Reversing Drum Switch 2 HP 230V Single Phase 3-Pole NEMA 1 Handle Operated

(No reviews yet) Write a Review

Model: 2601AG2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$326.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric Reversing Drum Switch 2 HP 230V Single Phase 3-Pole NEMA 1 Handle Operated

Professional Motor Control & Reversing Solution

The Schneider Electric Reversing Drum Switch delivers reliable motor control and reversing capabilities with 2 HP capacity at 230 VAC single phase and 2 HP at 575 VAC polyphase operation. This 3-pole handle operated switch features NEMA 1 enclosure protection and screw-clamp terminal connections for secure installation in professional applications.

Professional Features & Benefits

  • 2 HP Motor Capacity: Handles demanding motor loads at 230V single phase and 575V polyphase for versatile power requirements
  • 3-Pole Configuration: Provides complete motor control with proper phase switching for reliable reversing operation
  • NEMA 1 Enclosure: Offers protection against incidental contact and falling dirt in indoor general-purpose applications
  • Handle Operation: Manual control provides direct operator interface for precise motor direction control
  • Screw-Clamp Terminals: Secure electrical connections ensure reliable performance and simplified maintenance
  • Compact Design: 5.38" H x 4.61" D x 2.68" W dimensions allow installation in space-constrained applications

Technical Specifications

  • China Rohs In Scope: No
  • Country Of Origin: Mexico
  • Electrical Connection: screw-clamp terminals
  • Eu Rohs Directive: Not compliant
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Html Descr: DRUM SWITCH 600VAC 2HP A +OPTIONSHorsepower : 2 hp 230 V AC,1.5 hp 115 V AC,2 hp 200 V AC,2 hp 460
  • Legacy Weee Scope: In
  • Manufacturer: Schneider Electric
  • Nema Degree Of Protection: NEMA 1
  • Package Weight Lbs: 567.0 g
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Poles Description: 3P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 4.61 in
  • Product Height: 5.38 in
  • Product Or Component Type: Reversing Drum Switch
  • Product Width: 2.68 in
  • Range Of Product: A
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Full Compliance Status: Not compliant
  • Rohs Eur Full Compliance Status Id: NOT_COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Will not be Compliant
  • Scope Perimeter: At least in Europe
  • Sustainable Packaging: No
  • Take Back: No
  • Tier: 1
  • Tier Id: 1
  • Wd Status: A - SELECTED - PCE ONLY (Migration)
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Industrial Motor Control Systems
  • Manufacturing Equipment
  • Conveyor Systems
  • Machine Tool Applications
  • HVAC Equipment Control
  • Pump and Fan Control
  • Material Handling Systems

Why Choose Schneider Electric Quality?

Schneider Electric reversing drum switches provide dependable motor control with NEMA 1 protection and robust construction. The compact design and screw-clamp terminal connections ensure reliable installation and long-term performance in demanding industrial applications.

Manufacturer Resources

Product Specs

China Rohs In Scope:
No
Country Of Origin:
Mexico
Electrical Connection:
screw-clamp terminals
Eu Rohs Directive:
Not compliant
Function Option:
Standard
Html Descr:
DRUM SWITCH 600VAC 2HP A +OPTIONSHorsepower : 2 hp 230 V AC,1.5 hp 115 V AC,2 hp 200 V AC,2 hp 460
Legacy Weee Scope:
In
Nema Degree Of Protection:
NEMA 1
Package Weight Lbs:
567.0 g
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Poles Description:
3P
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
4.61 in
Product Height:
5.38 in
Product Or Component Type:
Reversing Drum Switch
Product Width:
2.68 in
Range Of Product:
A
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Sustainable Packaging:
No
Take Back:
No
Tier:
1
Wd Status:
A - SELECTED - PCE ONLY (Migration)
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Reversing Drum Switch
Product Group:
Motor Starters & Contactors

Schneider 2601AG2 – Frequently Asked Questions

1) What horsepower motors will the Schneider 2601AG2 drum switch handle?
The 2601AG2 reversing drum switch is rated 2 HP at 230 V AC, 1.5 HP at 115 V AC, 2 HP at 200 V AC and 2 HP at 460 V, with a 600 V AC switch rating. Size your motor by nameplate voltage, not just horsepower: a 2 HP motor on 115 V exceeds the switch, since at 115 V it tops out at 1.5 HP.
2) Can I use this drum switch to reverse a single phase motor?
Yes. The Schneider 2601AG2 is a reversing drum switch rated 2 HP at 230 VAC single phase, and 2 HP at 575 VAC polyphase, so it covers both single phase and three phase reversing duty. On a single phase motor the reversing is done by swapping the start winding leads, so the motor has to have its start winding leads brought out to the terminal box. Permanent split capacitor and split phase motors with accessible start leads work; a motor with an internal centrifugal switch and only two leads out cannot be reversed with any drum switch.
3) Is this drum switch OK to mount outdoors or in a washdown area?
No. The enclosure is NEMA 1, which means indoor general purpose only: it guards against incidental contact and falling dirt, with no protection against rain, hose-down, or corrosive wash chemicals. For an outdoor pump, a dock, or a food-processing washdown line you need a NEMA 4 or 4X rated switch instead. Inside a dry plant, machine shop, or mechanical room the NEMA 1 box is the normal choice.
4) Does a drum switch give me motor overload protection like a starter does?
No. A reversing drum switch is a manual three pole switching device with a handle, not a magnetic starter. It changes motor direction and stops the motor, but it carries no overload relay, no coil, and no low voltage release, so the motor restarts on its own when power returns. If the application needs running overload protection or the motor must stay off after a power dip, use a reversing magnetic starter with overload relays and keep the drum switch for hand-operated direction control on machines where an operator is present.
5) How much space do I need to mount the Schneider 2601AG2 drum switch?
Footprint is 5.38 in high, 4.61 in deep and 2.68 in wide, so it fits on a narrow machine column or beside a conveyor frame where a full starter enclosure will not. Allow extra depth in front of the 4.61 in body for the operating handle swing and room below for conduit entry and bending the motor leads.
6) What wire terminations does this drum switch use, and will it take stranded conductors?
Connections are screw-clamp terminals, which clamp the conductor under a pressure plate rather than directly under a screw head. That accepts stranded motor lead wire without needing ferrules or crimped spade lugs, and it resists loosening from machine vibration better than a bare screw. Strip to the terminal's strip length and torque to the label on the device.
7) Is this a 3 pole drum switch, and does that mean I can use it on a three phase motor?
It is a 3-pole device, and yes, three poles is what a three phase reversing drum switch needs: two of the three motor leads swap when the handle moves to the opposite position while the third stays put. It is rated 2 HP at 575 VAC polyphase. Used on a single phase motor, the three poles instead handle line, run winding and start winding.
8) Does the Schneider 2601AG2 drum switch comply with EU RoHS or REACH?
It is not EU RoHS compliant, and under REACH the reference contains Substances of Very High Concern above the threshold. It falls in scope for legacy WEEE. If your project or facility carries an EU RoHS purchasing requirement, this switch will not satisfy it. Country of origin is Mexico.
9) Is a drum switch the right control for a conveyor or a machine tool that runs both directions?
It suits machines where an operator stands at the control and picks direction by hand: conveyors, machine tools, hoists on small equipment, pumps and fans that need occasional reversal. The handle gives forward, off and reverse in one motion. Where direction is commanded remotely, by a PLC, by limit switches, or from more than one station, a magnetic reversing starter with pushbutton stations is the correct device instead, because a drum switch has no coil to be operated electrically.
How fast can I get the Schneider 2601AG2 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Schneider 2601AG2 come with a warranty?
Absolutely. The Schneider 2601AG2 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Schneider 2601AG2?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
