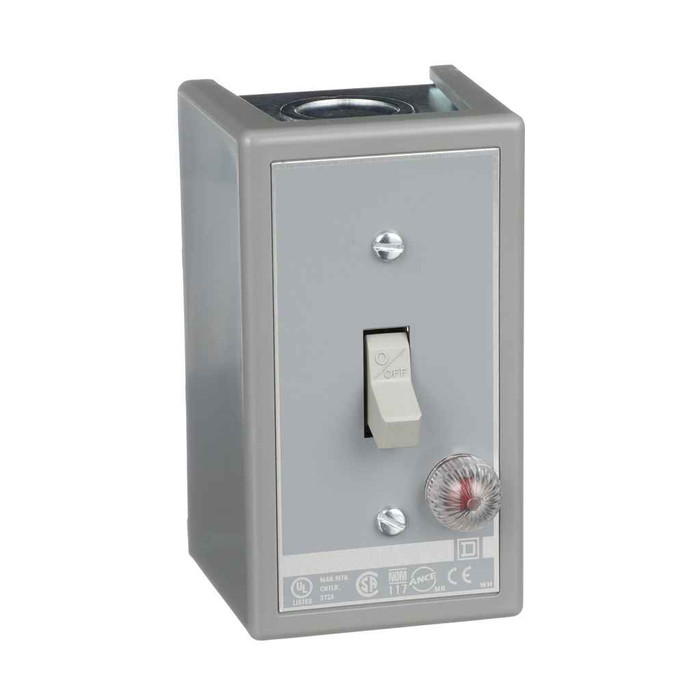

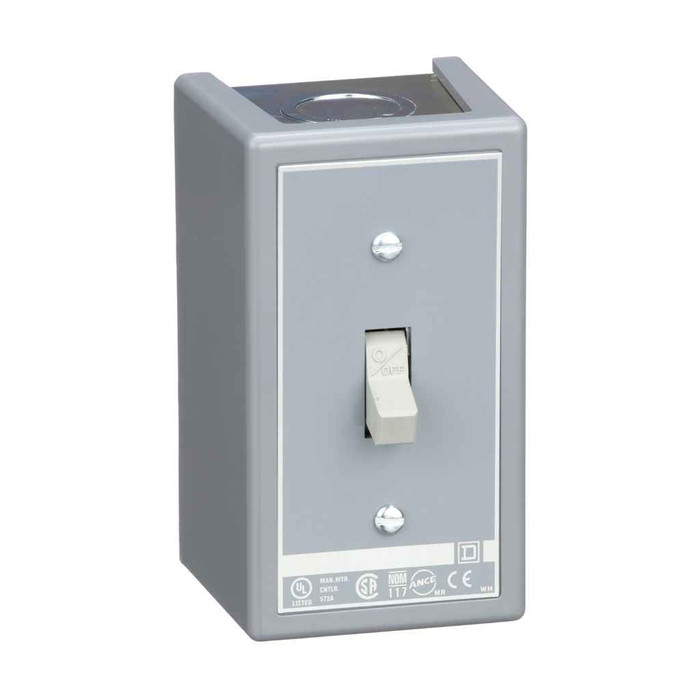

Schneider 2510KG2 Manual Motor Starter Operator Series

Schneider Electric 2510KG2 Manual Motor Starter 30A 3-Phase Non-Reversing Switch

(No reviews yet) Write a Review

Model: 2510KG2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$246.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric 2510KG2 Manual Motor Starter 30A 3-Phase Non-Reversing Switch

Professional Manual Motor Control for Industrial Applications

The Schneider Electric 2510KG2 Manual Motor Starter delivers reliable 30A motor control with 3-phase configuration and non-reversing operation. This single unit manual switch features toggle control type with screw clamp terminals for secure electrical connections. Built with professional-grade construction and 0.5" and 0.75" knock-outs for versatile cable entry options, this motor starter provides dependable performance for industrial motor control applications.

Professional Features & Benefits

  • 30A Line Rated Current: Handles substantial motor loads with reliable current capacity for demanding industrial applications.
  • 3-Phase Configuration: Provides balanced power distribution and efficient motor operation for commercial and industrial equipment.
  • Non-Reversing Design: Ensures safe, single-direction motor operation with simplified control for standard applications.
  • Toggle Control Type: Offers intuitive manual operation with positive switching action for reliable motor start/stop control.
  • Screw Clamp Terminals: Delivers secure electrical connections with easy installation and maintenance access.
  • Dual Cable Entry Options: Features 0.5" and 0.75" knock-outs on top and bottom for flexible conduit routing and installation.
  • Compact Dimensions: 4.25" H x 2.75" D x 2.44" W footprint optimizes panel space while maintaining full functionality.

Technical Specifications

  • Accessories: 9999PL12
  • Cable Entry: 0.5" and 0.75" knock-outs (top and bottom)
  • Carbon Footprint: 49.70985103
  • Carbon Footprint Kg Co2 Eq Total Life Cycle: 49.70985103
  • China Rohs In Scope: No
  • China Rohs Label: 1
  • Control Type: toggle
  • Country Of Origin: Mexico
  • Device Type: LV equipment - LV switch - disconnector
  • Distribution Carbon Footprint: 0.110104273
  • Electrical Connection: screw clamp terminals
  • End Of Life Carbon Footprint: 0.594793227
  • Environmental Disclosure: ENVPEP2507018EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Html Descr: Single Unit Manual SwitchLine Rated Current: 30AMotor Power HP: 2HP at 115V AC; 1HP at 90V DC; 2HP
  • Installation Carbon Footprint: 4.56E-02
  • Legacy Weee Scope: In
  • Line Rated Current: 30 A
  • Local Signalling: no indicator
  • Manufacturer: Schneider Electric
  • Manufacturing Carbon Footprint: 2.232791412
  • Mercury Free: Yes
  • Motor Starter Type: non reversing
  • Package Weight Lbs: 381 g
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Phase: 3 phase
  • Poles Description: 3P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 2.75 in
  • Product Height: 4.25 in
  • Product Or Component Type: Single Unit Manual Switch
  • Product Width: 2.44 in
  • Range Of Product: K
  • Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
  • Reach Free Of Svhc: Yes
  • Reach Free Shvc: Yes
  • Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
  • Reach Regulation: Free of Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2541
  • Rohs Eur Full Compliance Status: Compliant
  • Rohs Eur Full Compliance Status Id: COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant
  • Rohs Exemption Information: Yes
  • Scope Perimeter: Outside of Europe
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Tier: 2
  • Tier Id: 2
  • Total Lifecycle Carbon Footprint: 50 kg CO2 eq.
  • Toxic Heavy Metal Free: Yes
  • Traceability: No
  • Use Carbon Footprint: 46.72657767
  • Wd Status: L - LOB initialized
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Industrial Motor Control Systems
  • Manufacturing Equipment
  • Commercial HVAC Systems
  • Process Control Applications
  • Pump and Fan Control
  • Conveyor Systems
  • Machine Tool Operations

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability with EU RoHS compliant construction and mercury-free design. This motor starter meets stringent environmental standards while providing dependable performance for critical motor control applications. Built to professional standards with secure screw clamp terminals and robust construction for long-term industrial service.

Manufacturer Resources

Product Specs

Accessories:
9999PL12
Cable Entry:
0.5" and 0.75" knock-outs (top and bottom)
Carbon Footprint:
49.70985103
Carbon Footprint Kg Co2 Eq Total Life Cycle:
49.70985103
China Rohs In Scope:
No
China Rohs Label:
1
Control Type:
toggle
Country Of Origin:
Mexico
Device Type:
LV equipment - LV switch - disconnector
Distribution Carbon Footprint:
0.110104273
Electrical Connection:
screw clamp terminals
End Of Life Carbon Footprint:
0.594793227
Environmental Disclosure:
ENVPEP2507018EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant
Function Option:
Standard
Html Descr:
Single Unit Manual SwitchLine Rated Current: 30AMotor Power HP: 2HP at 115V AC; 1HP at 90V DC; 2HP
Installation Carbon Footprint:
4.56E-02
Legacy Weee Scope:
In
Line Rated Current:
30 A
Local Signalling:
no indicator
Manufacturing Carbon Footprint:
2.232791412
Mercury Free:
Yes
Motor Starter Type:
non reversing
Package Weight Lbs:
381 g
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Phase:
3 phase
Poles Description:
3P
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
2.75 in
Product Height:
4.25 in
Product Or Component Type:
Single Unit Manual Switch
Product Width:
2.44 in
Range Of Product:
K
Reach Free Of Svhc:
Yes
Reach Full Compliance Status:
Free of Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
2541
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Tier:
2
Total Lifecycle Carbon Footprint:
50 kg CO2 eq.
Toxic Heavy Metal Free:
Yes
Traceability:
No
Use Carbon Footprint:
46.72657767
Wd Status:
L - LOB initialized
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Single Unit Manual Switch
Product Group:
Motor Starters & Contactors

Schneider 2510KG2 – Frequently Asked Questions

1) Does the Schneider 2510KG2 manual motor starter provide overload protection for the motor?
No. The 2510KG2 is a single unit manual switch, classified as a low voltage switch-disconnector, with no melting alloy overload relay. It switches all three legs on and off by toggle, so the motor still needs separate overload and short circuit protection upstream. If you want a manual starter with built-in overload heaters, you need a manual starter model rather than this manual switch.
2) Can I use the 2510KG2 to run a 3-phase motor forward and reverse?
No. The 2510KG2 is a non-reversing starter, so it only switches the motor on and off in one direction. Reversing a three phase motor means swapping two line legs, which this toggle switch cannot do. For jog-forward-reverse duty on a conveyor or hoist you need a reversing manual switch or a reversing contactor arrangement.
3) What size motor will a 30A Schneider 2510KG2 manual switch handle?
The switch is rated 30 A line current across three poles. Schneider's motor power data for it lists 2 HP at 115 V AC and 1 HP at 90 V DC. Size the motor to the horsepower rating for your supply voltage, not to the 30 A figure, since the 30 A is the line rated current of the contacts.
4) Will the 2510KG2 fit in a shallow control panel or a tight enclosure?
Footprint is 4.25 in high, 2.44 in wide and 2.75 in deep, so depth behind the mounting surface is the number that usually decides it. At 2.75 in deep it suits a compact machine-mount or wall enclosure. The unit ships at 381 g.
5) What conduit sizes can I land on the Schneider 2510KG2 enclosure?
There are 0.5 in and 0.75 in knock-outs on both the top and the bottom, so you can bring line in one end and load out the other with either trade size. Conductors terminate in screw clamp terminals.
6) Is the Schneider 2510KG2 RoHS compliant and free of SVHC substances for our facility submittals?
It is EU RoHS compliant, free of Substances of Very High Concern above the REACH threshold, mercury free and free of toxic heavy metals. The environmental profile document reference is ENVPEP2507018EN, and total lifecycle carbon footprint is published at 50 kg CO2 eq. Country of origin is Mexico.
7) Is a manual toggle switch like this enough for motor disconnect at the machine, or do I need a magnetic starter?
The 2510KG2 gives local manual on/off of all three legs at the machine and functions as a switch-disconnector, which covers hand-operated pumps, fans and small machine tools where nobody needs remote or automatic control. If the motor has to start from a PLC, a thermostat, a pressure switch, or drop out on a loss of voltage, that calls for a magnetic contactor or combination starter with a control coil. This unit has no coil and no overload relay.
8) Does the 2510KG2 have a pilot light to show the motor is running?
No indicator is built in. The toggle position is the only visual status, so if an operator needs a run light you will have to add a separate pilot device in the panel or door.
9) Is there an accessory available for the Schneider 2510KG2 manual switch?
Yes, Schneider lists the 9999PL12 as the accessory for this K range manual switch. Order it separately; it does not come in the box with the starter.
10) Can the Schneider 2510KG2 be repaired or have parts replaced if the contacts wear out?
No. Schneider lists the 2510KG2 as non-serviceable, so it is a replace-the-unit item rather than one you rebuild with contact kits. For MRO stocking on multiple machines, plan on carrying a spare switch instead of spare parts.
