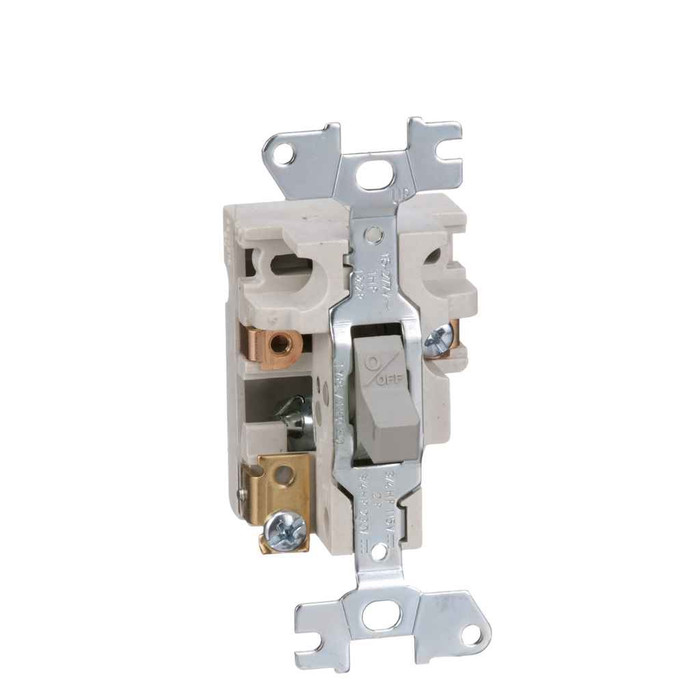

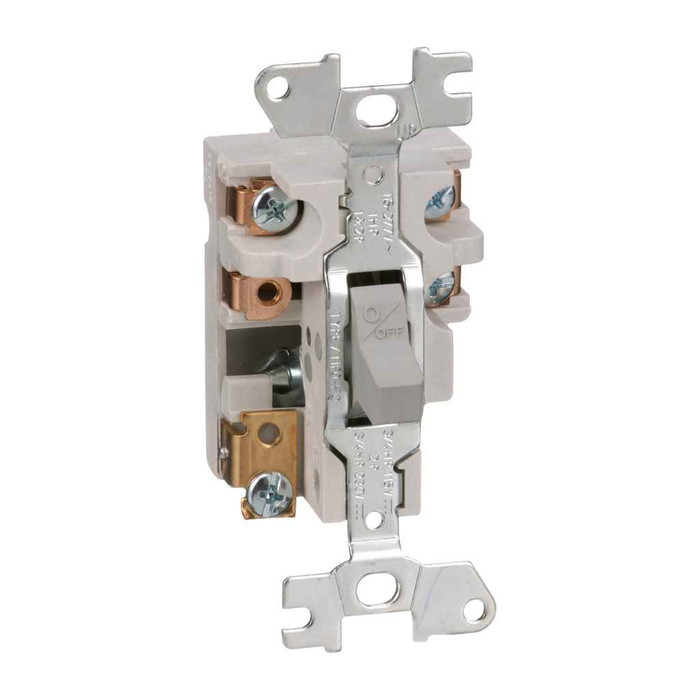

Schneider 2510FO Manual Motor Starter – Type FO, Push-Button Operated, Open Type

Schneider Electric 2510FO Manual Motor Starter - 16A Single Phase Non-Reversing with Toggle Switch Control

(No reviews yet) Write a Review

Model: 2510FO2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$132.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric 2510FO Manual Motor Starter

Professional Single Phase Motor Control Solution

The Schneider Electric 2510FO Manual Motor Starter delivers reliable single-phase motor control with 16A line rated current capacity. This non-reversing manual starter features toggle switch control operation and melting alloy thermal overload protection in an open-type configuration. Built with screw clamp terminals for secure electrical connections and manual reset functionality for dependable motor protection and control applications.

Professional Features & Benefits

  • 16A Line Rated Current: Provides adequate capacity for single-phase motor applications requiring reliable current handling and protection.
  • Single Phase Operation: Optimized for single-phase motor control applications with simplified wiring and installation requirements.
  • Non-Reversing Design: Ensures safe and predictable motor operation for applications requiring single-direction rotation control.
  • Toggle Switch Control: Offers intuitive manual operation with positive on/off control for operator convenience and safety.
  • Melting Alloy Thermal Overload: Provides reliable motor protection against overload conditions with proven thermal protection technology.
  • Screw Clamp Terminals: Ensures secure electrical connections with reliable termination for long-term performance.
  • Manual Reset Function: Allows operator control over restart procedures following overload protection activation.

Technical Specifications

  • Cable Entry: without
  • China Rohs In Scope: No
  • Control Type: toggle switch
  • Country Of Origin: Mexico
  • Electrical Connection: screw clamp terminals
  • Environmental Disclosure: ENVPEP2507018EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Not compliant
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Legacy Weee Scope: In
  • Line Rated Current: 16 A
  • Local Signalling: no indicator
  • Manufacturer: Schneider Electric
  • Motor Starter Type: non reversing
  • Nema Degree Of Protection: not rated (open device)
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Phase: 1 phase
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 2.22 in
  • Product Height: 4.13 in
  • Product Or Component Type: Single Unit Manual Starter
  • Product Width: 1.69 in
  • Range Of Product: F
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Reset: manual
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Full Compliance Status: Not compliant
  • Rohs Eur Full Compliance Status Id: NOT_COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Will not be Compliant
  • Scope Perimeter: At least in Europe
  • Sustainable Packaging: No
  • Take Back: No
  • Thermal Overload Type: melting alloy
  • Tier: 2
  • Tier Id: 2
  • Wd Status: 5 - INITIALIZED WITH DataSCAN OK (Migration)
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Small Motor Control Applications
  • Single-Phase Equipment Protection
  • Workshop and Light Industrial Use
  • HVAC Fan Motor Control
  • Pump and Compressor Applications
  • Conveyor and Material Handling Systems
  • Commercial Equipment Motor Control

Why Choose Schneider Electric Quality?

Schneider Electric manual motor starters provide dependable motor control and protection with proven melting alloy thermal overload technology. The compact open-type design with screw clamp terminals ensures reliable installation and long-term performance in professional motor control applications.

Manufacturer Resources

Product Specs

Cable Entry:
without
China Rohs In Scope:
No
Control Type:
toggle switch
Country Of Origin:
Mexico
Electrical Connection:
screw clamp terminals
Environmental Disclosure:
ENVPEP2507018EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Not compliant
Function Option:
Standard
Legacy Weee Scope:
In
Line Rated Current:
16 A
Local Signalling:
no indicator
Motor Starter Type:
non reversing
Nema Degree Of Protection:
not rated (open device)
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Phase:
1 phase
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
2.22 in
Product Height:
4.13 in
Product Or Component Type:
Single Unit Manual Starter
Product Width:
1.69 in
Range Of Product:
F
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Reset:
manual
Sustainable Packaging:
No
Take Back:
No
Thermal Overload Type:
melting alloy
Tier:
2
Wd Status:
5 - INITIALIZED WITH DataSCAN OK (Migration)
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Single Unit Manual Starter
Product Group:
Motor Starters & Contactors

Schneider 2510FO2 – Frequently Asked Questions

1) Does the Schneider 2510FO manual motor starter come with an enclosure, or do I need to mount it in a box?
It is an open device with no NEMA protection rating, so it has to go inside an enclosure or control panel you provide. There is no cable entry on the unit either, so conduit or cable entry is handled by the enclosure. For a wall-mounted starter in a shop or mechanical room, plan on a separate enclosure as part of the job.
2) Should I order the 1-pole or the 2-pole version of the Schneider 2510FO starter?
Two versions are made: 2510FO1 is the 1-pole and 2510FO2 is the 2-pole. Pick by how many ungrounded conductors your single-phase motor circuit has. A 120V motor fed hot-and-neutral is switched with the 1-pole; a 240V single-phase motor with two hots needs both legs switched, so use the 2-pole. Both are single-phase, non-reversing, 16 A line rated.
3) Can this Schneider starter reverse a motor?
No. The 2510FO is a non-reversing starter, so it only runs a motor in one direction. If you need forward and reverse, this is the wrong device and you need a reversing starter or a drum switch instead.
4) Will the Schneider 2510FO fit a 16 amp single-phase motor circuit?
The line rated current is 16 A on a single-phase circuit, so it suits small single-phase motors up to that value. Overload protection is by melting alloy thermal unit, which is sized separately to the motor's full load amps, so the heater element has to match your nameplate FLA, not just the 16 A frame rating.
5) What happens after the 2510FO trips on overload, does it restart by itself?
Reset is manual. After a thermal overload trip the starter stays off until someone goes to the device and resets it, which keeps a motor from cycling back on unattended after a jam or a stalled load. There is no indicator light on the unit, so the trip is not signalled remotely.
6) How much space do I need in the panel for the Schneider 2510FO starter?
Allow for a device measuring 4.13 in height, 1.69 in width and 2.22 in depth, plus room in front for the toggle handle to swing and access to the screw clamp terminals for landing conductors.
7) Is the Schneider 2510FO manual starter RoHS and REACH compliant for a European project?
No on both counts. The unit is in scope for EU RoHS but is recorded as not compliant, and the REACH status states it contains Substances of Very High Concern above the threshold. For a European specification this device will not satisfy those requirements. It is manufactured in Mexico.
8) Is a manual starter like the 2510FO the right choice, or do I need a magnetic starter?
A manual starter like this one is switched by hand at the device and holds the motor circuit closed mechanically, with melting alloy thermal overload protection on manual reset. That works for a shop machine, fan, pump or compressor someone switches locally. If you need remote start/stop, a pilot-device circuit, or automatic dropout on power loss so the motor does not restart when power returns, you want a magnetic starter with a coil and holding contact instead, not this one.
9) Is the 2510FO operated by a pushbutton or a toggle?
Control is a toggle switch handle, operated by hand at the device itself for a positive on/off. There is no pilot light or trip indicator built in, so if an operator needs run status at the panel front you will need a separate indicator.
10) What kind of terminations does the Schneider 2510FO use for field wiring?
Screw clamp terminals, so conductors land directly under a clamp without needing ring lugs or crimped terminals. Straight strip-and-torque wiring for a small single-phase motor feed.
