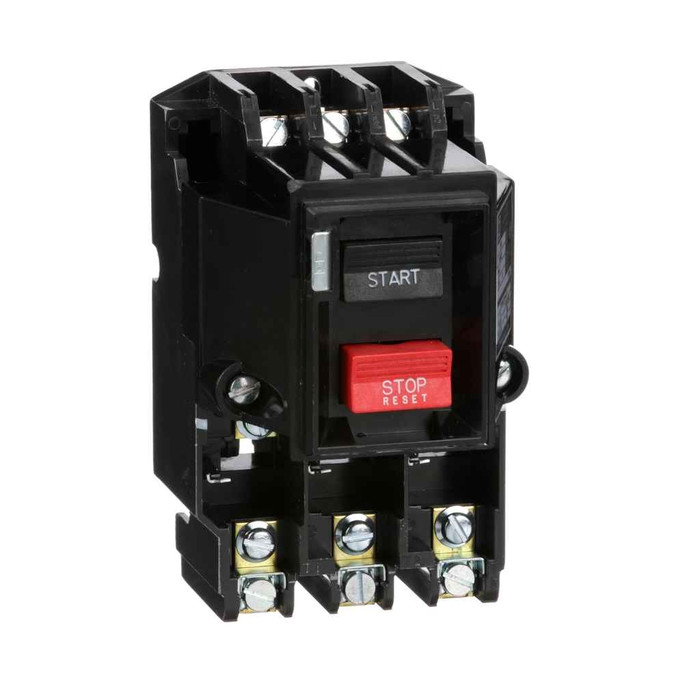

Schneider Manual Starter, Integral Horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 1 Phase, No Indicator, Open

Schneider Electric Manual Motor Starter 5HP 600VAC 3-Pole NEMA M0 Non-Reversing Push-Button Control

(No reviews yet) Write a Review

Model: 2510MBO2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$473.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric Manual Motor Starter 5HP 600VAC 3-Pole NEMA M0 Non-Reversing Push-Button Control

Professional Motor Control for Industrial Applications

The Schneider Electric Manual Motor Starter delivers reliable motor control with 5HP capacity at 380/575VAC and 3HP at 200-230VAC. This 3-pole, NEMA M0 rated starter features non-reversing operation with push-button control type and pressure wire clamp electrical connections. Designed for open installation with melting alloy thermal overload protection, this integral horsepower starter provides dependable motor starting and protection for industrial applications.

Professional Features & Benefits

  • 5HP Motor Capacity: Handles motors up to 5HP at 380/575VAC and 3HP at 200-230VAC for versatile application compatibility
  • NEMA M0 Rating: Standardized size designation ensures proper fit and reliable performance in motor control applications
  • 3-Pole Configuration: Provides complete three-phase motor control with balanced load distribution
  • Push-Button Control: Manual operation with intuitive push-button interface for direct motor starting control
  • Melting Alloy Thermal Protection: Reliable overload protection prevents motor damage from excessive current conditions
  • Pressure Wire Clamp Connections: Secure electrical terminations ensure reliable conductivity and ease of installation
  • Non-Reversing Design: Simplified control configuration for applications requiring single-direction motor operation

Technical Specifications

  • Carbon Footprint: 14.09581499
  • Carbon Footprint Kg Co2 Eq Total Life Cycle: 14.09581499
  • China Rohs In Scope: No
  • Control Type: push-button
  • Country Of Origin: Mexico
  • Distribution Carbon Footprint: 0.288381297
  • Electrical Connection: pressure wire clamp
  • End Of Life Carbon Footprint: 1.557861813
  • Environmental Disclosure: ENVPEP2507018EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant with Exemptions
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Html Descr: Integral Horsepower Manual StarterMotor Power HP: 3 HP at 200-230V AC; 5 HP at 380-575V ACNumber of
  • Installation Carbon Footprint: 0.119393198
  • Legacy Weee Scope: In
  • Local Signalling: no indicator
  • Manufacturer: Schneider Electric
  • Manufacturing Carbon Footprint: 5.848049909
  • Mercury Free: Yes
  • Motor Starter Type: non reversing
  • Nema Degree Of Protection: not rated (open device)
  • Nema Size: M-0
  • Number Of Thermal Units Required: 3
  • Package Weight Lbs: 997.902 g
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Poles Description: 3P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 4.03 in
  • Product Height: 5.72 in
  • Product Or Component Type: Manual Starter
  • Product Width: 3.5 in
  • Range Of Product: M
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 1930
  • Rohs Eur Full Compliance Status: Compliant with Exemptions
  • Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Scope Perimeter: Outside of Europe
  • Sustainable Packaging: No
  • Take Back: No
  • Thermal Overload Type: melting alloy
  • Tier: 2
  • Tier Id: 2
  • Total Lifecycle Carbon Footprint: 14 kg CO2 eq.
  • Use Carbon Footprint: 6.282128776
  • Wd Status: 1 - GSC certified
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Industrial Manufacturing Facilities
  • Commercial HVAC Systems
  • Processing Equipment Control
  • Pump and Compressor Applications
  • Conveyor System Control
  • Machine Tool Operations
  • Material Handling Equipment

Why Choose Schneider Electric Quality?

Schneider Electric manual motor starters provide dependable performance with RoHS compliance and mercury-free construction. The compact 3.5" x 4.03" x 5.72" design offers space-efficient installation while maintaining robust thermal overload protection and reliable push-button control operation for professional motor control applications.

Manufacturer Resources

Product Specs

Carbon Footprint:
14.09581499
Carbon Footprint Kg Co2 Eq Total Life Cycle:
14.09581499
China Rohs In Scope:
No
Control Type:
push-button
Country Of Origin:
Mexico
Distribution Carbon Footprint:
0.288381297
Electrical Connection:
pressure wire clamp
End Of Life Carbon Footprint:
1.557861813
Environmental Disclosure:
ENVPEP2507018EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant with Exemptions
Function Option:
Standard
Html Descr:
Integral Horsepower Manual StarterMotor Power HP: 3 HP at 200-230V AC; 5 HP at 380-575V ACNumber of
Installation Carbon Footprint:
0.119393198
Legacy Weee Scope:
In
Local Signalling:
no indicator
Manufacturing Carbon Footprint:
5.848049909
Mercury Free:
Yes
Motor Starter Type:
non reversing
Nema Degree Of Protection:
not rated (open device)
Nema Size:
M-0
Number Of Thermal Units Required:
3
Package Weight Lbs:
997.902 g
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Poles Description:
3P
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
4.03 in
Product Height:
5.72 in
Product Or Component Type:
Manual Starter
Product Width:
3.5 in
Range Of Product:
M
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
1930
Rohs Exemption Information:
Yes
Sustainable Packaging:
No
Take Back:
No
Thermal Overload Type:
melting alloy
Tier:
2
Total Lifecycle Carbon Footprint:
14 kg CO2 eq.
Use Carbon Footprint:
6.282128776
Wd Status:
1 - GSC certified
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Manual Starter
Product Group:
Motor Starters & Contactors

Schneider 2510MBO2 – Frequently Asked Questions

1) Will a Schneider 2510MBO2 manual starter run a 5 HP motor on 230V three phase?
No. The 2510MBO2 is rated 5 HP only at 380-575V AC. On 200-230V AC it tops out at 3 HP. If the motor on the drawing is 5 HP at 230V, this is the wrong size and you need to move up the M range.
2) Does the 2510MBO2 manual starter come in an enclosure or does it need one?
It ships as an open device with no NEMA enclosure rating, so it has to go inside a panel, control cabinet, or a separate enclosure you provide. Mounting it exposed on a wall or in a wash-down or outdoor area is not an option with this version.
3) Does the Schneider 2510MBO2 starter include the overload heaters?
Thermal units are ordered separately, and you need three of them, one per pole. Size them to the motor's full load amps before the starter goes in, otherwise the melting alloy overload has nothing to trip on.
4) Can a manual motor starter like the 2510MBO2 be used to reverse a motor?
No, it's a non-reversing starter, single direction only. Push-button start and stop at the device, nothing more. Reversing duty needs a reversing starter or a contactor pair with interlocking; don't try to get there by swapping leads on this one.
5) How much panel space does a NEMA M-0 manual starter take up?
The M-0 sized Schneider starter measures 3.5 x 4.03 x 5.72 inches. That is the bare device footprint, so allow for wire bending space and the enclosure around it when you lay out the backplane.
6) What is the exact part number for the Schneider integral horsepower manual starter, M-0, three pole, open?
Schneider Electric 2510MBO2, from the M range of integral horsepower manual starters. That is the number to quote for the open, non-reversing, three pole M-0 device with push-button control.
7) Is there a run light or indicator on the 2510MBO2 manual starter?
No indicator. The device gives you push-button control and nothing visual, so if an operator needs to see run status from across the room, plan on a separate pilot light in the enclosure door.
8) What kind of wire terminations does the Schneider M-0 manual starter use?
Pressure wire clamp terminals, so conductors land directly under a clamp screw. No ring lugs or crimp terminals needed for the line and load connections on a standard three phase pull.
9) Does the Schneider 2510MBO2 meet RoHS for an institutional spec package?
It's RoHS compliant with exemptions and mercury free, and Schneider publishes an environmental profile under document ENVPEP2507018EN with a total lifecycle footprint of 14 kg CO2 eq. Country of origin is Mexico, which is the line most public procurement forms want filled in.
