Schneider 2510M Manual Motor Starter Series — Toggle Operators

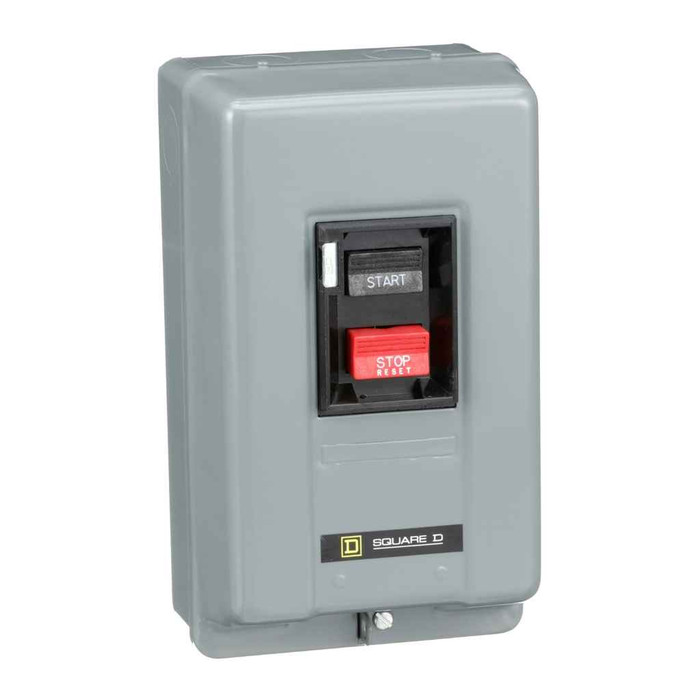

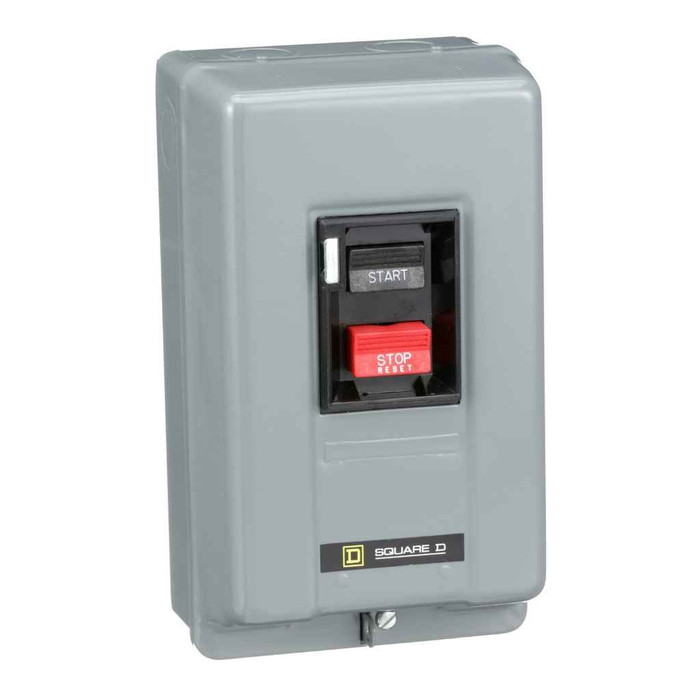

Schneider Electric 2510M Manual Motor Starter 3-Pole Non-Reversing with Push-Button Control

(No reviews yet) Write a Review

Model: 2510MBG2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$504.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric 2510M Manual Motor Starter 3-Pole Non-Reversing with Push-Button Control

Professional Motor Control with Melting Alloy Thermal Protection

The Schneider Electric 2510M Manual Motor Starter delivers reliable 3-pole motor control for professional applications. This non-reversing manual starter features push-button control operation with melting alloy thermal overload protection, providing dependable motor protection and control. Built with pressure wire clamp electrical connections and compact dimensions of 5" W x 8.63" H x 4.13" D, this starter offers versatile installation options for various motor control applications.

Professional Features & Benefits

  • 3-Pole Configuration: Provides complete three-phase motor control with balanced load distribution for reliable operation
  • Push-Button Control: Enables convenient manual operation with tactile feedback for precise motor control
  • Melting Alloy Thermal Protection: Delivers consistent overload protection with reliable trip characteristics to safeguard motor equipment
  • Non-Reversing Design: Simplifies installation and operation for applications requiring single-direction motor control
  • Pressure Wire Clamp Connections: Ensures secure electrical connections with easy installation and maintenance access
  • Compact Dimensions: 5" x 8.63" x 4.13" footprint maximizes panel space efficiency while maintaining full functionality
  • Standard Function Option: Provides reliable baseline performance for typical motor starting applications

Technical Specifications

  • China Rohs Label: 7
  • Control Type: push-button
  • Country Of Origin: Mexico
  • Electrical Connection: pressure wire clamp
  • Environmental Disclosure: ENVPEP2507018EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant with Exemptions
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Legacy Weee Scope: In
  • Local Signalling: no indicator
  • Manufacturer: Schneider Electric
  • Mercury Free: Yes
  • Motor Starter Type: non reversing
  • Number Of Thermal Units Required: 3
  • Packaging Without Single Use Plastic: No
  • Poles Description: 3P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 4.13 in
  • Product Height: 8.63 in
  • Product Or Component Type: Manual Starter
  • Product Width: 5 in
  • Range Of Product: M
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 1930
  • Rohs Eur Full Compliance Status: Compliant with Exemptions
  • Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Sustainable Packaging: No
  • Take Back: No
  • Thermal Overload Type: melting alloy
  • Tier: 2
  • Tier Id: 2
  • Total Lifecycle Carbon Footprint: 21 kg CO2 eq.
  • Use Carbon Footprint: 6.282128776
  • Wd Status: 1 - GSC certified
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Industrial Motor Control Systems
  • Manufacturing Equipment
  • HVAC System Motors
  • Pump and Fan Control
  • Conveyor Systems
  • Machine Tool Applications
  • Process Equipment Control

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability with RoHS compliant construction and mercury-free design. This manual motor starter meets professional standards with GSC certification and comprehensive environmental compliance, ensuring dependable performance in demanding industrial applications.

Manufacturer Resources

Product Specs

China Rohs Label:
7
Control Type:
push-button
Electrical Connection:
pressure wire clamp
Environmental Disclosure:
ENVPEP2507018EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant with Exemptions
Function Option:
Standard
Legacy Weee Scope:
In
Local Signalling:
no indicator
Mercury Free:
Yes
Motor Starter Type:
non reversing
Number Of Thermal Units Required:
3
Packaging Without Single Use Plastic:
No
Poles Description:
3P
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
4.13 in
Product Height:
8.63 in
Product Or Component Type:
Manual Starter
Product Width:
5 in
Range Of Product:
M
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
1930
Rohs Exemption Information:
Yes
Sustainable Packaging:
No
Take Back:
No
Thermal Overload Type:
melting alloy
Tier:
2
Total Lifecycle Carbon Footprint:
21 kg CO2 eq.
Use Carbon Footprint:
6.282128776
Wd Status:
1 - GSC certified
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Manual Starter
Product Group:
Motor Starters & Contactors

Schneider 2510MBG2 – Frequently Asked Questions

1) Does the Schneider Electric 2510M manual motor starter come with the overload heaters, or do I order those separately?
Thermal units are a separate order. The 2510M takes three thermal units, one per pole, and they are sized to the motor's full load amps, so you pick them after you know the nameplate current. The starter itself uses melting alloy thermal overload protection. Budget for three units per starter on every job.
2) What is the difference between the 2510MBG2 and 2510MCG3 manual starters?
Both are 3-pole non-reversing manual starters; the difference is NEMA size. The 2510MBG2 is the M-0 size and the 2510MCG3 is the M-1, the larger frame for bigger horsepower. Match the size to the motor's horsepower and voltage, then select the three thermal units for that motor's FLA.
3) Can a 2510M manual starter run a motor in both directions?
No. The 2510M is a non-reversing starter, single direction only. For a conveyor, hoist, or damper drive that has to run forward and reverse, you need a reversing starter or a pair of contactors with a reversing interlock instead.
4) Is a manual motor starter like the 2510M the right choice, or do I need a magnetic starter?
A manual starter like the 2510M is operated by hand at the device itself, with push-button control, and gives you three-pole disconnect plus thermal overload protection for the motor. It has no coil, so it cannot be started or stopped from a remote station, a thermostat, a PLC output, or a float switch, and it will not drop out on a power loss. If your control scheme needs remote or automatic starting, or low-voltage release, use a magnetic starter instead.
5) Will the Schneider 2510M manual starter fit in my panel?
Plan on 5 in wide by 8.63 in high by 4.13 in deep for the 2510M. Wiring is through pressure wire clamp terminals, so leave bending room at the terminals in addition to the body depth.
6) Can I use the 2510M 3-pole starter on a single-phase motor?
The 2510M is built as a three-pole starter for three-phase motors, with three thermal units switching and protecting all three legs. On a single-phase load you would be leaving a pole unused and paying for protection you cannot apply; a two-pole manual starter is the correct part for single-phase.
7) Does the 2510M manual starter have a run or trip indicator light?
No pilot light or indicator is built into the 2510M. If an operator needs to see at a glance that the motor is energized, you will need a separate pilot light in the enclosure or on the panel door.
8) Is the Schneider 2510M starter RoHS compliant for a government or institutional spec?
The 2510M is in scope for EU RoHS and is listed as compliant with exemptions, mercury free, and carries an environmental disclosure document reference of ENVPEP2507018EN. Total lifecycle carbon footprint is published at 21 kg CO2 eq. Note the packaging is not single-use-plastic free if that is part of your procurement criteria.
