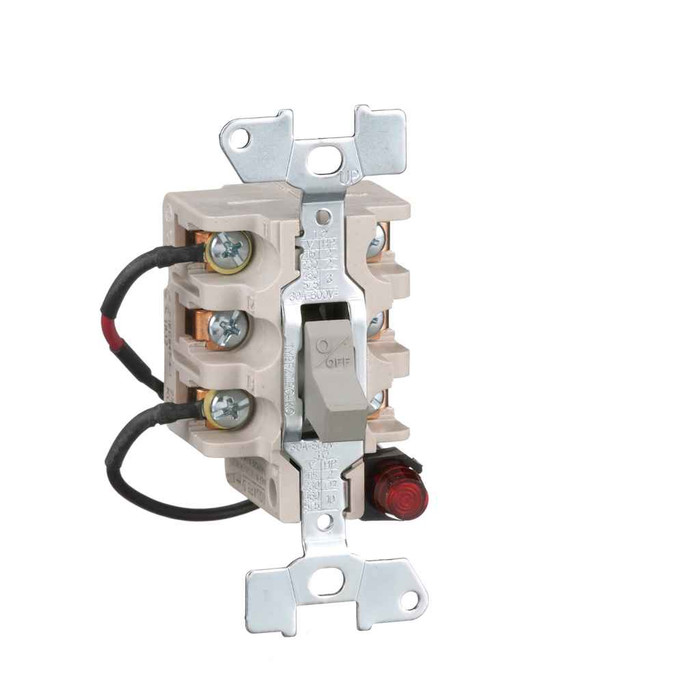

Schneider 2510KO2 Manual Motor Starter Operator Series

Schneider Electric 2510KO2 Manual Motor Starter 30A 3-Phase Non-Reversing Toggle Switch

(No reviews yet) Write a Review

Model: 2510KO2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$220.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric 2510KO2 Manual Motor Starter 30A 3-Phase Non-Reversing Toggle Switch

Professional Manual Motor Control for Industrial Applications

The Schneider Electric 2510KO2 Manual Motor Starter delivers reliable 30A motor control with 3-phase operation and non-reversing functionality. This single unit manual switch features toggle control operation with screw clamp terminals for secure electrical connections. Designed for professional motor control applications, this starter provides dependable performance in industrial environments.

Professional Features & Benefits

  • 30A Line Rated Current: Handles substantial motor loads with reliable current capacity for demanding applications
  • 3-Phase Operation: Provides balanced power distribution for efficient motor performance and reduced electrical stress
  • Non-Reversing Design: Ensures safe, single-direction motor operation with simplified control logic
  • Toggle Control Type: Offers intuitive manual operation with positive switching action for reliable control
  • Screw Clamp Terminals: Delivers secure electrical connections with easy installation and maintenance access
  • Compact Dimensions: 4.13" H x 2.34" D x 1.69" W footprint optimizes panel space utilization
  • RoHS Compliant: Meets environmental standards for safe installation in commercial and industrial facilities

Technical Specifications

  • Carbon Footprint: 48.04069784
  • Carbon Footprint Kg Co2 Eq Total Life Cycle: 48.04069784
  • China Rohs In Scope: No
  • China Rohs Label: 1
  • Control Type: toggle
  • Country Of Origin: Mexico
  • Device Type: LV equipment - LV switch - disconnector
  • Distribution Carbon Footprint: 4.85E-02
  • Electrical Connection: screw clamp terminals
  • End Of Life Carbon Footprint: 0.262004075
  • Environmental Disclosure: ENVPEP2507018EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Html Descr: Single Unit Manual SwitchLine Rated Current: 30AMotor Power HP: 2 HP at 115V AC; 1 HP at 90V DC; 2
  • Installation Carbon Footprint: 2.01E-02
  • Legacy Weee Scope: In
  • Line Rated Current: 30 A
  • Local Signalling: no indicator
  • Manufacturer: Schneider Electric
  • Manufacturing Carbon Footprint: 0.983535826
  • Mercury Free: Yes
  • Motor Starter Type: non reversing
  • Nema Degree Of Protection: not rated (open device)
  • Package Weight Lbs: 167.829 g
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Phase: 3 phase
  • Poles Description: 3P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 2.34 in
  • Product Height: 4.13 in
  • Product Or Component Type: Single Unit Manual Switch
  • Product Width: 1.69 in
  • Range Of Product: K
  • Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
  • Reach Free Of Svhc: Yes
  • Reach Free Shvc: Yes
  • Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
  • Reach Regulation: Free of Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2541
  • Rohs Eur Full Compliance Status: Compliant
  • Rohs Eur Full Compliance Status Id: COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant
  • Rohs Exemption Information: Yes
  • Scope Perimeter: At least in Europe
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Tier: 2
  • Tier Id: 2
  • Total Lifecycle Carbon Footprint: 48 kg CO2 eq.
  • Toxic Heavy Metal Free: Yes
  • Traceability: No
  • Use Carbon Footprint: 46.72657767
  • Wd Status: 1 - GSC certified
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Industrial Motor Control Systems
  • Manufacturing Equipment
  • Commercial HVAC Systems
  • Process Control Applications
  • Pump and Fan Control
  • Conveyor Systems
  • Machine Tool Operations

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability with RoHS compliant construction and mercury-free design. This manual motor starter meets stringent environmental standards while providing dependable motor control performance for professional applications.

Manufacturer Resources

Product Specs

Carbon Footprint:
48.04069784
Carbon Footprint Kg Co2 Eq Total Life Cycle:
48.04069784
China Rohs In Scope:
No
China Rohs Label:
1
Control Type:
toggle
Country Of Origin:
Mexico
Device Type:
LV equipment - LV switch - disconnector
Distribution Carbon Footprint:
4.85E-02
Electrical Connection:
screw clamp terminals
End Of Life Carbon Footprint:
0.262004075
Environmental Disclosure:
ENVPEP2507018EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant
Function Option:
Standard
Html Descr:
Single Unit Manual SwitchLine Rated Current: 30AMotor Power HP: 2 HP at 115V AC; 1 HP at 90V DC; 2
Installation Carbon Footprint:
2.01E-02
Legacy Weee Scope:
In
Line Rated Current:
30 A
Local Signalling:
no indicator
Manufacturing Carbon Footprint:
0.983535826
Mercury Free:
Yes
Motor Starter Type:
non reversing
Nema Degree Of Protection:
not rated (open device)
Package Weight Lbs:
167.829 g
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Phase:
3 phase
Poles Description:
3P
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
2.34 in
Product Height:
4.13 in
Product Or Component Type:
Single Unit Manual Switch
Product Width:
1.69 in
Range Of Product:
K
Reach Free Of Svhc:
Yes
Reach Full Compliance Status:
Free of Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
2541
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Tier:
2
Total Lifecycle Carbon Footprint:
48 kg CO2 eq.
Toxic Heavy Metal Free:
Yes
Traceability:
No
Use Carbon Footprint:
46.72657767
Wd Status:
1 - GSC certified
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Single Unit Manual Switch
Product Group:
Motor Starters & Contactors

Schneider 2510KO2 – Frequently Asked Questions

1) Does the Schneider Electric 2510KO2 manual motor starter come with an enclosure?
No. The 2510KO2 is an open device with no NEMA degree of protection, so it has to go inside a panel or a separately ordered enclosure. If the switch is being mounted on a wall, in a wet area, or anywhere exposed on a plant floor, you need an enclosed version or a suitable NEMA-rated box. Its body measures 4.13 in high, 2.34 in deep and 1.69 in wide, so plan panel space accordingly.
2) Can the 2510KO2 manual starter reverse a three-phase motor?
No. It is a non-reversing manual switch, single direction only. To reverse a motor you need a reversing manual starter or a reversing contactor setup that swaps two of the three phase legs. The 2510KO2 simply makes and breaks all three legs together as a 3-pole device.
3) Will a 30A Schneider K series manual switch handle my three-phase motor load?
The 2510KO2 is rated 30 A line current across 3 phases, so size it by the motor's full load amps, not horsepower alone. Published motor power for this unit includes 2 HP at 115V AC and 1 HP at 90V DC. It is a 3-pole switch from Schneider's K range, intended for manual on/off control of a motor circuit rather than full magnetic starter control.
4) Does this manual starter include overload protection for the motor?
The 2510KO2 is classified as a switch-disconnector, a single unit manual switch with standard function and no built-in indicator light. Treat it as manual disconnect and on/off control; overload and short-circuit protection must come from the branch circuit device or a separate overload relay in your panel design.
5) What kind of wire terminations does the 2510KO2 use?
Screw clamp terminals, so conductors land directly under the clamp with no crimped lugs or spring cages required. That makes field wiring and later maintenance straightforward for an electrician working in a control panel.
6) Is the operator on this Schneider starter a toggle or a rotary handle?
Toggle. The 2510KO2 uses a toggle control operator, which gives a positive two-position action for start/stop at the machine. If your specification calls for a rotary or padlockable disconnect handle, this is not the right operator style.
7) Does the Schneider 2510KO2 meet RoHS and REACH requirements for our facility?
It is compliant with the EU RoHS directive, free of Substances of Very High Concern above the threshold under REACH, mercury free and free of toxic heavy metals. An environmental disclosure document is published under reference ENVPEP2507018EN, with a total lifecycle carbon footprint of 48 kg CO2 eq. Useful if you are documenting procurement for a sustainability or government spec.
8) Can the 2510KO2 be rebuilt or repaired if the contacts wear out?
No. Schneider lists the 2510KO2 as non-serviceable, so there are no field-replaceable contact kits. When it wears out you replace the whole unit. Worth knowing if you are standardizing on it across a lot of machines and planning spare parts holding.
9) Where is the Schneider 2510KO2 manufactured and what part number do I order?
Order by manufacturer part number 2510KO2, from Schneider's K range of manual switches. Country of origin is Mexico, which matters if you are filing country-of-origin documentation on a government or institutional purchase.
