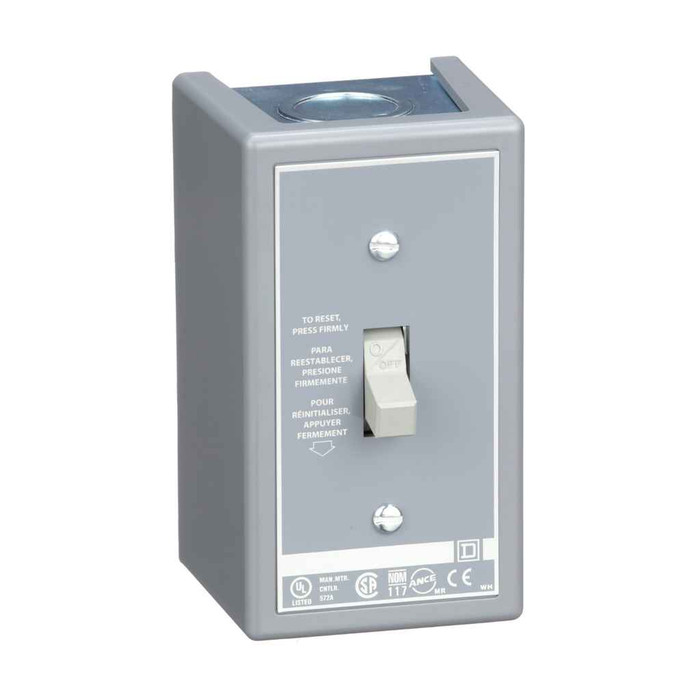

Schneider 2510FG Manual Motor Starter – Type FG, Toggle Operated, NEMA Rated

Schneider Electric 2510FG Manual Motor Starter - Type FG Toggle Operated 16A Single Phase NEMA Rated

(No reviews yet) Write a Review

Model: 2510FG2P

In Stock (leaves warehouse same day if ordered before 3pm ET)

$236.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric 2510FG Manual Motor Starter - Type FG Toggle Operated 16A Single Phase NEMA Rated

Professional Motor Control with Toggle Operation & Thermal Protection

The Schneider Electric 2510FG Manual Motor Starter delivers reliable single-phase motor control with 16A line rated current capacity. This Type FG toggle-operated starter features melting alloy thermal overload protection and manual reset functionality, providing professional-grade motor protection in a compact NEMA rated enclosure measuring 4.25" H x 2.44" W x 2.75" D.

Professional Features & Benefits

  • 16A Line Rated Current: Handles substantial motor loads with reliable current capacity for demanding applications
  • Toggle Switch Control: Provides intuitive manual operation with positive on/off control for operator safety
  • Melting Alloy Thermal Overload: Delivers consistent motor protection against overheating with proven thermal protection technology
  • Manual Reset Function: Ensures controlled restart after overload conditions for enhanced safety and system integrity
  • Screw Clamp Terminals: Facilitates secure electrical connections with reliable termination for professional installations
  • Dual Cable Entry Options: Features 0.5" and 0.75" knock-outs top and bottom for flexible conduit routing and installation convenience
  • Compact NEMA Design: Optimizes panel space utilization while maintaining professional protection standards

Technical Specifications

  • Cable Entry: 0.5" and 0.75" knock-outs (top and bottom)
  • China Rohs In Scope: No
  • Control Type: toggle switch
  • Country Of Origin: Mexico
  • Electrical Connection: screw clamp terminals
  • Environmental Disclosure: ENVPEP2507018EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Not compliant
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Legacy Weee Scope: In
  • Line Rated Current: 16 A
  • Manufacturer: Schneider Electric
  • Motor Starter Type: non reversing
  • Packaging Without Single Use Plastic: No
  • Phase: 1 phase
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 2.75 in
  • Product Height: 4.25 in
  • Product Or Component Type: Single Unit Manual Starter
  • Product Width: 2.44 in
  • Range Of Product: F
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Reset: manual
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Full Compliance Status: Not compliant
  • Rohs Eur Full Compliance Status Id: NOT_COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Will not be Compliant
  • Scope Perimeter: Outside of Europe
  • Sustainable Packaging: No
  • Take Back: No
  • Thermal Overload Type: melting alloy
  • Tier: 2
  • Tier Id: 2
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Single-Phase Motor Control Systems
  • HVAC Equipment Protection
  • Pump and Fan Motor Applications
  • Industrial Machinery Control
  • Commercial Equipment Protection
  • Maintenance and Service Applications
  • OEM Equipment Integration

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability in motor control applications with professional-grade construction and thermal protection technology. The compact design and manual reset functionality ensure safe, dependable operation while the screw clamp terminals and flexible cable entry options support professional installation standards.

Manufacturer Resources

Product Specs

Cable Entry:
0.5" and 0.75" knock-outs (top and bottom)
China Rohs In Scope:
No
Control Type:
toggle switch
Country Of Origin:
Mexico
Electrical Connection:
screw clamp terminals
Environmental Disclosure:
ENVPEP2507018EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Not compliant
Function Option:
Standard
Legacy Weee Scope:
In
Line Rated Current:
16 A
Motor Starter Type:
non reversing
Packaging Without Single Use Plastic:
No
Phase:
1 phase
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
2.75 in
Product Height:
4.25 in
Product Or Component Type:
Single Unit Manual Starter
Product Width:
2.44 in
Range Of Product:
F
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Reset:
manual
Sustainable Packaging:
No
Take Back:
No
Thermal Overload Type:
melting alloy
Tier:
2
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Single Unit Manual Starter
Product Group:
Motor Starters & Contactors

Schneider 2510FG2P – Frequently Asked Questions

1) What is the difference between the 1-pole and 2-pole versions of the 2510FG starter?
Pole count decides how many current-carrying conductors the toggle breaks. The 1-pole version (2510FG1P) switches one leg, which suits 120 V single-phase loads where the neutral stays connected. The 2-pole versions (2510FG2 and 2510FG2P) break both legs, which is what you want on a 240 V single-phase motor where neither conductor is grounded. All are non-reversing.
2) Does the 2510FG starter come with the overload heater, or do I order it separately?
The 2510FG uses a melting alloy thermal overload. The alloy thermal unit is sized to the motor's full load amps, so you select and add the correct thermal unit for your motor; the starter body itself is sized to a 16 A line rating. Have the motor nameplate FLA in hand before you pick the heater.
3) After the 2510FG trips on overload, does it restart the motor by itself?
No, reset is manual. The melting alloy unit holds the starter tripped until somebody goes to the enclosure and resets it, so the motor will not restart unattended after an overload. That is the behavior you want on pumps, fans and machinery where an automatic restart is a hazard.
4) Is a manual starter like the 2510FG the right choice, or do I need a magnetic starter?
Use the 2510FG where an operator throws the toggle at the equipment and you want overload protection with a manual reset, typical for exhaust fans, small pumps and machinery. Go to a magnetic starter instead if you need remote start/stop pushbuttons, thermostat or float switch control, or low-voltage dropout so the motor does not restart on its own when power returns. The 2510FG has no coil, so it stays closed through a power interruption.
5) What does the red pilot light option on the 2510FG add, and which part numbers have it?
The pilot light gives a visual indication at the starter that the circuit is energized, useful when the motor itself is out of sight or in another room. Order 2510FG1P (1-pole) or 2510FG2P (2-pole) for the red pilot light. 2510FG2 is the 2-pole without it.
6) What conduit sizes can I land on the Schneider 2510FG, and top or bottom entry?
Knock-outs are provided for both 1/2 inch and 3/4 inch conduit, on the top and the bottom of the enclosure, so you can feed in and out from either direction. Conductors terminate on screw clamp terminals.
7) Can I use the 2510FG as a reversing starter for a motor that needs to run both directions?
No. The 2510FG is a non-reversing manual starter, so it can only switch the motor on and off in one direction. Reversing a single-phase motor requires a reversing starter or drum switch wired to swap the start winding leads.
8) Is the Schneider 2510FG RoHS compliant for a European installation?
It is not EU RoHS compliant, and the reference contains Substances of Very High Concern above the REACH threshold. If your facility's procurement rules require EU RoHS conformity, this is not the part for that spec. For North American work where RoHS is not a purchase condition, it is a standard stocked Schneider item made in Mexico.
