Screw 12-24 x 1 PN PH MS St-Zn58 (Jar 100)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Screws
Metallics JPMP121 – Frequently Asked Questions
1) Is the Metallics JPMP121 a machine screw or a self-tapping screw?
It's a machine screw. The 12-24 designation is a machine thread, so it needs a tapped hole or a nut, not raw sheet metal or wood. The common use is threading into a tapped hole in a steel box, panel or enclosure. If you need something that cuts its own thread in unthreaded sheet metal, a machine screw is the wrong part.
2) Will a 12-24 x 1 inch screw fit the tapped holes in a standard electrical box or panel?
Yes for anything prepped 12-24, which is the usual thread on steel outlet box ears, panel mounting rails and enclosure flanges. The 1 inch length gives room to pass through a cover, ring or mounting plate and still get full thread engagement. Just confirm the hole is 12-24 and not 10-32, which is the other thread you'll meet on this gear and is not interchangeable.
3) Are these Metallics 12-24 screws plated for corrosion resistance?
They're steel with a zinc plating, which handles dry indoor and protected locations fine. For wet, outdoor or corrosive environments, step up to stainless rather than zinc plated steel.
4) Is 1 inch too long for mounting a device or cover to a box?
It can be. One inch is a long run of thread for a flush cover screw, and in a shallow box the tip can bottom out or interfere with conductors and device terminals. Use the 1 inch length where you're stacking material, mounting through a plaster ring, spacer or bracket. For a cover straight onto a tapped flange, a shorter 12-24 is the better call.
5) What driver do I need for the Metallics JPMP121 screws?

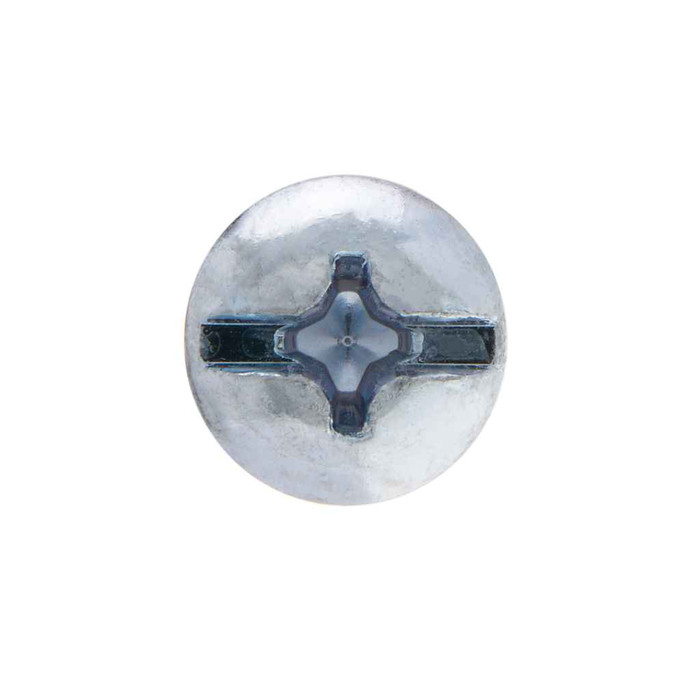

A Phillips bit. The head is a pan head with a Phillips recess, so a standard #2 Phillips driver or bit seats it. The pan head sits flat on the surface without needing a countersunk hole.
6) How many screws come in a jar of Metallics JPMP121?
100 screws per jar. The jar pack is the usual van-stock or shop-bench format, so it suits an electrician carrying a running supply of 12-24 hardware rather than a one-off repair.
7) What is the Metallics part number for the 12-24 x 1 pan head Phillips machine screw jar?
JPMP121 is the Metallics number, covering the 12-24 x 1 inch pan head Phillips machine screw in zinc plated steel, packed 100 to a jar.
How fast can I get the Metallics JPMP121 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Metallics JPMP121 come with a warranty?
Absolutely. The Metallics JPMP121 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Metallics JPMP121?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
