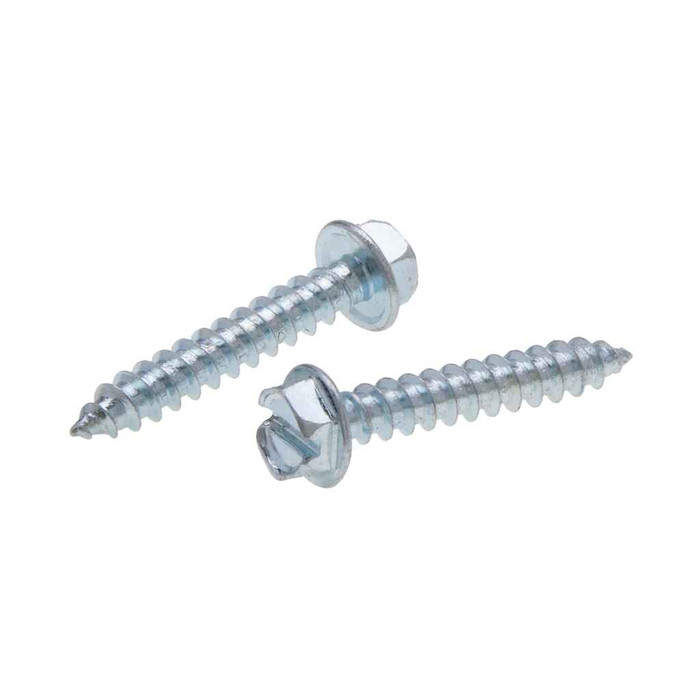

Screws 245-Pc 12 Sl Hwh Sms Kit St-zn (Trey 1)
Additional Notes
- Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4
Kit Components
- (1) 5/16 IN × 1-5/8 IN Hex Nut Driver
- (75) 1/2, (50) 3/4, (45) 1, (30) 1-1/4, (25) 1-1/2, (20) 2
Features
- A thread forming tapping screw with wider spaced threads than a Type-AB and a gimlet point
- For self starting in thin (0.015-0.050 thick) metal or resin-filled plywood.
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- MUL
- Dimensional Standard:
- ASME B18.6.3-2010
- Division:
- Electrical H1
- Drive Type:
- Hex/Slotted
- Fastener Head Height:
- 0.139 - 0.155 in.
- Fastener Head Type:
- Hex Washer
- Fastener Head Width:
- 0.305 - 0.312 in.
- Field Application:
- Electrical, Plumbing, Heating And Air Conditioning Industries
- Finish:
- Zinc
- Hardness:
- RockweII C28-38
- Height:
- 1.25 in
- Language Code:
- EN
- Length:
- 8 in
- Material:
- Steel
- Material Standard:
- AISI 1016 - 1024
- Number Of Pieces:
- 245
- Order Minimum Imperial:
- 1
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Tray
- Product Family:
- Electrical Supplies
- Product Group:
- Fasteners
- Product Height:
- 31.75 MM
- Product Length:
- 203.2 MM
- Product Series:
- JDS
- Product Weight:
- 1120 g
- Product Width:
- 117.348 MM
- Screw Point Type:
- Gimlet Point
- Slot Depth:
- 0.077 - 0.093
- Slot Width:
- 0.056 - 0.067
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 11
- Thread Standard:
- ASME B18.6.4
- Torsional Strength:
- 83 lb-in minimum
- Type:
- Type A Sheet Metal Screw Kit
- Washer Od:
- 0.398 - 0.432 in.
- Washer Thickness:
- 0.022 - 0.039 IN
- Weight:
- 2.47 lbs
- Width:
- 4.62 in
- Width Across Corners:
- 0.34
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Type:
- Type A Sheet Metal Screw Kit
- Type2:
- Type A Sheet Metal Screw Kit
