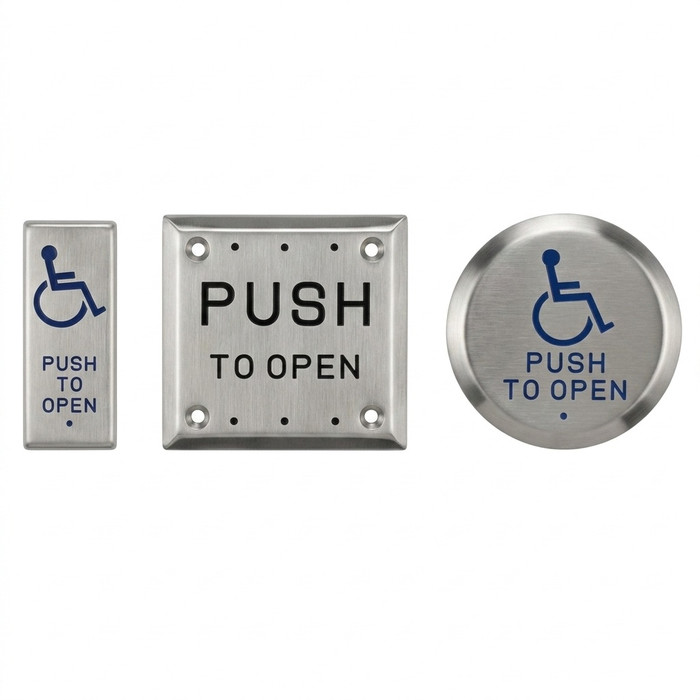

SDC SDC 480 Series - Narrow, Square and Round Push Plates Actuators SDC-480

SDC 480 Series Push Plate Actuators with 18 Gauge Stainless Steel Construction

(No reviews yet) Write a Review

Model: 482O1U
$111.00
$85.74
Selected Sign is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$111.00
$85.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SDC 480 Series Push Plate Actuators with 18 Gauge Stainless Steel Construction

ADA Compliant Access Control Solution

SDC 480 Series push plate actuators provide complete access and egress solutions for ADA compliant applications with heavy 18 gauge stainless steel construction. These weather-resistant actuators feature entire plate surface activation and are available in round and square configurations with various sizes and display options. Designed specifically for handicap access, automatic door activation, and request-to-exit applications with both wireless and hardwired capabilities.

Professional Features & Benefits

  • Heavy-Duty Construction: 18 gauge stainless steel plates provide exceptional durability and weather resistance for demanding commercial applications.
  • Complete Surface Activation: Entire plate surface activates switch for reliable operation and enhanced accessibility compliance.
  • Flexible Configuration Options: Available in round or square designs with various plate sizes to accommodate any application requirement.
  • Installation Versatility: Wireless or hardwired operation with bollard or wall mounting options for maximum installation flexibility.
  • Professional Appearance: Bold debossed sign legends with black or blue infill options provide clear visual identification and professional aesthetics.
  • Switch Configuration: SPDT or DPDT switch options accommodate various control system requirements.
  • ADA Compliance Design: Specifically engineered for handicap access and automatic door activation applications to meet accessibility standards.
  • UL Listed Safety: UL1054 Safety Special-Use Switches and CSA Listed certifications ensure reliable performance and code compliance.

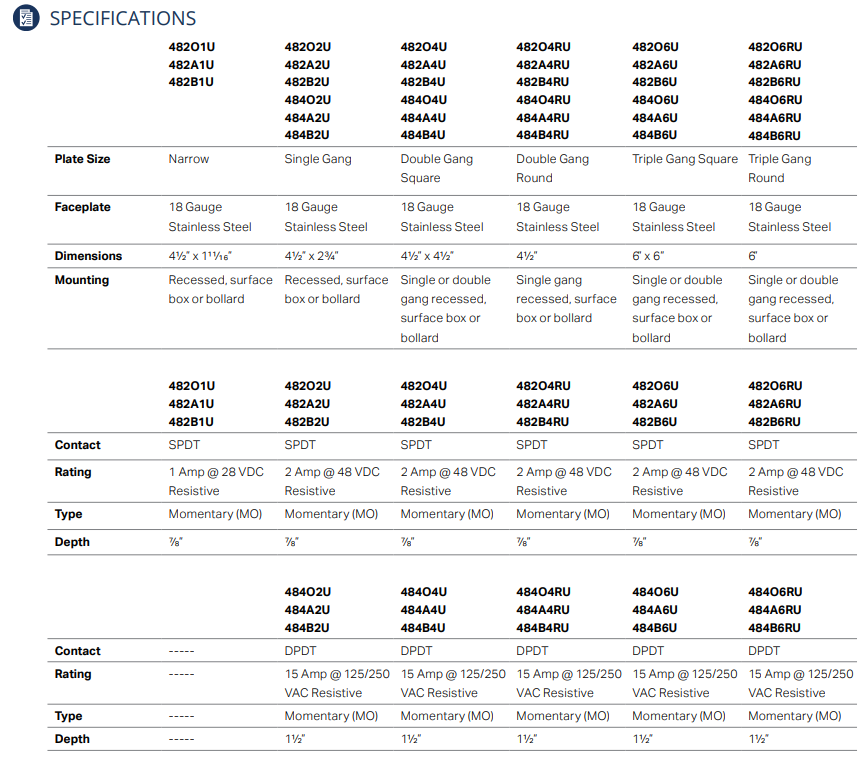

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Face Plate: 18 Gauge Stainless Steel
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Model: 482, 484
  • Product Subgroup: Sensors, Switches, Relays and Timers
  • Product Type: Push Plates
  • Series: 480 Series
  • Subcategory: Push Plates

Professional Applications

  • Commercial Building Security Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • ADA Compliant Automatic Door Systems
  • Request-to-Exit Applications
  • Handicap Access Control Points
  • Multi-Tenant Residential Properties

Why Choose SDC Quality?

SDC 480 Series push plate actuators deliver professional-grade reliability with heavy 18 gauge stainless steel construction and weather-resistant design. UL1054 Safety Special-Use Switches and CSA Listed certifications ensure dependable performance in demanding commercial applications. Engineered for ADA compliance and automatic door activation where reliable accessibility control is essential.

Manufacturer Resources

SDC Full Catalog

Product Specs

Subcategory:
Push Plates
Series:
480 Series
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Push Plates
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
482, 484
Face Plate:
18 Gauge Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

SDC 482O1U – Frequently Asked Questions

1) Will an SDC 480 Series push plate fit a standard single gang box?
Yes, order faceplate option 2, the single gang plate measuring 2-3/4 x 4-1/2 inches. If you are mounting to a wider prep or a mullion, the narrow option 1 plate measures 4-1/2 x 1-11/16 inches, and the larger plates come as 4-1/2 x 4-1/2 inch square, 6 x 6 inch square, 4-1/2 inch round, and 6 inch round.
2) What is the difference between the SDC 482 and 484 push actuator?
Switch contacts. The 482 is a single pole double throw actuator, the 484 is double pole double throw. Use the 484 when one press has to drive two separate circuits, for example releasing a mag lock and signalling the automatic operator at the same time. If your operator or access control panel only needs one dry contact set, the 482 does the job. Every plate size and sign choice is offered on both models.
3) Is the SDC 480 push plate actuator UL listed for ADA door openers?
The 480 Series carries UL1054 listing for Safety Special-Use Switches and is CSA Listed. It is built for ADA compliant handicap access and automatic door activation, which is what a facility inspector will be looking for on an accessible entrance.
4) Which push plate should I use on an opening that gets abused or vandalized?
The Alarm Controls PD Series covers the vandal resistant push plates, including the PD, PN, PS and PT models, and is built for openings where the actuator takes deliberate abuse. The SDC 480 Series is an 18 gauge stainless steel weather-resistant plate intended for demanding commercial applications, but it is not designated as a vandal resistant plate. On a high-abuse entrance the Alarm Controls PD Series is the family designed for that condition.
5) Can an SDC 480 push plate be mounted outside on an exterior door?
Yes. The 480 Series actuators are weather resistant with 18 gauge stainless steel plates, which is why they hold up on exterior entrances and in wash-down areas. Wall or bollard mounting are both supported, so a curbside bollard at an accessible entrance is a normal application.
6) Do you have to press the SDC 480 plate in the center to activate it?
No. The entire plate surface activates the switch on the 480 Series, so a press anywhere on the face works, including an elbow, a wheelchair footrest, or a gloved hand. That matters on accessible entrances where a small center button is the usual complaint.
7) Can I run an SDC 480 push plate without pulling wire to the door?
Yes. The 480 Series actuators are offered in wireless as well as hardwired operation, so a retrofit where you cannot get conduit across a finished lobby or through a masonry wall is workable. Hardwired is still the choice where you have an existing raceway to the operator.
8) What is a good alternative to the SDC 480 push plate if I need a vandal resistant one or a built-in time delay?
For high-abuse openings, the Alarm Controls PD Series covers vandal resistant push plates with pneumatic time delay, and the Alarm Controls JP Series is the jumbo plate with pneumatic time delay. Camden's CM-40 is a 4-1/2 inch round all-active switch and the CM-60 is the 6 inch round version, the CM-60 offered wired or with a kinetic wireless transmitter, so either is a direct shape-for-shape swap with the SDC round plates. The Locknetics PPH-100-PL is a large round push plate supplied with a box in black or aluminum if you need the back box in the same order.
9) Can I use an SDC 480 push plate as a request-to-exit button?
Yes, request-to-exit is one of the listed applications for the 480 Series, alongside handicap access and automatic door activation. On an egress side with a mag lock, the 484 with its double pole contacts lets one press break the lock power and signal the panel; the 482 with single pole handles the simpler case where the panel does the rest.
10) I need to standardize push plates across a hospital or campus. Does the SDC 480 Series cover round and square in the same family?

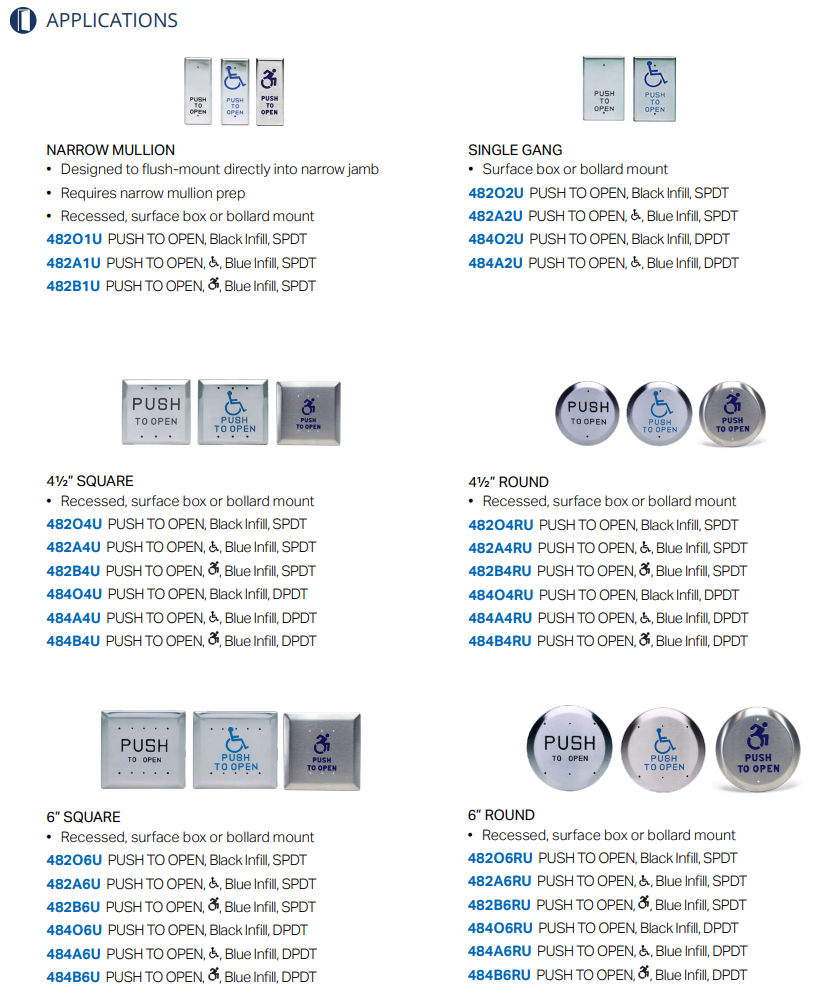

It does. One series gives you round in 4-1/2 inch and 6 inch diameters plus square in 4-1/2 and 6 inch, a narrow 4-1/2 x 1-11/16 inch plate for tight jambs and mullions, and a single gang plate at 2-3/4 x 4-1/2 inches, all in the same 18 gauge stainless steel with the same PUSH TO OPEN legend. That means one finish and one look across healthcare, education, and multi-tenant openings while each door gets the plate its prep actually allows.
11) I want a wireless actuator for a door where running wire is difficult - what works?
The Camden CM-60 Series 6 inch round switch is offered with a kinetic wireless transmitter, which generates its own power from the press and needs no wire run to the plate. The SDC 480 Series also supports wireless or hardwired operation with bollard or wall mounting. Both give you a 6 inch round face at the opening; the choice comes down to which control receiver your system already uses.
12) What do the A, B and O sign options mean on the SDC 480 push plate?
Those are the sign legend choices, all reading PUSH TO OPEN. The legends are bold debossed with black or blue infill, blue being the usual pick where you want the plate to read as an accessible entrance and black where it should blend with the door hardware. Each of the three legend options is available on all six plate shapes and on both the 482 and 484.
