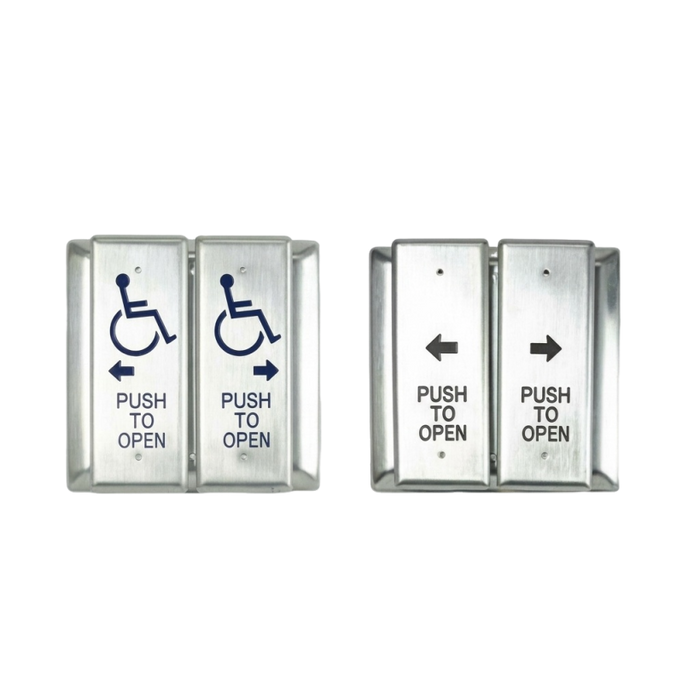

SDC 480V Series Vestibule Push Plate Actuators with Dual Switch Activation

Professional ADA-Compliant Automatic Door Activation Solution

The SDC 480V Series vestibule push plate actuators provide complete access and egress solutions for ADA compliant applications with dual face plate switches for independent activation of two automatic doors. Featuring 18 gauge stainless steel construction with SPDT contacts, these weather-resistant actuators offer both wireless and hardwired installation options for bollard or wall mounting applications.

Professional Features & Benefits

  • Dual Switch Design: Two separate face plate switches allow independent activation of two automatic doors for versatile vestibule applications.
  • Complete Surface Activation: Entire plate surface activates switch for reliable operation and enhanced accessibility compliance.
  • Heavy-Duty Construction: 18 gauge stainless steel face plate provides exceptional durability for high-traffic commercial applications.
  • Flexible Installation Options: Available in both wireless and hardwired configurations with bollard or wall mounting capabilities.
  • Weather-Resistant Design: Weather resistant construction ensures reliable outdoor and exposed location performance.
  • Professional Appearance: Bold debossed sign legends with blue, black and white infills provide clear visual identification.
  • UL Listed Safety: UL1054 Safety Special-Use Switches and CSA Listed certifications ensure code compliance and safety standards.
  • SPDT Contact Configuration: Single pole double throw contacts provide versatile switching options for various control applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Face Plate: 18 Gauge Stainless Steel
  • Lock Function: Vestibule
  • Product Category: Electronic Access Controls
  • Product Function: Vestibule
  • Product Group: Electronic Access Controls
  • Product Model: 482A4VWPU, 482A4VPU
  • Product Subgroup: Sensors, Switches, Relays and Timers
  • Product Type: Push Plates
  • Series: 480V Series
  • Subcategory: Push Plates

Professional Applications

  • Commercial Building Automatic Door Systems
  • Healthcare Facility ADA Compliance
  • Educational Institution Accessibility
  • Retail Establishment Entry Systems
  • Government and Municipal Building Access
  • Multi-Tenant Residential Complexes
  • Industrial Facility Vestibule Controls

Why Choose SDC Quality?

SDC vestibule push plate actuators deliver professional-grade reliability with 18 gauge stainless steel construction and UL1054 Safety Special-Use Switches certification. Weather-resistant design and dual switch functionality provide dependable performance for demanding commercial ADA compliance applications. Engineered for demanding commercial applications where dependable automatic door activation is essential.

Manufacturer Resources

SDC Full Catalog

Product Specs

Subcategory:
Push Plates
Series:
480V Series
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Push Plates
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Function:
Vestibule
Product Model:
482A4VWPU, 482A4VPU
Product Function:
Vestibule
Face Plate:
18 Gauge Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

SDC 482A4VWPU – Frequently Asked Questions

1) What is the difference between the SDC 482A4VPU and 482A4VWPU push plates?
Both are 480V Series vestibule push plate actuators with the same PUSH TO OPEN legend and dual face plate switches. The difference is how the signal gets back to the operator: the 480V Series is offered in both hardwired and wireless configurations, and the W in 482A4VWPU is the wireless version. Pick the wireless model when you are mounting on a bollard or an existing wall and cannot pull wire back to the door operators; pick 482A4VPU when conduit is already in the opening.
2) Why does a vestibule push plate have two switches on it?
A vestibule has two sets of automatic doors, an exterior pair and an interior pair, and the SDC 480V actuator carries two separate face plate switches so each one can trigger its own operator independently. That lets a single plate in the vestibule handle both doors instead of mounting two actuators. If you only have one automatic door, you do not need the dual switch version.
3) Can the SDC 480V push plate be mounted outdoors on a bollard?
Yes. The 480V Series is a weather resistant actuator built for outdoor and exposed locations, and it mounts to a bollard or a wall. The face plate is 18 gauge stainless steel, which is what holds up in the exterior vestibule entry where the plate takes weather and traffic.
4) Is the SDC 480V actuator UL listed for use on an automatic door operator?
The 480V Series push plate switches carry UL1054 Safety Special-Use Switches listing and are CSA Listed. That is the switch-level listing a specifier or AHJ will look for on an automatic door actuator.
5) I only need to activate one automatic door, not two - what should I use instead of the SDC 482A4VPU?
The SDC 480V Series plates carry two separate face plate switches so one plate can independently activate two automatic doors in a vestibule. For a single opening, a single-switch actuator is the simpler fit: the Camden CM-40 is a 4-1/2 inch round all-active switch and the Camden CM-60 is a 6 inch round all-active switch. Both activate from anywhere on the face, the same all-surface behavior the 480V plates use, but drive one door.
6) What is the closest wireless alternative to the SDC 482A4VWPU push plate?
The SDC 480V Series is offered in both a hardwired model, 482A4VPU, and a wireless model, 482A4VWPU. If you need a wireless actuator for a single door rather than a vestibule pair, the Camden CM-60 is a 6 inch round all-active switch offered wired or with a kinetic wireless transmitter. The SDC remains the one that gives you two independent switches on one plate.
7) Do I have to hit the center of the plate for it to work?
No. The entire plate surface activates the switch on the SDC 480V actuator, so a hip, an elbow, a wheelchair footrest or a gloved hand anywhere on the face triggers it. That full-surface action is what makes it workable for accessible entrances where a user cannot reliably target a small button.
8) What kind of contacts does the SDC 480V push plate use, and will it work with my door operator's input?
SPDT, single pole double throw. That gives you both a normally open and a normally closed set off the same switch, so it wires to an operator input that expects a dry momentary closure and also to a relay or controller that needs a break contact. Confirm on your operator which input it expects and land the appropriate leg.
9) What else could I use instead of the SDC 480V if I only need one round actuator for a single door?
The SDC 480V is a dual-switch vestibule plate, so it is more than a single opening needs. For one door, a round all-active switch is the usual choice: the Camden CM-40 Series is a 4-1/2 inch round all-active switch, and the Camden CM-60 Series is a 6 inch round available wired or with a kinetic wireless transmitter, which is the direct counterpart if you want wireless without pulling conduit. The Locknetics PPH-100-PL is a large round push plate supplied with a box.
10) I need the doors to hold open for a set time after someone presses the plate. Does the SDC 480V do that?
The 480V is a momentary switching actuator with SPDT contacts, so the hold-open time comes from your door operator or an external timer, not from the plate. If you want the delay built into the actuator itself, look at the Alarm Controls PD Series pneumatic time delay vandal resistant push plates, or the Alarm Controls JP Series pneumatic time delay jumbo push plate.
11) For an entry that gets abused or vandalized, is the SDC 480V plate the right choice or is there a tougher option?
The SDC 480V Series uses an 18 gauge stainless steel face plate, which holds up well in high-traffic commercial entries. Where the actuator is specifically exposed to abuse, the Alarm Controls PD Series covers the PD, PN, PS and PT vandal resistant push plates, built for that duty. Note the Alarm Controls units are single-plate actuators, so a vestibule needing two independently switched doors from one location still points back to the 480V.
12) Will an Alarm Controls JP jumbo push plate do the same job as the SDC 480V vestibule plate?
They are not interchangeable in a vestibule. The Alarm Controls JP Series is a pneumatic time delay jumbo push plate, meaning the switch holds a timed output from a pneumatic mechanism. The SDC 480V Series is a vestibule actuator with two independent face plate switches and SPDT contacts, so the two doors are controlled separately and the timing is handled by the door operators or controls you wire it into. If you want a jumbo single actuator with built-in delay, the JP is the one; if you want one plate controlling two doors, it is the SDC.
13) Is a Locknetics PPH-100-PL round push plate a substitute for the SDC 480V?
Only for a one-door application. The Locknetics PPH-100-PL is a large round push plate supplied with a box, in black or aluminum. The SDC 480V Series is a rectangular vestibule actuator with two separate switches and an 18 gauge stainless steel face, with bold debossed sign legends in blue, black and white infills, and it is offered in wireless and hardwired versions for bollard or wall mounting. If the opening is a single automatic door and you want a round plate with its own back box, the PPH-100-PL fits; it will not drive two doors independently.
14) I am standardizing actuators across a healthcare campus - how do the round switches compare to the SDC 480V for exterior vestibules?
For exposed and exterior vestibule locations, the SDC 480V Series is weather resistant and UL1054 and CSA listed, with an 18 gauge stainless steel face and the whole plate surface acting as the switch. The Camden CM-40 at 4-1/2 inches and the CM-60 at 6 inches are also all-active switches, so they share the full-face activation your ADA users need, and they give you a round aesthetic in two sizes for interior single-door openings. A common approach is the SDC at the vestibule where two doors sequence and a round all-active switch at single interior doors.
15) What does the SDC 480V vestibule push plate say on its face?
Both 480V models ship with a PUSH TO OPEN legend. The legend is bold debossed rather than printed or applied, with blue, black and white infills, so it will not wear off under the constant hand and cart contact a vestibule plate gets.
16) Is the SDC 480V push plate rated for a high traffic commercial entrance or is it a residential product?
Commercial. The 480V Series is built for high traffic commercial openings, with an 18 gauge stainless steel face plate, and it is used in healthcare, schools, retail entries, government buildings, multi-tenant residential and industrial vestibules.
