SDC 482S-KIT Square 4-1/2" Pus...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$773.00
$507.96

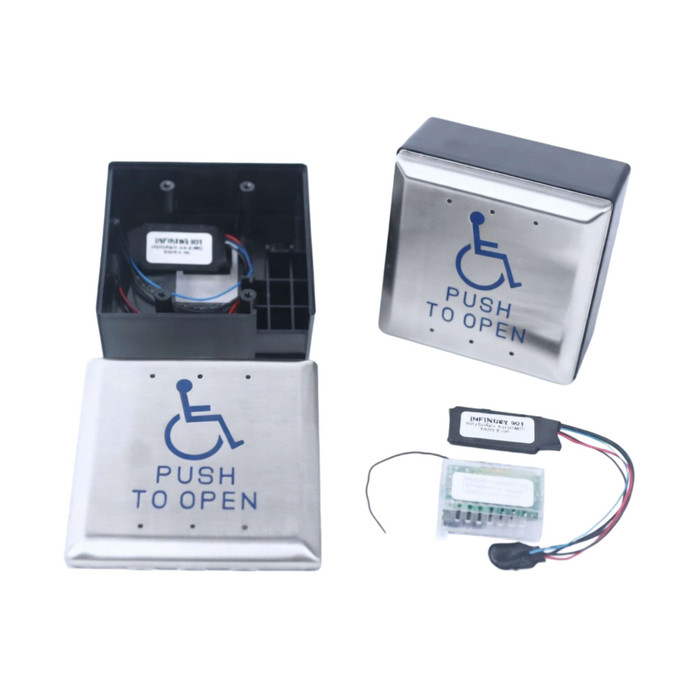

SDC 482S-KIT Square 4-1/2" Push Plate Switches (2), Wheelchair and "Push to Open with Blue Infill, Surface Mount Boxes

SDC 482S-KIT Square 4-1/2" Push Plate Switches (2), Wheelchair and "Push to Open with Blue Infill, Surface Mount Boxes

(No reviews yet) Write a Review

Model: 482S-KIT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$773.00
$507.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SDC 482S-KIT Square 4-1/2" Push Plate Switches (2), Wheelchair and "Push to Open with Blue Infill, Surface Mount Boxes

SDC Exit Switches & Sensors

Designed to control automatic door or electrified locking hardware with wireless push plate actuators. Each kit contains 4-1/2"
push plates (square), two matching surface mount back boxes (square), wireless transmitters (400W1-433, 9V) and a wireless nano receiver (400RC433). Designed specifically for handicap access, automatic door activation and request-to-exit applications. Pressing any part of plate causes switch activation.

482R-KIT

  • (2) 482A4U plates
  • (2) 480-SSB mounting boxes
  • (2) 400W1-433 transmitters
  • (1) 400RC433 receiver

A variety of exit buttons, push buttons and contact configurations to fit several request-to-exit application needs.

Additionally, SDC's wave-to-open switches and motion sensors provide hands free compliance and convenience for touchless applications.

410 Series

Narrow Square Push Button Switches

420 Series

Single Gang Square Push Button Switches

430 Series

1-1/2” Mushroom Button Switches

440 Series

2-5/8” Mushroom Button Switches

450 Series

Vandal Stainless Steel Button Switches

460 Series

Capacitive Stainless Steel Button Switches

470 Series

No Touch Wave-To-Open Switches

MD-31D Series

Request-To-Exit PIR Motion Sensors

EP499 Series

Explosion Proof



Specification Sheet

Manufacturer Resources

SDC Full Catalog

Product Specs

Subcategory:
Push Plates
Series:
480 Series
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Push Plates
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
482, 484
Face Plate:
18 Gauge Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

SDC 482S-KIT – Frequently Asked Questions

1) What exactly comes in the SDC 482S-KIT push plate kit?
The 482S-KIT is a complete two-door-side wireless actuator package: two 4-1/2 inch square stainless push plates, two matching square surface mount back boxes (480-SSB), two 400W1-433 wireless transmitters running on 9V, and one 400RC433 wireless nano receiver. One plate is marked with the wheelchair symbol, the other reads "Push to Open", both with blue infill. That covers a typical interior and exterior actuator pair on one opening.
2) Do I have to run wire from the push plate back to the door operator?
No. Each plate pairs with a 400W1-433 transmitter powered by a 9V battery, and a single 400RC433 nano receiver at the operator or lock takes the signal. That is the point of the kit: you avoid fishing wire across the opening or through a finished wall. You still wire the receiver into the automatic operator or electrified lock.
3) Can I surface mount these SDC 480 Series plates on a block wall or an existing finished wall?
Yes, the kit ships with two square 480-SSB surface mount back boxes sized to the 4-1/2 inch square plate, so no back box cut-in is needed. Combined with the wireless transmitters, the install is a box screwed to the wall and a receiver at the operator.
4) What is the closest wireless round push plate alternative to the SDC 482S-KIT?
The SDC 482S-KIT is a square 4-1/2 inch plate kit with two plates, two surface mount back boxes, wireless transmitters and a nano receiver. If the opening calls for a round actuator instead, the Camden CM-60 Series is a 6 inch round all-active switch offered wired or with a kinetic wireless transmitter. The Camden CM-40 Series is a 4-1/2 inch round all-active switch, which matches the SDC plate dimension while changing the shape from square to round.
5) Do you have to hit the center of the plate for it to actuate?
No. The 480 Series plate is all-active, pressing any part of the plate trips the switch. That matters for wheelchair users striking the plate with a footrest or elbow rather than a hand.
6) Is the SDC 482S-KIT plate durable enough for a high-traffic entrance?
The face plate is 18 gauge stainless steel, which is what you want on a lobby or restroom entry that gets struck hundreds of times a day. It is a commercial-duty product, not a residential one. For openings where vandalism rather than traffic is the concern, a dedicated vandal resistant plate such as the Alarm Controls PD Series is the harder-use option.
7) Can I use these push plates for request-to-exit as well as door operator activation?
Yes. The 480 Series plates are built for three jobs: handicap access actuation, automatic door activation, and request-to-exit. The same kit can release electrified locking hardware or signal an operator, depending on what you land the 400RC433 receiver on.
8) I want a round actuator instead of square, what else does ZenSupply carry?
The square 4-1/2 inch SDC plate has round equivalents from Camden: the CM-40 Series is a 4-1/2 inch round all-active switch, and the CM-60 Series is a 6 inch round all-active switch available wired or with a kinetic wireless transmitter. Locknetics also offers the PPH-100-PL large round push plate with box in black or aluminum. If your other openings already use round plates, matching the shape across the building is usually the call.
9) If I do not want a battery-powered transmitter, what is the alternative?
Two routes. The Camden CM-60 Series 6 inch round switch is offered wired or with a kinetic wireless transmitter, which harvests energy from the press instead of running on a cell. Or go fully wired with a pneumatic time delay plate such as the Alarm Controls JP Series jumbo push plate or the PD Series. The SDC 482S-KIT transmitters are 9V battery units, so plan on battery service if you stay with it.
10) Is the Alarm Controls JP Series the same thing as the SDC 482S-KIT?
No. The Alarm Controls JP Series is a jumbo push plate with pneumatic time delay, so the hold time is set mechanically at the plate. The SDC 482S-KIT is a square 4-1/2 inch plate kit whose signal is carried by 400W1-433 transmitters to a 400RC433 receiver. They serve the same actuator role at the door but are different sizes and different signaling methods.
11) Which push plate should I use if the wall needs a larger target for wheelchair users?
The SDC 482S-KIT plates measure 4-1/2 inches square and activate when any part of the plate is pressed. For a larger strike area, the Camden CM-60 Series is a 6 inch round all-active switch, and the Alarm Controls JP Series is a jumbo push plate. Both give more plate surface than the 4-1/2 inch square format.
12) What is the difference between the SDC 482 and 484 push plates?
Both are 480 Series plates and the kit format is the same. The difference is the legend and infill on the face, which is why the kit is specified by the exact model, 482 or 484. The 482S-KIT gives you the wheelchair symbol plate and the "Push to Open" plate with blue infill, which is the usual pairing for an accessible entrance.
13) I need a touchless actuator instead of a push plate for an infection-control area. Does SDC make one?
Yes, but not in the 480 Series. SDC's 470 Series is the no-touch wave-to-open switch line, and the MD-31D Series covers request-to-exit PIR motion sensors. Use those where hands-free operation is required; the 482S-KIT is a physical press plate.
14) I only need a small exit button, not a 4-1/2 inch plate. What else is in the SDC switch line?
SDC runs several smaller formats alongside the 480 Series plates: the 410 Series narrow square push buttons, the 420 Series single gang square buttons, 1-1/2 inch mushroom buttons in the 430 Series and 2-5/8 inch mushroom buttons in the 440 Series, plus 450 Series vandal stainless buttons and 460 Series capacitive stainless buttons. For a hazardous location there is the EP499 Series explosion proof line. Pick the large plate only where accessible actuation is the requirement.
15) Do any alternatives to the SDC 482S-KIT include the mounting box?
Yes. The 482S-KIT ships with two 480-SSB surface mount back boxes matched to the square plates. Among comparable actuators, the Locknetics PPH-100-PL is a large round push plate supplied with a box in black or aluminum, so it also arrives as a plate-and-box set rather than a bare plate.
