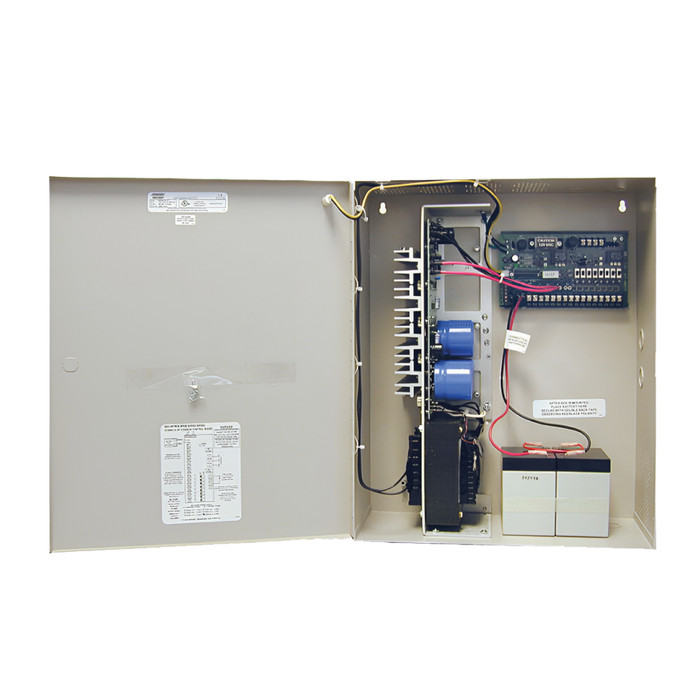

SECURITRON BPSM SELF-MONITORING POWER SUPPLY
The BPSM selfmonitoring power supply delivers all the benefits of linear technology with battery supervision for real-time power status information. This unit is the right choice when interfacing to fire alarm systems with auxiliary relays that can’t handle the full current potential of the power supply, or when monitoring power systems for AC failure or DC battery failure. BPSM status LED indicators and status output terminals offer advanced protection.
When interfacing with a fire alarm system where the system's auxiliary relay cannot handle the full current potential of the power supply, or when monitoring power systems for AC failure or DC battery failure, the BPSM linear power supply is the right choice. The power supply status LED indicators and status output terminals combine with BPS features to offer the next stage of protection.
FEATURES AND BENEFITS
Product Features
- 8 polyswitch (PTC) 2A output breakers
- Slide switches connect or disconnect load from power
- LED indication (AC and DC) showing power supply status
- Emergency low current fire release terminals
- AC status output terminals, SPDT, 3 Amp
- Battery status output terminals, Form "C" SPDT, 3 Amp
- Line voltage and DC fuses
- Sealed lead acid-gel battery charging capability (battery not included)
- During battery operation, if voltage drops below 10.4VDC for 12VDC (20.8VDC for 24VDC) the battery will automatically disconnect to prevent possible damage to the system
- Clean linear power for flawless operation with all sensitive active electronic components
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
SPECIFICATIONS
Specification Data
- Input Voltage: 120VAC
Voltage and Capacity
- 12VDC - 6A, 9A, 15A
- 24VDC - 4A, 6A, 10A
Operating Temperature
- +32 to +105F [0 to +40C]
- Monitoring: 110VAC Status, Battery Status
Shipping Weight
- BPSM-12-6, BPSM-24-4: 24 lbs.
- BPSM-12-9, BPSM-24-6: 28 lbs.
- BPSM-12-15, BPSM-24-10: 33 lbs.
Models
Part # | Description |
BPSM-12-6 | Power Supply - 12VDC, 6A, Status Monitor |
BPSM-12-9 | Power Supply - 12VDC, 9A, Status Monitor |
BPSM-12-15 | Power Supply - 12VDC, 15A, Status Monitor |
BPSM-24-4 | Power Supply - 24VDC, 4A, Status Monitor |
BPSM-24-6 | Power Supply - 24VDC, 6A, Status Monitor |
BPSM-24-10 | Power Supply - 24VDC, 10A, Status Monitor |
CERTIFICATE & LISTING
- UL/cUL
- CSFM
- ANSI/UL 294 Listed
- CSA-C22.2 No.205 Listed
DOWNLOAD AND RESOURCES
Manufacturer Resources
Product Specs
- Series:
- BPSM Series
- Category:
- Electronic Access Controls
- Subcategory:
- BPS Linear Power Supplies
- Height:
- 18"
- Warranty:
- Lifetime Replacement
- Fire Alarm Relay:
- Yes
- Voltage:
- 12/24VDC
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Controllers, Power Supplies and Transformers
- Width:
- 6"
- Model:
- SEC-BPSM
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Product Type:
- Controllers, Power Supplies and Transformers
