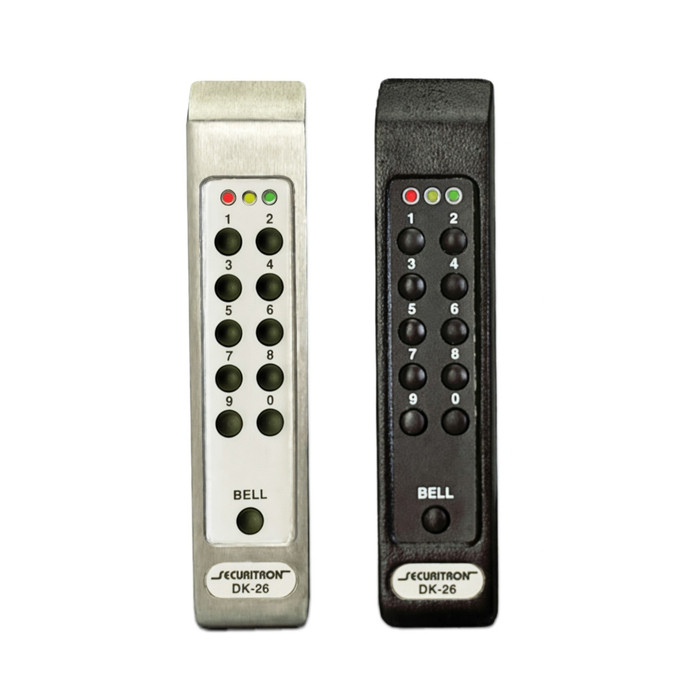

SECURITRON DK-26 DIGITAL KEYPAD SYSTEMS
The DK-26 digital keypad system provides medium/ high security control of electric locks in one- or two-door applications where doors have the same control needs. The fully weatherproof, rugged stainless steel keypad can be mounted in most outdoor environments. Encased in a separate enclosure for secure installation, the full-featured, easy-to-program, DK-26 is ideal for narrow stile applications.
The DK-26 digital keypad system provides medium/ high security control of electric locks in one or two door applications where doors have the same control needs. The fully weatherproof, rugged stainless steel keypad can be mounted in most outdoor environments. Encased in a separate enclosure for secure installation, the full-featured, easy to program, DK-26 is ideal for narrow stile applications.
FEATURES AND BENEFITS
Product Features
- Cast stainless steel with 11 EPDM rubber keys
- Weatherproof and vandal resistant
- 12V or 24V/ AC or DC current
- Mounts on a narrow mullion
- Audible keystroke echo
- True 10 digit operation (keys are not paired)
- 59 users with multiple entry codes
- User code and hard code disable feature
- Passage Mode and Lockout Mode
- 5A DPDT relay
- Request to exit (REX) input
- 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable
- 3 LEDs and a bell button
- MagnaCare® lifetime replacement, no fault warranty
- Cover plate
- Keypad available as system or separately
SPECIFICATIONS
Dimensions
- Keypad: 1-1/2"W x 7"H x 7/8"D
- Enclosure: 6"W x 8"H x 3"D
Electrical
- 12 VAC/VDC: 7 mA at rest; 160 mA active
- 24 VAC/VDC: 20 mA at rest; 190 mA active
Operating Temperature
- CPU: +32 to +158F [0 to +70C]
- Keypad: -22 to +158F [-30 to +70C]
- Indoor or Outdoor use
Shipping Weight
- 5 lbs [2.27kg]
Finishes
- US32D/630 - Satin Stainless Steel
- BK - Black
Models
Part # | Description |
DK-26BK | Keypad and Controller - Narrow Stile, Black Anodized |
DK-26SS | Keypad and Controller - Narrow Stile, Satin Stainless |
DK-26PBK | Keypad only - Narrow Stile, Black Anodized |
DK-26PSS | Keypad only - Narrow Stile, Stainless Steel |
DK-CPSS | Digital Keypad Cover Plate - [3 x 8] Satin Stainless |
CERTIFICATIONS & LISTING
- CE: EN 50081-1 & EN 61000-6-2
DOWNLOAD AND RESOURCES
Manufacturer Resources
Product Specs
- Series:
- DK-26 Series
- Category:
- Electronic Access Controls
- Subcategory:
- Keypad Systems
- Height:
- 7"
- Depth:
- 1-1/2"
- Warranty:
- Lifetime Replacement
- Voltage:
- 12/24VDC
- Model:
- SEC-DK-26
- Width:
- 7/8"
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Readers, Keypads and Credentials
- Product Type:
- Keypad Systems
- Weather Resistant:
- Yes
- Substrate:
- Stainless Steel
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
