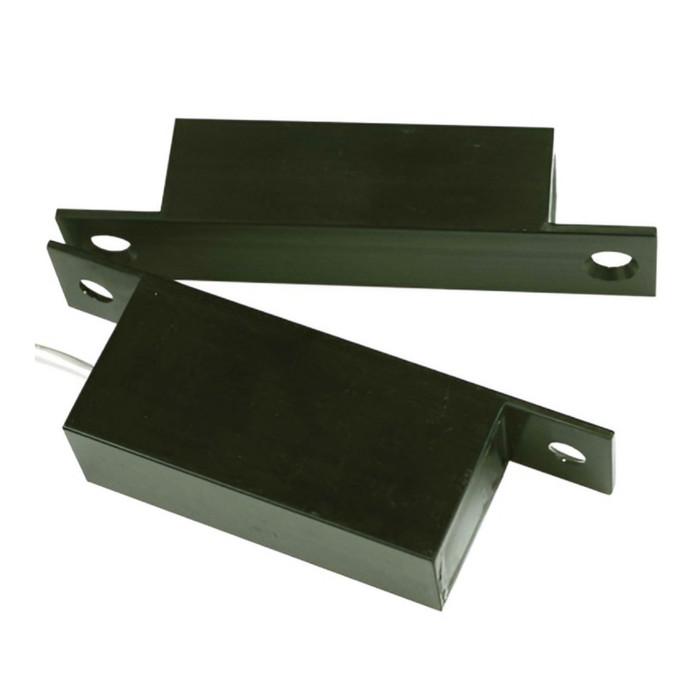

SECURITRON MSS MAXIMUM SECURITY SWITCHES
Used to provide nearly undefeatable door monitoring in the highest security areas
Tamper-resistant switches provide versatile door monitoring with armored cable options to detect the status of opened areas in higher security settings. With multiple options for different environments, MSS can be used with access control or alarm systems to provide peace of mind where status detection is a critical concern.
FEATURES & BENEFITS
Product Features
- Used to monitor the open/closed status of doors, windows, gates, machinery safety barriers or other moving assemblies
- Supplied in three versions for different environments:
- For door with hollow frame, MSS-1 provides a jacketed cable
- For other types of openings, MSS-1G includes a 3-foot [936mm] stainless steel cable
- For Standard ANSI 4-7/8" strike cutout, MSS-1C is a concealed unit
- Anti tamper output (MSS-1 and MSS-1G)
- False alarm reduction
- MagnaCare® lifetime replacement, no fault warranty
SEPCIFICATIONS
- Main Output: SPDT at max of 125mA at 24V; 250mA at 12V
- Tamper Output: Closed when secure; open to alarm - 1 Amp max current
- Operating Temperature: -40 to +150F [-40 to +65C]
- Shipping Weight: 1.5 lbs.
Models
| Part # | Description |
| MSS-1 | Magnetic Switch - High Security |
| MSS-1C | Magnetic Switch - High Security, Concealed |
| MSS-1C-RT | Magnetic Switch - High Security, Surface Mount, Concealed w/ Remote Test |
| MSS-1G | Magnetic Switch - High Security, Surface Mount |
| MSS-1-RT | Magnetic Switch - High Security w/ Remote Test |
CERTIFICATE & LISTING
- UL 634 Listed
- UL/cUL AMQV.BP6799 / AMQV7.BP6799
- ULC/ORD-C634 Listed
- UL Certificate of Compliance (CoC)
- MSS - Underwriter's Laboratories: File BP6799 (UL 634)
DOWNLOADS & RESOURCES
Manufacturer Resources
Product Specs
- Series:
- MSS Series
- Category:
- Electronic Access Controls
- Subcategory:
- Door Position Monitoring
- Warranty:
- Lifetime Replacement
- Model:
- SEC-MSS
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Sensors, Switches, Relays and Timers
- Product Type:
- Door Position Monitoring
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
