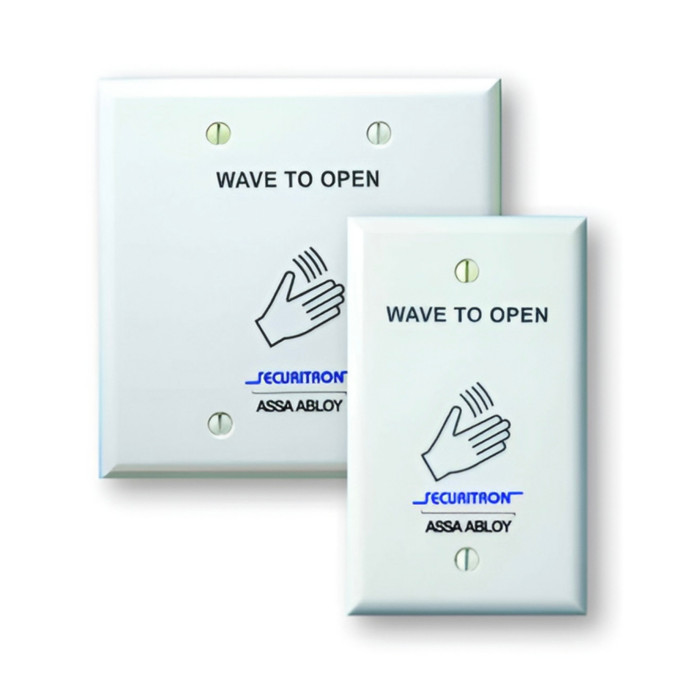

Securitron WSS Wave Sense No-Touch Switch SEC-WSS-WSD

Securitron WSS Wave Sense No-Touch Switch

(No reviews yet) Write a Review

Model: WSS-WSD

In Stock (leaves warehouse same day if ordered before 3pm ET)

$419.00
$312.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SECURITRON WSS WAVE SENSE NO-TOUCH SWITCH

No-touch switch for hands-free activation

The Wave Sense Switch features a new class of motion sensing technology for hands-free, contactless switch activation. Use for request to exit (REX), activation or on/off switching to trigger a variety of access control devices in place of a push plate or push button.



FEATURES AND BENEFITS

Product Features

  • Active microwave motion sensing using Doppler radar—more reliable than infrared sensors
  • Adjustable sensing zone from 4” to 24” helps screen out incidental traffic
  • Microwave sensing FCC certified for use in general and medical environments
  • Touchless activation for hands-free operation, reduces transmission of germs
  • Pulse mode to initiate action or toggle mode to provide on/off switch
  • Offered in a single-gang or double-gang model
  • Mounting ring included or install in standard plastic or metal gang box
  • Water resistant—foam gasket included
  • Compatible with Securitron WBB Weather Back Box and WCC Weather Cover-Clear



SPECIFICATIONS

Specification Data

  • Electromagnetic compatibility according to 2004/108/EC
  • FCC: G9B-MS08
  • IC: 4680A-MS08



Dimensions
Single gang faceplate: 4-1/2” x 2-3/4”
Double gang faceplate: 4-1/2” x 4-1/2”



Current

  • Self-sensing 12 or 24V DC or AC input (± 10%)
  • Maximum power consumption: less than 1.5W (125 mW at 12 VDC)
  • 1A SPDT contact can be operated in toggle or pulse mode
    Pulse output: 0.5 seconds



Operating Temperature

  • -4 to +131F [-20 to +55C]



Shipping Weight

  • 0.5 lbs



Models

Part # Description
WSS-WSD Single and Double Gang Wave Sense Switch
WBB Weather Back Box
WCC Weather Cover-Clear









Weather Option: WCC and WBB available for all Single Gang Push Buttons, Keyswitches and Keypads.



CERTIFICATE & LISTING

  • Electromagnetic compatibility according to 2004/108/EC
  • FCC: G9B-MS08
  • IC: 4680A-MS08



DOWNLOAD AND RESOURCES

Manufacturer Resources

Product Specs

Series:
WSS Series
Subcategory:
Wave Switches
Touchless Activation:
Yes
Warranty:
Lifetime Replacement
Weather Resistant:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Switches - Touchless
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
SEC-WSS
Product Voltage:
12/24VDC
Product Category:
Electronic Access Controls
Department:
Door Hardware

Securitron WSS-WSD – Frequently Asked Questions

1) Will the Securitron WSS Wave Sense switch fit a standard single-gang electrical box?
Yes. The WSS-WSD ships as both a single-gang and double-gang Wave Sense switch, and it installs in a standard plastic or metal gang box. A mounting ring is included if you are surface mounting instead of using a box. Single gang faceplate is 4-1/2 x 2-3/4 inches; double gang is 4-1/2 x 4-1/2 inches.
2) What voltage does the Securitron Wave Sense switch need, and do I have to order a specific version?
One part covers it. The Wave Sense switch is self-sensing and accepts 12 or 24V DC or AC input at plus or minus 10 percent, so the same unit works off either a 12V or 24V access control power supply. Draw is under 1.5W, and only 125 mW at 12 VDC.
3) Can I wire a wave switch to my existing REX input and maglock the same way as a push plate?
That is exactly what the Wave Sense switch is built for. It gives a 1A SPDT dry contact, so it drops in where a push plate or push button was, for request to exit, door operator activation, or on/off switching. Pulse mode sends a 0.5 second output to initiate an action; toggle mode holds the contact for on/off control.
4) How close does a hand have to be for the Securitron Wave Sense switch to activate?
The sensing zone adjusts from 4 inches out to 24 inches. Tighten it down in a corridor so people walking past do not trip the door, or open it up where you want activation from a wheelchair approach. Sensing is active microwave (Doppler radar) rather than infrared.
5) For an exterior door, should I use the Securitron WSS Wave Sense or the Cal-Royal 8631-SW?
The Securitron WSS Wave Sense No-Touch Switch is water resistant with a foam gasket included and is compatible with the Securitron WBB Weather Back Box and WCC Weather Cover-Clear, which is the documented path for an outdoor or wash-down opening. The Cal-Royal 8631-SW is a hard-wired microwave touchless switch in the 8600 Series; verify its enclosure rating and any weather accessory separately before mounting it outdoors.
6) What is a comparable hard-wired touchless switch to the Securitron WSS Wave Sense if a different brand is needed?
The Cal-Royal 8631-SW touchless switch from the 8600 Series is a hard-wired switch that also uses microwave motion technology, so it activates the same way as the Securitron WSS Wave Sense No-Touch Switch. The Securitron WSS-WSD is self-sensing 12 or 24V DC or AC input with a 1A SPDT contact that can run in pulse mode (0.5 second output) or toggle mode, and it ships with both single-gang (4-1/2 in x 2-3/4 in) and double-gang (4-1/2 in x 4-1/2 in) faceplates. Confirm the Cal-Royal unit's voltage and contact arrangement against your power supply and door controller before swapping.
7) Is a microwave wave switch or an infrared touchless switch better for a hospital corridor?
The WSS uses active microwave Doppler radar sensing, which Securitron states is more reliable than infrared sensors, and the microwave sensing is FCC certified for use in general and medical environments. Infrared units can be thrown off by surface reflectivity and glove color; the adjustable 4 to 24 inch zone on the WSS is what keeps passing gurney and cart traffic from triggering it.
8) What do I need to order besides the switch itself to finish a touchless door station?
The WSS-WSD comes with the mounting ring and the foam gasket, so the switch itself is complete for an interior install into a gang box or surface ring. What it does not include is power (it needs a 12 or 24V AC or DC supply) and, for exterior openings, the WBB Weather Back Box and WCC Weather Cover-Clear, which are ordered separately.
9) Can I use the Wave Sense switch as a latching on/off control rather than a momentary button?
Yes, set it to toggle mode and the SPDT contact stays transferred until the next wave, which gives you a true on/off switch for lighting, a hold-open, or an operator disable. Pulse mode instead gives a single 0.5 second closure for release or activation. The contact is rated 1A.
10) Can I use the Securitron WSS Wave Sense in place of a push plate or push button on an existing request-to-exit circuit?
Yes. The Securitron WSS Wave Sense No-Touch Switch is intended for request to exit (REX), activation, or on/off switching in place of a push plate or push button, and its 1A SPDT contact can be wired in pulse mode for momentary activation or toggle mode for on/off. A mounting ring is included, or it installs in a standard plastic or metal gang box, in single-gang or double-gang form. The Cal-Royal 8631-SW is the comparable hard-wired microwave touchless switch if you are matching another brand already on the building.
