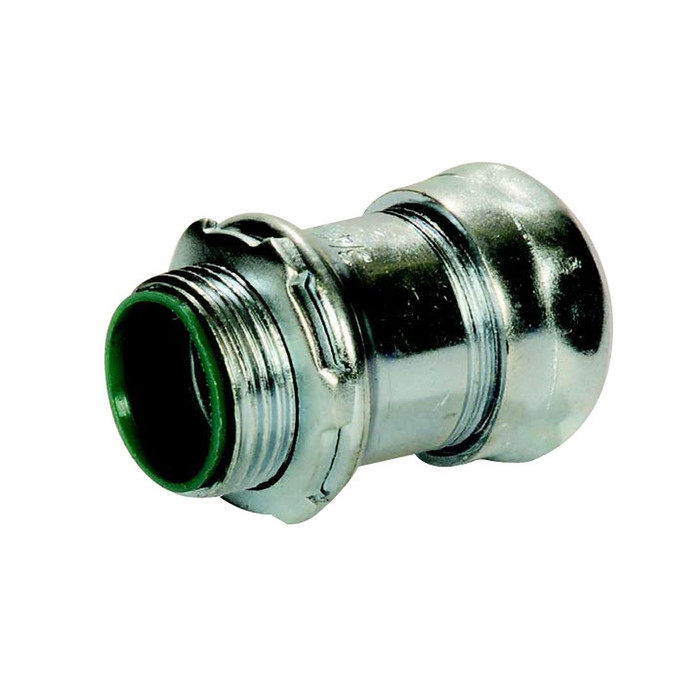

SEPCO S4061 Insulated EMT Compression Connector, Zinc-Plated Steel

SEPCO S4061 Insulated EMT Compression Connector, Zinc-Plated Steel

(No reviews yet) Write a Review

Model: S4061

In Stock (leaves warehouse same day if ordered before 3pm ET)

$0.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SEPCO S4061 Insulated EMT Compression Connector, Zinc-Plated Steel

The SEPCO S4061 Insulated EMT Compression Connector delivers fast, secure terminations of Electrical Metallic Tubing (EMT) conduit into boxes, panels, and enclosures, and this family is available in trade sizes from 3/4" through 4" to fit a wide range of raceway runs. Constructed from zinc-plated steel for corrosion resistance, every size in the line features a compression-style connection and an insulated throat that shields conductor insulation from abrasion as wiring passes through the fitting during installation. The compression connection method delivers a tight, vibration-resistant mechanical and electrical bond between the EMT conduit and the connector body, making it a dependable choice for commercial and industrial raceway systems that demand long-term reliability.

Key Features

  • Trade Size Range: Available in 3/4", 1", 1-1/2", 2", 3", and 4" sizes to match your EMT conduit run.
  • Durable Construction: Zinc-plated steel body resists corrosion and provides long-term mechanical strength in EMT raceway applications.
  • Compression Connection: A compression-style fitting design creates a tight, secure mechanical and electrical connection between the connector and EMT conduit, reducing the risk of loosening from vibration.
  • Insulated Throat: An integral insulated throat protects conductor insulation from abrasion and damage as wires are pulled through the connector during installation.
  • EMT Compatible: Purpose-built for use with Electrical Metallic Tubing (EMT) conduit systems in commercial and industrial wiring applications.
  • Zinc-Plated Finish: The zinc-plated finish adds an extra layer of protection against rust and environmental wear on exposed conduit runs.
  • Secure Termination: Designed to provide a dependable, code-conscious termination point between EMT conduit runs and electrical enclosures across the entire trade size range.

Technical Specifications

  • Trade Size: 3/4" - 4"

Typical Applications

  • Commercial and Industrial Electrical Installations
  • EMT Conduit and Raceway Systems
  • Connecting EMT Conduit to Boxes, Panels, and Enclosures
  • Indoor Wiring Systems
  • Renovation and New Construction Wiring Projects

Why SEPCO?

SEPCO builds electrical connectors from durable zinc-plated steel designed to withstand the demands of professional installations. The insulated throat built into every size of the S4061 line reflects careful attention to conductor protection that electricians rely on for safe, long-lasting EMT raceway connections, whichever trade size is selected. Choose SEPCO for dependable, code-conscious connector components on your next electrical project.

Manufacturer Resources

SEPCO Product Catalog

Product Specs

list_batch:
SEP-20260911
Product Type:
Conduit Connector
Connection Type:
Compression
Product Finish:
Zinc-Plated
Department:
Electrical
Product Group:
Conduit & Raceway
Product Subgroup:
Conduit Fittings
Product Material:
Steel

SEPCO S4061 – Frequently Asked Questions

1) Will a SEPCO S4061 connector work on rigid or IMC conduit instead of EMT?
No. The S4061 is built for Electrical Metallic Tubing only. It grips the outside of thin-wall EMT with a compression ring rather than threading onto conduit, so rigid or IMC runs need a threaded fitting instead.
2) Should I use a compression EMT connector or a set-screw one?
Compression, like the SEPCO S4061, clamps a ring around the tube for a tight mechanical and electrical bond that resists loosening under vibration, which is why it gets used on commercial and industrial raceway and in damp or exposed locations. Set-screw fittings are quicker and cheaper and are normally fine in dry indoor walls and ceilings. If the run sees machinery vibration or is subject to wet-location rules on your job, go compression.
3) What does the insulated throat on the S4061 actually do for me?
It keeps the conductor jackets off a bare metal edge as you pull wire into the box. On the S4061 the insulation is built into the throat of the connector body across every trade size, so you are not adding a separate bushing at the termination to protect the insulation.
4) How do I order the right SEPCO EMT connector for a mixed 3/4 inch and 2 inch job?
Order by trade size, one part number per size. For a job with 3/4 inch homeruns and 2 inch feeders that is S4061 for the 3/4 inch terminations and S4065 for the 2 inch. Same zinc-plated steel body and compression method across the line, so the install method does not change between sizes.
5) Is a zinc-plated steel EMT connector okay for outdoor or damp runs?
The S4061 body is steel with a zinc-plated finish for corrosion resistance, and the description positions the line for indoor wiring plus commercial and industrial raceway. Zinc plating handles incidental moisture and exposed indoor runs; for continuously wet or corrosive process areas, spec a fitting rated for that environment.
6) Do I need a separate locknut or bushing to land an S4061 in a panel?
The S4061 terminates EMT into boxes, panels and enclosures and carries its own insulated throat, so a plastic bushing is not needed at that end. Plan your knockout sizes to match the trade size you order, and confirm what ships with each size before you order a full job's worth.
