RAB 25W Field Adjustable Linear LED Fixture 3683 Lumens Selectable CCT 120V-277V White 2 Foot

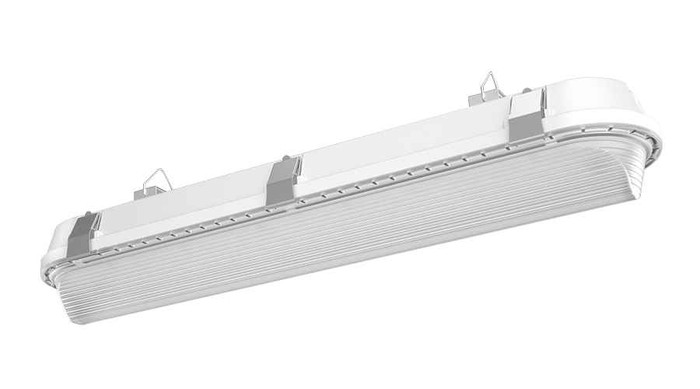

RAB SHARK Field Adjustable Linear LED Fixture

Professional-Grade Adjustable Power Linear Lighting Solution

The RAB SHARK Field Adjustable Linear LED Fixture delivers professional-grade linear lighting performance for commercial and industrial applications. This 2-foot linear LED fixture features field adjustable wattage (25W/20W/15W) and selectable color temperature designed for electrical contractors, lighting professionals, and facility managers, providing the reliable performance and industry-leading quality that lighting professionals demand.

Professional Features & Benefits

Field Adjustable Performance

• Triple Wattage Selection - Field adjustable 25W/20W/15W settings optimize energy consumption for specific lighting requirements
• Selectable Color Temperature - Choose between 3500K, 4000K, or 5000K to match application needs and preferences
• High Efficacy LED Technology - Delivers up to 148.2 lumens per watt for maximum energy efficiency and cost savings
• Professional Light Output - Produces 2,270 to 3,683 lumens depending on wattage setting for optimal illumination

Energy Efficiency & Compliance

• DLC Listed - Qualifies for utility rebates and energy efficiency programs with DLC 5.1 certification
• Universal Voltage Operation - 120V-277V input accommodates various electrical systems without additional transformers
• Long Life Performance - 100,000-hour LED lifespan reduces maintenance costs and replacement frequency

Technical Specifications

Field adjustable wattage: 25W/20W/15W with 16-25.7W input power consumption. Light output: 2,270-3,683 lumens. Selectable color temperature: 3500K/4000K/5000K. Universal voltage: 120V-277V operation. Dimensions: 27.17" length x 7.56" width x 6.3" height. Weight: 5.9 lbs. White finish. Constant current LED driver. DLC 5.1 listed. Efficacy: 137.6-148.2 lumens per watt. Current draw: 0.21A/0.17A/0.13A at 120V, 0.10A/0.08A/0.07A at 277V.

Installation & Setup

1. Mount fixture securely to ceiling or suspended mounting system using appropriate hardware for professional installation
2. Connect electrical wiring to universal 120V-277V input following local electrical codes and safety procedures
3. Select desired wattage setting (25W/20W/15W) using field adjustable controls for optimal energy performance
4. Choose appropriate color temperature (3500K/4000K/5000K) to match application requirements and lighting design
5. Test all electrical connections and verify proper operation at selected wattage and color temperature settings
6. Complete installation documentation including wattage and CCT settings for future maintenance reference

Professional Applications

Ideal for:

• Commercial Office Lighting - Open offices, conference rooms, and workspace areas requiring adjustable lighting levels
• Retail and Display Areas - Showrooms, retail spaces, and merchandise display areas with flexible lighting needs
• Educational Facilities - Classrooms, libraries, and study areas benefiting from selectable color temperature options
• Healthcare Environments - Patient rooms, corridors, and administrative areas requiring comfortable lighting
• Industrial Applications - Warehouses, manufacturing areas, and work zones needing efficient linear illumination
• Hospitality Spaces - Hotels, restaurants, and reception areas with varying lighting requirements
• Stairwell and Passageway Lighting - Corridors, stairwells, and transitional spaces requiring reliable illumination
• Architectural Linear Applications - Continuous runs and decorative linear lighting installations

Field Adjustable Technology Advantage

RAB's field adjustable technology allows contractors to optimize lighting performance after installation, reducing inventory requirements while providing maximum flexibility. The selectable wattage and color temperature features enable precise lighting control for diverse applications, ensuring optimal energy efficiency and visual comfort for each specific environment.

Why Choose RAB Quality?

RAB's commitment to DLC listing ensures utility rebate eligibility while delivering reliable LED performance that lighting professionals trust. The SHARK series combines advanced LED technology with field adjustable features, providing code-compliant installations with superior energy efficiency and long-term reliability for commercial and industrial lighting applications.
