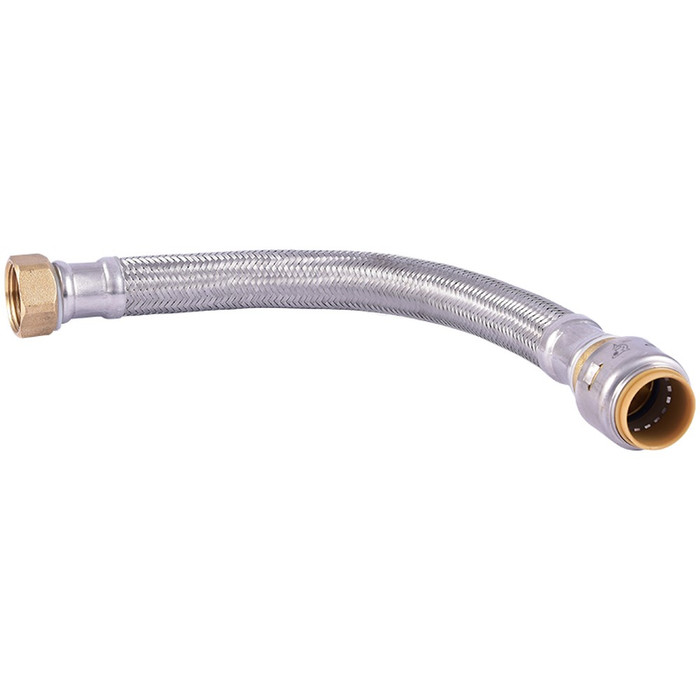

SharkBite UR30 Series Max Push-to-Connect Water Heater Connector, Braided Stainless Steel

SharkBite UR30 Series Max Push-to-Connect Water Heater Connector, Braided Stainless Steel

(No reviews yet) Write a Review

Model: UR3088FX12

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18.84
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SharkBite UR30 Series Max Push-to-Connect Water Heater Connector, Braided Stainless Steel

The SharkBite UR30 Series Max water heater connector gives plumbers and contractors a fast, tool-free way to hook up a water heater to existing supply pipe. This family is built around a 3/4 in. Push-to-Connect x 3/4 in. FIP flexible braided stainless steel hose, available in lengths of 12 in., 18 in., and 24 in. to match the model selected (UR3088FX12, UR3088FX18, or UR3068FX24). Every connector in the UR30 Series carries a 200 psi pressure rating and installs on PEX, copper, CPVC, PE-RT, or HDPE pipe without soldering, clamps, unions, glue, or special tools. A newly designed stainless steel collet retainer adds strength and durability, and the re-engineered body allows the pipe to be inserted with less force than earlier designs. No PEX tube liner is required for this connection.

Key Features

  • Connection Size: 3/4 in. Push-to-Connect x 3/4 in. FIP shared across the UR30 Series for direct water heater hookup.
  • Length Options: Available in 12 in., 18 in., and 24 in. lengths to fit the rough-in dimension required.
  • Durable Construction: Flexible braided stainless steel hose with a stainless steel collet retainer for added strength.
  • Push-to-Connect: Stainless steel teeth bite down and grip the pipe while a specially formulated O-ring compresses to create a watertight seal, with no soldering, clamps, unions, glue, or special tools required.
  • Pressure Rating: Rated to 200 psi across the full series.
  • Wet or Dry Install: Can be installed on wet or dry lines and pressure tested immediately after installation.
  • Hot or Cold Lines: Requires no special tools to install on hot or cold-water lines.
  • Pipe Compatibility: Compatible with PEX, copper, CPVC, PE-RT, or HDPE pipe, with no PEX tube liner required.
  • Flexible Design: The braided stainless steel hose reduces the need for extra joints or fittings, allowing for faster installs.

Technical Specifications

  • Connection: 3/4 in. Push-to-Connect x 3/4 in. FIP
  • Available Lengths: 12 in., 18 in., 24 in.
  • Pressure Rating: 200 psi
  • Material: Braided Stainless Steel
  • Packaging: 12 ea
  • Approved Applications: Electric and gas water heaters with flue vent

Typical Applications

  • Water Heater Rough-In and Replacement
  • Residential and Commercial Plumbing Retrofits
  • Connecting PEX, Copper, CPVC, PE-RT, or HDPE Supply Lines
  • Electric and Gas Water Heater Installations with Flue Vent
  • Renovation and New Construction Plumbing

Why SharkBite?

SharkBite Max connectors are engineered with a stainless steel collet retainer and a specially formulated O-ring seal to deliver a secure, watertight connection without soldering or specialized tools. Across the UR30 Series, the braided stainless steel hose and 200 psi pressure rating make it a dependable choice for plumbers who need a fast, reliable water heater hookup on wet or dry lines, in the length that fits the job.

Manufacturer Resources

Product Specs

list_batch:
SHK-20260923
Product Type:
Water Heater Connector
Connection Type:
Push-to-Connect
Configuration:
3/4 in. PTC x 3/4 in. FIP
Series:
UR30
Department:
Plumbing
Product Subgroup:
Fittings and Valves
Product Material:
Braided Stainless Steel
Product Size:
12 in. - 24 in.
Product Group:
Fitting

SharkBite UR3088FX12 – Frequently Asked Questions

1) Can I hook up a water heater with the SharkBite UR30 connector without soldering or crimping?
That's the point of it. The UR30 Max water heater connector is a push-to-connect flex line: stainless steel teeth bite the pipe and an O-ring compresses to seal, so no solder, clamps, unions, glue or special tools are needed. It goes on wet or dry lines, hot or cold, and you can pressure test right after install.
2) What pipe materials will the SharkBite UR30 water heater connector push onto?
PEX, copper, CPVC, PE-RT and HDPE. No PEX tube liner is required for the connection, which is one less part to carry on a water heater swap.
3) What thread is on the water heater end of the SharkBite UR30 flex connector?
The heater end is 3/4 in. FIP (female iron pipe), so it threads straight onto a standard 3/4 in. male water heater nipple or onto the male end of a heat trap nipple. The other end is push-to-connect onto your supply pipe.
4) What hose lengths does the SharkBite UR30 connector come in, and how do I pick one?
Three lengths: 12 in., 18 in. and 24 in. Pick by the distance from the heater nipple to the point on the supply pipe where you want to make the push-fit, and leave the hose with a gentle sweep rather than pulling it taut. The 12 in. suits a tight closet rough-in; the 24 in. covers a replacement heater whose nipples no longer line up with the old pipe drops.
5) Is the SharkBite UR30 connector rated for the pressure on a commercial water heater supply?
Every connector in the UR30 Series is rated to 200 psi. That covers normal potable supply pressure with margin, but it is a pressure rating only, so size your thermal expansion and relief provisions as the installation code requires.
6) Why use a braided flex connector instead of hard-piping the water heater?
The flexible braided hose absorbs the offset between the heater nipples and the existing supply drops, so you skip the elbows, couplings and unions a rigid hookup needs. Fewer joints means fewer places to leak and a faster swap, and the push-fit end lets you break the connection later without cutting pipe.
7) Is the SharkBite UR30 hose stainless steel, and does it hold up in a mechanical room?
The hose is flexible braided stainless steel, with a stainless steel collet retainer in the push-fit end for added strength. The body is also re-engineered so the pipe inserts with less force than earlier SharkBite designs, which matters when you are pushing a 3/4 in. line onto a heater in a cramped closet.
