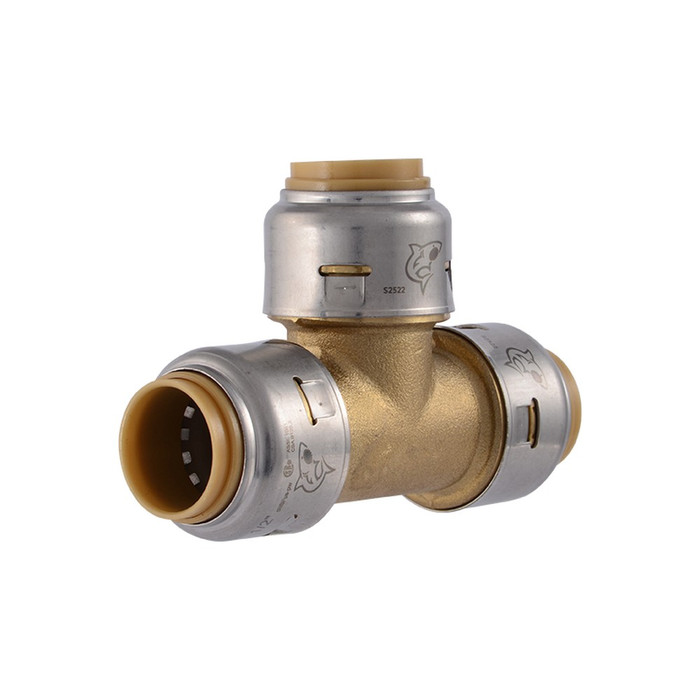

SharkBite UR17 Max Series Brass Push-to-Connect Tee, Lead-Free

SharkBite UR17 Max Series Brass Push-to-Connect Tee, Lead-Free

The SharkBite UR17 Max Series Brass Push Tee is a 3/4 in. x 3/4 in. x 3/4 in. push-to-connect fitting built for rough-in plumbers who need a fast, reliable branch connection without soldering, crimping, or gluing. This Max Series family is available across models including UR362 and UR370, sharing the same high-performance DZR lead-free brass body with a stainless steel retainer, rated to 200°F and 250 psi. The tee connects PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe of the same size, and it can be installed on wet lines and pressure tested immediately, making it well suited for both permanent installations and temporary field repairs in tight spaces.

Key Features

• Trade Size: 3/4 in. x 3/4 in. x 3/4 in. tee configuration for branching same-size pipe runs.
• Durable Construction: High-performance DZR lead-free brass body with a stainless steel retainer for added strength and durability.
• Push-to-Connect: No special tools, crimping, soldering, or glue required — insertion effort is reduced by half compared to first-generation SharkBite fittings, with double the burst pressure.
• Multi-Pipe Compatibility: Connects PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe of the same size — no tube liner required for PEX.
• Wet-Line Ready: Can be installed on wet lines and pressure tested immediately, minimizing system downtime.
• Rotatable Fitting: Can be rotated after installation to help align pipe runs in tight spaces.
• Rated Performance: Rated to 200°F and 250 psi for demanding rough-in applications.
• Removable: Can be easily removed using a disconnect clip, disconnect tongs, or pro disconnect tool for future serviceability.

Certifications & Compliance

• Lead-Free DZR Brass Construction
• 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT
• 5-year warranty when properly installed with HDPE SDR-9

Technical Specifications

• Trade Size: 3/4 in. x 3/4 in. x 3/4 in.
• Material: High-performance DZR lead-free brass with stainless steel retainer
• Pressure/Temperature Rating: 250 psi at 200°F
• Compatible Pipe: PEX, copper, CPVC, PE-RT, HDPE SDR-9
• Packaging: 6 ea
• Model Options: UR362, UR370

Typical Applications

• Residential and Commercial Rough-In Plumbing
• Branch Connections on Mixed-Material Pipe Runs
• Emergency and Temporary Repairs on Active Water Lines
• Renovation Work in Tight Wall or Ceiling Cavities
• New Construction Water Distribution Systems

Why SharkBite?

SharkBite's Max Series push-to-connect tees combine a lead-free DZR brass body with a stainless steel retainer to deliver a fitting that installs fast, tests immediately on wet lines, and stands behind a 25-year warranty on PEX, copper, CPVC, and PE-RT installations. For plumbers who need a dependable, code-grade branch connection without torches, crimpers, or adhesives, the UR17 Max Series tee removes the guesswork from rough-in work while remaining serviceable with standard SharkBite disconnect tools.
