4030/4030T Series

LCN 4030T-3054 Hold Open Clip Mounts in track to provide Hold Open function Hold open point controlled by clip location Requires 4030T-3034H

LCN 4030-419 Parallel Arm Flush Panel Adapter Provides horizontal mounting surface for PA or CUSH shoe on single rabetted or flush frame

LCN 4030-419 Parallel Arm Flush Shoe Required for parallel Arm mounting

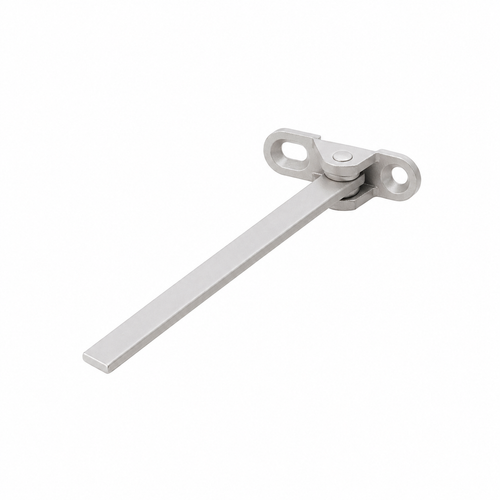

LCN 4030-79LR Long Rod and Shoe 4030 Series Grade 1 Long Rod and Shoe

LCN 4030-3049 Hold Open Arm Non-handed Mounts hinge side, top jamb or parallel Arm (62PA required) Hold open adjustable at shoe Optional

LCN 4030-3077L Long Arm Non-handed Includes long rod and shoe, 4030-79LR for top jamb mount with deep reveals Optional

LCN 4030-72MC Metal Cover (MC) Non-Handed

LCN 4030-18PA Drop Plate Required for parallel Arm mounting where top rail is less than 5" (127 mm), measured from the stop Requires 1 3⁄4" (44 mm) minimum

LCN 4030-18TJ Drop Plate Required for top jamb mounting where head frame is less than 2 1⁄4" (57 mm) or flush ceiling condition exists Requires 1 1⁄2" (38 mm) minimum

LCN 4030-30 Cush Shoe Support Provides anchorage for fifth screw used with CUSH Arms where reveal is less than 3 1⁄16" (78 mm)

LCN 4030-3049 Hold Open Arm Non-handed Mounts hinge side, top jamb or parallel Arm (62PA required) Hold open adjustable at shoe Optional

LCN 4030-3049CNS Hold Open CUSH-N-STOP Arm Non-handed Provides Hold Open function with templated stop/hold open points Handle controls Hold Open function Optional

LCN 4030-3049EDA Hold Open Extra Duty Arm Handed Arm, provides Hold Open function adjustable at shoe Optional

LCN 4030-3049L Hold Open Long Arm Non-handed Includes long head and tube, 4030-3048L for top jamb mount with deep reveals Optional

LCN 4030-3049SCNS Spring Hold Open CUSH-N-STOP Arm Non-handed For abusive applications Features solid forged steel main Arm and forearm with Spring loaded stop in the soffit shoe Handle controls Hold Open function Optional

LCN 4030-3077CNS CUSH-N-STOP Arm Non-handed Solid forged steel main Arm and forearm with stop in soffit shoe Optional

LCN 4030-3077EDA Extra Duty Arm Non-handed Extra duty Arm features solid forged steel main and forearm for potentially abusive installations Optional

LCN 4030-3077SCNS Spring Cush-N-Stop Arm Non-handed For abusive applications Features solid forged steel main Arm and forearm with Spring loaded stop in the soffit shoe Optional

LCN 4030-61 BLADE STOP SPACER Lowers parallel Arm shoe to clear 1⁄2" (13 mm) blade stop

LCN 4030-62A Auxiliary Shoe Requires a top rail of 7" (178 mm) Replaces -62PA for parallel Arm mounting of Regular Arm with some overhead Holder/stop Optional

LCN 4030-77 Arm and Forearm 4030 Series Grade 1 Arm and Forearm

LCN 4030-79 Rod and Shoe 4030 Series Grade 1 Long Rod and Shoe

LCN 4030-TBWMS Through Bolt Wood and Machine Screw Pack 4030 Series Grade 1 Through Bolt Wood and Machine Screw Pack

LCN 4030-TBWMS Wood and Machine Screw Pack 4030 Series Grade 1 Wood and Machine Screw Pack
