NGP 425 Saddle Threshold, 1/2" x 5" Product Features Aluminum alloy 6063, T5 temper 5" wide x 1/2" tall Typical wall thickness .162" Fluted top #10 x 1-1/2" FH zinc plated wood screws included Weight: .88 lbs./ft. Materials and Finished Aluminum...

NGP 813 Saddle Threshold Mill Aluminum, 1/4" x 8" Product Features Aluminum alloy 6063, T5 temper 8" wide x 1/4" tall Fluted top BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test Typical wall thickness .125" Weight: 1.20 lbs./ft. #10 x 1-1/2" FH...

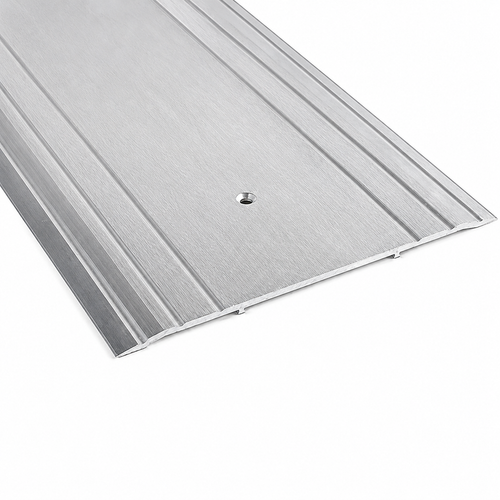

NGP 1013 1/4" x 10" Saddle Threshold Mill Aluminum Product Features Aluminum alloy 6063, T5 temper 10" wide x 1/4" tall Fluted top BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test Typical wall thickness .125" Weight: 1.63 lbs./ft. #10 x 1-1/2" FH...

NGP 413 Saddle Threshold Mill Aluminum, 1/4" x 4" Product Features Aluminum alloy 6063, T5 temper 4" wide x 1/4" tall Fluted top BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test Typical wall thickness .125" Weight: .53 lbs./ft. #10 x 1-1/2" FH...

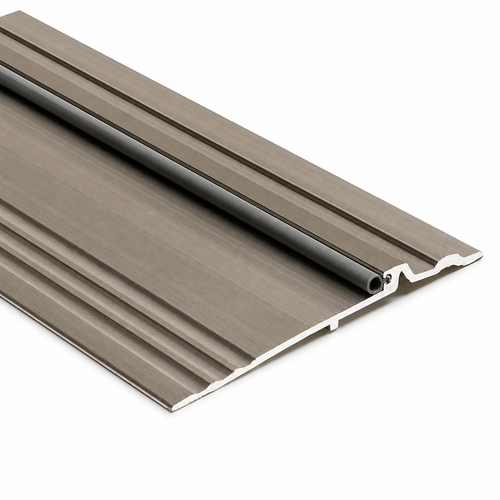

NGP 896S Bumper Seal Threshold, Silicone, Mill Aluminum, 1/2" x 5" Product Features ADA Compliant Aluminum alloy 6063, T5 temper 5" wide x 1/2" tall Fluted top Typical Wall Thickness: .105" Weight: .64 lbs./ft. #10 x 1-1/2" FH zinc plated wood screws...

NGP 950 ADA Compliant Aluminum Bumper Threshold, Mill Aluminum Product Features Aluminum alloy 6063, T5 temper 5" wide x 1/2" tall Smooth top Excellent for use with automatic door bottoms Typical Wall Thickness: .078" Weight: .50 lbs./ft. #10 x...

NGP 513 Saddle Threshold, 1/4" x 5" Product Features Aluminum alloy 6063, T5 temper 5" wide x 1/4" tall Fluted top BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test Typical wall thickness .125" Weight: .68 lbs./ft. #10 x 1-1/2" FH zinc plated...

NGP 424E Saddle Threshold Mill Aluminum, 1/2" x 4" Product Features Aluminum alloy 6063, T5 temper 4" wide x 1/2" tall Fluted top Typical wall thickness .109" Weight: .60 lbs./ft. #10 x 1-1/2" FH zinc plated wood screws included Mill finish Materials...

NGP 950V ADA Bumper Seal Threshold, 1/2 x 5 x 36 Inch - 1/4 Inch R, Vinyl Seal Product Features Aluminum alloy 6063, T5 temper 5" wide x 1/2" tall Smooth top Excellent for use with automatic door bottoms Typical Wall Thickness: .078" Weight: .50 lbs./ft...

NGP 613 1/4" x 6" Saddle Threshold Mill Aluminum Product Features Aluminum alloy 6063, T5 temper 6" wide x 1/4" tall Fluted top BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test Typical wall thickness .125" Weight: .88 lbs./ft. #10 x 1-1/2" FH...

NGP 803V Bumper Seal Threshold, Vinyl, Mill Aluminum, 1" x 5" Product Features Aluminum alloy 6063, T5 temper 5" wide x 1" tall Typical wall thickness .100" Weight: .80 lbs./ft. #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with...

NGP 884B/SV Bumper Seal Threshold, 7/8 x 2 x 36 Inch - 1/2 Inch R, Threshold Component, Vinyl Seal, Mill Aluminum Product Features Aluminum alloy 6063, T5 temper 2" wide x 7/8" tall Typical Wall Thickness: .110" Weight: .48 lbs./ft. #10 x 1-1/2" FH zinc...

NGP 425EDKB 1/2" Saddle Threshold, Dark Bronze Finish Product Features Aluminum alloy 6063, T5 temper 5" wide x 1/2" tall Fluted top Typical wall thickness .120 Weight: .80 lbs./ft. #10 x 1-1/2" FH zinc plated wood screws included DKB - Aluminum Dark...

NGP 427 Saddle Threshold Mill Aluminum, 1/2" x 7" Product Features Aluminum alloy 6063, T5 temper 7" wide x 1/2" tall Fluted top Typical wall thickness .188" Weight: 1.16 lbs./ft. #10 x 1-1/2" FH zinc plated wood screws included Mill finish Materials...

NGP 429E Saddle Threshold Mill Aluminum, 1/2" x 9" Product Features Aluminum alloy 6063, T5 temper 9" wide x 1/2" tall Fluted top Typical wall thickness .109 Weight: 1.42 lbs./ft. #10 x 1-1/2" FH zinc plated wood screws included Vinyl foot seal used...

NGP 713 1/4" x 7" Saddle Threshold Mill Aluminum Product Features Aluminum alloy 6063, T5 temper 7" wide x 1/4" tall Fluted top BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test Typical wall thickness .125" Weight: 1.01 lbs./ft. #10 x 1-1/2" FH...

National Guard Products (NGP) 896V ADA Compliant Aluminum Bumper Threshold, 1/2″ H x 5″ W Used to provide a doorstop and seal at the bottom of the door. Aluminum alloy 6063, T5 temper 5″ wide x 1/2″ tall Fluted top Typical Wall...

NGP 896VDKB 1/2" Bumper Seal Threshold, Vinyl, Dark Bronze Finish Product Features Aluminum alloy 6063, T5 temper 5" wide x 1/2" tall Fluted top Typical Wall Thickness: .125" Weight: .85 lbs./ft. #10 x 1-1/2" FH zinc plated wood screws included. Dark...

NGP 425E Saddle Threshold Mill Aluminum, 1/2" x 5" Product Features Aluminum alloy 6063, T5 temper 5" wide x 1/2" tall Fluted top Typical wall thickness .109 Weight: .80 lbs./ft. #10 x 1-1/2" FH zinc plated wood screws included Materials and...

NGP 426 1/2" x 6" Saddle Threshold Mill Aluminum Product Features Aluminum alloy 6063, T5 temper 6" wide x 1/2" tall Fluted top Typical wall thickness .175" Weight: 1.00 lbs./ft. #10 x 1-1/2" FH zinc plated wood screws included Mill finish Materials...

NGP 428E Saddle Threshold Mill Aluminum, 1/2" x 8" Product Features Aluminum alloy 6063, T5 temper 8" wide x 1/2" tall Fluted top Typical wall thickness .109 Weight: 1.20 lbs./ft. #10 x 1-1/2" FH zinc plated wood screws included Vinyl foot seal used...

NGP 430EDKB Saddle Threshold Dark Bronze, 1/2" x 10" Product Features Aluminum alloy 6063, T5 temper 10" wide x 1/2" tall Fluted top Typical wall thickness .109 Weight: 1.59 lbs./ft. #10 x 1-1/2" FH zinc plated wood screws included Vinyl foot seal used...

NGP 653 Offset Threshold, 1/2" x 5-1/2" Product Features Aluminum alloy 6063, T5 temper 5-1/2" wide x 1/2" tall Fluted top Typical Wall Thickness: .125" Weight: .78 lbs./ft. #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB...

NGP 913 Saddle Threshold Mill Aluminum, 1/4" x 9" Product Features Aluminum alloy 6063, T5 temper 9" wide x 1/4" tall Fluted top BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test Typical wall thickness .125" Weight: 1.41 lbs./ft. #10 x 1-1/2" FH...
