SHRINK-WRP 2 LR BODY-CV-GSK
Manufacturer Resources
Product Specs
- Application:
- For Use with Rigid/IMC Conduit
- Number Of Batteries:
- 0
- Product Group:
- Conduit & Fittings
- Product Type:
- Conduit Body - Series A - Rigid/IMC
- Department:
- Electrical
- Product Subgroup:
- Conduit Bodies
- Product Material:
- Aluminum Die Cast
Red Dot DALR-6-CG – Frequently Asked Questions

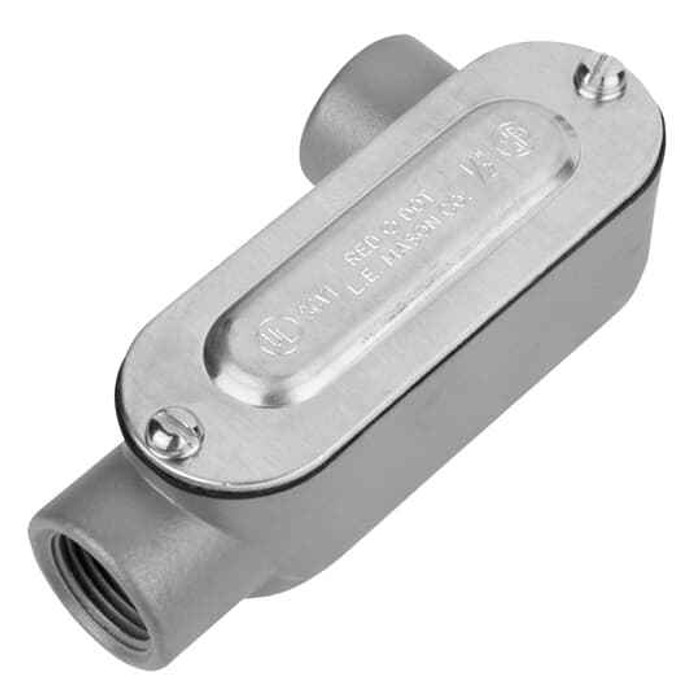

1) What type of conduit does the Red Dot DALR-6-CG conduit body fit?
The DALR-6-CG is built for rigid and IMC conduit, with threaded hubs that thread onto those conduit types. It is not intended for EMT, which uses setscrew or compression connectors rather than threaded ends.
2) Does the Red Dot DALR-6-CG come with a cover and gasket, or do I order those separately?
Cover and gasket are included with the DALR-6-CG, so it ships as a complete LR body assembly. Nothing extra to buy for the closure, though you will still need your own conduit and any sealing compound or locknuts the run calls for.
3) What does the LR in the Red Dot DALR-6-CG mean, and when would I use it instead of an LB or LL?
LR is a Form 8 style pull body where the opening turns to the right as you face the cover. Use an LR when the conduit has to turn right at a wall or corner; an LL turns left, and an LB turns back into the wall behind the body. The function is purely geometry, so pick the letter that matches the direction your run has to break.
4) Is the Red Dot DALR-6-CG metal or plastic?
Die cast aluminum. That makes it suitable for exterior and damp-location runs where a nonmetallic body would not be accepted, and it keeps the metallic raceway path continuous through the fitting.
5) Will the Red Dot DALR-6-CG work with aluminum rigid conduit as well as steel?
Yes. The body is die cast aluminum with threaded hubs for rigid and IMC, so it threads onto either steel or aluminum rigid conduit of the matching trade size. On exterior steel runs, aluminum against galvanized steel is common practice, but in wet or corrosive locations some specs call for matching metals, so check the job spec if dissimilar metal contact is a concern.
6) What part number do I give my distributor for the Red Dot shrink-wrapped LR body with cover and gasket?
Order Red Dot DALR-6-CG. That is the manufacturer part number for the LR conduit body supplied with cover and gasket, packaged shrink-wrapped as a single unit.
